In the era of the Internet of Things, communication between smart devices has become particularly important. Whether it is smart homes, industrial automation, or remote monitoring, efficient and stable data transmission between devices is key. Serial transparent transmission technology acts like an “invisible bridge,” silently supporting communication between these devices. Today, we will discuss serial transparent transmission technology and see how it simplifies and enhances communication between devices.
1. What is Serial Transparent Transmission?
Serial transparent transmission refers to the process of converting serial data sent by a Remote Terminal Unit (RTU) into IP packets sent by a server over an IP network, enabling monitoring of on-site conditions. As the name suggests, transparent transmission means “transparent transfer.” In serial transparent transmission, data is transmitted from the sender to the receiver intact, as if through an invisible “data line” or “serial line.” During this process, the serial transparent transmission technology does not process the transmitted data; it simply treats it as a set of binary data and perfectly transmits it to the destination node. For example, if we want to send a temperature value via serial, the traditional non-transparent mode might require sending a series of complex commands, but in the serial transparent mode, we only need to send the temperature value directly, and the serial transparent module will automatically handle the data transmission without requiring us to write complex control commands.

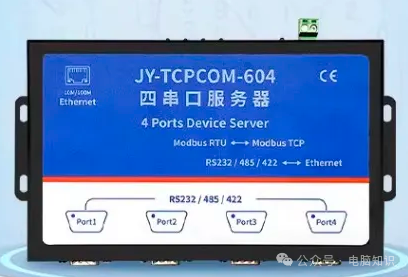

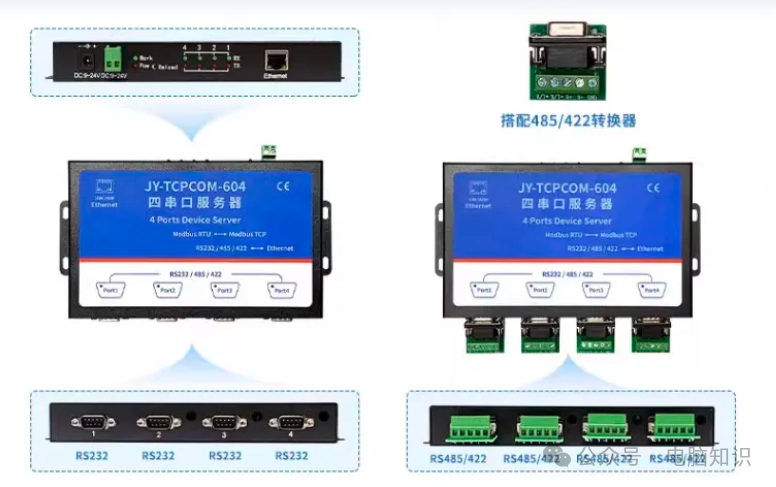

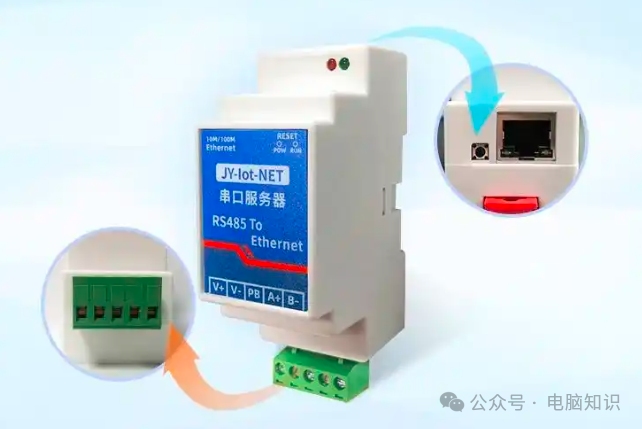

To monitor on-site conditions, the server needs to communicate with the RTU. However, the RTU can only communicate via serial, while the server requires an IP network for communication. Thus, establishing a connection between the two becomes a challenge. This issue can be resolved by configuring serial transparent transmission technology. One end of the device connects to the RTU via serial, while the other end connects to the server via the IP network. After configuring the serial transparent function, the serial data sent by the RTU is encapsulated into IP packets, which are then transmitted to the server over the IP network. The server can also decapsulate the IP packets sent by the server into serial data and then transmit it to the RTU via serial, enabling the server to monitor on-site conditions.
2. Working Principle of Serial Transparent Transmission
The working principle of serial transparent transmission technology is not complex. It mainly relies on the collaboration between the serial module and the MCU (Microcontroller). Once the serial module is connected to the MCU, it sends the data that the MCU wants to transmit to the receiving end in a transparent manner, without processing the data itself. During data transmission, the serial transparent transmission technology encapsulates the serial data into a format suitable for wireless transmission (such as ZigBee, Bluetooth, etc.) and then sends it wirelessly. The receiving end receives the data and decapsulates it back into the original serial data for device use.
3. Advantages of Serial Transparent Transmission
1. Simplified Programming: With serial transparent transmission technology, developers do not need to worry about complex wireless communication protocol stacks and can focus solely on processing serial data. This significantly reduces development difficulty and improves development efficiency.
2. Modular Design: Serial transparent transmission modules typically feature a highly modular design, making it easy to integrate them into various devices. When a change in communication method is needed, only the corresponding serial transparent transmission module needs to be replaced, without requiring large-scale modifications to the device.
3. Revitalizing Old Devices: For some older devices that may not have built-in wireless communication capabilities, adding a serial transparent transmission module can easily enable wireless communication, giving new life to old devices.
4. Application Scenarios of Serial Transparent Transmission
1. Smart Homes: In smart home systems, various smart devices (such as smart bulbs, smart sockets, etc.) can exchange data with the central control system through serial transparent transmission technology, enabling remote control and status monitoring.
2. Industrial Automation: In the field of industrial automation, serial transparent transmission technology can be used for remote monitoring and control of PLCs (Programmable Logic Controllers). By connecting the PLC to a remote monitoring system via a wireless data terminal, real-time monitoring and adjustment of the production process can be achieved.
3. Remote Monitoring: In security monitoring, environmental monitoring, and other fields, serial transparent transmission technology can be used for remote data collection and transmission. For example, in environmental monitoring, data collected by sensors can be transmitted in real-time to the monitoring center via serial transparent transmission technology, allowing for timely action to be taken.
5. Implementation Methods of Serial Transparent Transmission Technology
There are various methods to implement serial transparent transmission technology, one common method is using ZigBee modules. ZigBee modules feature low power consumption and self-organizing network capabilities, making them very suitable for communication in IoT devices. Through serial transparent transmission technology, we can connect ZigBee modules to MCUs, enabling direct data transmission between remote devices and the central node. Additionally, there are specialized serial transparent transmission modules, such as the A40 series industrial wireless transparent transmission modules from Zeyao Technology. These modules are developed based on specific wireless communication protocols (such as ZigBee 2007/Pro/3.0 protocol specifications), allowing users to complete wireless communication product development with just an understanding of serial communication.
6. Conclusion
Serial transparent transmission technology plays an increasingly important role in communication between IoT devices due to its efficiency, stability, and flexibility. It acts like an “invisible bridge,” silently supporting communication between devices, making our lives and work more convenient and efficient. With the continuous development of IoT technology, serial transparent transmission technology will also usher in broader application prospects. Let us look forward to it creating more miracles in the future!
