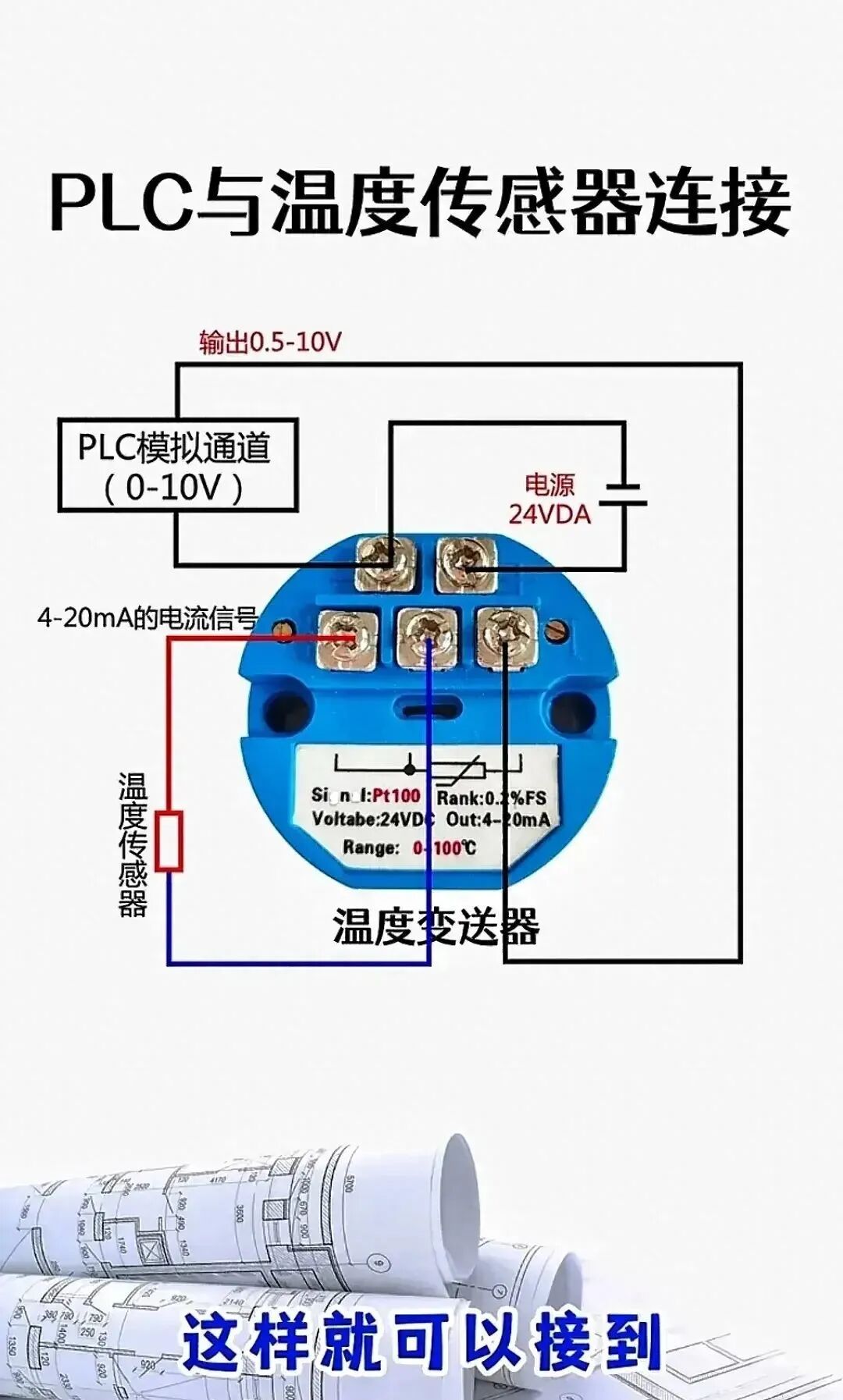

1. Wiring of PLC and Temperature Sensor

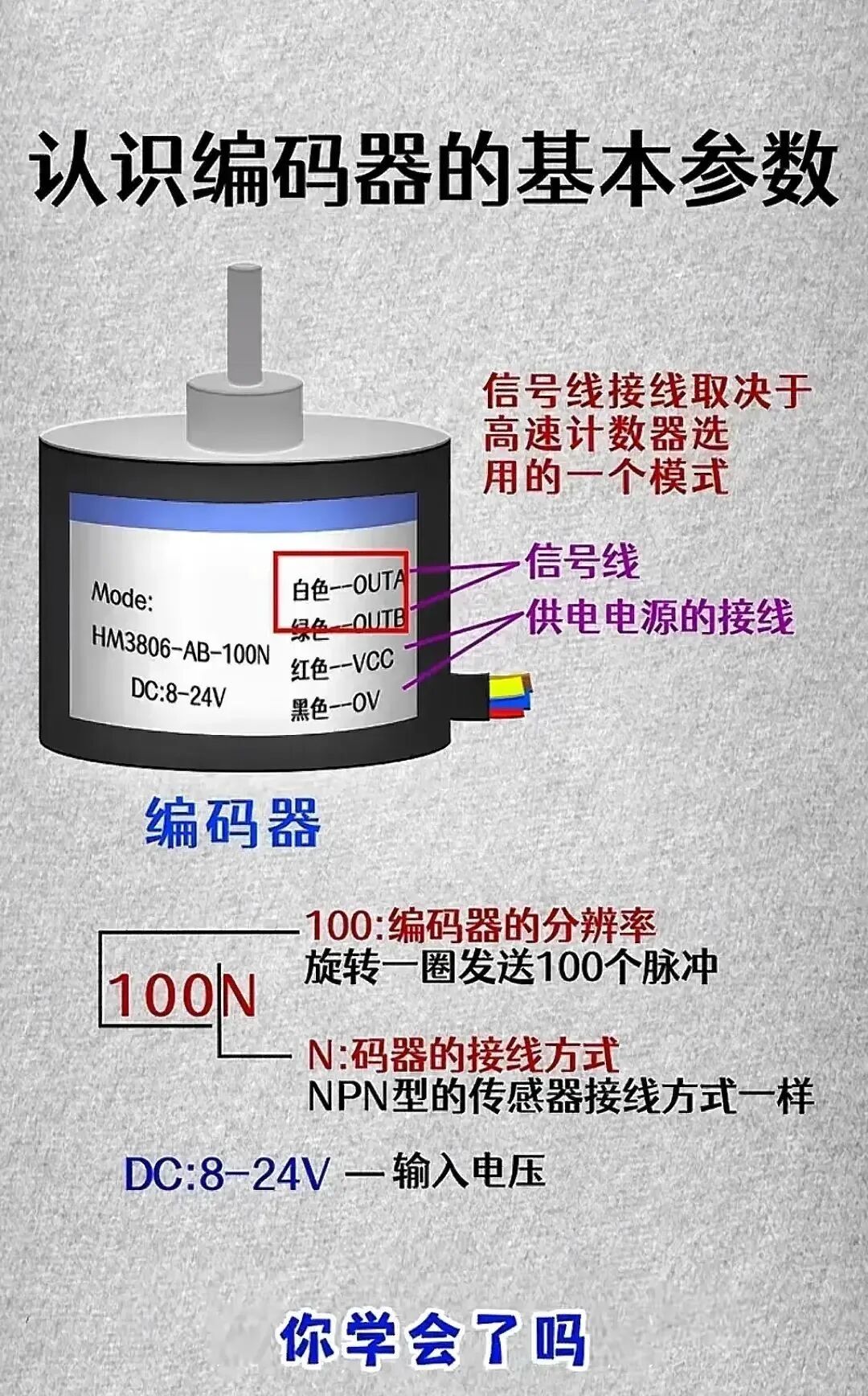

2. Understanding the Basic Parameters of Encoders

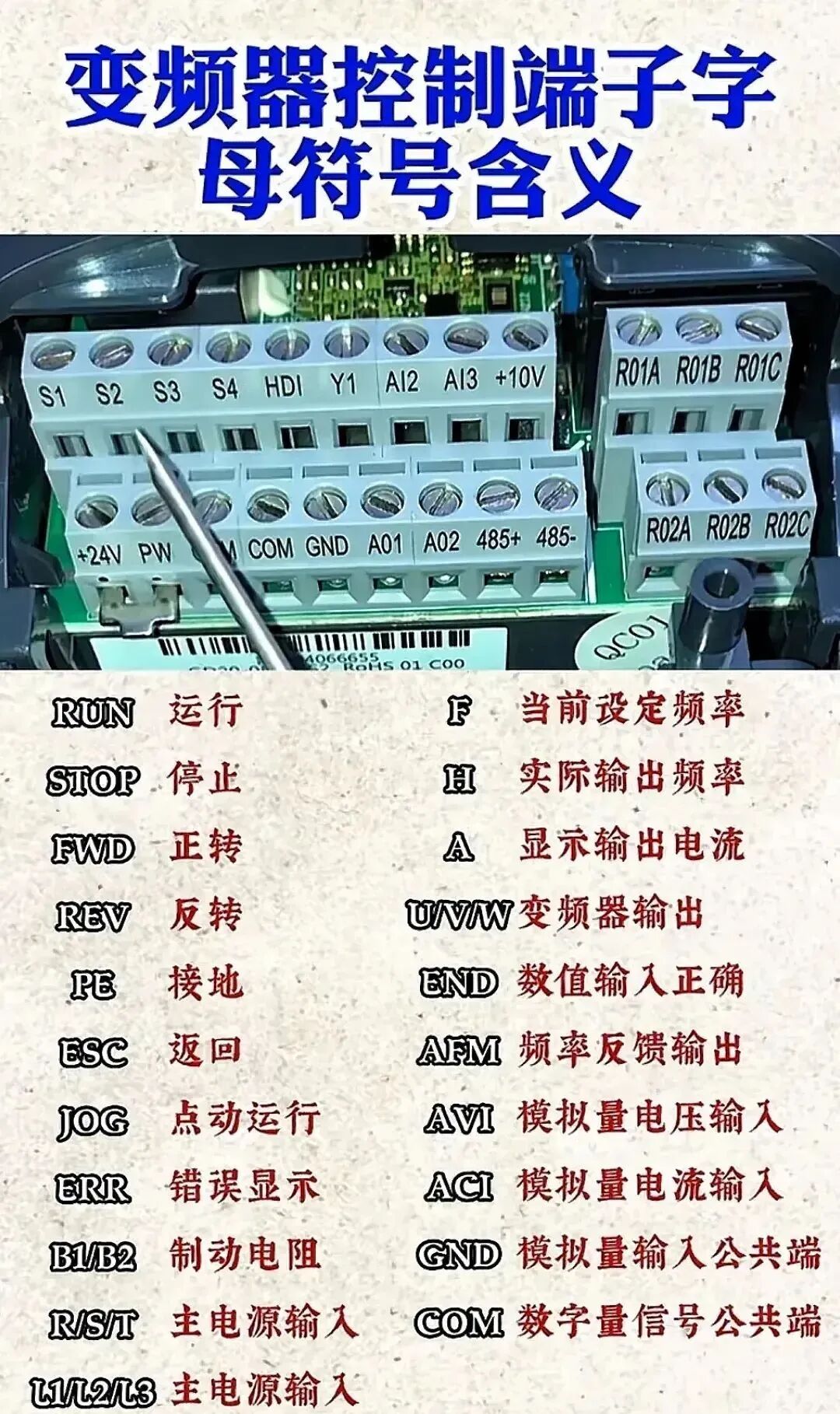

3. Meaning of Letter Symbols for Inverter Control Terminals

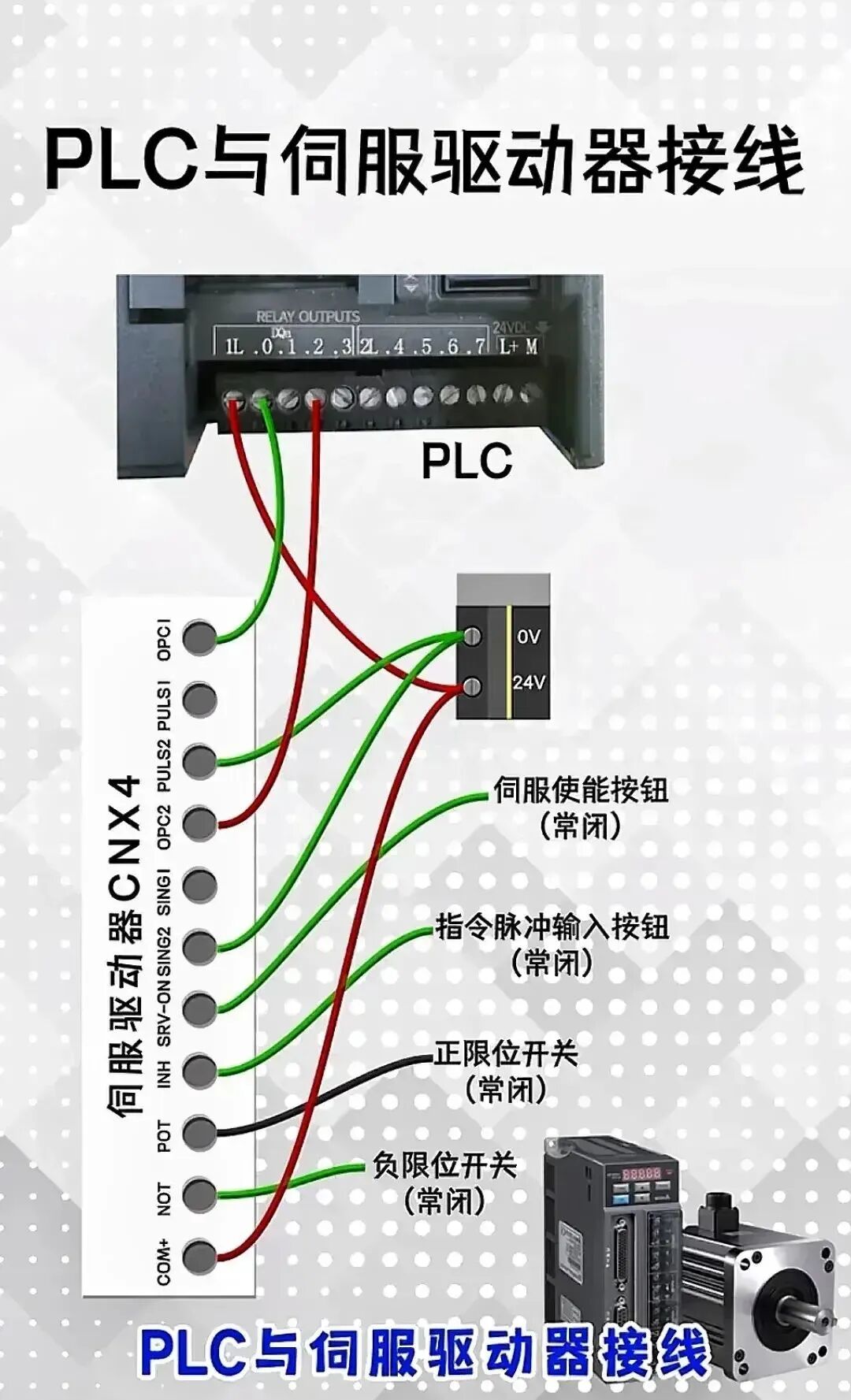

4. Wiring of PLC and Servo Drive

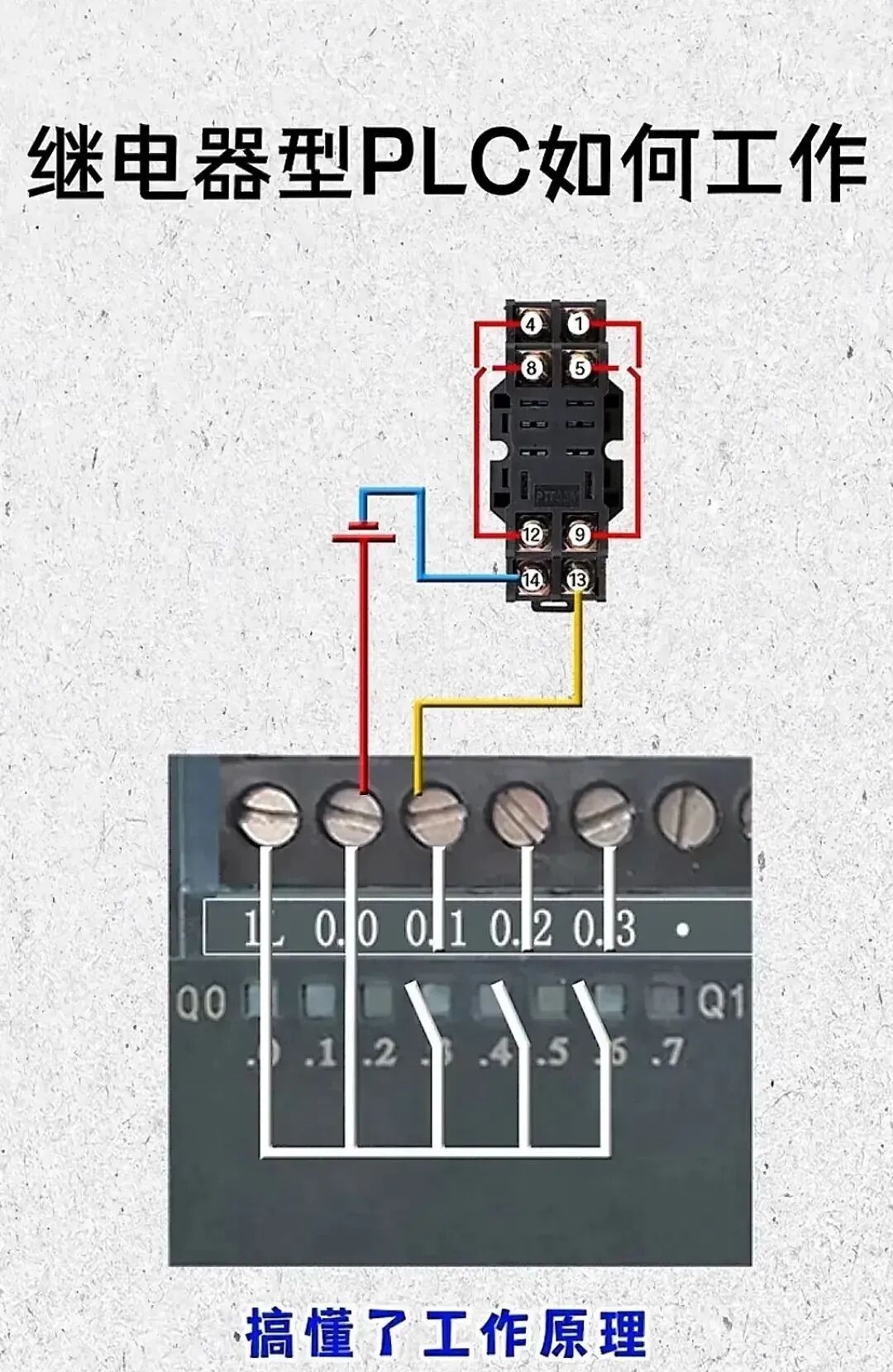

5. Wiring Diagram of Relay Type PLC Operation

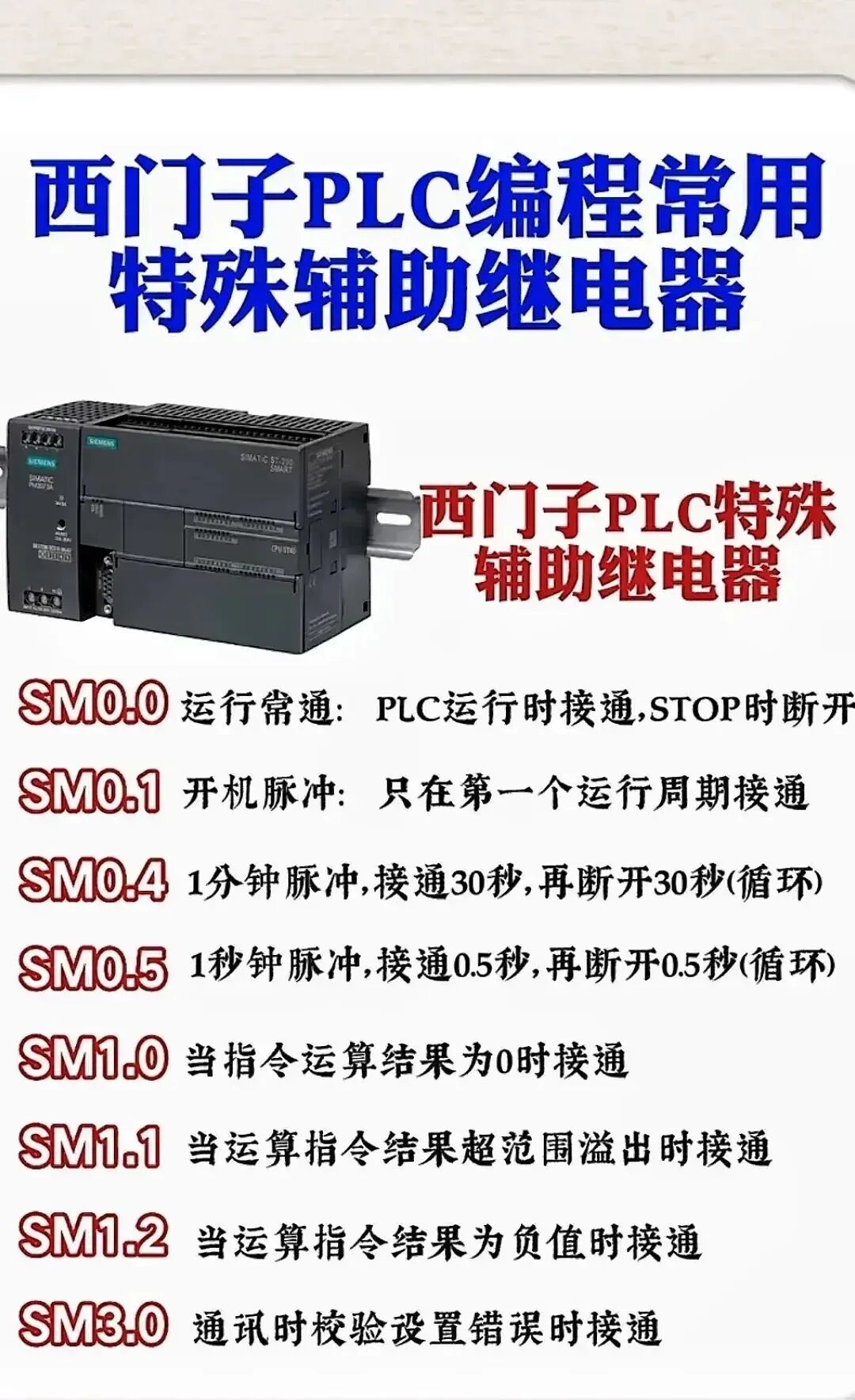

6. Common Special Auxiliary Relays Used in Siemens PLC Programming

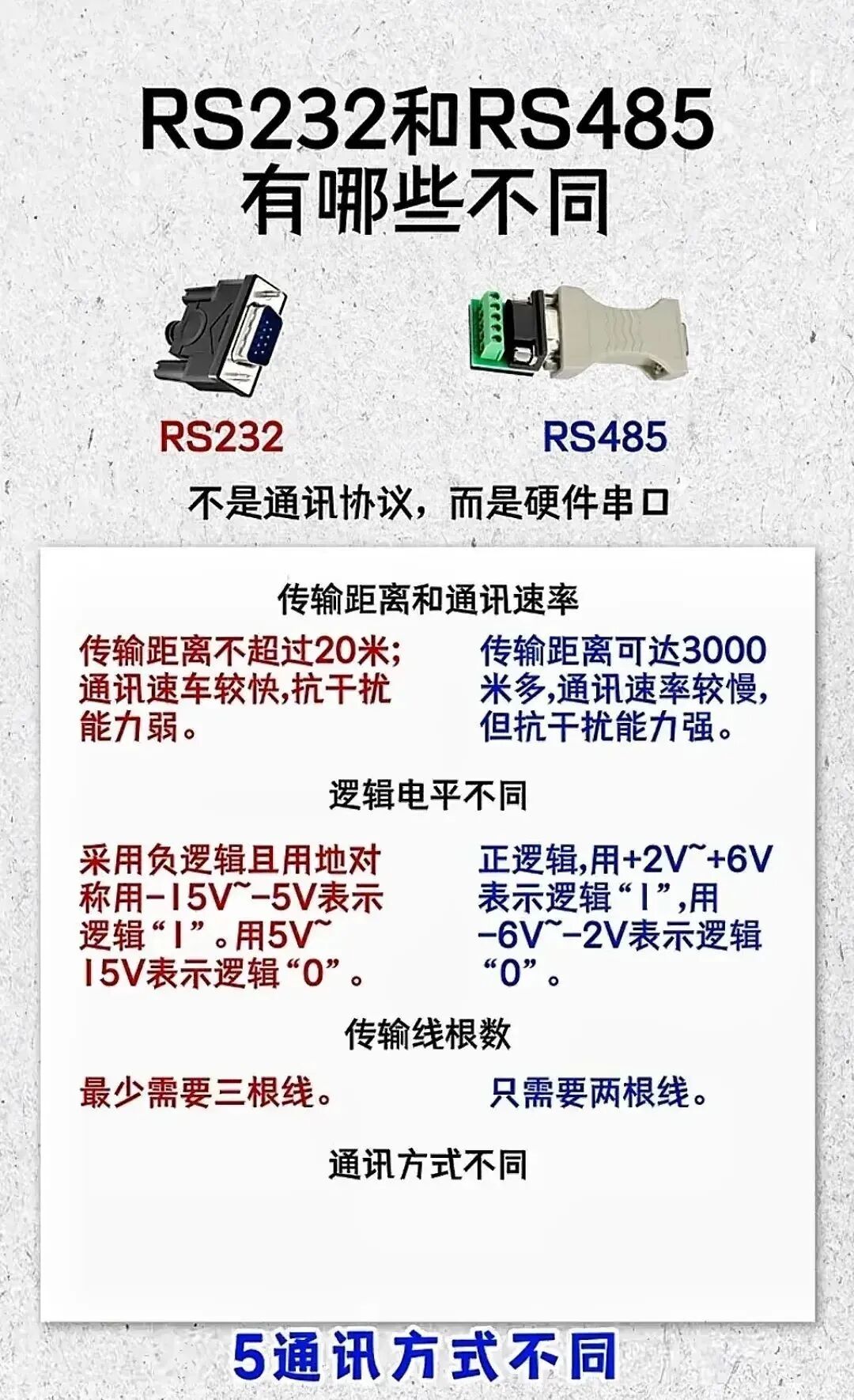

7. Differences Between RS232 and RS485

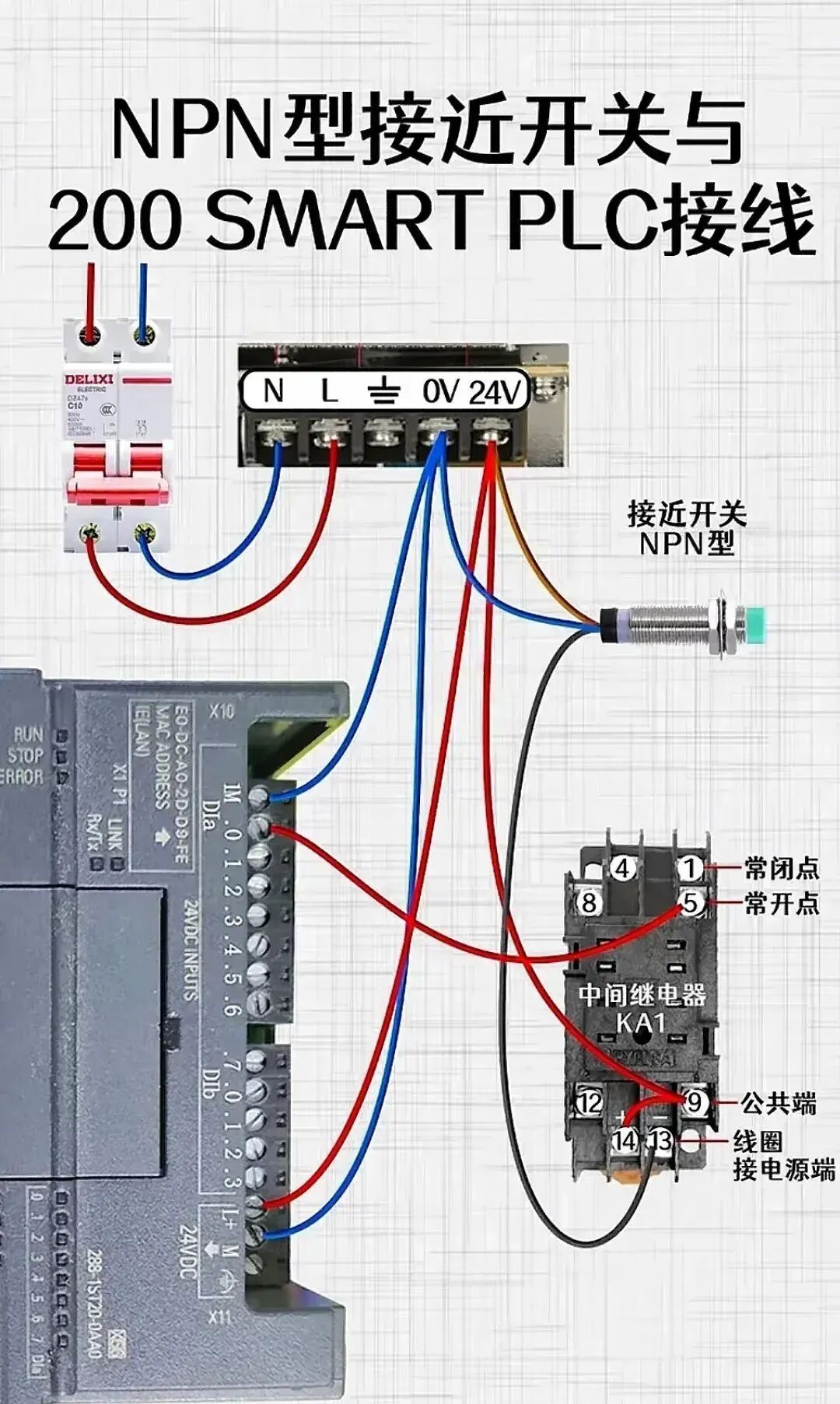

8. Wiring of NPN Proximity Switch and 200SMART PLV

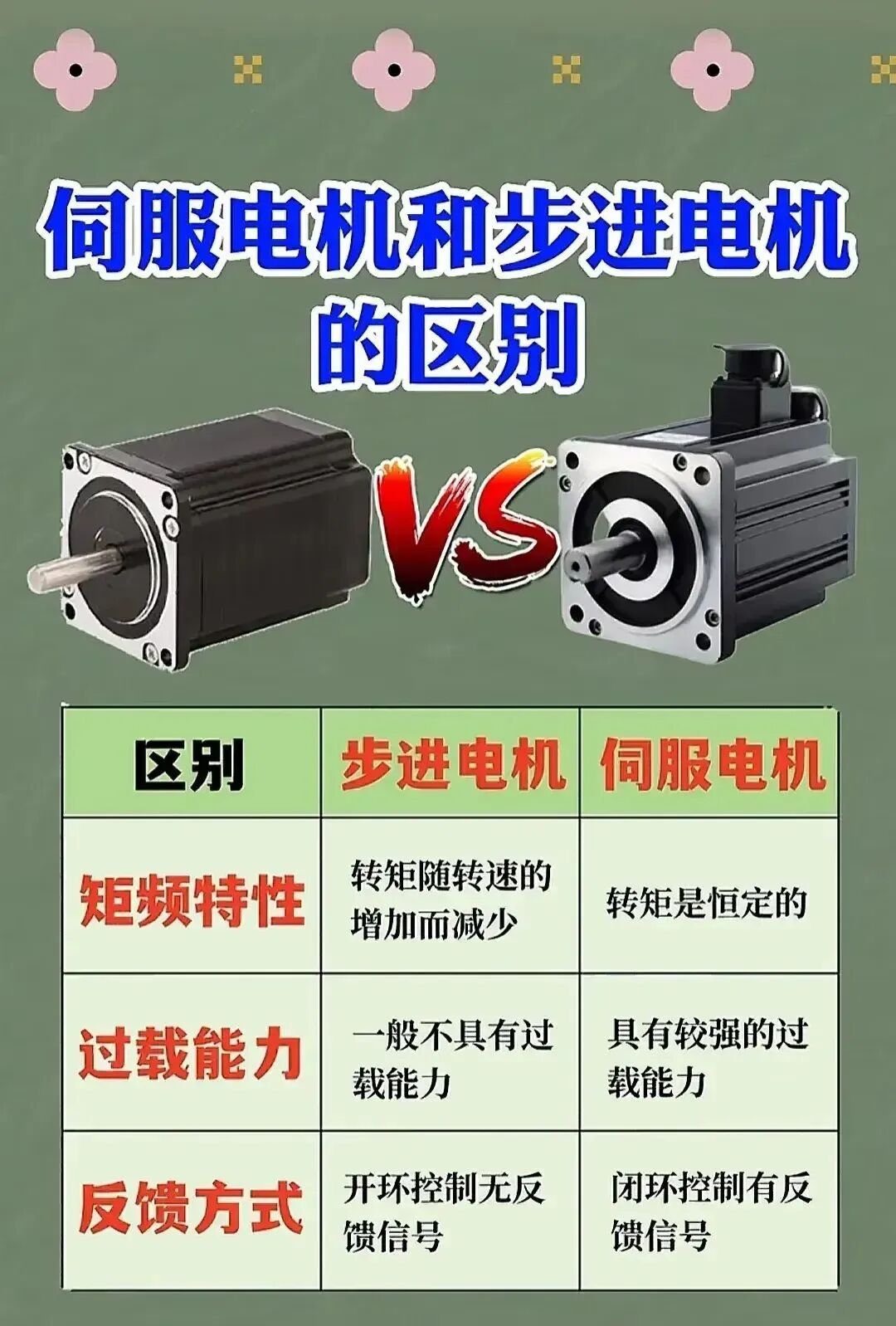

9. Differences Between Servo Motors and Stepper Motors

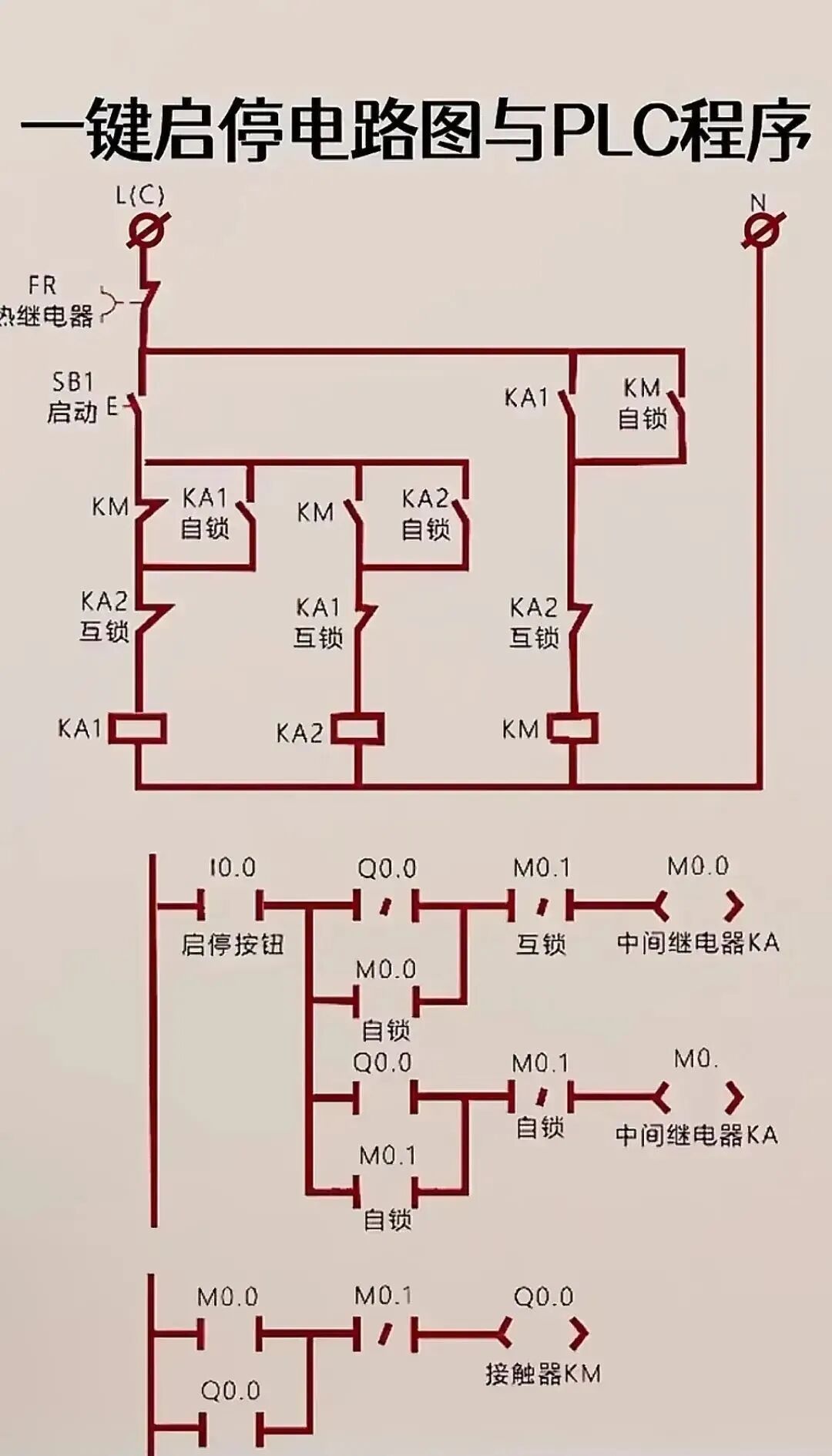

10. One-Key Start-Stop Circuit Diagram and PLC Program

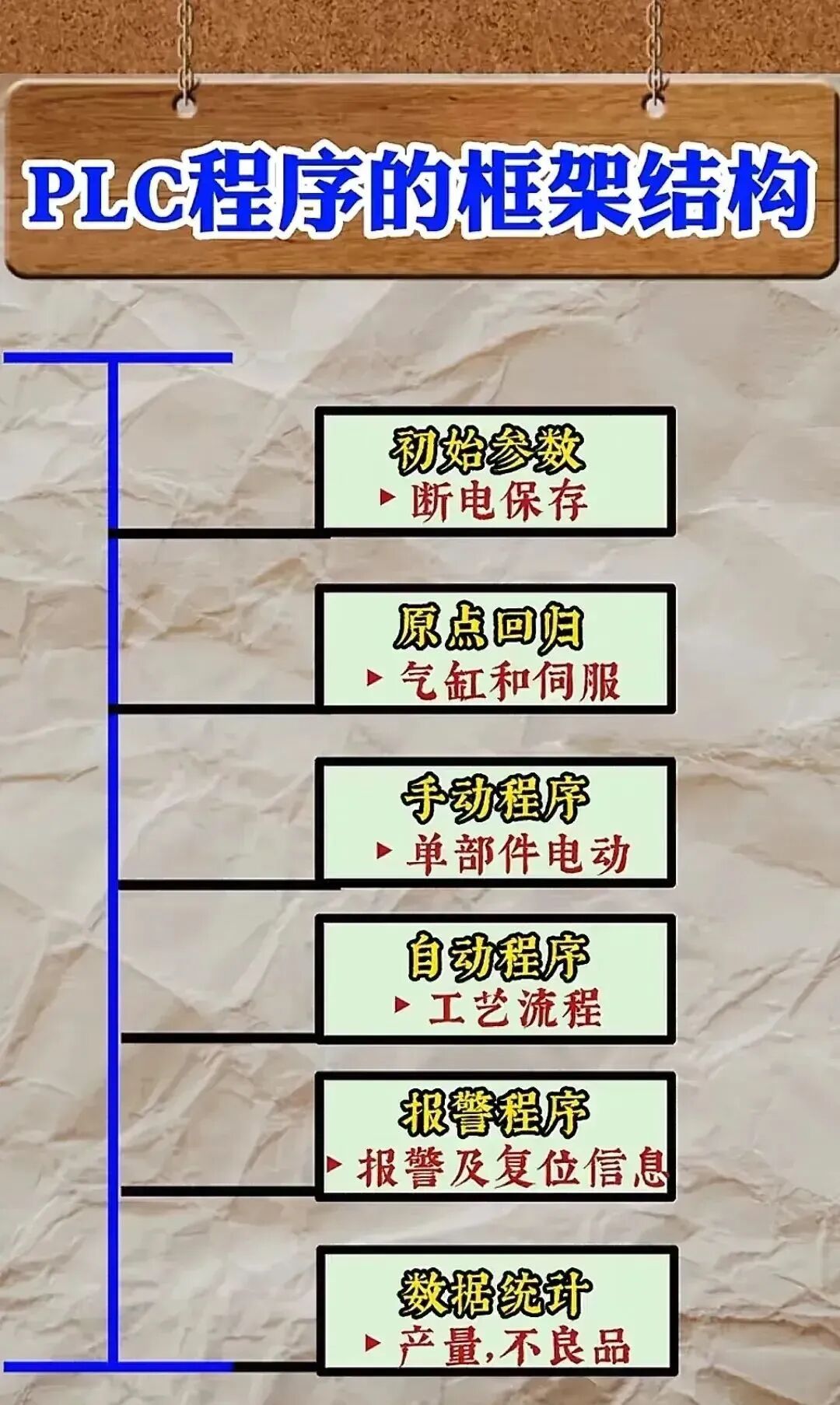

11. Framework Structure of PLC Programs

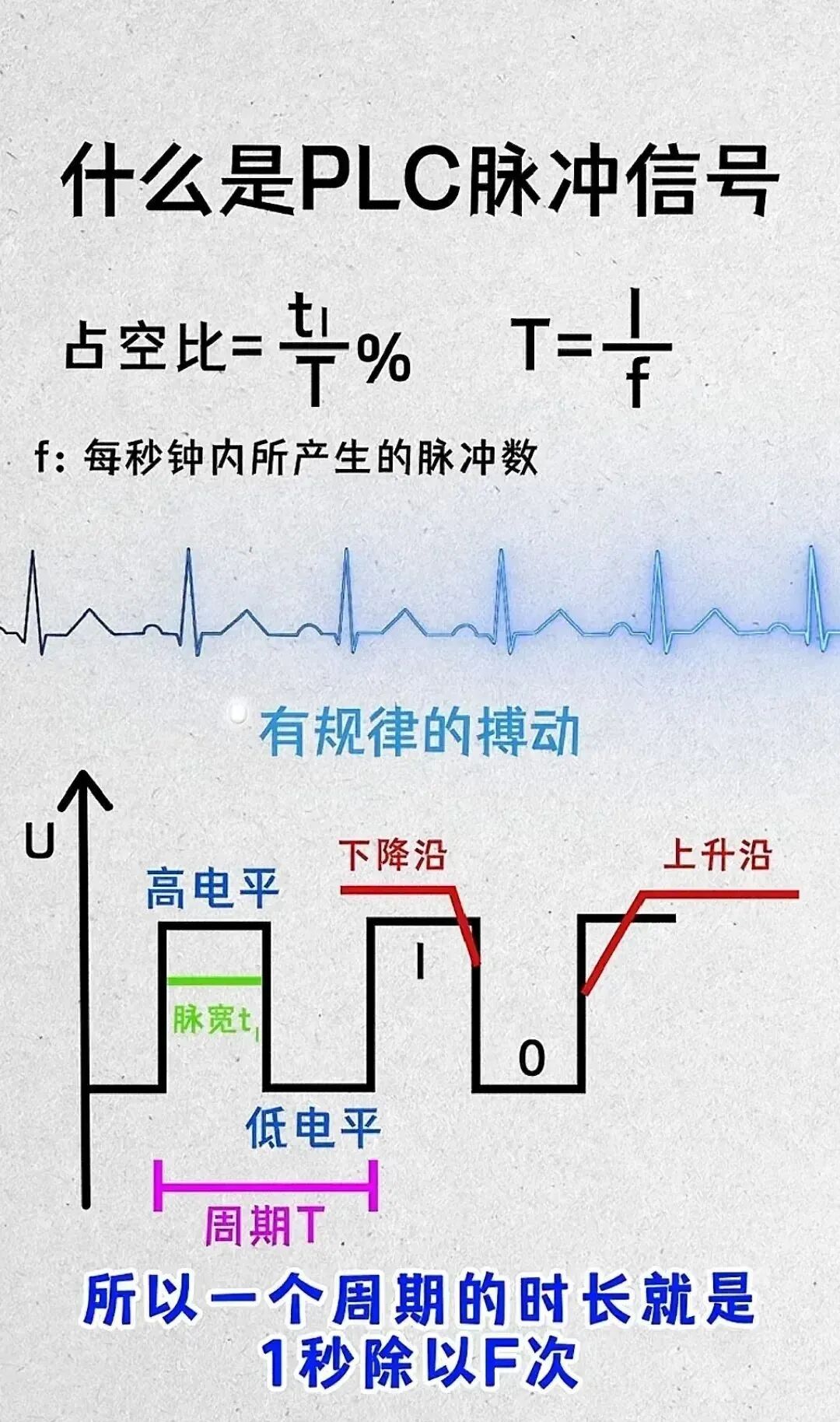

12. What is a PLC Pulse Signal

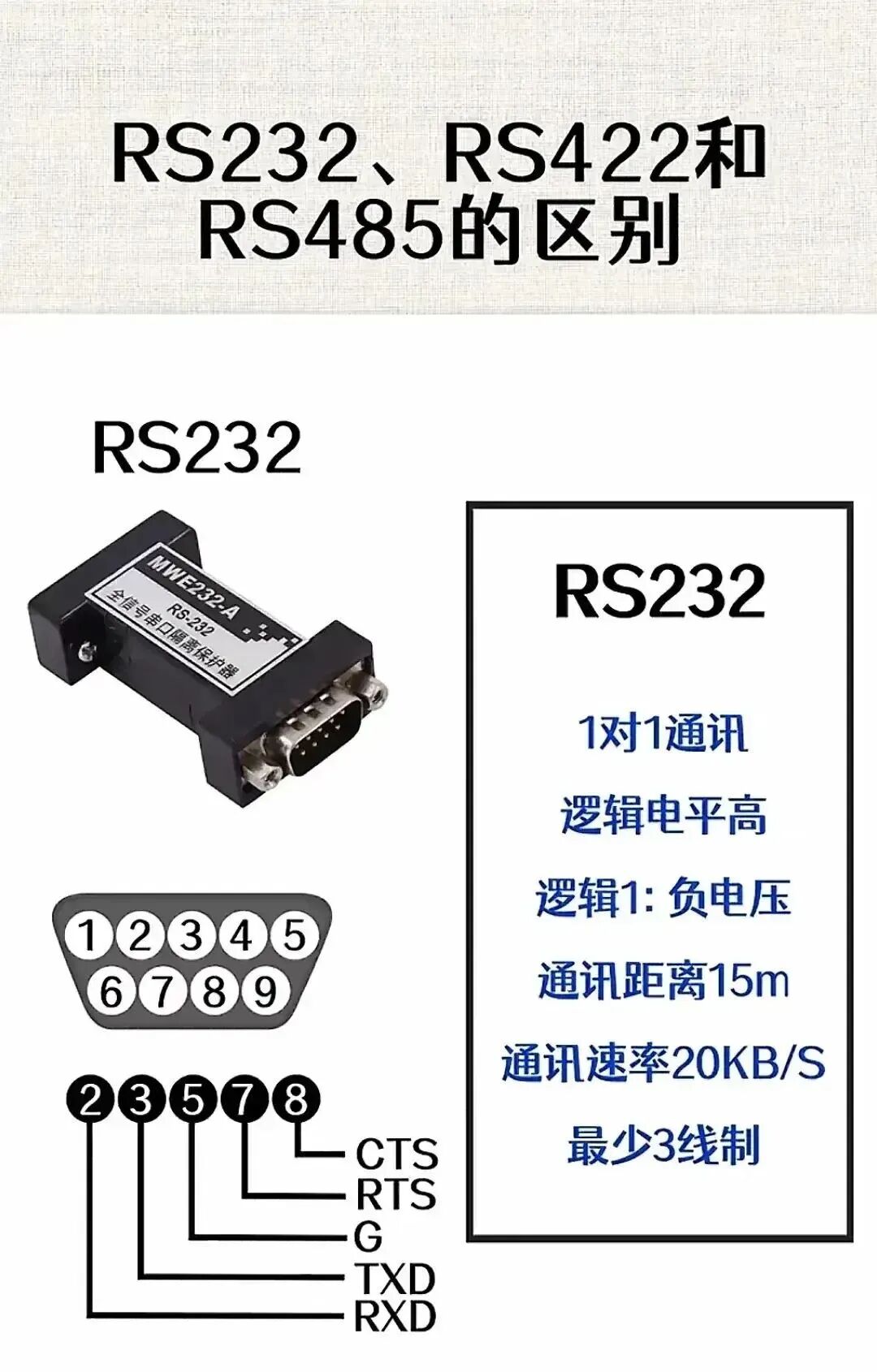

13. Differences Between RS232, RS422, and RS485

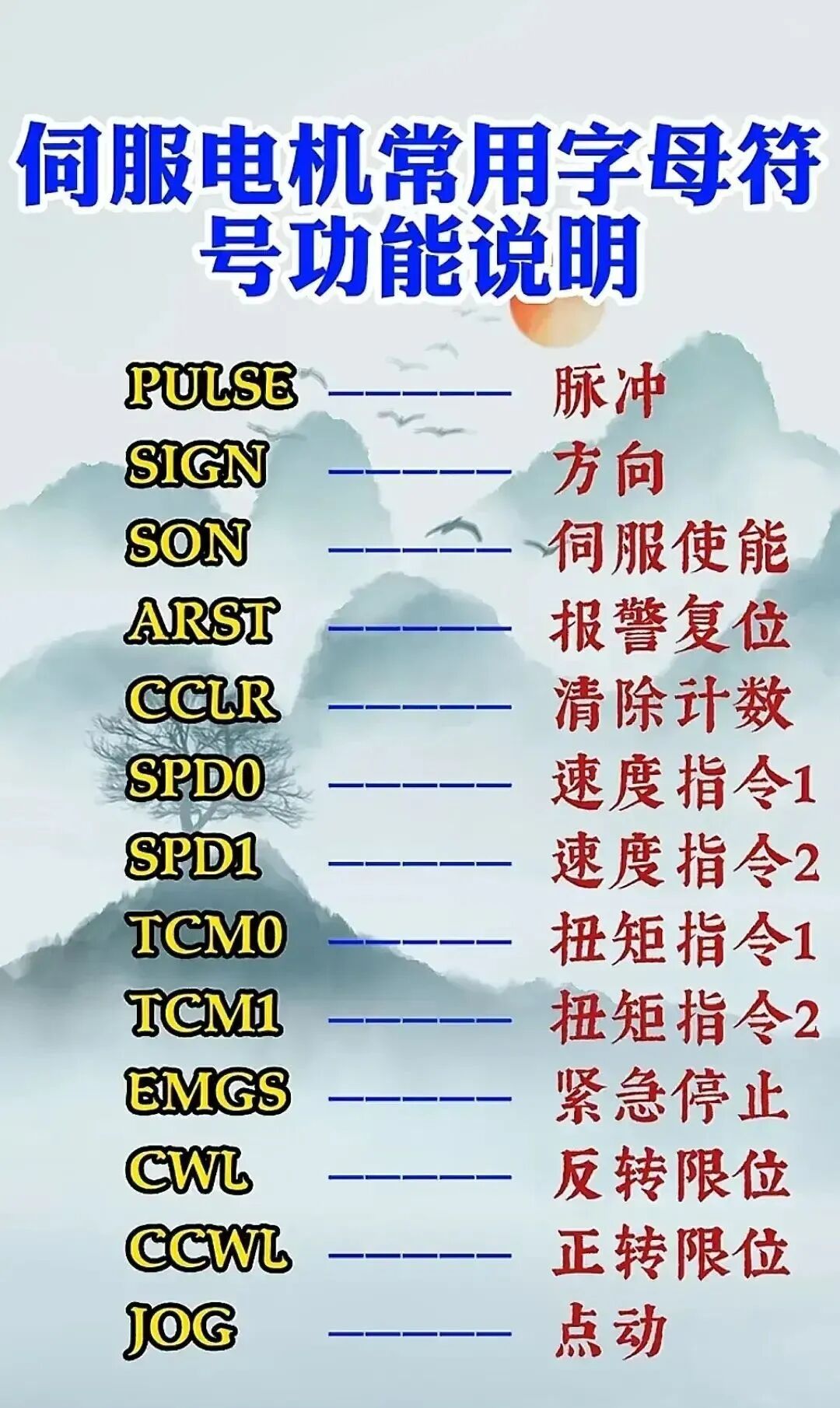

14. Function Description of Common Letter Symbols for Servo Motors

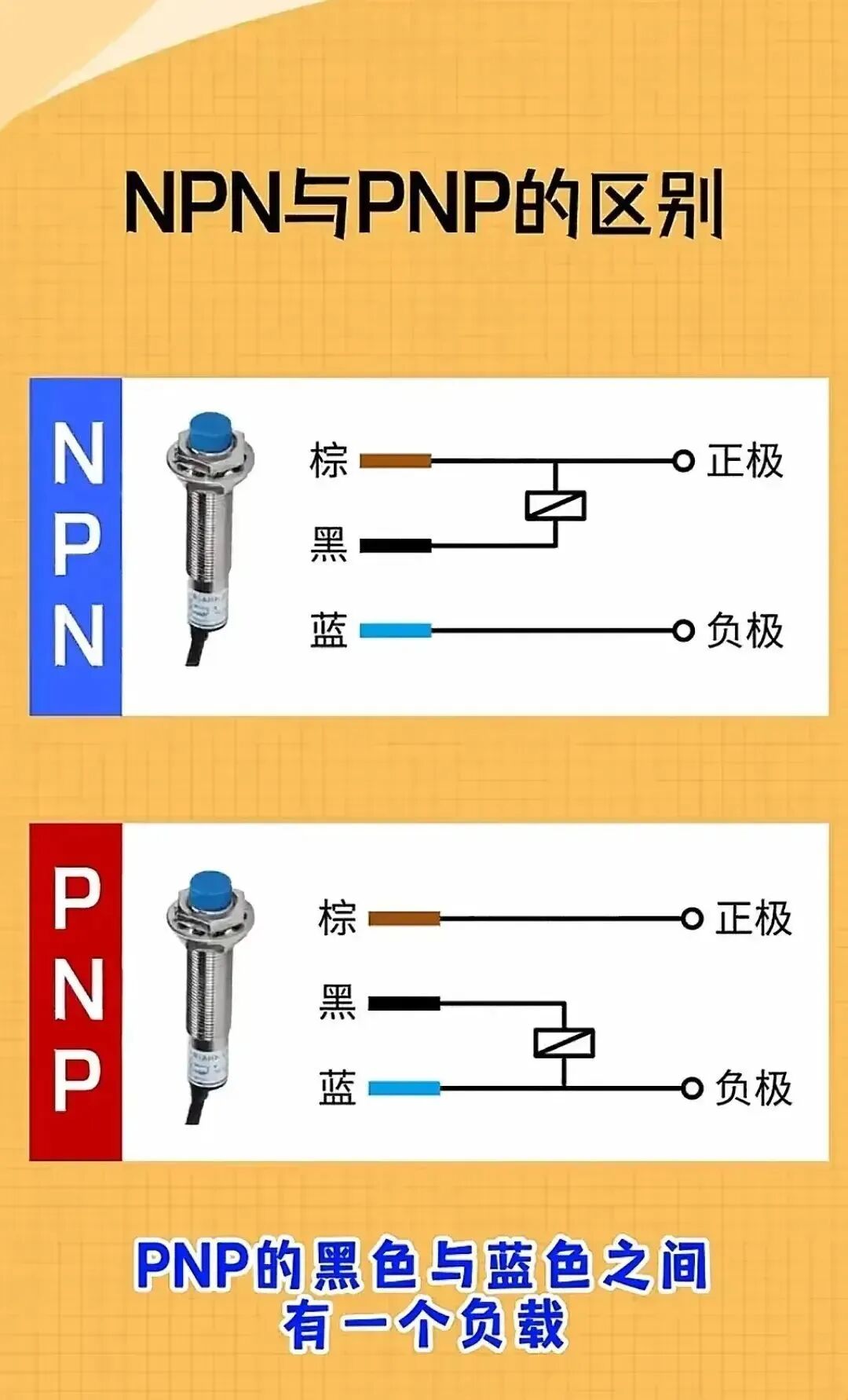

15. Differences Between NPN and PNP

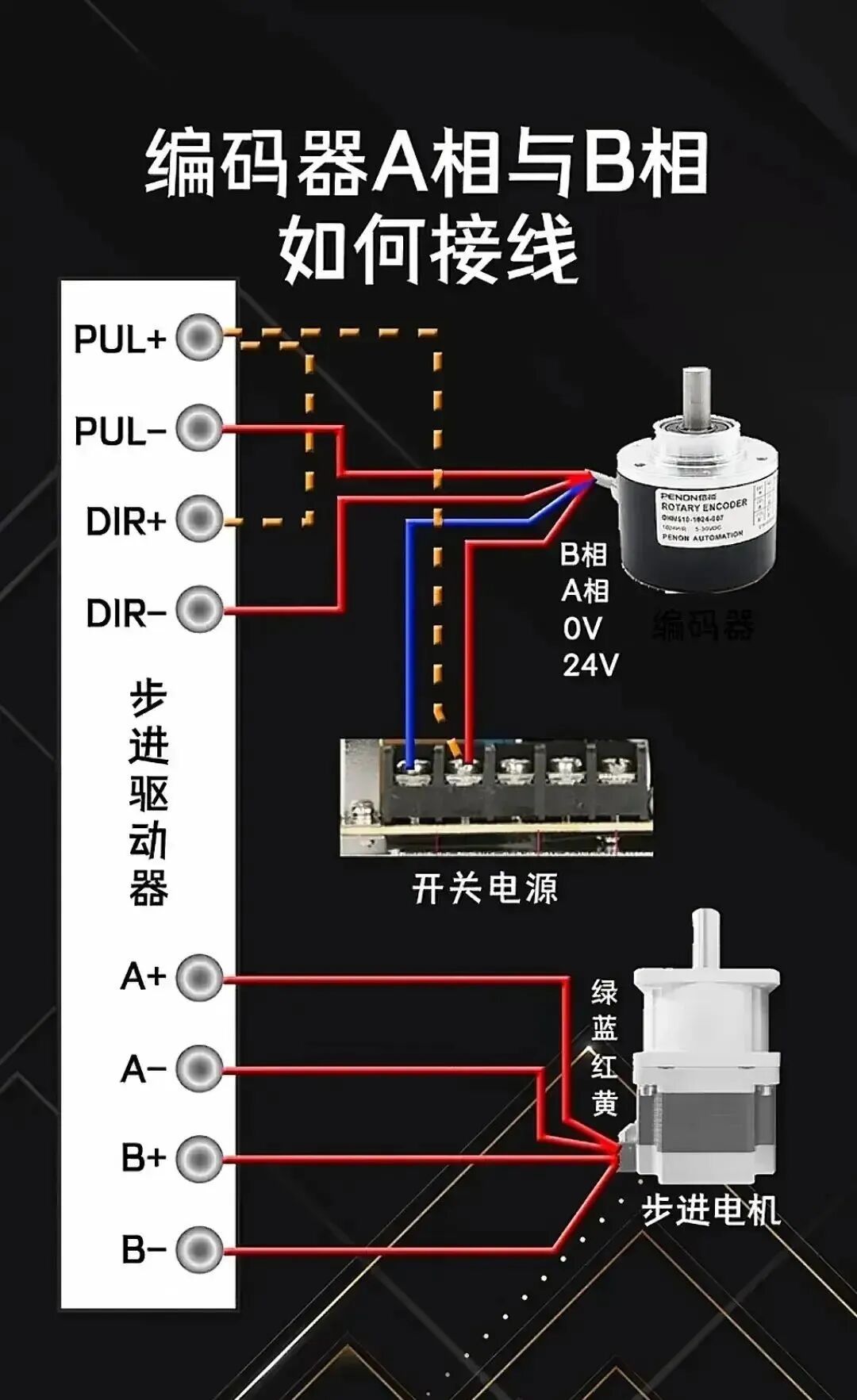

16. How to Wire Encoder A Phase and B Phase

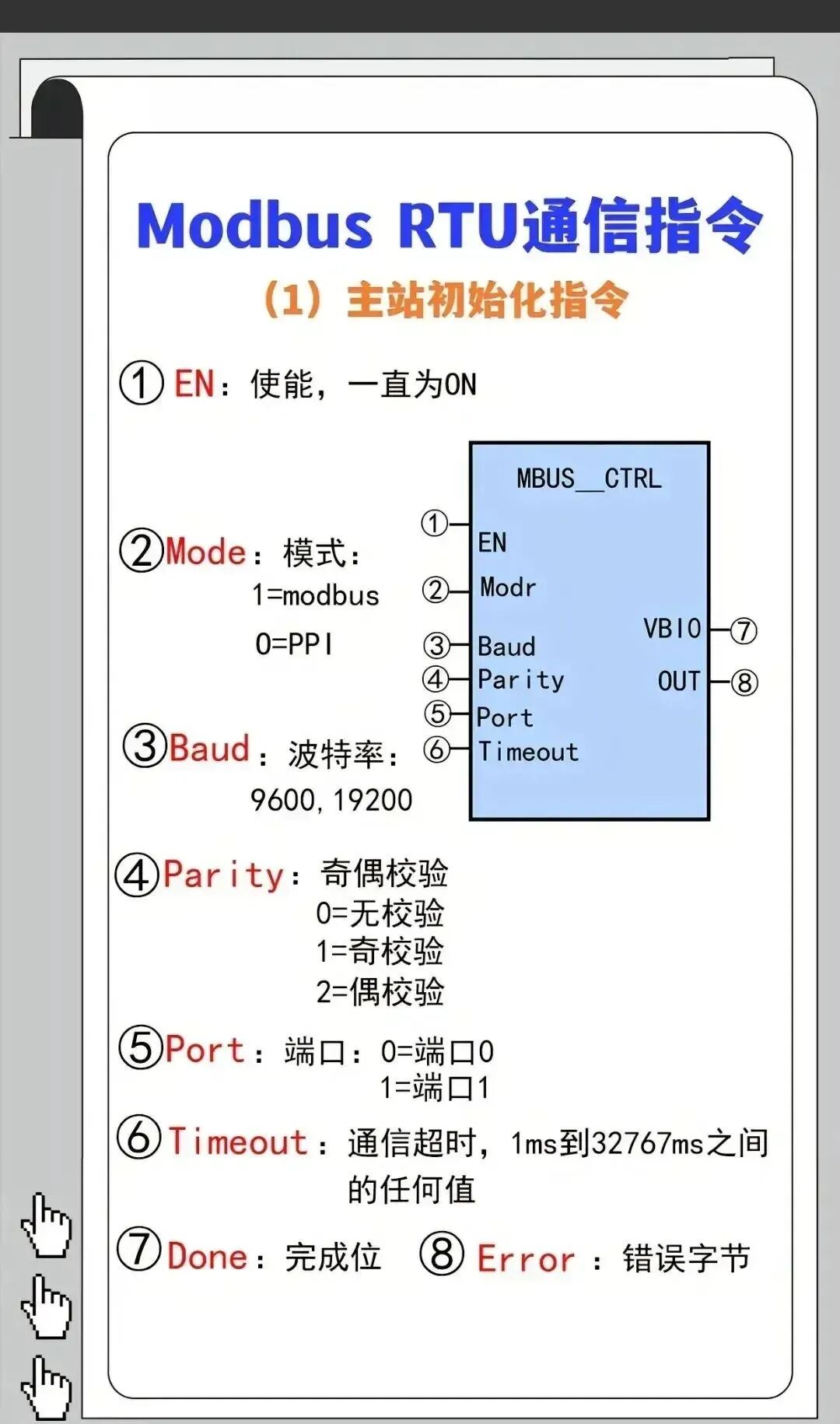

17. Modbus RTU Communication Commands

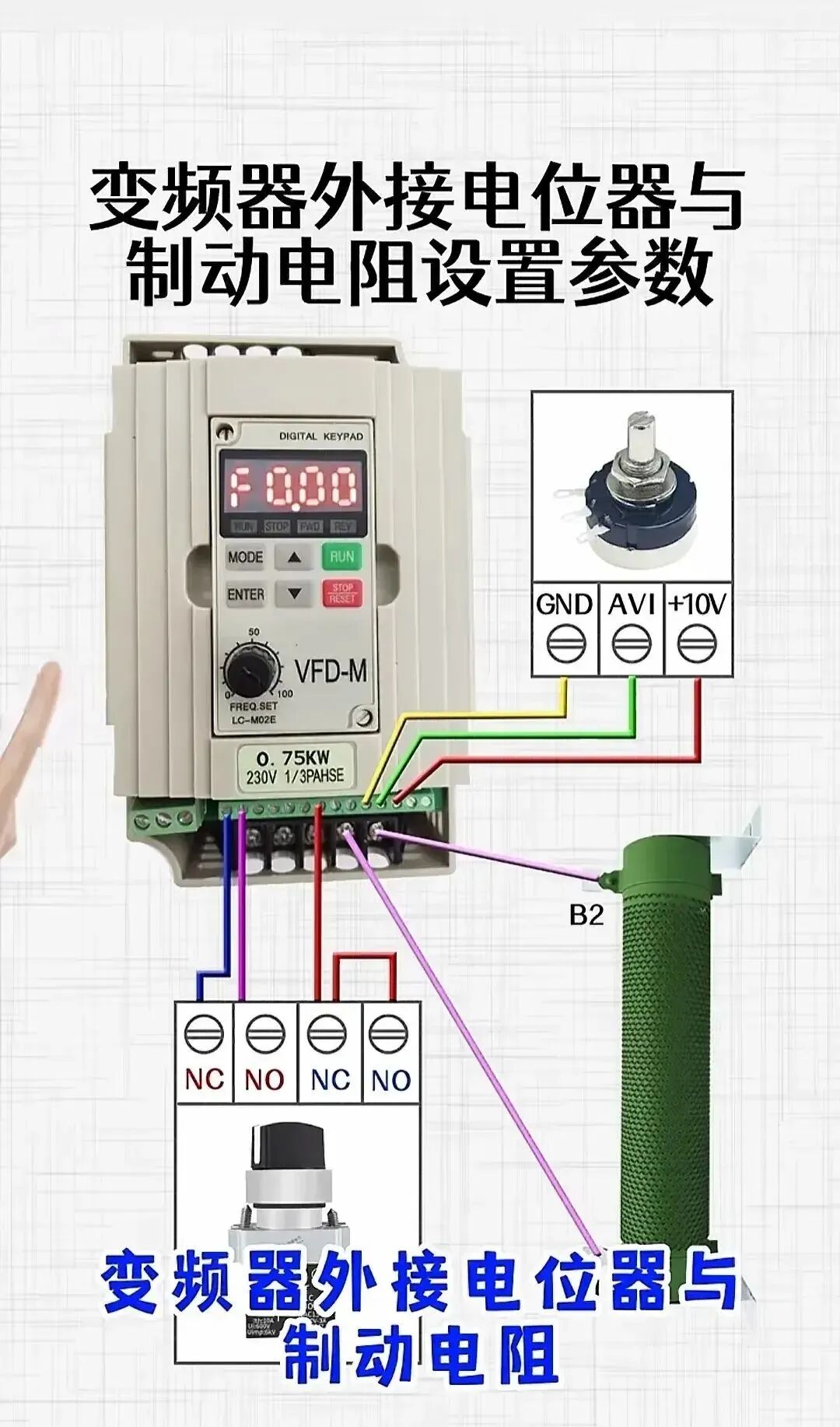

18. External Potentiometer and Braking Resistor Parameter Settings for Inverters

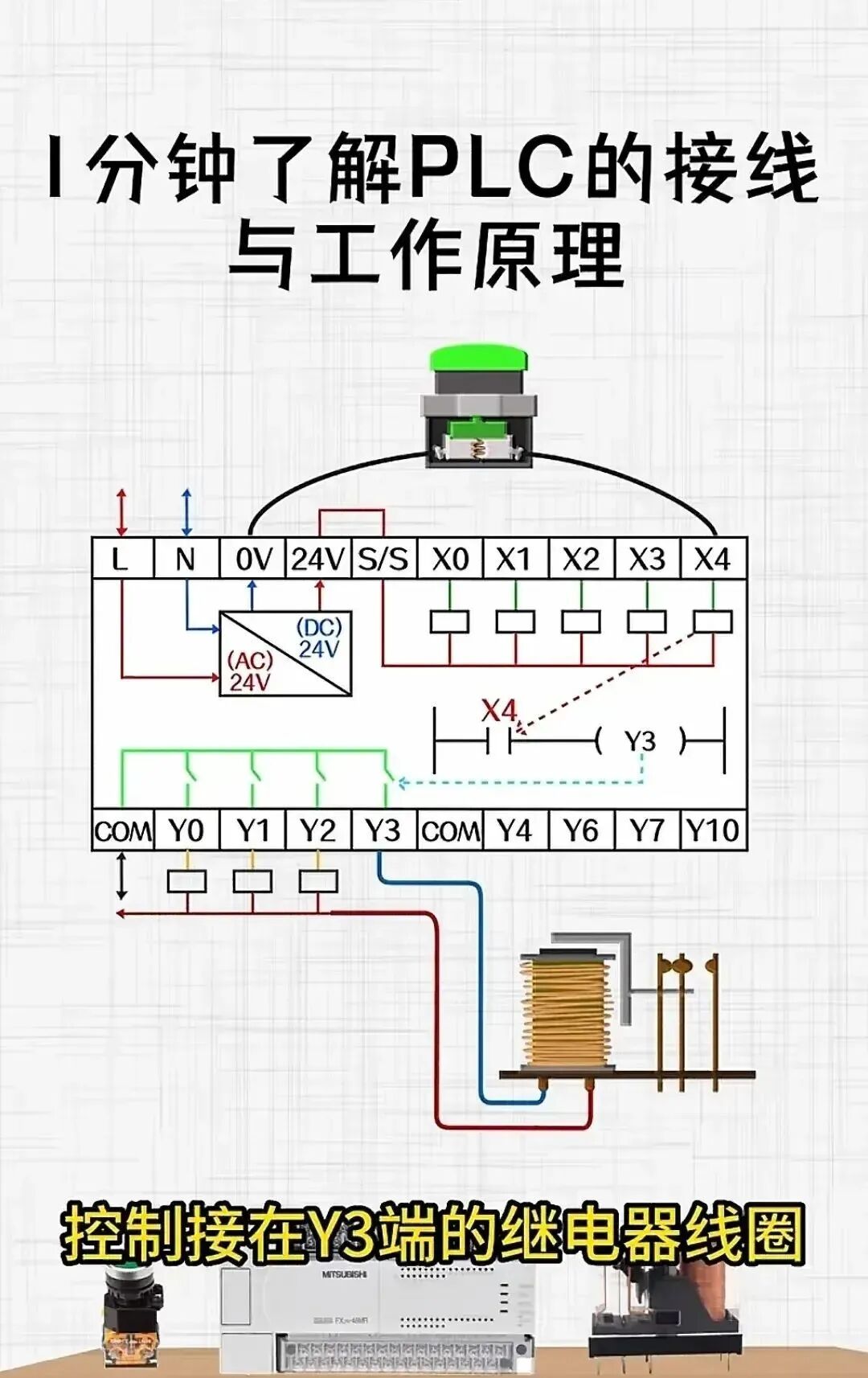

19. Understanding PLC Wiring and Working Principles in One Minute

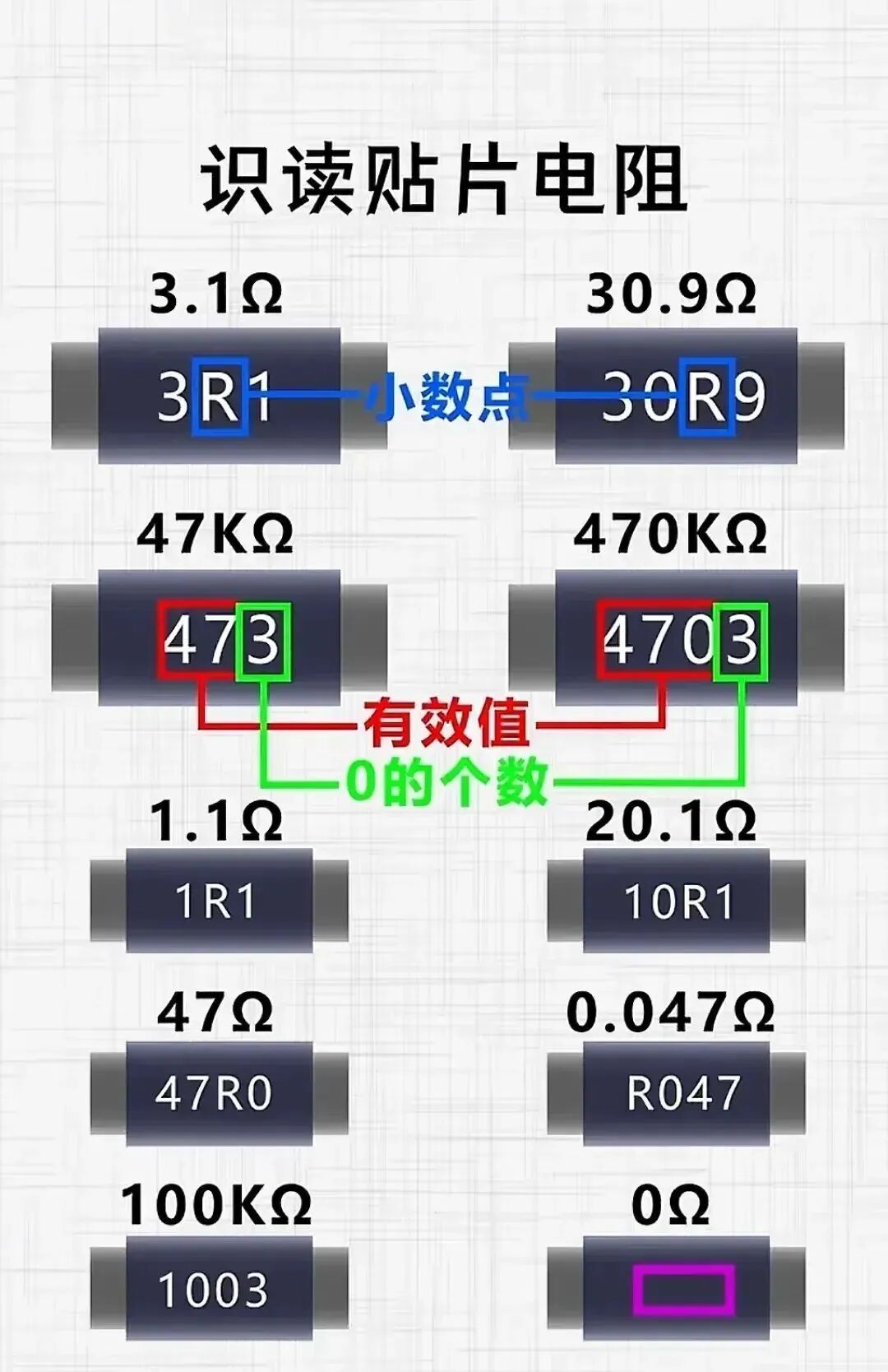

20. Reading Surface-Mounted Resistors
On the grand stage of modern industrial production, various automation devices act like precision instruments, playing a symphony of efficiency, precision, and safety. Key devices such as PLCs, sensors, encoders, inverters, and relays each play unique and collaborative roles. Let us delve into the mysteries behind these devices through practical cases.
1. PLC (Programmable Logic Controller): The “Brain” of Automated Production Lines
In the automation process of an electronic product assembly line, multi-station collaborative control is crucial, covering key aspects such as material handling, assembly, and inspection. At this point, the PLC shines as the main controller. It accurately receives signals from devices like photoelectric sensors through digital input modules; for example, when a workpiece is correctly positioned, the photoelectric sensor can promptly relay this information to the PLC. Meanwhile, the analog input module quietly collects important data such as temperature and pressure.
Through carefully designed programming, the PLC achieves complex logical control. Once the workpiece is in place, the robotic arm swiftly and accurately grabs it, then proceeds with the assembly operation, followed by quality inspection. If any defective products are found, they are immediately removed. Moreover, the PLC possesses powerful communication capabilities, connecting closely with HMI (touch screens) and SCADA systems through communication modules, allowing real-time monitoring of the entire production line’s operational status. This significantly improves production efficiency, reduces the need for human intervention, and provides automatic fault alarm and traceability functions, making production management smarter and more efficient.
2. Sensors: The “Perceptive Eye” of Intelligent Warehousing
Large logistics warehouses resemble vast “treasure troves”; to ensure the safety and integrity of goods, real-time monitoring of temperature, humidity, smoke, and shelf load is essential. Various sensors become the “guardians” of the warehouse.
Temperature and humidity sensors (such as SHT31) and smoke sensors are strategically deployed at key locations in the warehouse, acting like sensitive “tentacles” that constantly sense environmental changes and accurately transmit the collected data to the PLC via the Modbus protocol. Meanwhile, pressure sensors installed at critical points on the shelves quietly monitor the weight of stacked goods, promptly issuing alarms if any abnormal conditions, such as overload, are detected.
The PLC acts like a smart “commander,” quickly determining whether any abnormal conditions arise based on the data from the sensors and preset thresholds. For instance, when humidity is too high, it decisively issues commands to activate dehumidifiers, effectively reducing the risk of product loss. Additionally, the PLC sends alarm information via SMS or email, allowing management personnel to grasp the warehouse status anytime and anywhere. With the assistance of these sensors, warehouse safety is greatly enhanced, and unmanned inspections can be smoothly implemented.
3. Encoders: The “Precision Navigator” of CNC Machine Tools
In the field of precision machining, the processing accuracy of CNC machine tools often determines product quality, with tool movement precision requiring a high standard of ±0.01mm, which traditional switch control cannot meet.
At this point, high-precision absolute encoders (such as 23-bit multi-turn encoders) play a crucial role at the servo motor shaft end. They act like precise “positioning devices,” providing real-time position data feedback to the PLC’s high-speed counter module, forming a closed-loop control. The PLC then finely adjusts the motor’s speed and direction based on the preset path and the accurate information feedback from the encoder, ensuring precise tool positioning.
This method significantly improves machining accuracy, greatly reduces the scrap rate, and is especially suitable for scenarios requiring high precision, such as mold manufacturing, providing strong support for the development of the precision machining industry.
4. Inverters: The “Adjustment Expert” for Constant Pressure Water Supply and Fan Energy Saving
In community water supply systems, dynamically adjusting pump speed according to user demand to avoid water pressure fluctuations and energy waste is a pressing issue. Inverters play a key role here.
Pressure sensors detect pipeline pressure and input signals into the PLC’s analog module. The PLC uses PID algorithms to calculate the target frequency and then controls the inverter’s speed through analog output (0 – 10V). The inverter drives multiple pumps, achieving automatic switching and soft start functions, stabilizing water pressure within the set range, saving about 30% energy, and significantly extending the pump’s service life.
Similarly, in a factory’s ventilation system, fans running at full speed for extended periods lead to high energy consumption and noise. The inverter again “steps in,” automatically adjusting fan speed based on workshop temperature and humidity, while reasonably setting the inverter’s V/F curve to ensure sufficient torque at low frequencies. Ultimately, energy savings reach 40%, noise is significantly reduced, and maintenance costs are correspondingly lowered, making important contributions to improving the factory’s production environment and cost control.
5. Relays: The “Guardian” of Elevator Safety and Motor Start
As an important tool for vertical transportation, elevator safety is paramount. To prevent operational failures, elevators require multiple safety protections, such as door locks, speed limiters, and emergency stop buttons. Safety relays (such as the Pilz PNOZ series) connect these safety switches in series, forming a reliable hardware interlock. Once any safety device is triggered, the safety relay immediately cuts off the elevator’s main power supply and promptly sends a fault signal to the PLC, fully ensuring passenger safety and fully complying with safety standards (such as EN 13849), effectively preventing safety accidents that may arise from software failures.
In the case of starting high-power motors, direct starting often generates excessive current, which can easily damage equipment. At this point, a star-delta reduced voltage starting circuit composed of time relays and AC contactors comes into play. During startup, the motor is connected in a star configuration to reduce current, and after a certain delay, it smoothly switches to delta configuration for full voltage operation, effectively reducing startup shocks and extending motor life, widely used in compressors, fans, and other equipment.
6. Comprehensive Case: The “Symphonic Collaboration” of Port Crane Control Systems
Port cranes undertake heavy loading and unloading tasks, requiring multi-motor synchronous control, precise positioning, and safety protection functions. In this complex system, various devices work together, showcasing their powerful capabilities.
The PLC serves as the main controller, like an excellent “conductor,” coordinating multi-axis movements such as lifting, traveling, and luffing, connecting various drivers through Profinet communication to ensure seamless cooperation among all parts. Weight sensors in the sensors monitor load conditions in real-time, while anemometers constantly monitor environmental wind speed; if limits are exceeded, the crane automatically stops operation, ensuring operational safety.
Absolute encoders are installed on each moving axis, acting as precise “positioners,” providing real-time position information feedback. The inverter uses vector control to drive the motor, achieving smooth speed adjustment and braking energy recovery, improving energy utilization efficiency. Safety relays constantly monitor emergency stops, limit switches, and brake status, safeguarding the entire system’s safe operation.
Through such a comprehensive control system, the loading and unloading efficiency of port cranes is significantly improved, operations are safer, and energy consumption is effectively reduced, providing strong support for the efficient operation of port logistics.
7. Selection and Debugging Experience: Learning from Past Mistakes
In a certain factory’s PLC selection process, insufficient initial demand assessment led to inadequate reserved I/O points, and the communication module did not support on-site protocols, making subsequent system expansion difficult and frequently causing faults. Later, the factory reassessed its needs, chose a modular PLC with expansion capabilities, and upgraded the communication module to be compatible with EtherCAT, resolving these issues.
This case teaches us that when selecting equipment, it is essential to fully consider future upgrade space and prioritize mainstream communication protocols to avoid numerous troubles caused by selection errors in subsequent use.
8. Development Trend Case: Equipment Integration Innovation in Smart Manufacturing
During the upgrade of intelligent production lines in an automotive factory, various devices keep pace with the times, achieving innovative applications of intelligence. IO-Link smart sensors have been introduced, capable of real-time monitoring of tool wear status and automatically triggering maintenance plans through PLC and MES system linkage, preventing equipment failures in advance.
Edge computing PLCs also shine, enabling quality prediction analysis, effectively reducing downtime and improving production efficiency. Meanwhile, inverters have integrated energy management functions, connecting with the factory’s energy efficiency platform to optimize equipment operation strategies, further enhancing energy utilization efficiency.
In practical engineering, these devices’ actual cases fully reflect their collaborative effects. During selection, it is crucial to closely align with scene requirements, comprehensively considering precision, environment, safety standards, and other factors. Additionally, attention to detail is essential to avoid common mistakes. Only through reasonable configuration and careful programming can these devices maximize their effectiveness, achieving high efficiency, precision, and safety in industrial production.
