What types of fiber optic sensors are there? In fact, they can be classified according to their measurement objects, optical wave modulation methods, and sensing principles!

1. By Measurement Object: Divided into various types of fiber optic sensors such as stress, vibration, curvature, displacement, refractive index, temperature, liquid level, etc.

2. By Optical Wave Modulation Method: Divided into intensity modulation type, phase modulation type, wavelength modulation type, etc. Among them, intensity and wavelength modulation are the most common. Wavelength modulation fiber optic sensors have high measurement accuracy and strong stability, but they often require expensive demodulation systems, making them unsuitable for fields with high demand. Intensity modulation fiber optic sensors, although not as accurate as wavelength modulation, have low cost and simple operation, allowing this type of fiber optic sensor to occupy a place in the market.

3. By Sensing Principle: Divided into functional and non-functional fiber optic sensors. Sensors whose signal transmission systems and sensing devices are both composed of optical fibers are called functional (intrinsic) fiber optic sensors, also known as all-fiber sensors. At this time, the optical fiber is responsible for both signal transmission and sensing functions.

How to choose cost-effective laser products? Today, I will share a method that I hope can help friends in the optoelectronic circle!

He is a passionate optoelectronic person with over ten years of experience in the optoelectronic field, possessing rich knowledge and sales experience of various optical hardware products such as lasers, laser power meters, and laser beam quality analyzers. If you want to get to know “Optical Research Brother”, or if you are confused about choosing laser products at this time, you can scan the QR code below for consultation and communication about laser hardware products!

Next, I will share a batch of cost-effective laser hardware products, and I believe there should be products you need below.

Various Laser Product Recommendations

1. 355nm UV Laser

Product Introduction

The Cypress2 series industrial-grade low-power nanosecond UV laser adopts a brand new All-in-One integrated design; the laser strictly adopts IP65 double-sealed, fearless of high temperature and high humidity environments; the unique LBO crystal electric moving point technology ensures the long-term service life of the laser; it has passed EMC testing, is not afraid of electromagnetic interference, and has CE certification, making it worry-free for export. This laser meets the needs of laser rapid precision processing production lines while ensuring long-term stability and reliability.

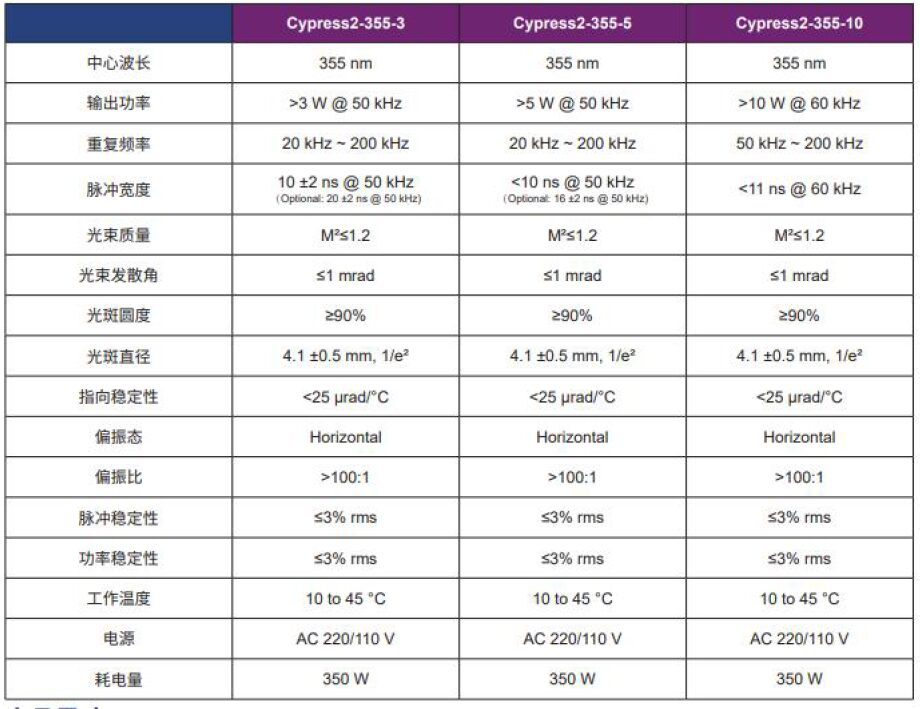

Product Parameters

2. CO2 RF Laser

The CO2 RF laser has the advantages of high power output, high efficiency, high stability, high beam quality, wide wavelength range, and easy maintenance, widely used in laser cutting, laser marking, laser welding, laser drilling, laser cold processing, and other fields on industrial production lines.

The CO2 RF laser covers multiple bands such as 9.3um, 10.2um, and 10.6um, with power ranging from 25W to 450W for various models. Specific parameters can be referenced in the relevant laser sales catalog.

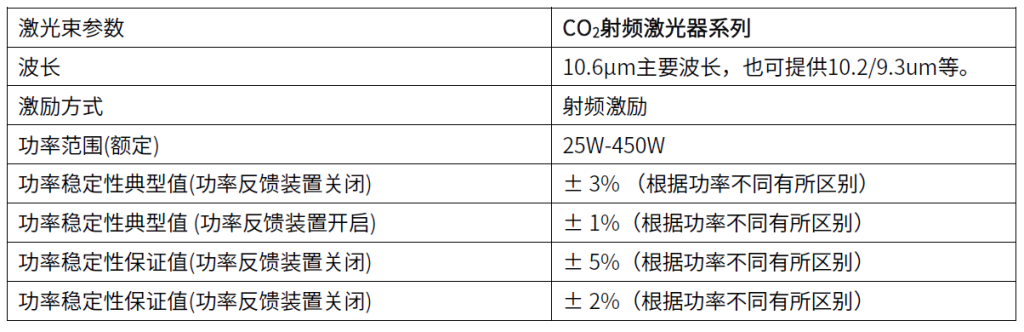

Product Parameters

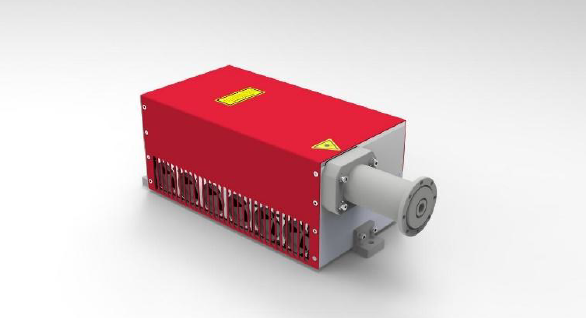

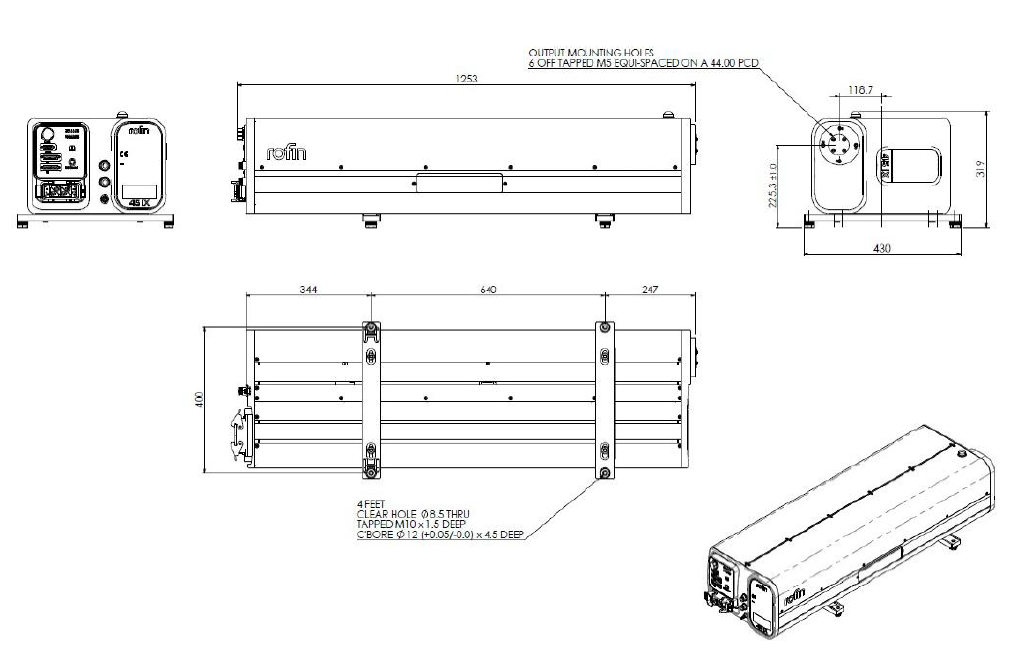

Reference Appearance Diagram

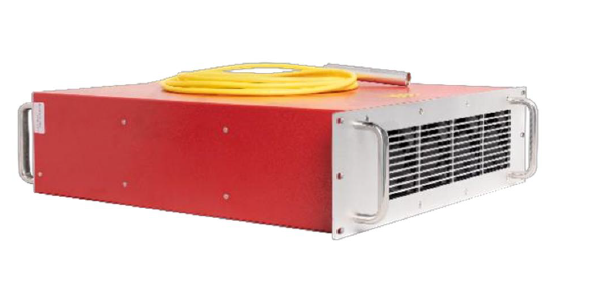

3. 1064nm Fiber Laser

The pulsed fiber laser adopts a Master Oscillator Power Amplifier (MOPA) structure, where the master oscillator uses a semiconductor laser as the seed source, and the power amplification is achieved through a wave fiber amplifier.

The MOPA structure pulsed fiber laser outputs pulsed beams by directly modulating a single-mode semiconductor laser, with adjustable pulse width, editable waveform, continuous mode, and a wide frequency range, high peak power. The pulse timing can be precisely controlled in conjunction with the subsequent pump, with many controllable parameters, greatly expanding the application range of related pulsed lasers, providing an ideal light source for industrial laser marking and other applications.

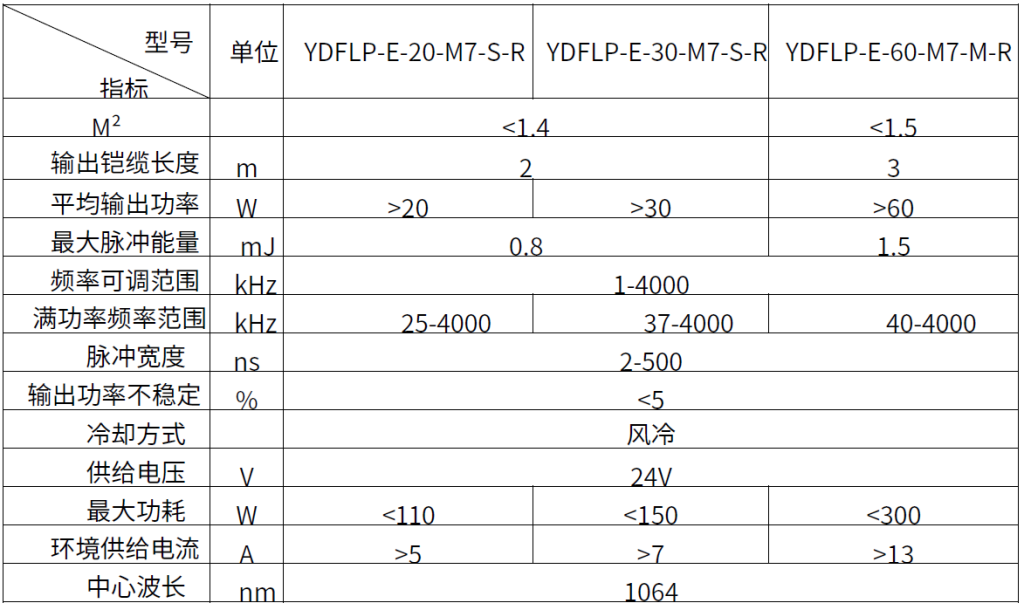

Product Parameters

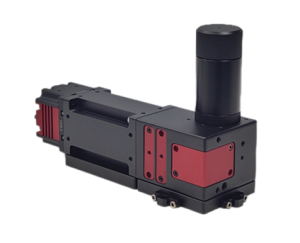

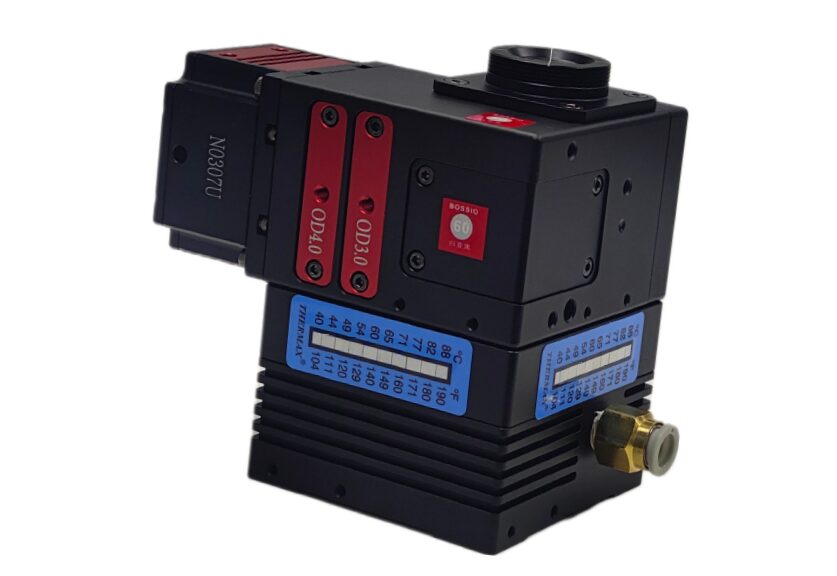

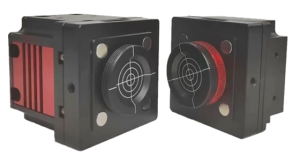

4. Beam Quality Analyzer

Product Introduction

The beam quality analyzer can achieve laser spot detection and testing applications, providing customers with customized integrated design solutions for beam quality analysis, and supporting multi-application development. Through the integrated design of the beam analysis device and the matching attenuation scheme design, it supports real-time exposure and gain adjustment.

Customization can be performed according to different customer needs, suitable for semiconductor lasers, solid lasers, fiber lasers, ultrafast lasers, laser ranging, and other fields. It is currently marketed as a mature product with high cost performance and widely recognized by customers in multiple industries.

Product Features

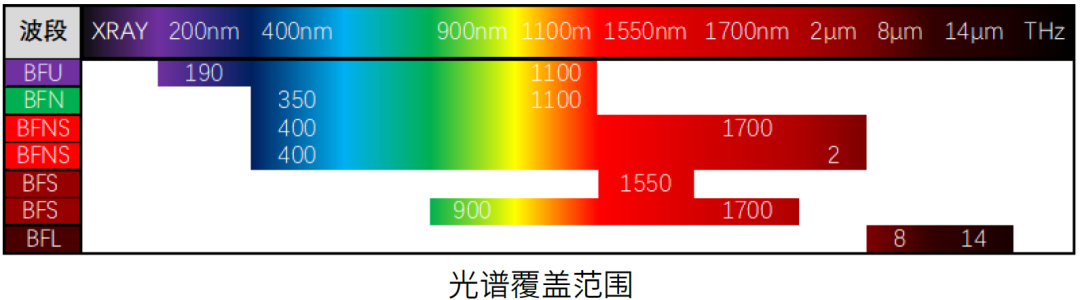

Optional ultra-wide spectrum multi-wavelength series products covering the wavelength range from ultraviolet to long-wave infrared.

Wide measurement range of spot diameter: the spot diameter range can meet most of the current market’s spot product range, and support expansion for smaller spots.

The integrated design of the beam quality analyzer, with matching attenuation scheme design: the equipment has its own attenuation device, which can measure milliwatt-level low-power lasers, and can provide optional attenuation schemes according to the needs of testing lasers of different powers, allowing for quick measurement without preparing other accessories.

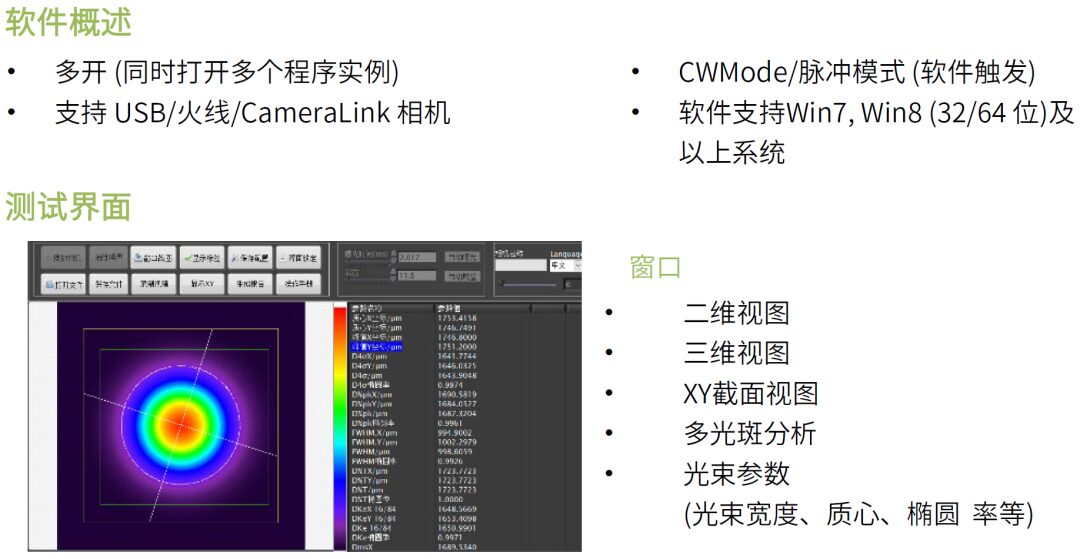

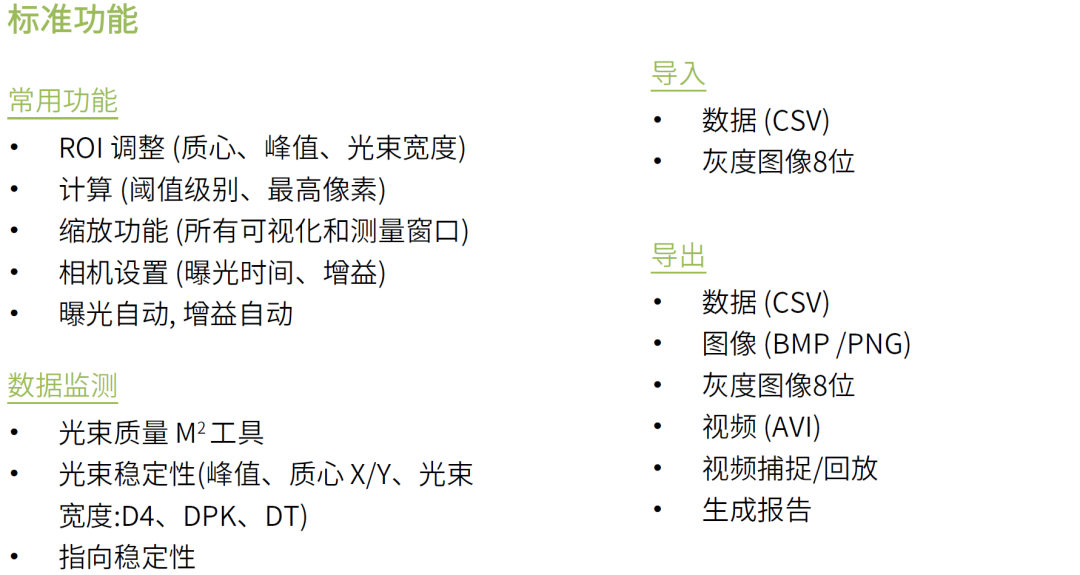

Software is fully self-developed, and can provide underlying communication protocols.

High cost performance, can replace imported laser beam quality analyzers, achieving laser spot detection and testing applications.

Demand customization: can customize beam quality analyzers according to different customer needs, different laser beam diameters, laser powers, etc.

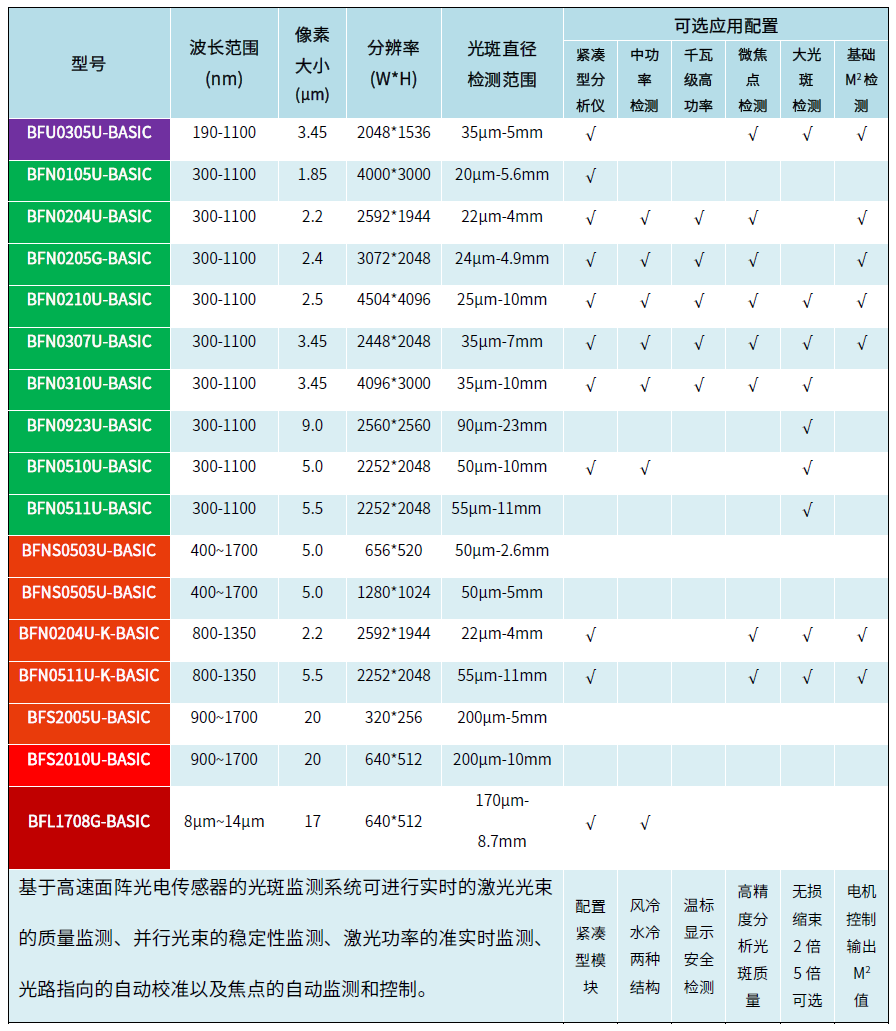

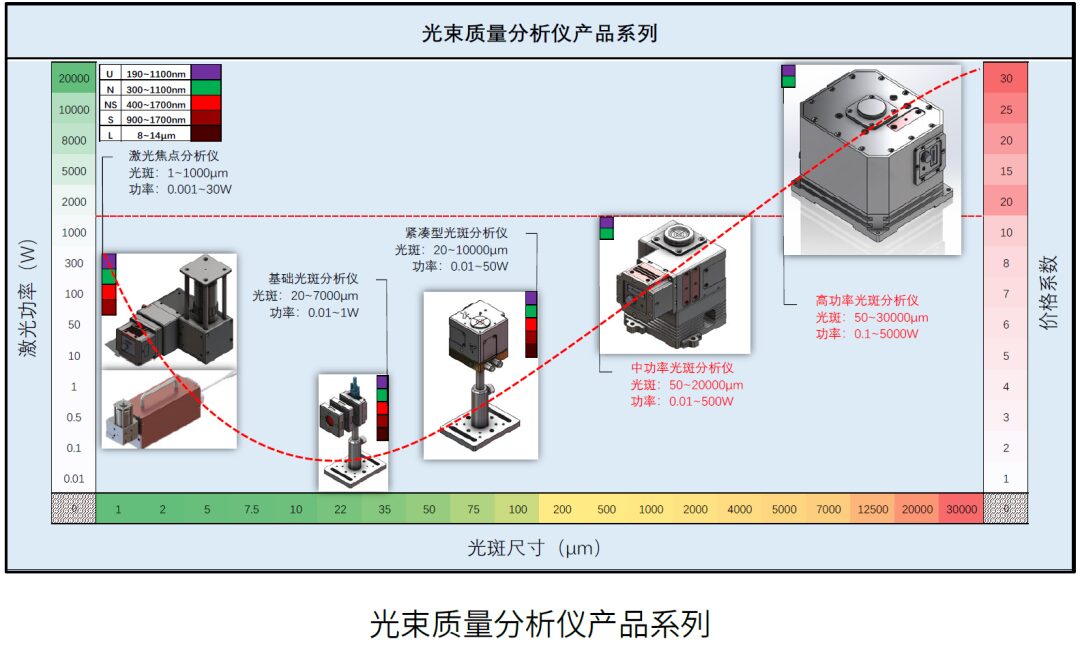

Product Model

5. Laser Power Meter

This power meter and energy meter are widely used in standard products for laser measurement in scientific research and industrial fields. It has advantages such as high precision, wide wavelength range, multiple measurement modes, easy operation, portability, and high reliability.

This series of products has high precision measurement capability, capable of accurately measuring the output power of lasers. It can be applied to lasers of different wavelength ranges, including ultraviolet, visible light, and infrared.

It has multiple measurement modes, including continuous measurement, pulse measurement, peak measurement, etc., to meet the needs of different application scenarios. The operation is simple; users just need to follow the prompts to complete the measurement. It is compact, lightweight, easy to carry, and suitable for field testing and mobile measurement.

Using advanced technology and materials, it has high reliability and stability, capable of stable long-term operation.

It has multiple interfaces including USB, RS232, GPIB, etc., which can connect with computers, controllers, and other devices for data transmission and control.

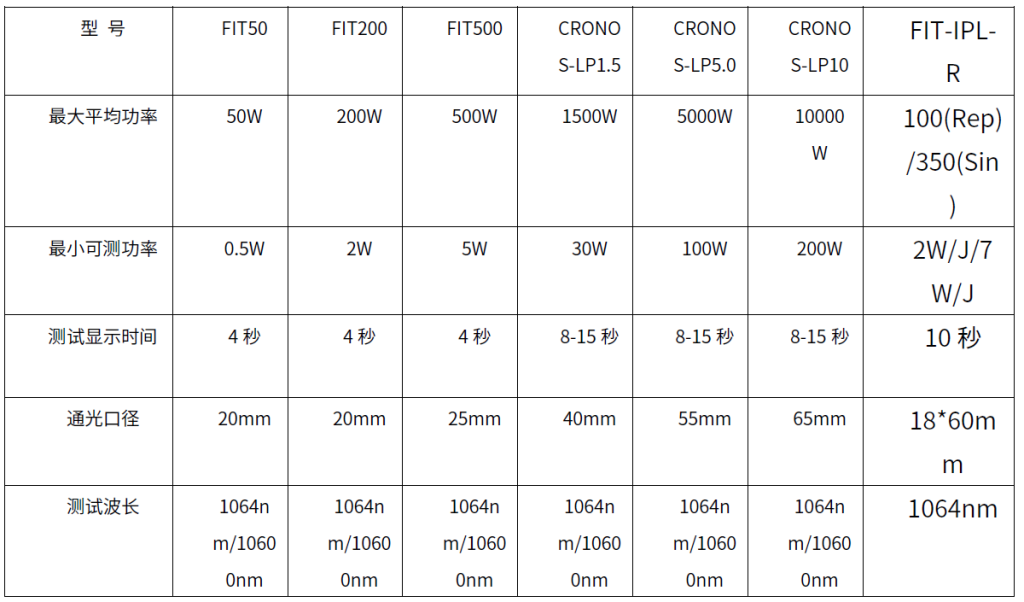

Main Models and Parameter Table

Heavyweight Model Recommendations

Cronos-LP1.5 and Cronos-LP5.0 are currently two models that are receiving a lot of attention, and purchasing now can enjoy many benefits!

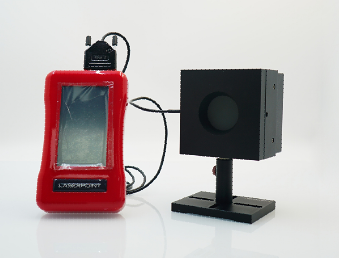

Laser Combination Power Meter

USB/RS connection to computer

Laser Product Order Hotline

Contact for Brother Tao: 13584002366(Same number for WeChat)
