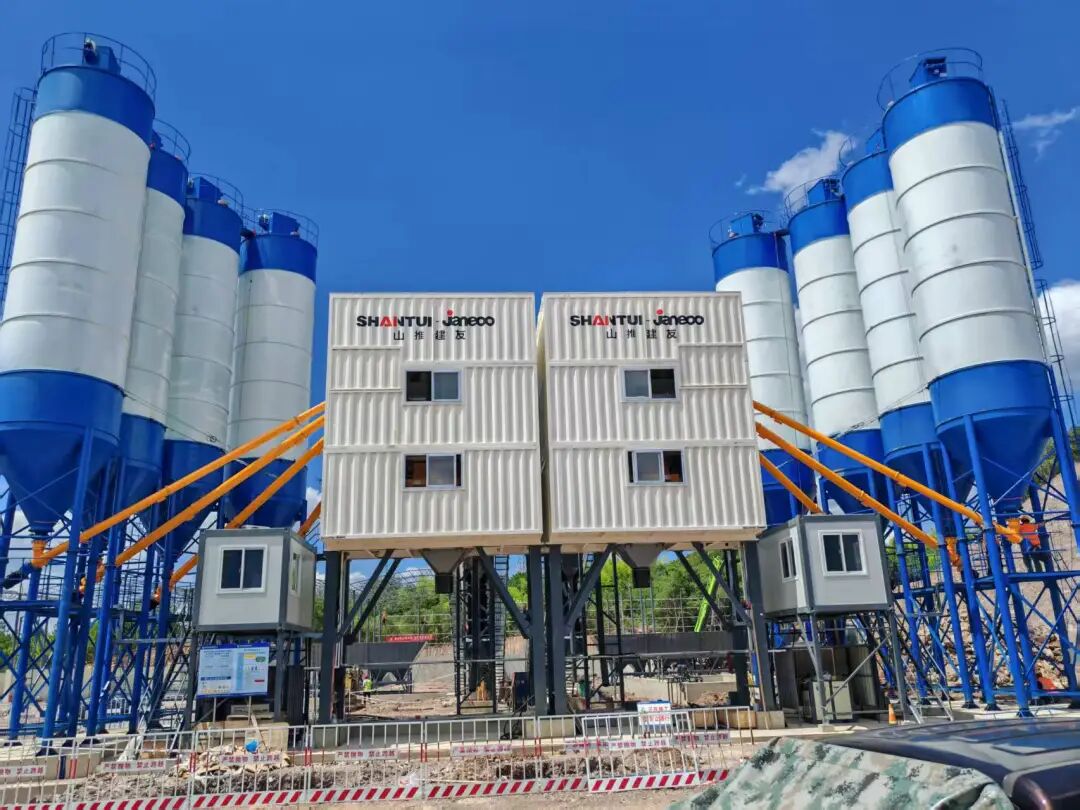

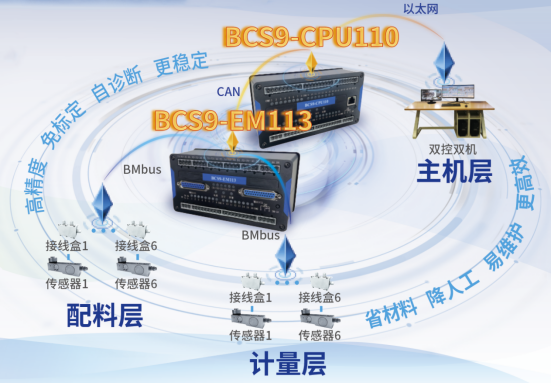

Recently, at a construction site in Anhui, the Shantui Concrete Mixing Plant Digital Sensor Control System was officially put into operation, accurately addressing a series of pain points in traditional mixing plants while bringing multiple benefits such as efficiency improvement, quality enhancement, and cost optimization, providing precise and efficient technical support for concrete production. The system has achieved comprehensive breakthroughs in terms of accuracy matching, response speed, as well as anti-interference capability, product reliability, and scalability, truly realizing a fully digital operation of the concrete production control system.
Four Core Advantages

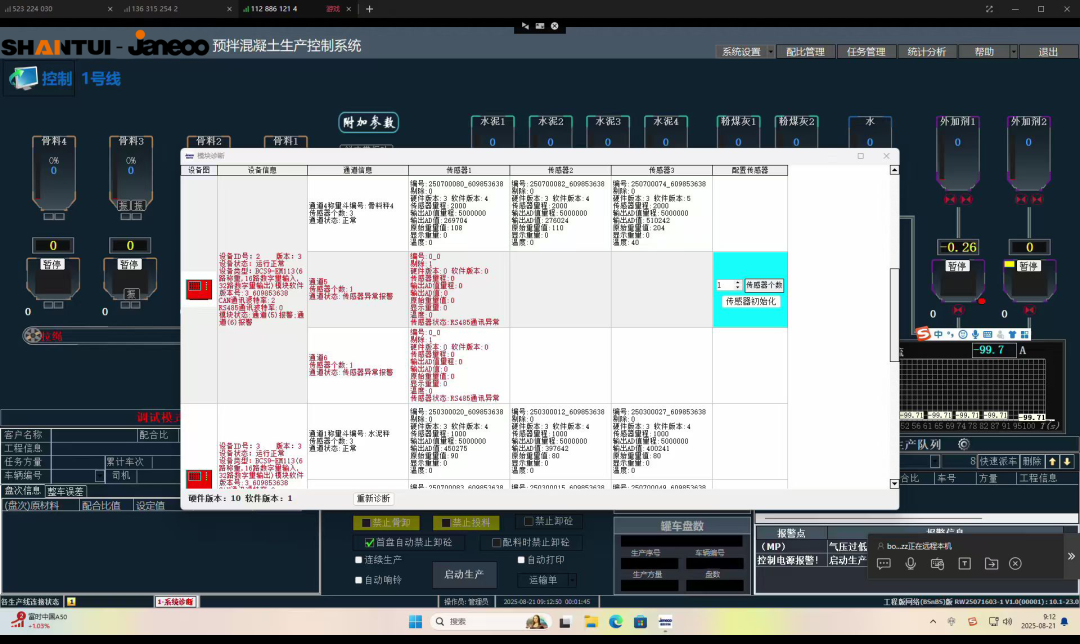

(1)Weight Calibration Without Weights, more efficient. When traditional analog weighing sensors are damaged and need replacement, the weighing scale must be recalibrated using weights, which is not only a cumbersome process but also consumes a lot of production time. The Shantui Digital Sensor Control System simplifies the calibration process through intelligent means, requiring only the input of sensor parameters on the production interface, allowing for calibration of the mixing plant without the need for weights. This greatly reduces the frequency and number of calibrations, significantly lowering the workload of manual calibration, providing crucial support for improving project construction efficiency.
(2)Self-Diagnosis of Faults, more reliable quality. When traditional analog weighing sensors fail, it is often difficult to detect the issue quickly, especially in weighing scales with multiple sensors in parallel, where troubleshooting requires a lot of manpower and time. This can easily lead to deviations in concrete mix ratios due to undetected faults, resulting in quality issues that affect project quality. The Shantui Digital Sensor Control System is equipped with fault perception technology, which can monitor the working status of each digital sensor in real-time, quickly detect abnormal performance, and issue alarms, alerting operators to take timely action. This function prevents production quality issues caused by equipment failures from the source, providing a solid guarantee for producing high-quality concrete on site.
(3) Strong Anti-Interference Capability, more precise measurement. Traditional analog weighing sensors are susceptible to strong magnetic interference from on-site equipment, which can lead to deviations in weighing data, thus affecting the accuracy of concrete mix ratios. This sensor effectively isolates the impact of strong electromagnetic interference on data transmission, ensuring that weighing data remains accurate and stable, significantly enhancing the reliability of the measurement process, and fundamentally ensuring the quality of concrete mix ratios, laying a foundation for the safety of engineering structures.
(4)Reduced Spare Parts Costs, Optimized Management. Traditional analog weighing sensors have strict specifications and model requirements; sensors used in the same weighing scale must be of the same model to function properly, which leads to the need for construction sites to stock various specifications of spare sensors, increasing spare parts procurement costs and putting pressure on inventory management. The Shantui Digital Sensor Control System breaks this limitation; as long as the sensor’s range meets the measurement requirements, sensors of different ranges can be mixed on the same weighing scale, thus reducing the variety and quantity of spare sensors, lowering spare parts procurement costs and inventory management difficulties, providing an effective solution for controlling project operating costs.
The successful application of the Shantui Concrete Mixing Plant Digital Sensor Control System is a concrete manifestation of Shantui’s focus on the intelligent needs in the construction engineering field and its continuous promotion of the intelligent upgrade of concrete mixing plants, injecting new momentum into the digital upgrade of the construction engineering sector. In the next step, Shantui will continue to focus on industry needs, launching more efficient and reliable intelligent equipment, contributing more Shantui strength to promote the digital and intelligent upgrade of China’s construction industry!
