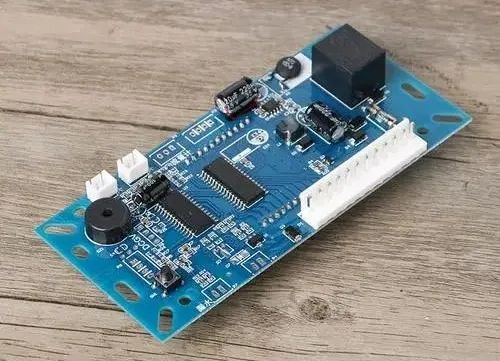

The circuit board of a water purifier is the core component responsible for controlling the entire system’s operation, including water quality filtration, purification, and display functions. If the circuit board malfunctions, it may cause the water purifier to operate improperly, leading to frequent starts and stops.
1. Functions and Components of the Water Purifier Circuit Board, The circuit board of a water purifier is the core component that operates the purifier, with main functions including:
-
Controlling the water quality filtration and purification process.
-

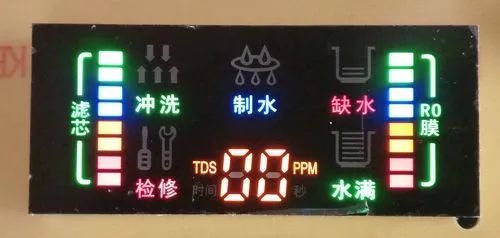

Displaying the operational status of the water purifier (such as water level, water quality, etc.).
-
Receiving and processing signals from sensors.
-
Controlling the operation of key components such as pumps and motors.
The circuit board typically consists of a main control chip, capacitors, resistors, and connecting wires, which work together through circuit connections.
2. Common Failures of the Water Purifier Circuit Board, The water purifier circuit board may experience the following types of failures:
-
Burnt or damaged: This may be caused by overvoltage, short circuits, or environmental factors (such as humidity or high temperatures).
-
Component damage: Such as aging capacitors, burnt resistors, or chip failures.
-
Connection issues: Loose or shorted wires can lead to abnormal signal transmission.
-
Environmental factors: Such as unstable power supply or poor contact.
3. Analysis of Failure Causes, The causes of water purifier circuit board failures may include:
-
Power issues: Such as unstable power supply or poor contact.
-
Chip failures: May be due to damage, poor contact, or programming errors.
-
Aging capacitors: Aging or improperly installed capacitors can affect the stability of the circuit board.
-
Resistor issues: Burnt resistors or size issues can affect the normal operation of the circuit board.
-
Environmental factors: Such as humidity, high temperatures, or dusty environments may lead to circuit board damage.
4. Repair Methods, If the water purifier circuit board fails, you can try the following repair methods:
-
Check the power supply: Ensure the power supply is normal, avoiding overvoltage or undervoltage.
-
Check connection lines: Look for short circuits or open circuits, and replace damaged connecting wires promptly.
-
Clean the circuit board: Remove dust and impurities from the circuit board to avoid short circuits.
-
Replace components: Check if components on the circuit board are burnt or damaged, and replace them if necessary.
-
Resolder: For loose solder joints, resolder to ensure a secure connection.
-
Reset the circuit board: If the circuit board fails due to programming errors, try resetting it.
-
Seek professional help: If self-repair is difficult, it is advisable to contact professional repair personnel or after-sales service.
5. Preventive Measures, To extend the lifespan of the water purifier circuit board, the following preventive measures can be taken:
-
Regular maintenance: Regularly clean the circuit board to keep it clean.
-
Avoid water accumulation and overvoltage: Prevent damage to the circuit board from water accumulation or overvoltage.
-
Use properly: Avoid running the water purifier under overload for extended periods.
-
Environmental control: Place the water purifier in a dry, ventilated environment to avoid humidity and high temperatures.
6. Common Problems and Solutions:
-
Water purifier not working: This may be due to circuit board failure; check and replace the circuit board.
-
Frequent starts and stops: This may be due to damaged components or poor contact on the circuit board; check and repair.
-
Water pump not starting: This may be due to a control circuit board failure; check and replace.
The circuit board of a water purifier is a core component, and its normal operation is crucial for the performance of the water purifier. If the circuit board fails, it should be checked and repaired promptly. For non-professionals, it is recommended to contact after-sales service or professional repair personnel for assistance. Through regular maintenance and proper use, the lifespan of the circuit board can be effectively extended, ensuring the normal operation of the water purifier.
