Rice Cooker Based on 51 Microcontroller (Timer Function)
(Program, Schematic, Proteus Simulation, Flowchart, Component List)
01
Function Introduction
Specific Functions:
Rice cooker controller
1. Measure temperature; if the temperature exceeds the set value, stop heating and trigger an alarm.
2. Set a timer; after starting, it will count down, and when the countdown ends, it will stop cooking.
3. The sensor used is PT100; the internal timer of the microcontroller is used for timing.
[No special calibration for PT100, resulting in significant error]
02
Hardware Design
Components Used:
Microcontroller: 51;
(Note: The microcontroller is generic; whether it is 51 or 52, whether STC or AT, the pin functions are the same. The program is also the same.)
03
Design Materials
01

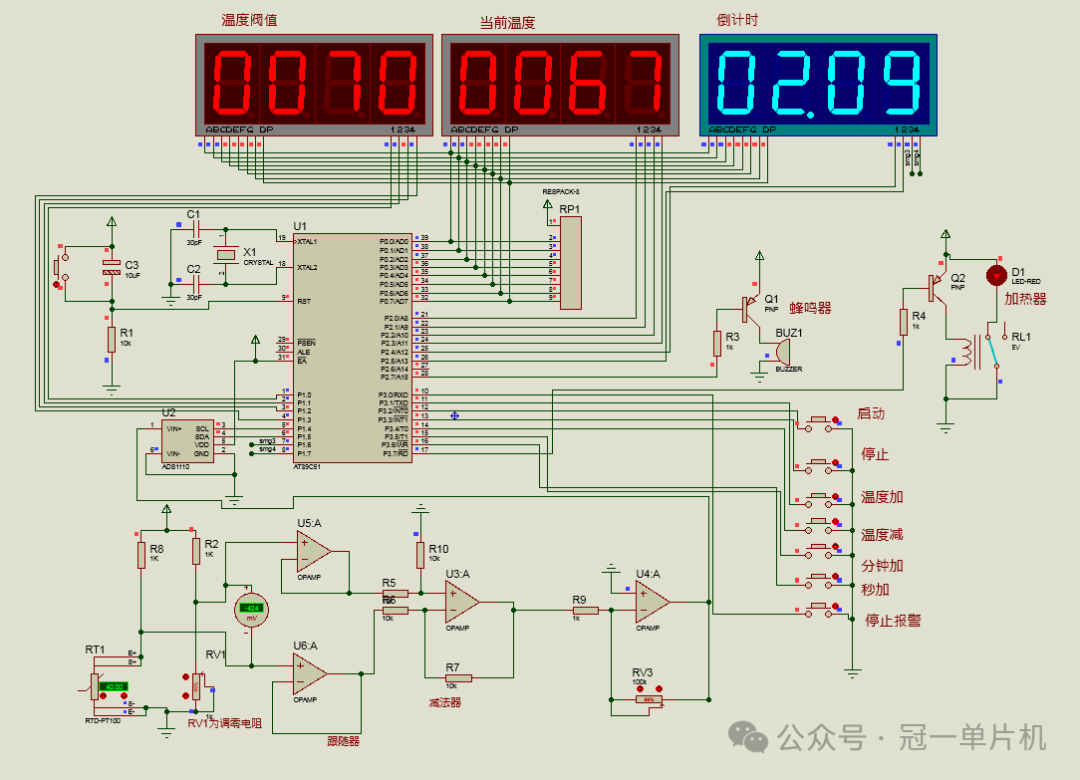

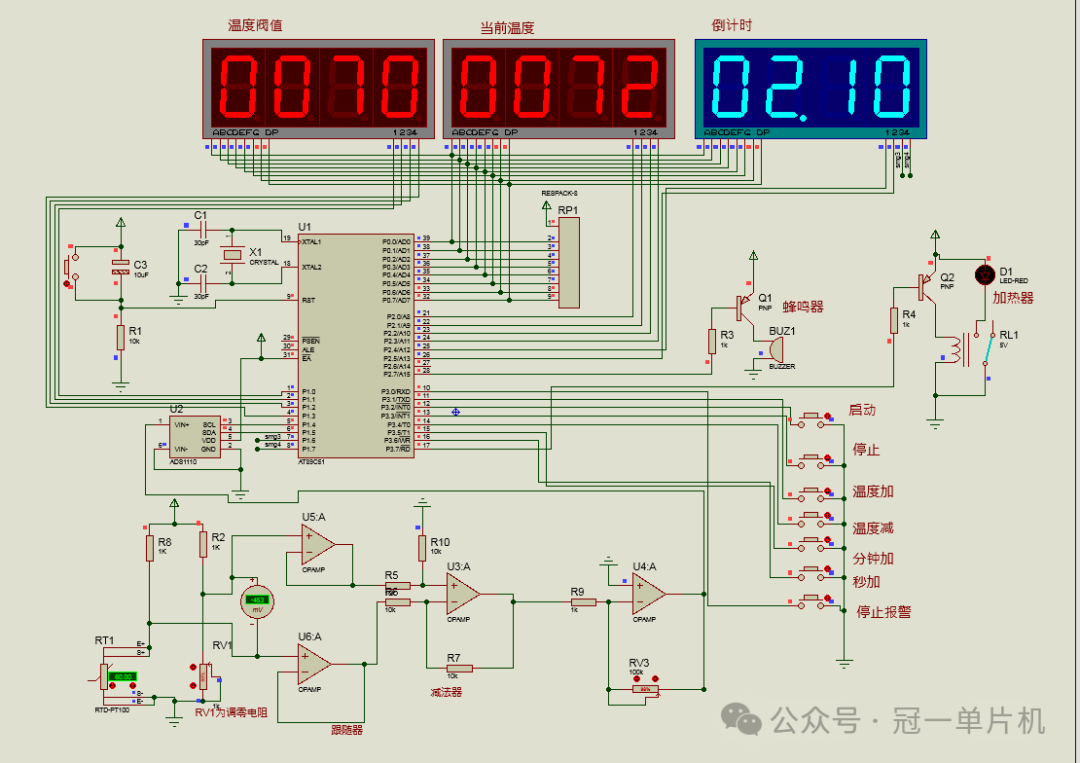

Simulation Diagram
This design uses Proteus for design! See the diagram for details!
02

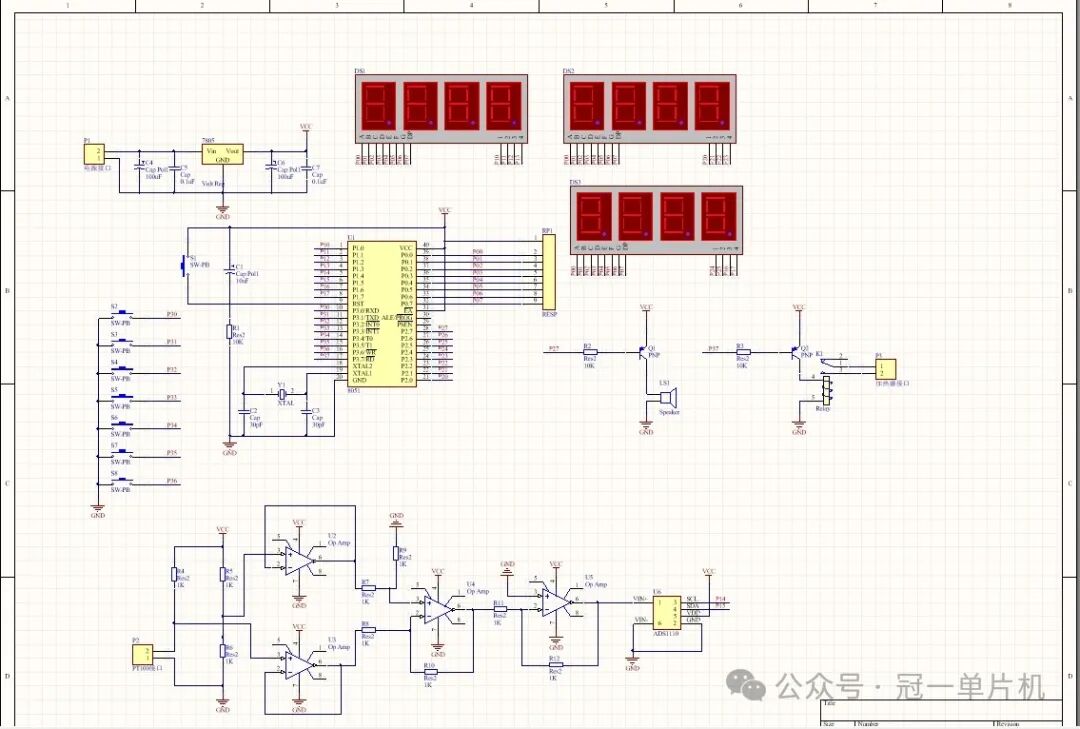

Schematic Diagram
This design uses Altium Designer for design, see the diagram for details!
03

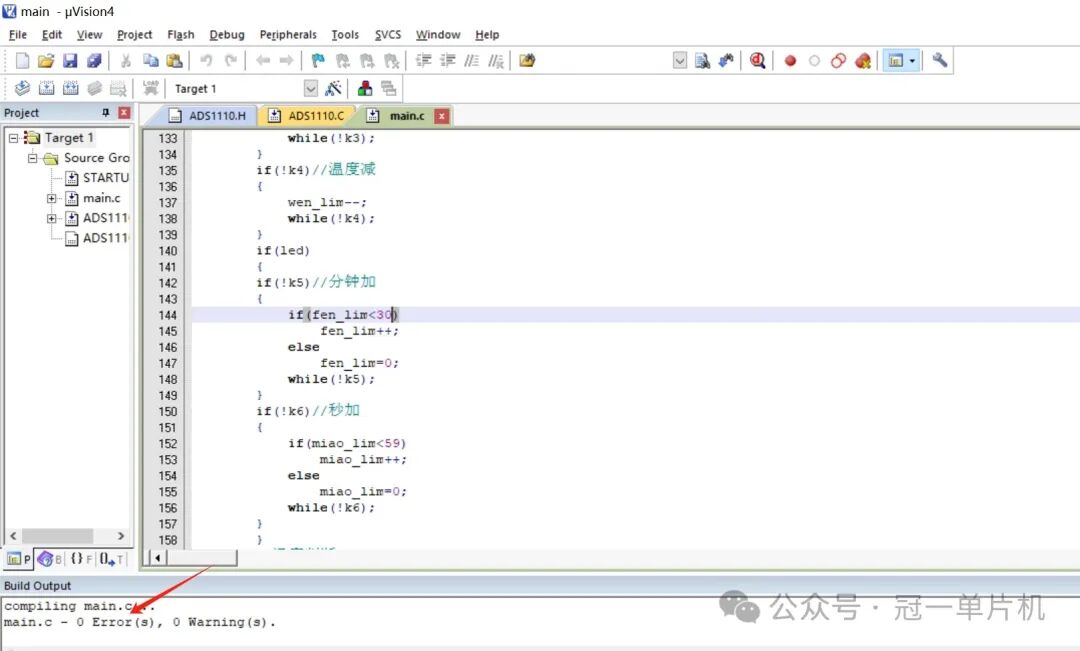

Source Code
This design uses Keil for programming! See the diagram for details!
04
Design Materials

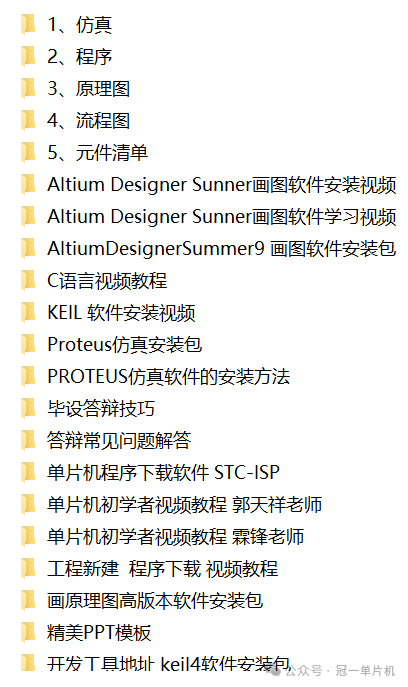

All materials include the program (with comments), schematic, Proteus simulation, flowchart, component list, etc. The specific content is as follows, the most comprehensive on the internet!
