The chip market prices have been widely reported by major media outlets, reflecting a dramatic decline this year after last year’s significant increases. In times of limited resources and power shortages, companies are adjusting their inventories for panels, laptops, and other products. While some business owners are “busy shooting short videos,” others are quietly waiting for the right moment, hoping to “survive.” This issue’s popular chip model identification helps everyone discover which trending models have seen price surges and which have dropped significantly. Below are eight popular chips we selected from the past month: (Model Numbers):
1. Automotive chips are making a comeback: “DS90UB Series”
2. Price and popularity soar: “VNQ7050AJTR”
3. A certain trending model’s retreat: “TPS53513RVER”
4. New high-priced chip: “MK64FN1M0VLQ12”
5. Surging chip’s “status”: “STM32F103 Series”
6. High-priced bounty chip from Huaqiangbei: “TPS92692QPWPRQ1”
7. One of the most popular 8-bit MCUs: “ATMEGA328P-AU”
8. TI’s new “star” product: “TPS7A6650QDGNRQ1”
NO.1 Automotive chips are making a comeback
DS90UB Series: “Price” is rising
TI’s two similar automotive-grade chips have recently surged in popularity, with prices rising significantly.

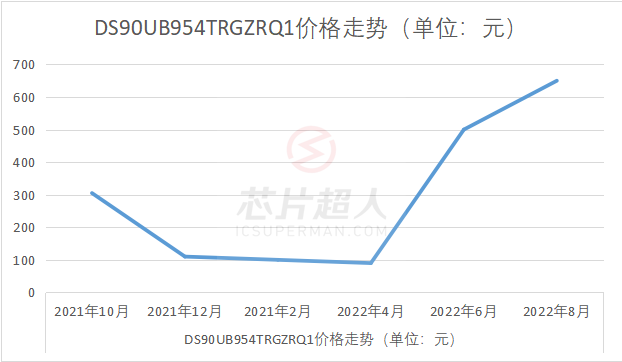

DS90UB954TRGZRQ1 has risen to over 500 yuan, reportedly only costing over 60 yuan in June.

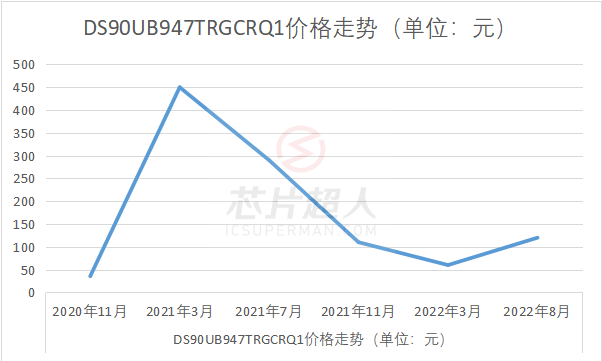

DS90UB947TRGCRQ1 has risen to around 120 yuan, with a normal price of less than 50 yuan.
DS90UB954-Q1 is a TI automotive-grade interface product suitable for 2MP/60fps cameras and radar, used in automotive ADAS, safety and monitoring, industrial and medical imaging; DS90UB947-Q1 is also a TI automotive-grade interface product used in automotive infotainment and safety monitoring cameras.

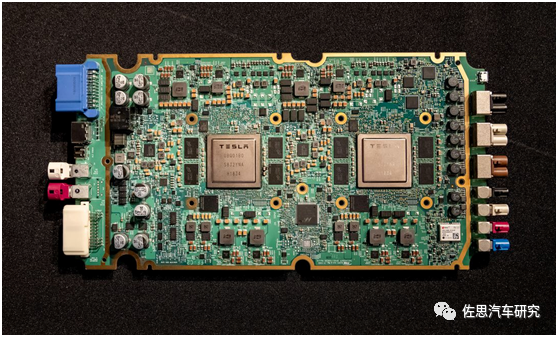

Tesla’s AP3.0 hardware board, source: Zosi Automotive Research
Zosi Automotive Research has disassembled and analyzed Tesla’s AP3.0 (FSD version) domain controller, which uses three TI interface chips—FPD-LINK, which are deserializing chips. This includes two DS90UB960 chips, with DS90UB960 having four lanes, while DS90UB954 is a simplified version with two lanes. It is reported that deserializing chips are typically paired, with the serializing generally inside the camera and the deserializing on the controller PCB.
According to DPE, the DS90UB series, including 934/949/954, is currently in severe shortage in the market, with suppliers seeing high demand from Chinese automotive customers. The spot market reflects that this series has become slightly tight, leading to price increases.
NO.2 Price and popularity soar

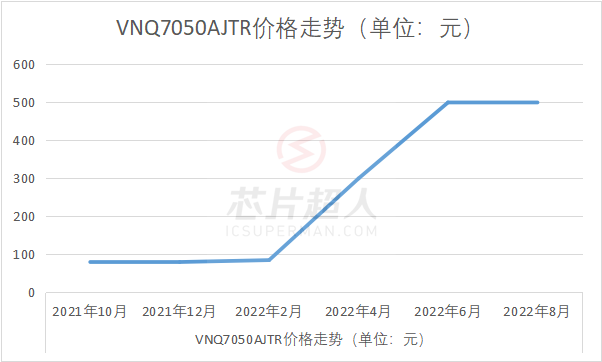

VNQ7050AJTR: Price remains strong
Since the beginning of this year, the price of VNQ7050AJTR has surged several times, currently maintaining a strong price despite a significant drop in popularity, rising from around 7 yuan to about 500 yuan.
This is an ST automotive smart power IC—a four-channel high-side driver chip used for all types of automotive resistive, inductive, and capacitive loads or specifically for automotive signal lights.
The real inventory is low, which may be the reason for the price not dropping.
NO.3 A certain trending model’s retreat
TPS53513RVER:
Still 30 times the normal price

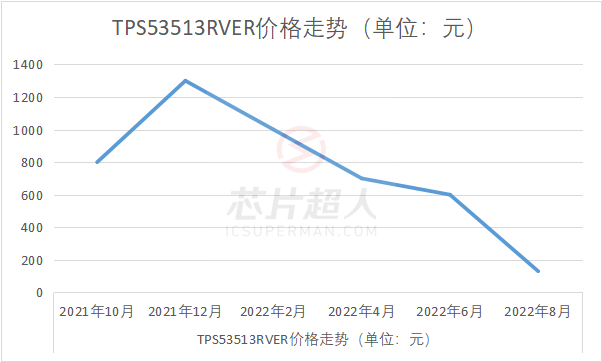

After previously plummeting to 600 yuan, the price of TPS53513RVER has continued to drop to around 140 yuan, but remains far from the normal price.
TPS53513RVER is a communication power management IC (small size synchronous buck converter), with a normal price of about 4.5 yuan. This chip is easy to use, with a minimal number of external components, suitable for power systems with space constraints. It is used in servers and cloud computing point of load (POL), broadband, network interconnect, and fiber optic communication infrastructure, as well as input/output (I/O) power.
TI’s regular models are generally in oversupply, and TPS53513, as one of TI’s trending models, despite several significant price drops, has not yet returned to normal.
NO.4 New high-priced chip

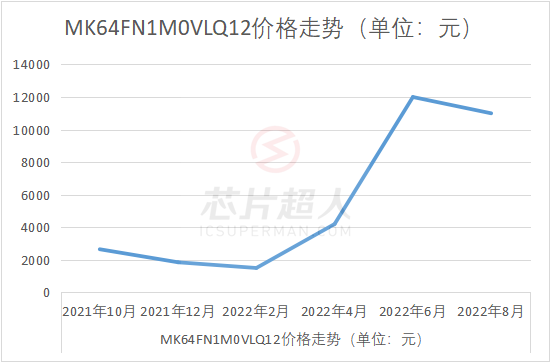

MK64FN1M0VLQ12:
Even at a lower price, it’s still unaffordable
MK64FN1M0VLQ12 has seen a continuous increase in search volume since last year, recently peaking, with a price exceeding 10,000 yuan in May, but the transaction price is still close to 10,000 yuan.
This is a general-purpose MCU from NXP’s MK series, with a normal price of around 35 yuan, widely used in automotive, industrial, mobile devices, and smart home applications.

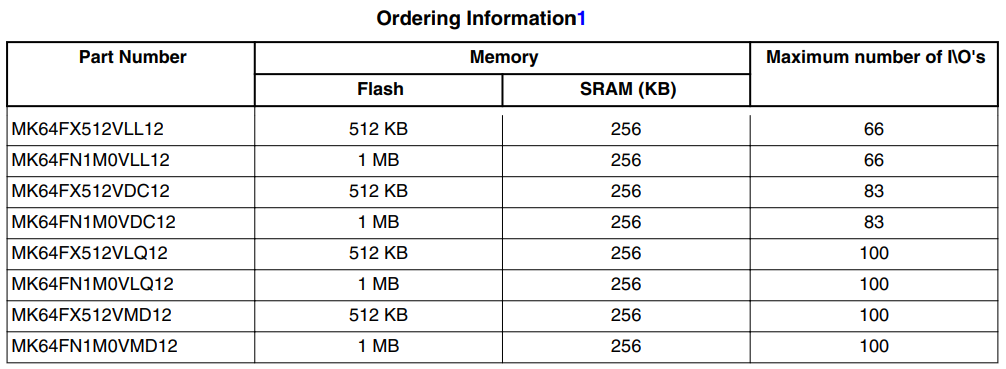

Naming convention:
Q K## A M FFF R T PP CC N
For example, MK64FN1M0VLQ12:
-
Q: M = Fully Qualified
-
K##: K64 = Ethernet with high RAM density
-
“FFF” represents flash size: 512 = 512 KB; 1M0 = 1 MB
(The rest omitted)
Source: NXP official datasheet
The NXP MK series currently has a significant gap, and how long will the high prices remain in the four-digit range?
NO.5 Surging chip’s “status”

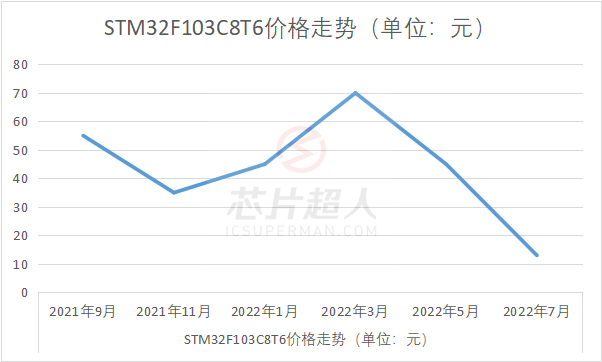

STM32F103 Series: Gradually returning to rationality

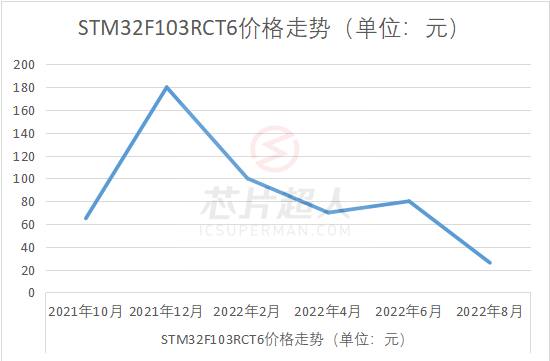

Currently, STM32F103C8T6 has dropped to around 12 yuan, and STM32F103RCT6 has dropped to around 20 yuan.
Their normal prices are actually lower, with STM32F103C8T6 having a normal price of around 6 yuan (as of August 2020 and earlier), and STM32F103RCT6 having a normal price of around 10 yuan (as of August 2020 and earlier), and even after the price drop, they are still about twice the normal price. As ST’s basic F series MCU, they have always been popular in downstream consumer electronics, IoT, and industrial control applications.
Naming convention:
Taking STM32F103C8T6 as an example:
-
“32” indicates a 32-bit MCU
-
“F” indicates the product type sub-series
-
“103” indicates the product sub-series, 101 = basic type, 102 = USB basic type, USB 2.0 full-speed device, 103 = enhanced type, 105 or 107 = interconnect type
-
“C” indicates the number of pins, T=36 pins, C=48 pins, R=64 pins, V=100 pins, Z = 144 pins
-
“8” indicates the size of FLASH, indicating the embedded Flash capacity of 64K bytes. For example: 6 indicates 32K bytes Flash, B indicates 128K bytes Flash, C indicates 256K bytes Flash, D indicates 384K bytes Flash, E indicates 512K bytes Flash, G indicates 1M bytes Flash.
-
“T” is the packaging method, representing LQFP packaging. For example, H represents BGA packaging, U represents VFQFPN packaging.
-
“6” is the temperature range, 6=-40~85 degrees Celsius, 7=-40~105 degrees Celsius
The STM32F103 series has received media coverage, and STM32F103C8T6 and STM32F103RCT6 remain popular models, just returning to the normal heat levels before last year’s surge, with prices gradually approaching normal levels.
NO.6 High-priced bounty chip from Huaqiangbei

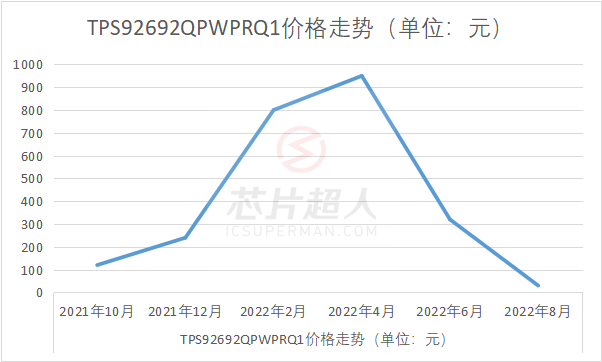

TPS92692QPWPRQ1:Price has fallen from graceTPS92692 experienced a surge at the beginning of the year (once exceeding 800 yuan), and has significantly dropped to over 30 yuan from last month’s high price of over 100 yuan, approaching last July’s price of 35 yuan.
TPS92692QPWPRQ1 is a TI automotive high-precision LED control chip used for automotive external lighting applications, driver monitoring systems, etc.

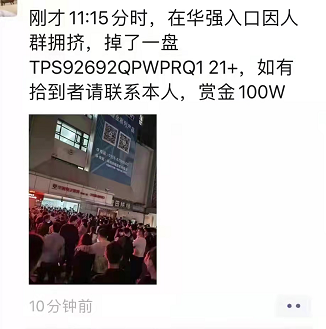

Once the subject of news about a “100,000 yuan reward for a lost batch of TPS92692 goods at Huaqiang Market,” although it has fallen from grace since March’s complete shortage, many business owners still express long-term optimism.

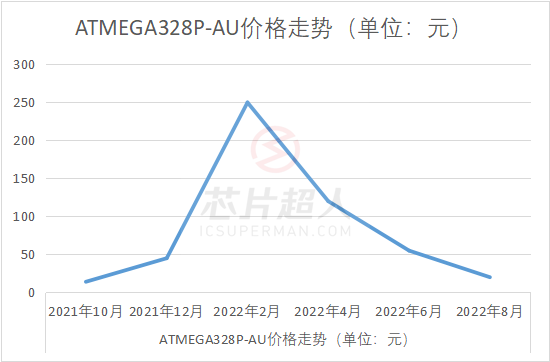

NO.7 One of the most popular 8-bit MCUs
ATMEGA328P-AU: Returning to normal pricePrice has dropped to around 20 yuan, with actual transaction prices falling to just over 10 yuan.
ATMEGA328P-AU is an 8-bit microcontroller from Microchip’s ATMEL AVR series, featuring low power consumption and high performance, officially recommended for automotive use, with an official price of about $2.5 (approximately 16 yuan). Naming convention: ATmega48A/PA/88A/PA/168A/PA/328/P are all low-power, CMOS 8-bit microcontrollers based on the AVR® enhanced RISC architecture from Microchip.ATMEGAXXX XX-XX XX
- XXX = 8, 16, 48, 128, 328, etc. chip main models;
- XX = “P” low voltage, energy-saving technology, followed by the voltage operating range: with “V” indicates 1.8V-5.5V, without “V” indicates 2.7-5.5V, L indicates low frequency;
- XX = 20, 10 represents clock frequency;
- XX = specification information, the first digit represents packaging, P: DIP packaging, A: TQFP packaging, M: MLF packaging; the second letter indicates application level.

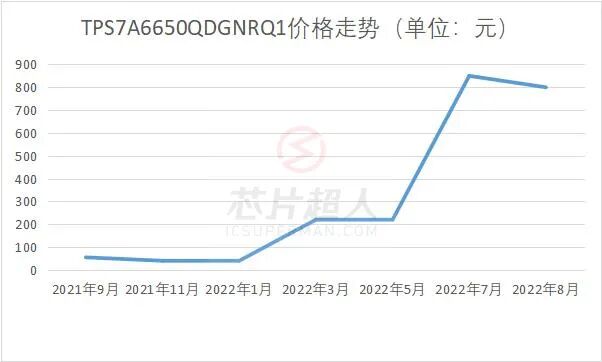

NO.8 TI’s new “star” productTPS7A6650QDGNRQ1:Maintaining high pricesSince the beginning of this year, its popularity has soared, and the price has reached around 800 yuan.

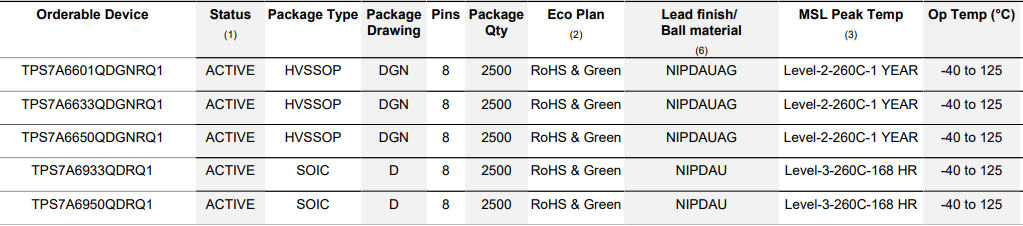

TPS7A6650 is a rare automotive-grade power management IC that has recently gained popularity, with a normal price of about 2 yuan, used in automotive infotainment systems with sleep mode, body control modules, and standard always-on battery. Naming convention:
Source: TI official datasheet TPS7A6650QDGNRQ1 belongs to the TPS7A6x-Q1 series, TPS7A66-Q1 and TPS7A69-Q1 are low-dropout linear regulators designed for circuits operating at input voltages up to 40V, suitable for standby microprocessor control unit systems, especially low-power choices for automotive applications.Previous model identifications:
