Modbus is a serial communication protocol invented by Modicon for communication between PLCs and hosts. Its physical layer uses asynchronous serial standards such as RS232 and RS485. Due to its openness, it has been adopted by numerous PLC and RTU manufacturers.

The Modbus communication method adopts a master-slave query-response mechanism, where only the master can issue queries and the slave can respond; the slave cannot actively send data. The master can issue queries to a specific slave or broadcast information to all slaves. The slave only responds to queries sent specifically to it and does not respond to broadcast messages. There are two transmission modes in the MODBUS communication protocol: RTU mode and ASCII mode.

The Mitsubishi 700 series inverter can communicate using the Modbus RTU protocol from the RS-485 terminal for operational communication and parameter setting.

Objects:

1. Mitsubishi PLC: FX2N + FX2N-485-BD

2. Mitsubishi Inverters: F700 series, A700 series.

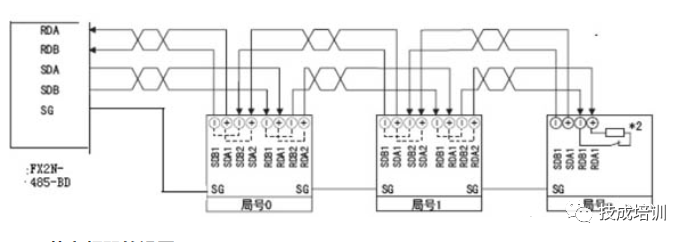

They are connected via a network cable, refer to the diagram below.

Mitsubishi FX2N PLC and Mitsubishi Inverter Modbus RTU Protocol Communication Application

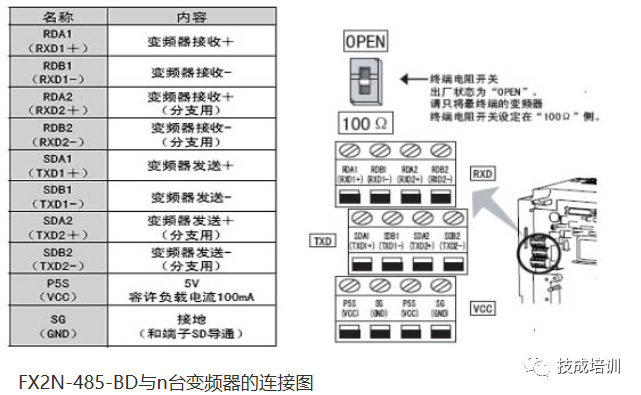

Connection diagram of FX2N-485-BD and multiple inverters

Mitsubishi FX2N PLC and Mitsubishi Inverter Modbus RTU Protocol Communication Application

01

Settings for Mitsubishi Inverter

When communicating between the PLC and the inverter, the communication specifications must be set in the inverter. After each parameter initialization, the inverter must be reset or power cycled.

Parameter Number Name Setting Value Description

Pr331 Communication Station Number 1 Set the inverter station number to 1

Pr332 Communication Speed 96 Set the communication speed to 9600 bps

Pr334 Parity Stop Bit Length 2 Even parity, stop bit length 1

Pr539 Communication Check Time 9999 No communication check

Pr549 Protocol Selection 1 Modbus RTU protocol

Pr551 PU Mode Operation Rights Selection 2 PU operation mode rights as PU interface

When communicating using the Modbus RTU protocol, Pr551 must be set to 2, Pr340 set to a value other than 0, and Pr79 set to 0, 2, or 6. When communicating via the RS-485 terminal using the Modbus RTU protocol, it must operate in NET network mode.

02

Settings for Mitsubishi PLC

Set the communication format D8120

The setting value for D8120 is 0C87, which means data length is 8 bits, even parity, stop bit 1, baud rate 9600 bps, no header and footer.

After modifying the D8120 setting, ensure to power cycle the PLC once.

03

Communication Program

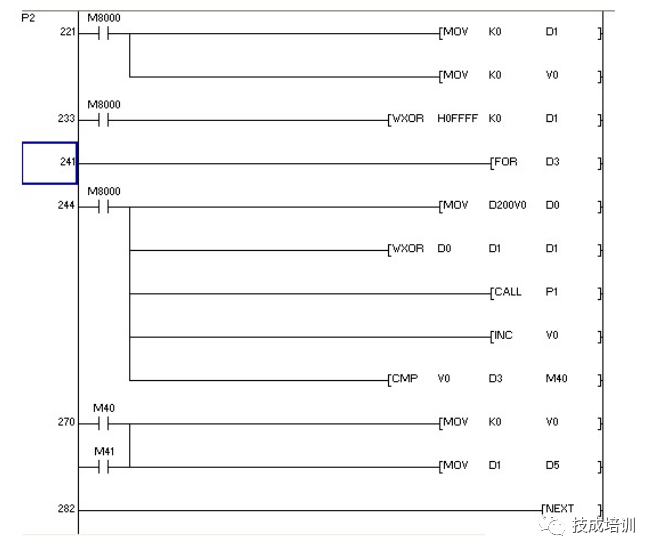

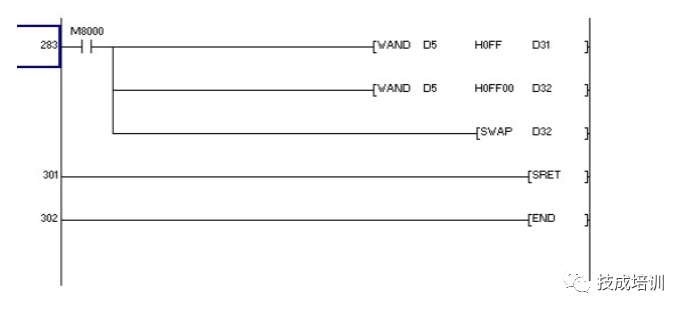

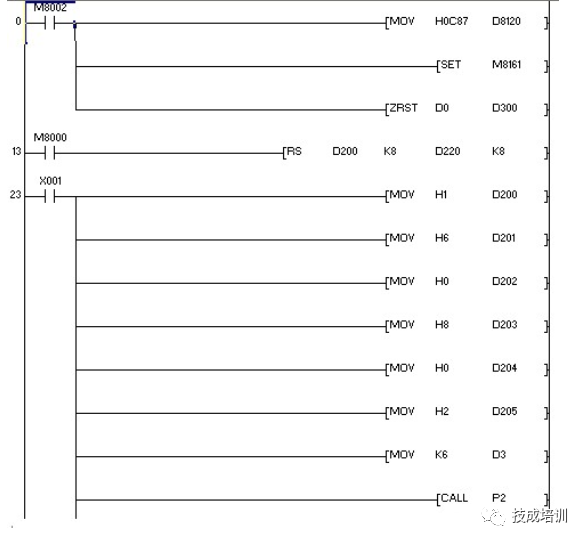

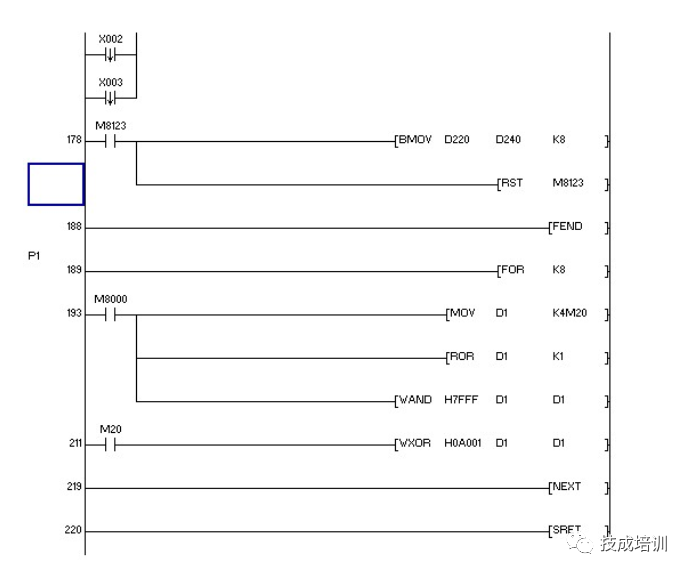

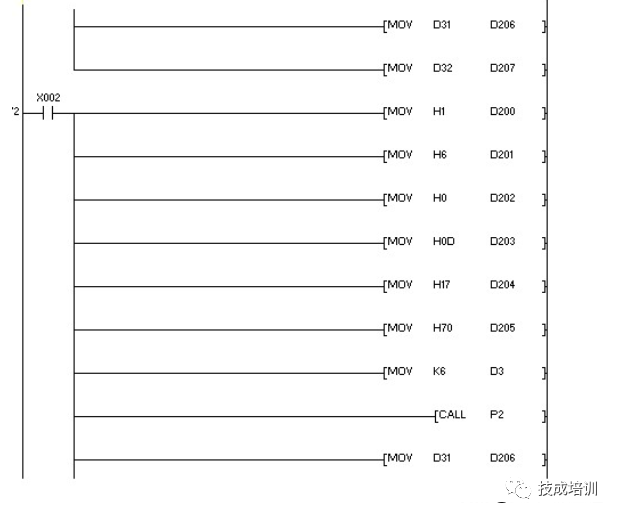

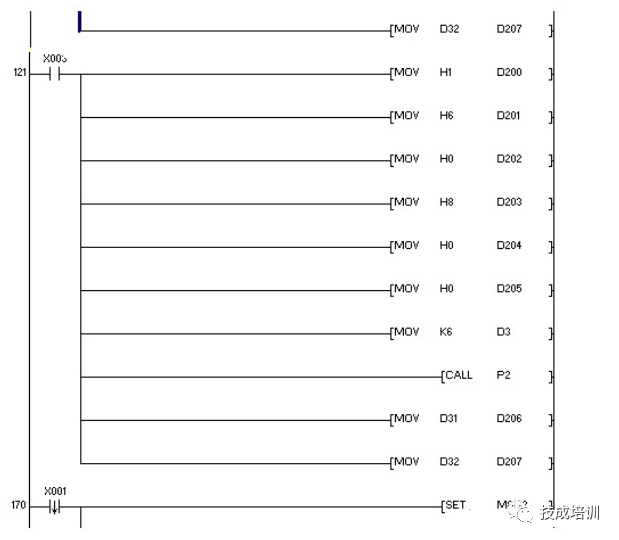

Part of the PLC program for communicating with the inverter using Modbus RTU protocol is as follows:

Mitsubishi FX2N PLC and Mitsubishi Inverter Modbus RTU Protocol Communication Application

Mitsubishi FX2N PLC and Mitsubishi Inverter Modbus RTU Protocol Communication Application

Mitsubishi FX2N PLC and Mitsubishi Inverter Modbus RTU Protocol Communication Application

Mitsubishi FX2N PLC and Mitsubishi Inverter Modbus RTU Protocol Communication Application

Mitsubishi FX2N PLC and Mitsubishi Inverter Modbus RTU Protocol Communication Application

Mitsubishi FX2N PLC and Mitsubishi Inverter Modbus RTU Protocol Communication Application

04

Program Description

1. When X1 is activated once, the inverter enters the forward rotation state.

2. When X2 is activated once, the running frequency of the inverter is set to 60HZ.

3. When X3 is activated once, the inverter enters the stop state.

When in the command, if the inverter command address is 0, it is a broadcast command; all slave inverters only accept commands issued by the PLC and do not send response information to the host.
