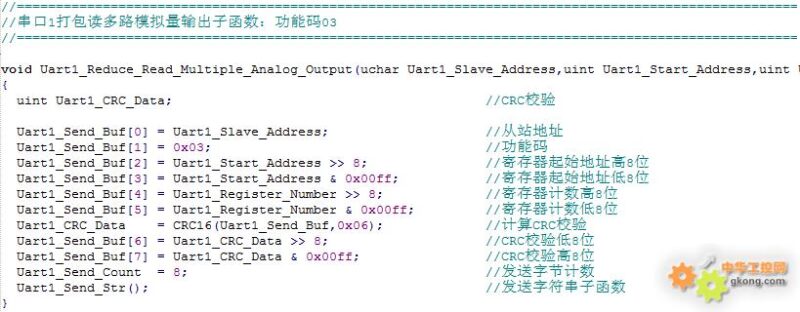

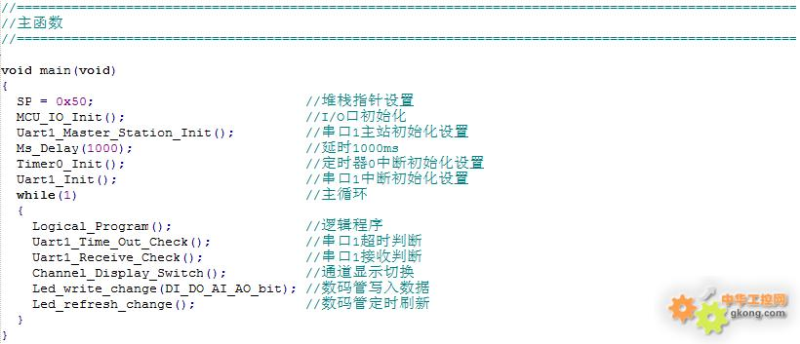

I have previously worked with microcontrollers and various models of inverters such as Mitsubishi D700, Siemens G120, Omron 3G3JZ, Panasonic VF200, Delta VFD-M, Xinjie VB3, Yonghong FID-B10, Chint IS7, Inovance MD500, Yaskawa Goodrive10, Schneider ATV12, Haiwei E, Holley HGD303, Taian F510, Hexin F2A, Rockwell PowerFlex-4, Fuji FRENIC-VP, Boke CV20, Yaskawa A1000, and Weichuang Artrich-AR60T. Most of the microcontroller communication programs have been validated through the actual inverter, and the remaining programs have also been validated through simulation methods. Here, I share the Modbus communication register allocation table for inverters.

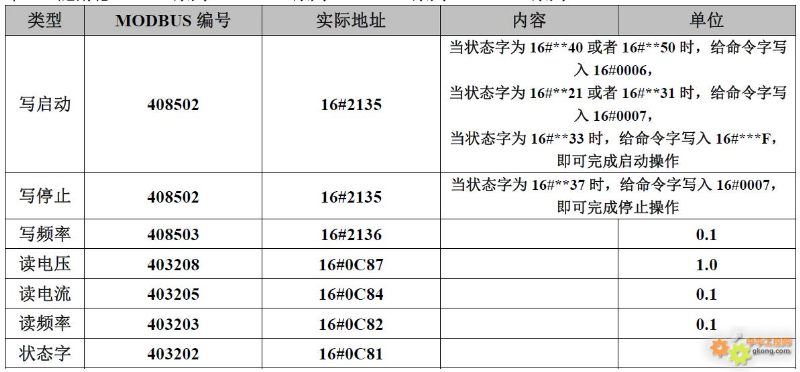

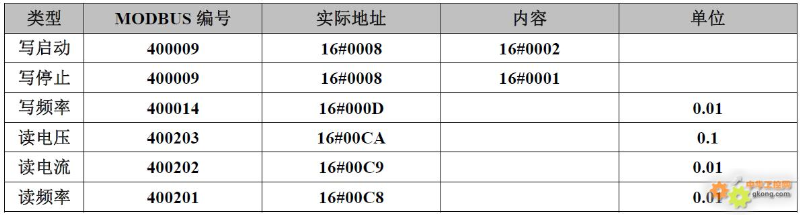

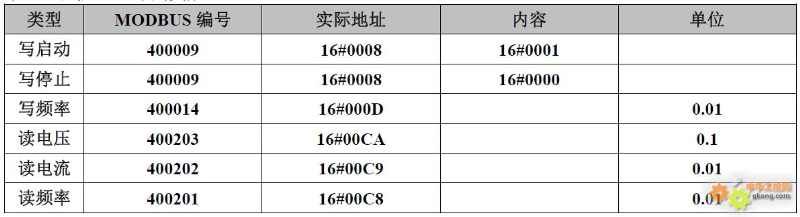

1. Mitsubishi A700, D700 series, E700 series, F700 series, L700 series, A800 series, F800 series:

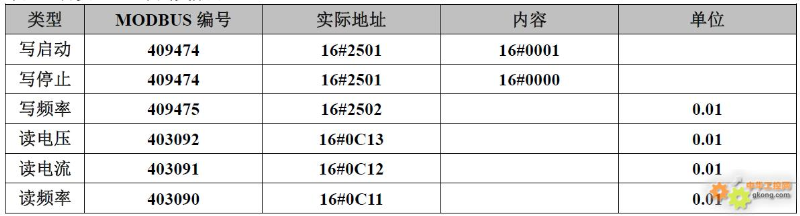

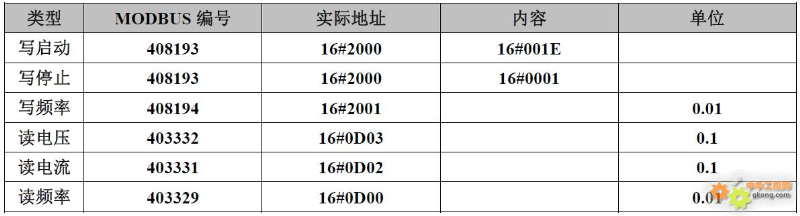

2. Siemens G120 series:

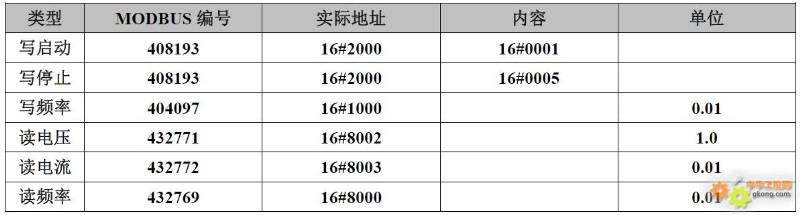

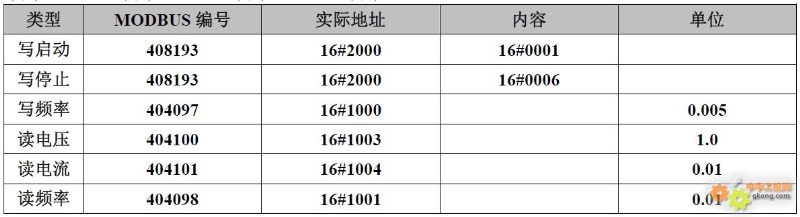

3. Omron 3G3JZ series, 3G3MZ-ZV2 series:

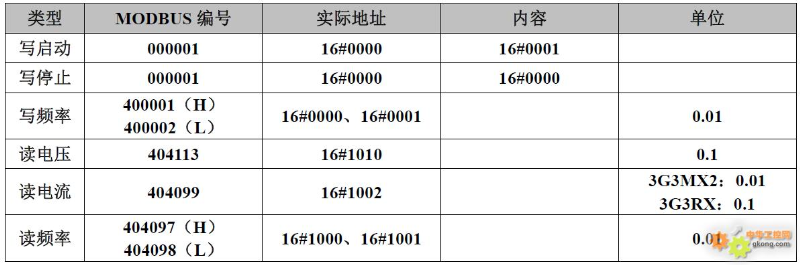

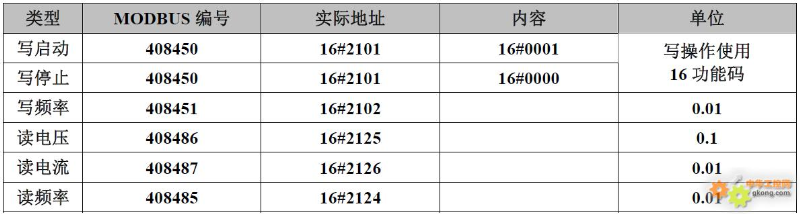

4. Omron 3G3MX2-ZV1 series, 3G3RX series:

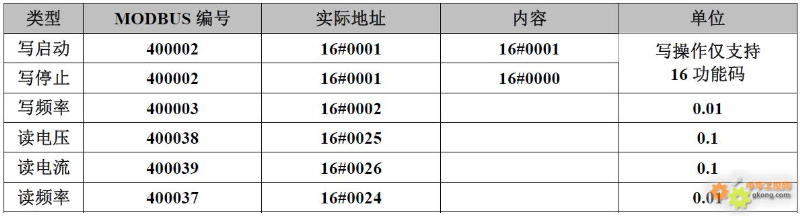

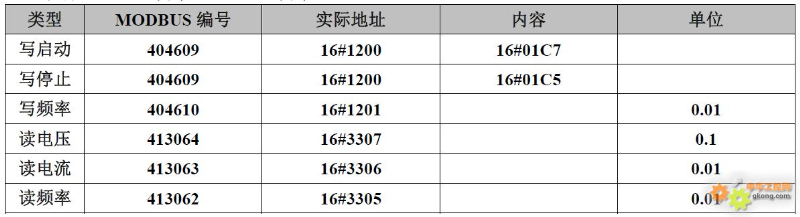

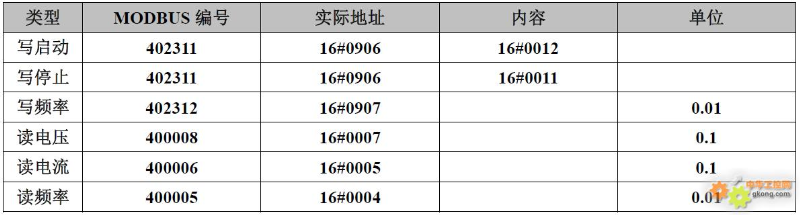

5. Panasonic VF100 series, VF200 series:

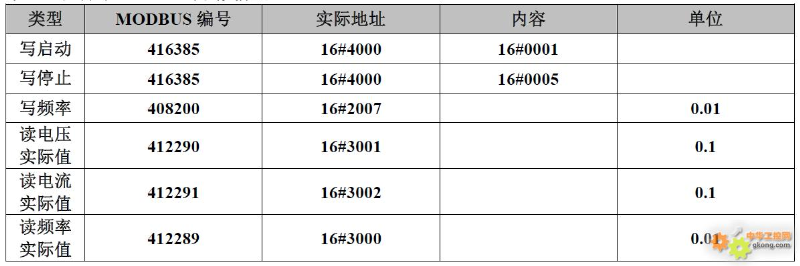

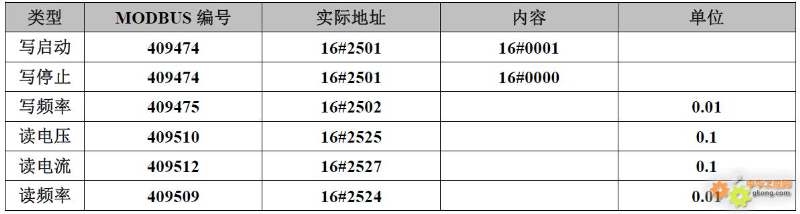

6. Panasonic MK300 series:

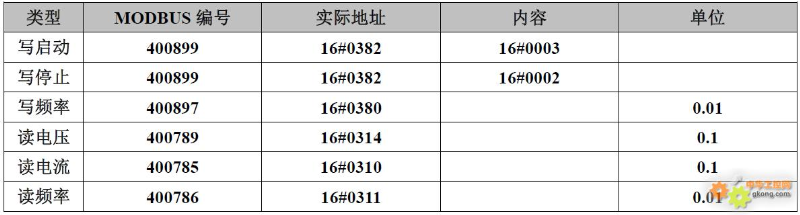

7. Delta VFD-E series, VFD-EL series:

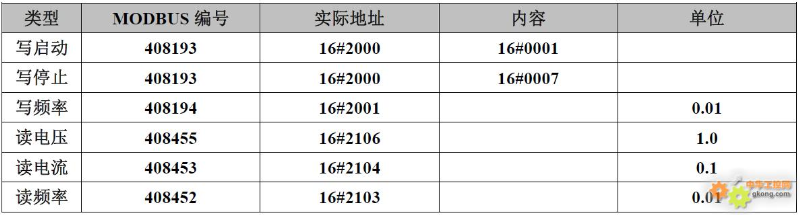

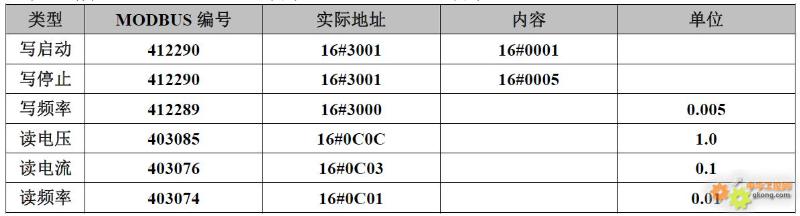

8. Delta VFD-F series, VFD-FE series:

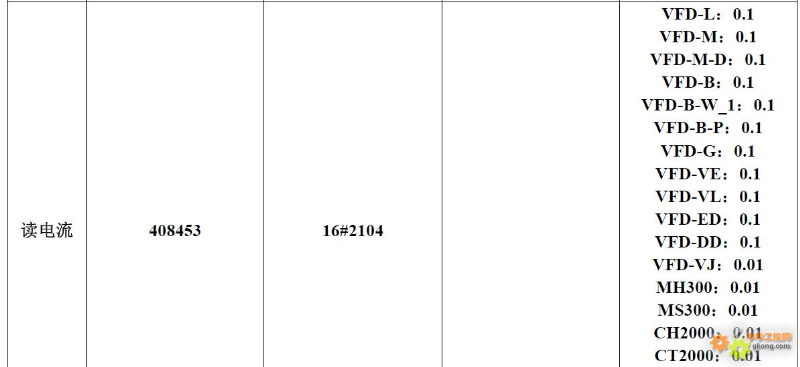

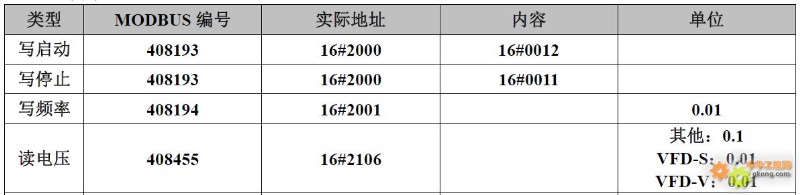

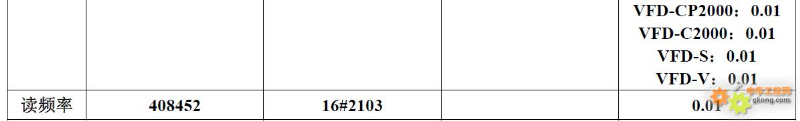

9. Delta VFD-L series, VFD-M series, VFD-M-D series, VFD-B series, VFD-B-W_1 series, VFD-B-P series, VFD-G series, VFD-VE series, VFD-VL series, VFD-ED series, VFD-DD series, VFD-VJ series, MH300 series, MS300 series, CH2000 series, CT2000 series, VFD-CP2000 series, VFD-C2000 series, VFD-S series, VFD-V series:

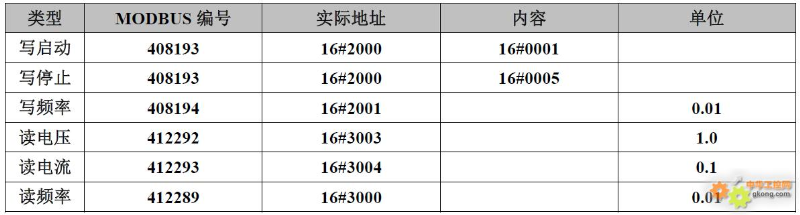

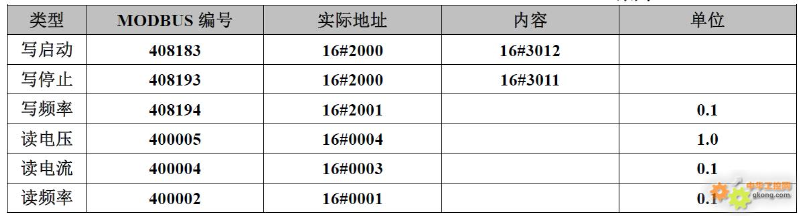

10. Xinjie VB3 series, VB5 series, V5 series, VB5N series, VD4 series:
11. Xinjie VH3 series:
12. Yonghong FID-B10 series, FID-B30 series:
13. Yonghong FID-N1 series:
14. Yonghong FID-N10 series:
15. Yonghong FID-E1 series, FID-S1 series:
16. Yonghong FID-E10 series:

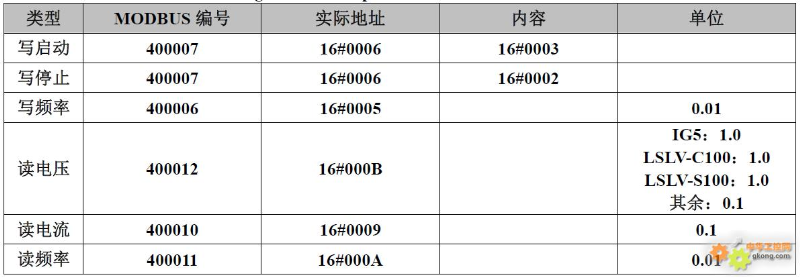

17. Chint Starvert-iG5, iG5A, igX, IGXA, ip5a, Is5; LSLV-C100, LSLV-S100 series:
18. Chint IS7 series:

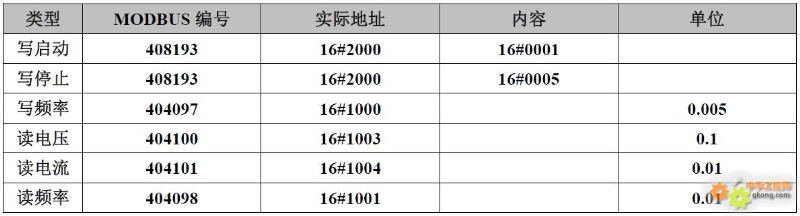

19. Inovance MD200 series, MD202 series, MD210 series, MD290 series, MD310 series, MD320 series, MD380 series, MD400 series, MD480 series, MD500 series:

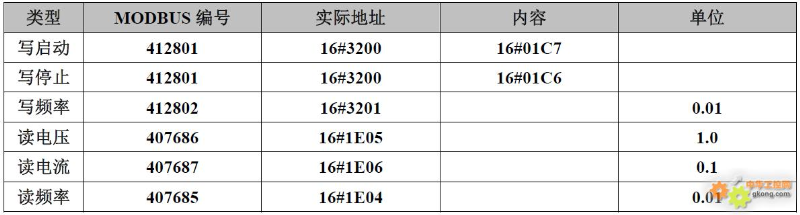

20. Inovance Goodrive10, 20, 35, 200A, 300, 800, 1000, 2000, 3000 series:

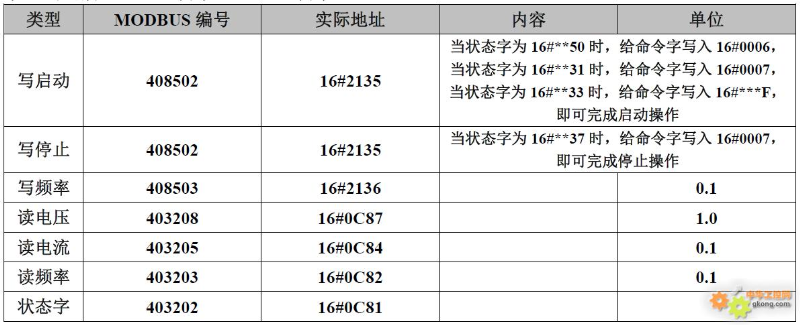

21. Schneider ATV12 series, ATV310 series:

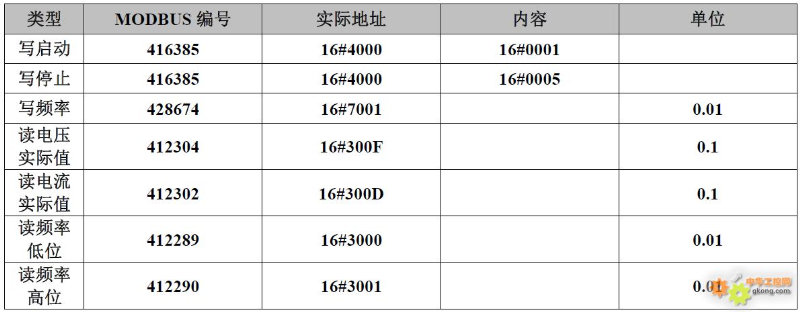

22. Schneider ATV312 series:
23. Schneider ATV32 series, ATV320 series, ATV340 series, ATV610 series:
24. Haiwei E series, H series:

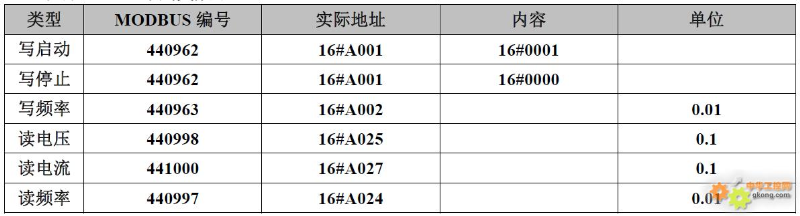

25. Holley HGD303 series:
27. Holley HGD100 series:

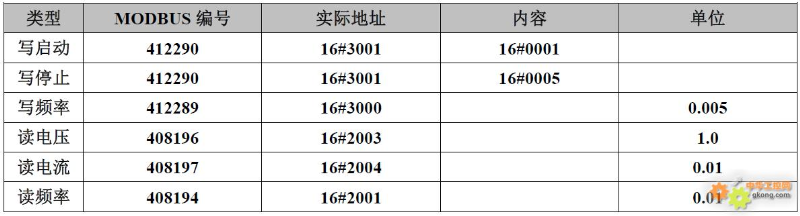

28. Taian F510 series:
29. Hexin F2A series:
30. Rockwell PowerFlex-4M, PowerFlex-4, PowerFlex-40, PowerFlex-40P, PowerFlex-400 series:
31. Fuji FRENIC-Mini, FRENIC-VP, FRENIC-Multi, FRENIC-MEGA series:
32. Boke CV20 series, CV100 series, FV100 series, SV100 series:
33. Yaskawa A1000 series, E1000 series, H1000 series, J1000 series, L1000A series, T1000V series, U1000 series, V1000 series, W1000 series, CH700 series, GA700 series:
34. Weichuang Artrich-AR60T series, Artrich-AR80i series, Artrich-AR200iL series:
35. Weichuang Artrich-AR100L series, Artrich-AR200L series:
