《Methods to Fix Noise Violations in Digital IC Backend Design – 2 How to Report Noise Violations in Design and Automate Tool Fixes》
Note:
This article is selected from the SI topic of the Knowledge Community (ongoing updates), welcome to join
Community link: https://t.zsxq.com/042zFIam6
Previous article:
Methods to Fix Noise Violations in Digital IC Backend Design – 1 Theoretical Knowledge – How to Solve Xtalk Issues?
Community link: https://t.zsxq.com/04IuNfQV7
How to Report Noise Violations in ICC
After completing PR in ICC, or during STA in PT, we can use the following command to check for noise violations:
report_noise -all_violators
By default, this command only checks the current scenario. We can use the following command to view noise violations across all scenarios:
icc_shell> foreach scenario [all_active_scenarios] {
current_scenario $scenario
report_noise -all_violators
}
How to Let the Tool Automatically Fix Noise Violations in ICC

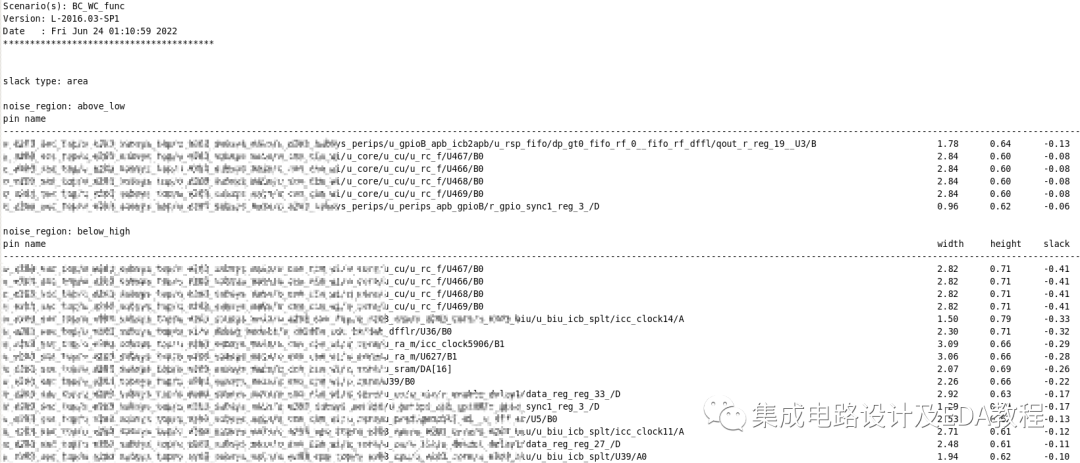

report_noise -all_violators can report all noise violations:
Method 1. Perform incremental route optimization:
route_opt -incremental -only_xtalk_reduction
This method is very efficient, as shown in the following image after one round of fixes:
The command above can resolve most violations. If there are still some violations left, we can use the following command to perform fixes:
Method 2. focal_opt -xtalk_reduction_nets “xxx yyy”
Using report_noise -all_violators to identify the pins with violations, we can use get_nets -of to capture the above nets, then perform a Unique operation,
After that, use focal_opt -xtalk_reduction_nets to fix:
focal_opt -xtalk_reduction_nets “xxx/n612 xxx/n2035 “

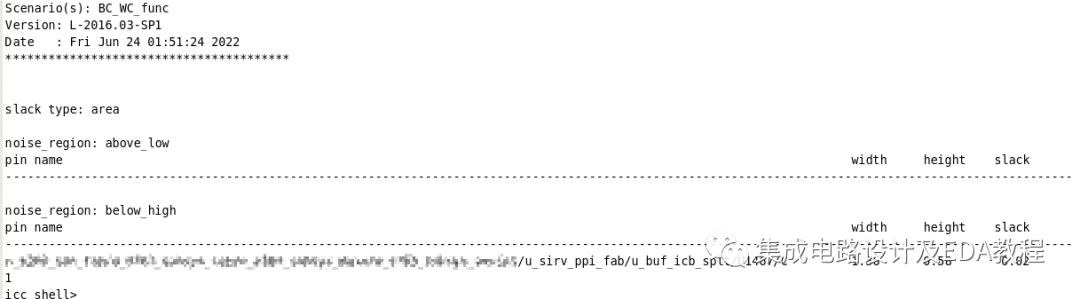

After the fix, only one violation remains:
For the remaining violation, you can repeat the previous focal_opt method. If it does not work, manual fixing will be required, the specific method will be shared later, and the basic principle is as explained earlier:
《Methods to Fix Noise Violations in Digital IC Backend Design – 1 Theoretical Knowledge – How to Solve Xtalk Issues?》
https://t.zsxq.com/04IuNfQV7
