Memory Layout of C Language Structures: Detailed Explanation of Alignment, Padding, and Bitfields

The size of a structure and its alignment directly affect memory and performance; understanding alignment rules, the reasons for padding, and the behavior of bitfields can help write smaller, more efficient, and portable C code.

Why Care About the Memory Layout of Structures

• • In network protocols, binary files, drivers, and embedded systems, the byte layout of structures determines compatibility;
• • Memory alignment can improve access speed but introduces padding bytes;
• • Bitfields can save space but are easily affected by platform and compiler implementations.

Basic Concepts: Alignment and Padding

• • Basic types have alignment requirements (alignment), commonly 1, 2, 4, or 8 bytes;
• • Members are placed according to their alignment requirements, with padding inserted as necessary;
• • The overall size of the structure is aligned to the maximum member alignment value (struct alignment).

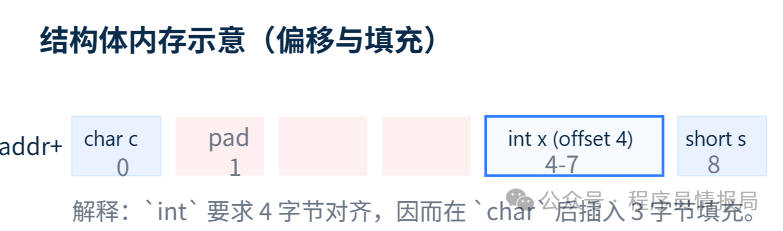

Example:

struct A {
    char c;   // offset 0
    int  x;   // offset 4 (padding 3 bytes after c)
    short s;  // offset 8
};
// sizeof(struct A) == 12 (assuming int=4, short=2, struct alignment=4)

Reason: The compiler places <span>int</span> at a 4-byte alignment boundary for efficient CPU access, thus inserting 3 bytes of padding after <span>char</span>.

How to View and Verify Layout

• • Real-time view:<span>sizeof(struct A)</span>; offset view:<span>offsetof(struct A, x)</span> (requires <span>#include <stddef.h></span>);
• • Compiler tools:<span>gcc -fdump-lang-class</span> (complex), commonly used <span>printf("%zu %zu\n", sizeof(s), offsetof(...));</span> example:

#include <stdio.h>
#include <stddef.h>

struct A { char c; int x; short s; };
int main(){
    printf("sizeof(A)=%zu\n", sizeof(struct A));
    printf("offsetof x=%zu\n", offsetof(struct A, x));
}

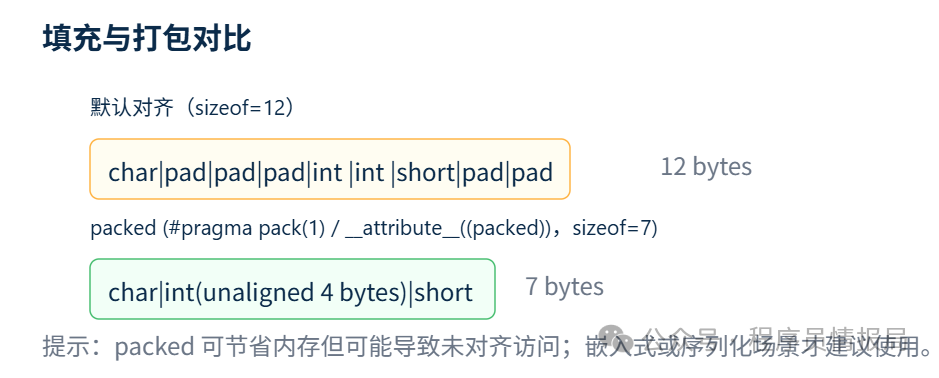

Changing Layout: <span>packed</span> and <span>#pragma pack</span>

• • <span>__attribute__((packed))</span> or <span>#pragma pack(1)</span> can eliminate padding between members, reducing the size of the structure;
• • Cost: Unaligned access may lead to performance degradation or even hardware exceptions (on certain architectures); example:

struct B {
    char c;
    int x;
} __attribute__((packed));
// sizeof(B) == 5

Advice: Use packed only when binary compatibility or memory savings are critically necessary, and use memcpy or byte-wise access when reading/writing unaligned data.

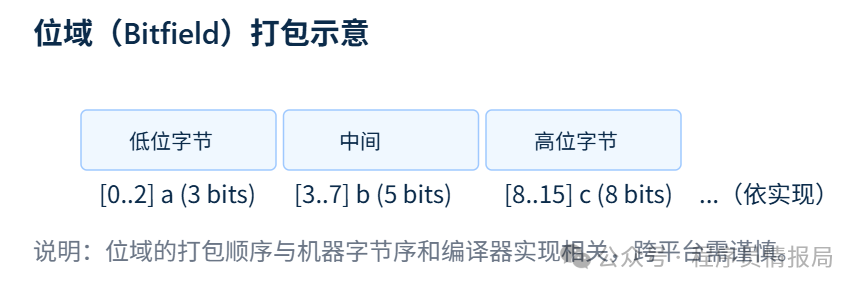

Detailed Explanation and Pitfalls of Bitfields

• • Syntax:<span>unsigned a:3;</span> indicates occupying 3 bits; the compiler packs bitfields into implementation-defined units (usually <span>int</span>);
• • The order of bitfields (from low to high) and cross-byte packing depend on the compiler and machine byte order (endianness);
• • Using bitfields for protocol fields is convenient, but they cannot be used for precise control of bit order across platforms unless compiler behavior is agreed upon simultaneously. example:

struct Flags {
    unsigned a:3; // 3 bits
    unsigned b:5; // 5 bits -> shares one byte
    unsigned c:8; // new storage unit (implementation-dependent)
};

Note:<span>sizeof(struct Flags)</span> is closely related to the internal packing unit implementation and cannot be inferred solely from the number of bits.

Common Misconceptions and Practical Suggestions (Key Points Checklist)

• • Do not use <span>sizeof</span> as a protocol delimiter; the protocol format should use explicit byte sequences (uint8_t/uint16_t) and manual packing/unpacking;
• • If serialization of structures is necessary: define fixed alignment (e.g., <span>#pragma pack(1)</span>) and clearly document platform dependencies in the interface documentation;
• • For performance-critical paths, adhere to natural alignment to avoid frequent unaligned access by the CPU;
• • Bitfields are suitable for internal state flags, not for field definitions in cross-process or network protocols;
• • Use static assertions (C11 <span>_Static_assert</span> or compile-time <span>sizeof</span> checks) to catch size mismatches at compile time:

_Static_assert(sizeof(struct A) == 12, "struct A size mismatch");

Debugging and Detection Techniques

• • In gdb, <span>ptype</span> / <span>whatis</span> can be used to view the structure layout;
• • Use <span>padded</span> tools or custom print functions to list the offset of each member;
• • Include <span>sizeof</span> checks in CI to cover different architectures (x86, x86_64, arm) to prevent regressions.

Summary and Publishing Suggestions

• • Understanding alignment and padding is fundamental to writing high-quality C code;
• • Incorporate structure layout into documentation and CI checks in projects to avoid hidden bugs due to ABI/size inconsistencies;
• • Publishing suggestions: include images (structure comparisons, bitfield diagrams), example code, and one small online demo (running sizeof/offsetof).
