MCD-LQ67
Loongson SeriesCOMe Core Board

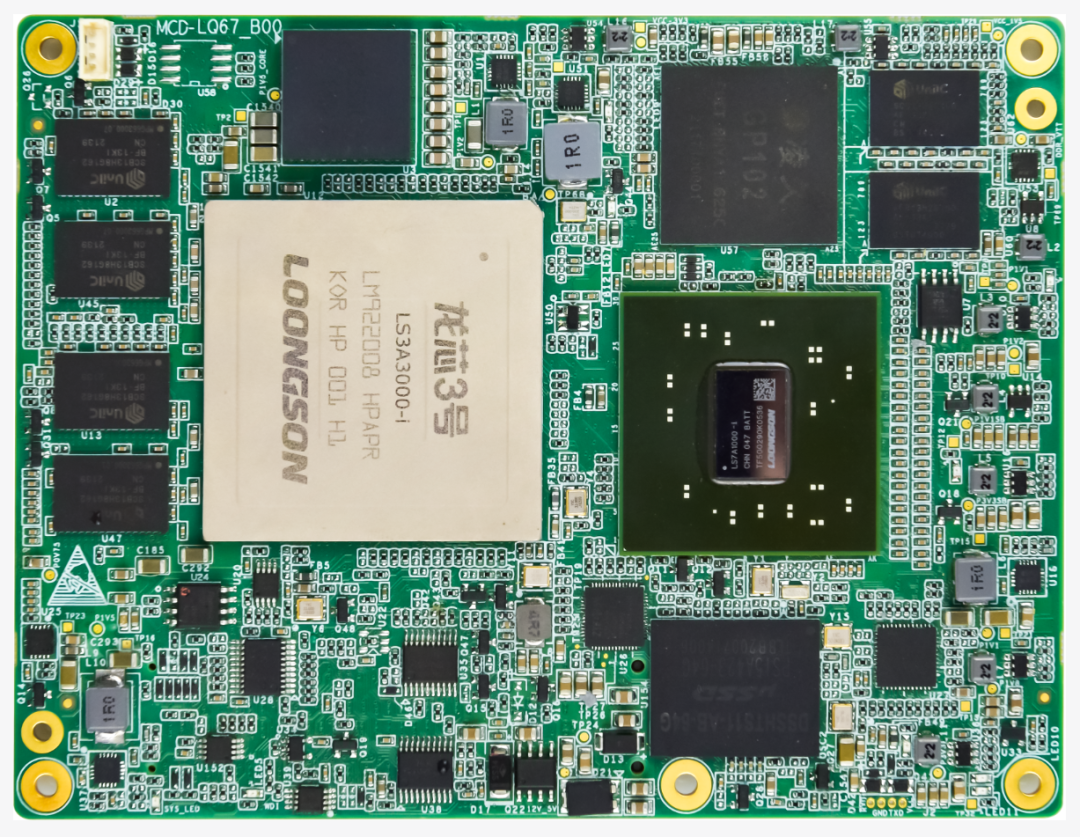

（Product Front View Image）

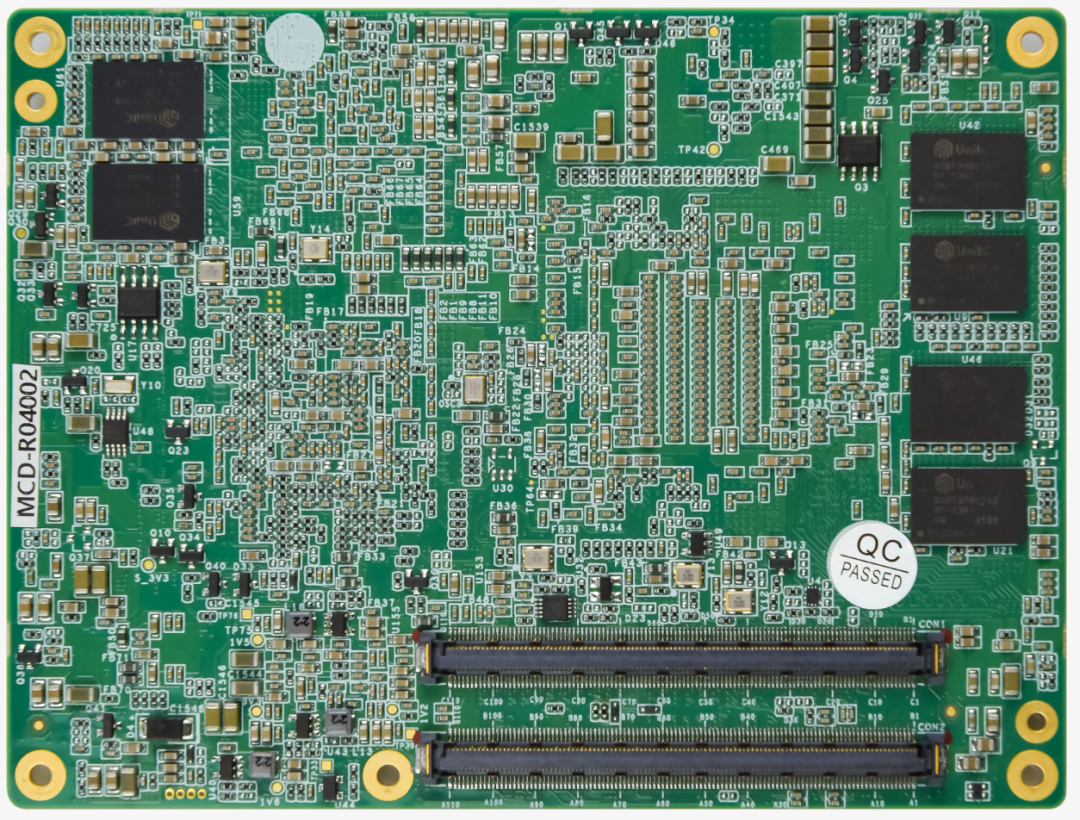

（Product Back View Image）
Product Overview
The MCD-LQ67 project is a domestically controllable, fully domestic COM-Express module that adheres to the PICMG COM.0 R2.1 Basic standard, with pin definitions compatible with COM Express Type 6. The module’s processor uses the Loongson LS3A3000 quad-core processor, with a maximum frequency of 1.5GHz (standard configuration at 1.2GHz), and is equipped with the second-generation domestically produced bridge chip 7A1000, utilizing the HT3.0 high-speed bus for inter-chip communication. This motherboard provides a rich set of interface resources, including commonly used interfaces such as PCIe, SATA, USB, UART, DVI, and VGA.
The module features a high shock resistance, fully surface-mounted, modular design, characterized by high performance, high localization, high stability, and high reliability, making it widely applicable in government, scientific research, medical, power, communication, and transportation fields.
Product Features
-
Wide voltage supply: 8V~14V;
-
High localization rate
-
Onboard domestic Loongson quad-core processor, frequency 1.2GHz
-
Onboard 8GB memory, dual-channel design
-
Rich interface resources, wide applicability
Parameter Summary
|
Item |
Specification |
Specification Description |
|
Processor Platform |
CPU |
Loongson 3A3000 quad-core processor, frequency 1.2GHz |
|
Memory |
Onboard 8GB DDR3 |
|
|
ROM |
Onboard 16MB SPI FLASH |
|
|
RTC |
Supports real-time clock |
|
|
Storage |
Onboard 64GB SSD (optional with SATA0) |
|
|
Wdog |
Onboard watchdog |
|
|
System |
Loongnix, Kylin OS and other domestic operating systems |
|
|
COM-E Interface |
Ethernet |
1 GE, supports 10/100/1000M adaptive |
|
PCI-E |
2 PCI-E x8 2 PCI-E x4 (compliant with PCI-E 2.0) |
|
|
SATA |
2 SATA2.0 |
|
|
USB |
6 USB2.0 |
|
|
SPI |
1 SPI (only for starting PMON, cannot be used for communication) |
|
|
I2C |
2 I2C |
|
|
Serial Port |
2 LVTTL UART |
|
|
GPIO |
4 GPI, 4 GPO |
|
|
Audio |
1 HDA |
|
|
Display |
1 DVI |
|
|
1 VGA |
||
|
Custom Requirements |
Input power voltage detection, temperature detection, RTC battery voltage detection, monitoring information can be sent to the carrier board via UART1; |
|
|
Power Supply |
Power On |
Supports AT, ATX modes; In ATX mode, the carrier board must send PWRBTN# signal to power on, Power off requires pulling PWRBTN# low for 3-4s to execute shutdown; In AT mode, power on self-boot; |
|
Input Voltage |
DC 8V～14V |
|
|
Power Consumption |
≤60W |
|
|
Structure |
Dimensions |
95mm x 125mm (COM-E Basic standard) |
|
Interface Type |
PICMG COM.0 R2.1 Type6 |
|
|
Localization Rate |
Material Types |
100% |
|
Material Types |
100% |
|
|
Environmental Requirements |
Operating Temperature |
-5℃～50℃ (Commercial Temperature) -20℃～65℃ (Screening Temperature) -40℃～65℃ (Wide Temperature) |
|
Storage Temperature |
-40℃～70℃ |
|
|
Humidity |
5～95% RH, non-condensing |
