MCD-LM08
Loongson Series Mini COMe Core Board

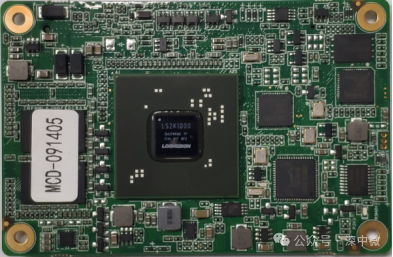

（Product Front View Image）

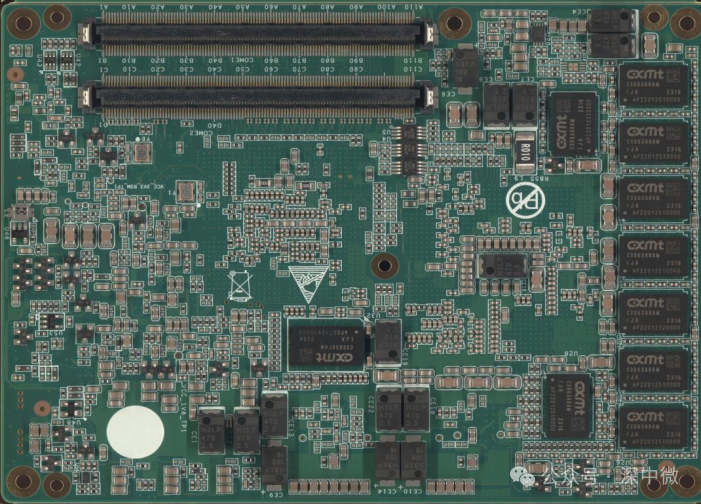

（Product Back View Image）
Product Overview
The MCD-LM08 is a domestically produced, high-performance, and highly reliable Mini COM-Express module that adheres to the PICMG COM Express standard, with pin definitions compatible with COM Express Type 10. The module’s CPU utilizes the Loongson 2K1000 from Loongson Technology, which integrates two 64-bit dual-issue superscalar GS264 processor cores, with a main frequency of 1GHz and a 40nm process technology. The core board features a rich set of interface resources, including 6 PCIe 2.0, 1 SATA 2.0, 4 USB 2.0, 1 HDMI, and various other common interfaces.Product Features
-
Wide voltage supply: 8~14V;
-
Fully domestically produced;
-
Onboard domestic Loongson 2K1000 processor;
-
Rich interface resources, wide applicability
Parameter Summary
|
Item |
Specification |
Description |
|
ProcessorPlatform |
CPU |
Loongson 2K1000, commercial grade frequency 1GHz, industrial grade frequency 800MHz |
|
Memory |
Onboard 2GB DDR3 (optional 4GB) |
|
|
Storage |
Onboard 512MB SPI NAND FLASH |
|
|
System |
Domestic system |
|
|
COM-E Interface |
Ethernet |
2 GE, supports 10/100/1000M auto-adaptive |
|
PCI-E |
6 PCI-E X1 (optional: 2 PCI-E X4 or 1 PCI-E X4 + 4 PCI-E X1) compliant with PCI-E 2.0 |
|
|
SATA |
1 SATA 2.0 |
|
|
USB |
4 USB 2.0 |
|
|
SDIO |
1 SDIO 2.0 |
|
|
SPI |
1 SPI, Master |
|
|
I2C |
2 I2C |
|
|
Serial Port |
4 LVTTL UART |
|
|
GPIO |
4 GPI |
|
|
4 GPO |
||
|
Audio |
1 HDA |
|
|
Display |
1 HDMI |
|
|
Power |
Input Voltage |
DC 8V～14V |
|
Power Consumption |
≤10W |
|
|
Structure |
Dimensions |
84mm x 55mm (Mini COM-E module standard size) |
|
Environmental Requirements |
Operating Temperature |
5℃～55℃ (supports -40℃～70℃ extension) |
|
Storage Temperature |
-40℃～70℃ (supports -55℃～85℃ extension) |
|
|
Humidity |
5～95% RH, non-condensing |
|
|
Localization Rate |
By Type |
97.1% |
|
By Quantity |
99.79% |
|
|
Notes |
Optional localization rate【100%】 This product only has 2 non-domestic components: 1. Power chip– there are domestic pin-to-pin alternatives, with different prices; 2. COMe connector |
