MCD-LP49Loongson Series3A3000 Core Board

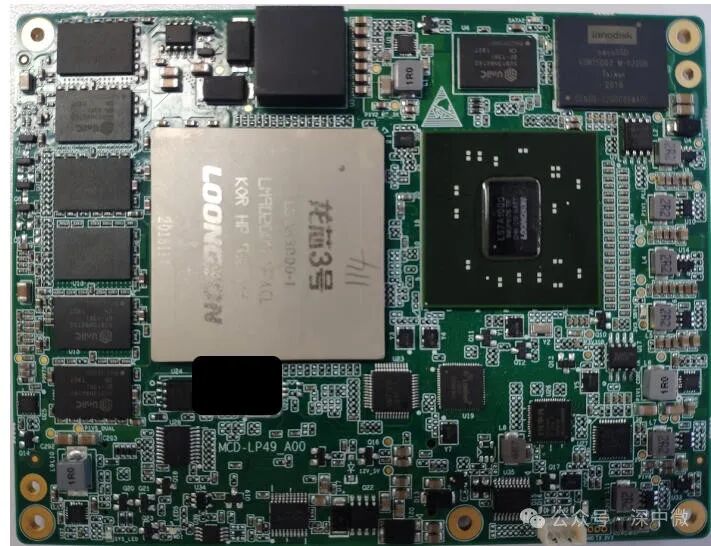

(Product Front View Image)

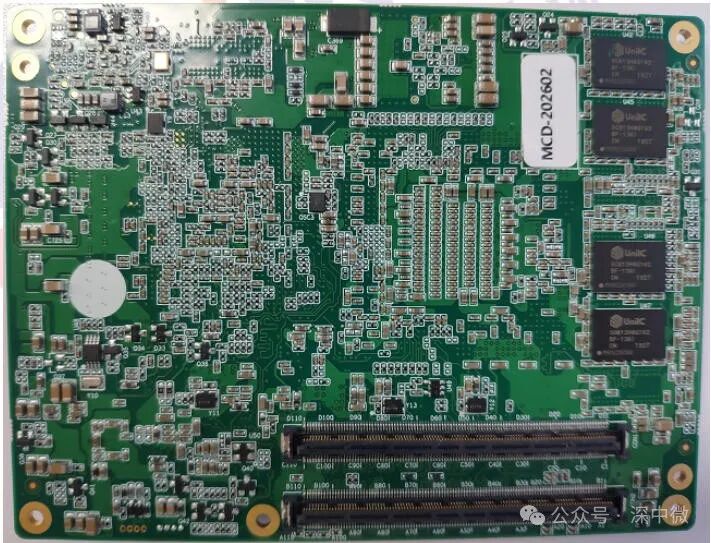

(Product Back View Image)

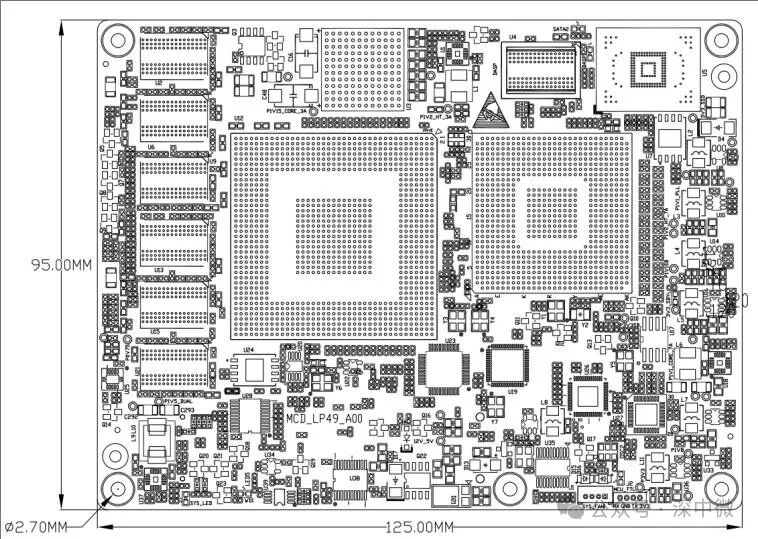

(Mainboard Dimension Diagram Front)
(Mainboard Dimension Diagram Back)Product Overview
The MCD-LP49 is a domestically controllable, fully domestic COM-Express module that adheres to the PICMG COM.0 R2.1 Basic standard, with pin definitions compatible with COM Express Type 6. The module’s processor uses the Loongson LS3A3000 quad-core processor, with a maximum frequency of 1.5GHz (standard configuration at 1.2GHz), equipped with the second-generation domestically produced bridge chip 7A1000, and inter-chip communication utilizes the HT3.0 high-speed bus. This mainboard provides a rich set of interface resources, including commonly used interfaces such as PCIe, SATA, USB, UART, LVDS, and VGA.
The module features a high shock resistance, fully surface-mounted, modular design, characterized by high performance, high localization, high stability, and high reliability, making it suitable for a wide range of applications in government, scientific research, medical, power, communications, transportation, and other fields.
Product Features
-
Wide voltage supply: 8V~14V;
-
High localization rate;
-
Onboard domestic Loongson quad-core processor, frequency 1.2GHz;
-
Onboard 8GB memory, dual-channel design;
-
Rich interface resources, wide applicability;
Parameter Summary
|
Item |
Specification |
Specification Description |
|
Processor Platform |
CPU |
Loongson 3A3000 quad-core processor, frequency 1.2GHz |
|
Memory |
Onboard 8GB DDR3 |
|
|
ROM |
Onboard 16MB SPI FLASH |
|
|
RTC |
Supports real-time clock |
|
|
Storage |
Onboard 32GB SSD (optional) |
|
|
Wdog |
Onboard watchdog |
|
|
System |
Loongnix, Kylin, and other domestic operating systems |
|
|
COM-E Interface |
Ethernet |
1 GE, supports 10/100/1000M adaptive |
|
PCI-E |
2 PCI-E x8 1 PCI-E x4 4 PCI-E x1 (compliant with PCI-E 2.0) |
|
|
SATA |
2 SATA 2.0 |
|
|
USB |
6 USB 2.0 |
|
|
SPI |
1 SPI (only for starting PMON, cannot be used for communication) |
|
|
I2C |
2 I2C |
|
|
Serial Port |
2 LVTTL UART |
|
|
GPIO |
4 GPI, 4 GPO |
|
|
Audio |
1 HDA |
|
|
Display |
Dual LVDS |
|
|
1 VGA |
||
|
Power |
Power On |
Supports AT, ATX modes; In ATX mode, the carrier board must send PWRBTN# signal to power on, To power off, PWRBTN# must be pulled low for 3-4 seconds; In AT mode, it powers on automatically; |
|
Input Voltage |
DC 8V~14V |
|
|
Power Consumption |
≤50W |
|
|
Structure |
Dimensions |
95mm x 125mm (COM-E Basic standard) |
|
Interface Type |
PICMG COM.0 R2.1 Type 6 |
|
|
Localization Rate |
Material Types |
Over 95% (supports 100%) |
|
Material Types |
Over 95% (supports 100%) |
|
|
Environmental Requirements |
Operating Temperature |
-5℃~50℃ (supports -40℃~65℃ extension) |
|
Storage Temperature |
-40℃~70℃ (supports -55℃~85℃ extension) |
|
|
Humidity |
5~95% RH, non-condensing |
