Mastering C Language: Developing a Simple Soccer Bouncing Animation with Over 100 Lines of C Code!

Introduction

Learning C language every day and always writing command-line black window programs is not very interesting. Recently, I wrote a graphical interface program to implement a simple soccer bouncing animation in C language. The code is minimal, with only over 100 effective lines. Interested readers can take a look.

Implementation Tools

• • C Language: Syntax follows the C99 standard; C89 is too old, and now it is basically C99 and above.
• • raylib: A very simple, actively updated, cross-platform 2D game development library that supports multiple platforms including Windows, Linux, and MacOS.
• • VSCode: A cross-platform editor developed by Microsoft, which can be considered a universal development tool.
• • Computer: Can be Windows, MacOS, or Linux.

Implementation Approach

The implementation approach is very simple:

• • Soccer: Download any soccer image, load it, and draw it on the screen.
• • Soccer Bouncing: The program continuously changes the position coordinates of the soccer ball to achieve animation effects.
• • Physics: Requires some basic physics knowledge, such as gravitational acceleration, speed, time, etc.
• • Pressing the R key on the keyboard resets the soccer ball’s position, and the left mouse button can accelerate the soccer ball.

As everyone has noticed, physics is also very important for programming, especially in animation and game programming. The better the physics knowledge, the more realistic the animation and game effects will be.

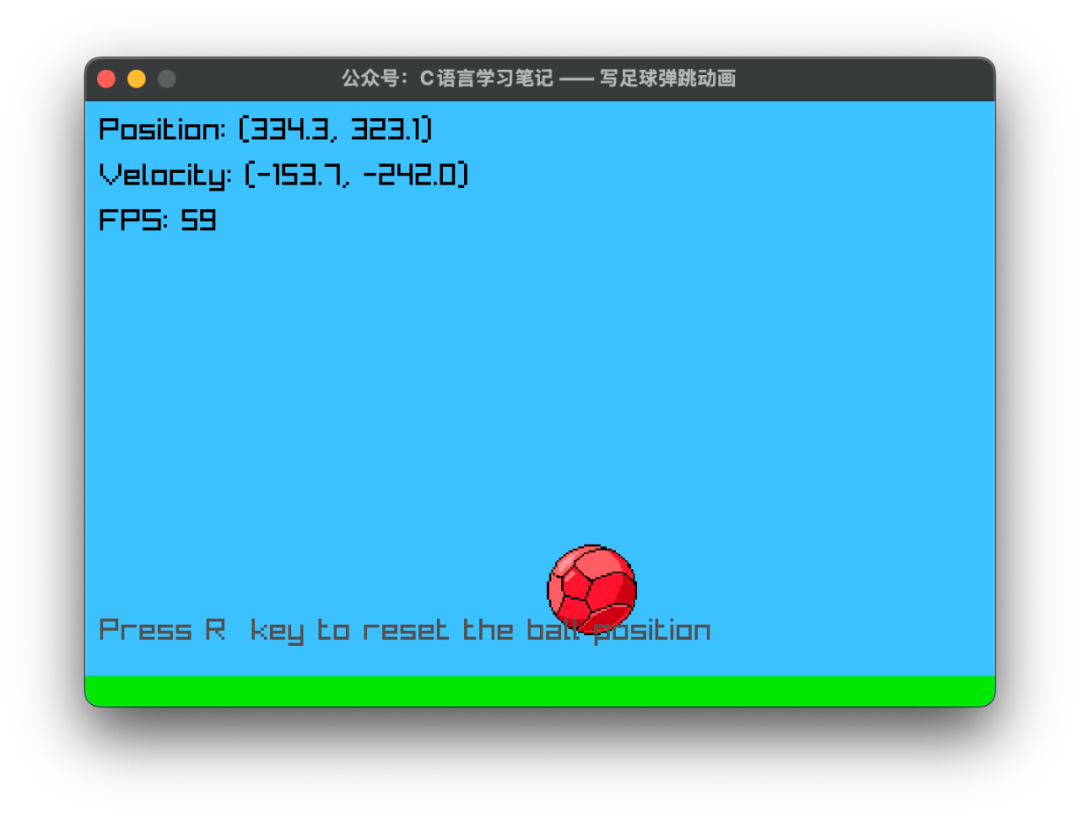

Implementation Effect Video

Directly viewing images and videos provides a more intuitive effect.

Animation Source Code, Can Be Run Directly, Save If Interested

#include "raylib.h"
#include <math.h>

int main(void)
{
    const int screenWidth = 600;
    const int screenHeight = 400;

    InitWindow(screenWidth, screenHeight, "Official Account: C Language Learning Notes - Writing Soccer Bouncing Animation");
    SetTargetFPS(60);

    // Initial position of the soccer ball
    Vector2 ballPosition = {screenWidth / 2, screenHeight / 4};
    Vector2 ballVelocity = {200.0f, 0.0f}; // Initial speed
    // Radius of the soccer ball
    float ballRadius = 30.0f;

    // Physical parameters of the soccer ball
    const float gravity = 9.8f * 50; // Gravitational acceleration (amplified effect)
    const float damping = 0.8f;      // Elastic damping
    const float friction = 0.98f;    // Friction

    // Soccer ball texture, can use soccer image
    Texture2D ballTexture = {0};
    // Try to load the soccer texture image, if it fails, use direct drawing method
    ballTexture = LoadTexture("resources/ball.png");

    while (!WindowShouldClose())
    {
        float deltaTime = GetFrameTime();
        // Update the physical parameters of the soccer ball: speed and position
        ballVelocity.y += gravity * deltaTime;
        ballPosition.x += ballVelocity.x * deltaTime;
        ballPosition.y += ballVelocity.y * deltaTime;

        // Soccer boundary collision detection, change soccer position and speed
        // Left and right boundaries of the screen
        if (ballPosition.x <= ballRadius)
        {
            ballPosition.x = ballRadius;
            ballVelocity.x = -ballVelocity.x * damping;
        }
        else if (ballPosition.x >= screenWidth - ballRadius)
        {
            ballPosition.x = screenWidth - ballRadius;
            ballVelocity.x = -ballVelocity.x * damping;
        }

        // Bottom boundary of the screen (ground)
        if (ballPosition.y >= screenHeight - ballRadius)
        {
            ballPosition.y = screenHeight - ballRadius;
            ballVelocity.y = -ballVelocity.y * damping;
            ballVelocity.x *= friction; // Ground friction
        }

        // Top boundary of the screen (ceiling)
        if (ballPosition.y <= ballRadius)
        {
            ballPosition.y = ballRadius;
            ballVelocity.y = -ballVelocity.y * damping;
        }

        // Drawing
        BeginDrawing();
        ClearBackground(SKYBLUE);

        // Draw ground
        DrawRectangle(0, screenHeight - 20, screenWidth, 20, GREEN);

        // Draw soccer ball
        if (ballTexture.id != 0)
        {
            // Use texture to draw soccer ball
            DrawTexturePro(ballTexture,
                           (Rectangle){0, 0, ballTexture.width, ballTexture.height},
                           (Rectangle){ballPosition.x, ballPosition.y, ballRadius * 2, ballRadius * 2},
                           (Vector2){ballRadius, ballRadius}, 0.0f, WHITE);
        }
        else
        {
            // Draw a simple soccer pattern
            DrawCircle(ballPosition.x, ballPosition.y, ballRadius, WHITE);
            DrawCircle(ballPosition.x, ballPosition.y, ballRadius - 2, BLACK);

            // Draw the pattern of the soccer ball
            DrawLine(ballPosition.x - ballRadius * 0.7f, ballPosition.y,
                     ballPosition.x + ballRadius * 0.7f, ballPosition.y, BLACK);
            DrawLine(ballPosition.x, ballPosition.y - ballRadius * 0.7f,
                     ballPosition.x, ballPosition.y + ballRadius * 0.7f, BLACK);
            DrawCircle(ballPosition.x, ballPosition.y, ballRadius * 0.2f, BLACK);
        }

        // Display speed and position information
        DrawText(TextFormat("Position: (%.1f, %.1f)", ballPosition.x, ballPosition.y), 10, 10, 20, BLACK);
        DrawText(TextFormat("Velocity: (%.1f, %.1f)", ballVelocity.x, ballVelocity.y), 10, 40, 20, BLACK);
        DrawText(TextFormat("FPS: %d", GetFPS()), 10, 70, 20, BLACK);

        // Press R key to reset soccer position
        DrawText("Press R key to reset the ball position", 10, screenHeight - 60, 20, DARKGRAY);

        EndDrawing();

        // Reset soccer position
        if (IsKeyPressed(KEY_R))
        {
            ballPosition = (Vector2){screenWidth / 2, screenHeight / 4};
            ballVelocity = (Vector2){200.0f, 0.0f};
        }

        // Left mouse button click applies force to the soccer ball, equivalent to kicking the ball
        if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON))
        {
            Vector2 mousePos = GetMousePosition();
            Vector2 direction = (Vector2){
                mousePos.x - ballPosition.x,
                mousePos.y - ballPosition.y};

            // Normalize direction and apply force
            float length = sqrtf(direction.x * direction.x + direction.y * direction.y);
            if (length > 0)
            {
                direction.x /= length;
                direction.y /= length;
                ballVelocity.x += direction.x * 300.0f;
                ballVelocity.y += direction.y * 300.0f;
            }
        }
    }

    // Clean up resources
    if (ballTexture.id != 0)
    {
        UnloadTexture(ballTexture);
    }
    CloseWindow();

    return 0;
}
