In the rapid development of the smart home field, low power design has become a core challenge for PCB design engineers. Smart home devices often require long standby times or rely on battery power, making power consumption requirements extremely stringent. This article will delve into low power design strategies for PCBs in smart home products, providing professional design ideas from aspects such as power management, component selection, and layout routing.Power Management OptimizationThe power management of smart home PCBs is the foundation of low power design. Using high-efficiency DC-DC converters instead of linear regulators can significantly improve energy utilization, especially in scenarios with a large input-output voltage difference. For designs with multiple voltage domains, it is advisable to use PMICs (Power Management Integrated Circuits) to integrate multiple power supplies, reducing the number of discrete components and lowering static power consumption.In terms of power topology, it is recommended to adopt a “load-leveling power supply” strategy, which divides the system into always-on power areas, intermittent power areas, and on-demand power areas based on load characteristics. For core components like MCUs, DVFS (Dynamic Voltage and Frequency Scaling) technology can be employed to dynamically adjust the supply voltage and clock frequency under different operating modes, achieving dynamic optimization of power consumption.MCU and Processor SelectionChoosing the right MCU/processor is crucial for smart home products. It is recommended to select MCUs with various low power modes, such as the STM32L series, MSP430 series, or ESP32-C series. These MCUs typically feature deep sleep modes, stop modes, and standby modes, allowing for flexible switching based on application scenarios.In peripheral design, it is essential to fully utilize the low power peripherals of the MCU, such as LPUART (Low Power UART) and LPTIM (Low Power Timer). Additionally, correctly configuring the MCU’s clock system is vital; for example, using a low-speed external oscillator (LSE) instead of a high-speed external oscillator (HSE) in non-performance-critical scenarios can significantly reduce clock system power consumption.Sensor Network OptimizationSmart home products typically integrate multiple sensors, and constructing a reasonable sensor network architecture is crucial for low power consumption. It is recommended to adopt a “data-driven wake-up” mechanism, where sensors only wake up the main system upon detecting a preset threshold. For instance, a PIR (Passive Infrared) sensor can detect human activity and only activate the high-power camera module when necessary.

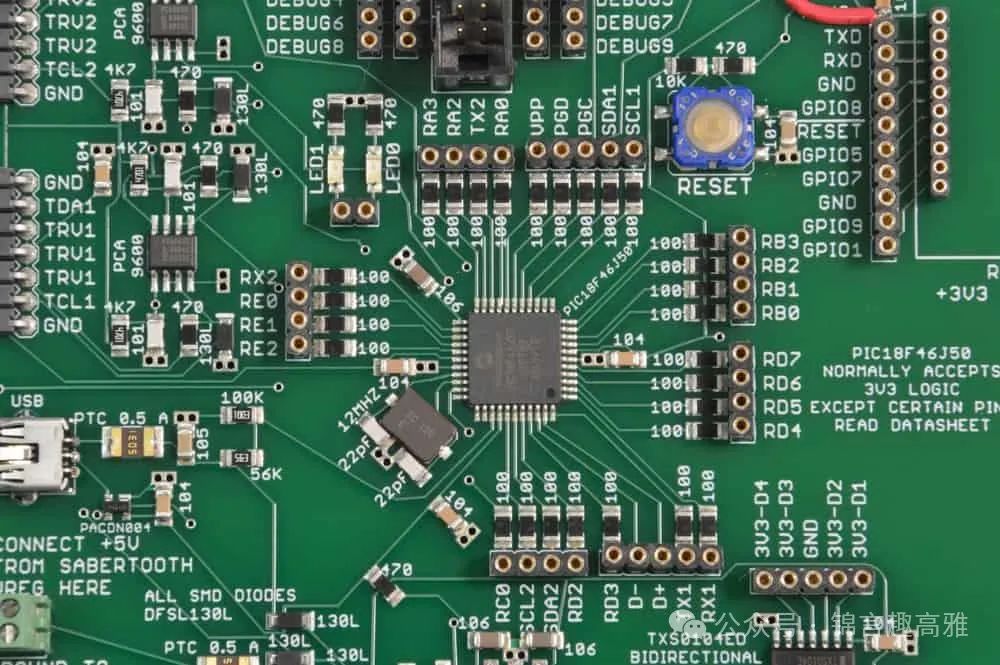

The sensor interface circuit should consider adding low-pass filtering and Schmitt triggers to improve anti-interference capability and avoid frequent wake-ups due to signal jitter. For A/D conversion, it is preferable to use the built-in ADC of the MCU to avoid the additional power consumption of external ADC chips.PCB Layout and Routing StrategiesAt the physical design level, low power PCB layout should follow the “functional partitioning” principle. Clearly partition digital circuits, analog circuits, and RF circuits to reduce mutual interference. The power plane should adopt a “star topology” to avoid ground loops and noise coupling, thereby reducing system power consumption.Key signal lines should be kept as short as possible to reduce energy loss caused by distributed capacitance and impedance mismatch. For high-speed signals, impedance should be precisely controlled, and differential pair designs should be appropriately used to enhance signal integrity. For clock signals, it is recommended to use an “H-tree” routing structure to ensure minimal clock skew and avoid additional power consumption due to timing issues.Thermal Management and EMI ConsiderationsLow power design should not overlook thermal management. Proper thermal design can prevent components from experiencing increased leakage current due to rising temperatures. For heat-generating components, such as DC-DC converters and power amplifiers, it is advisable to consider adding heat dissipation copper pads or thermal via arrays to improve heat dissipation efficiency.EMI design is closely related to power consumption. Good EMI design can reduce system anomalies and power consumption caused by electromagnetic interference. In PCB design, attention should be paid to the reasonable arrangement of decoupling capacitors, optimization of signal integrity, and appropriate grounding strategies.ConclusionThe low power design of PCBs for smart home products is a systematic project that requires comprehensive consideration from architectural design, component selection to physical implementation. Engineers should fully understand the product’s usage scenarios and power consumption budget, establish a complete power consumption analysis model early in the design process, and continuously optimize during development. Only by integrating the low power concept throughout the design process can we achieve long-lasting battery life and a high-quality user experience for smart home products.
