The industrial tablet PC offers rich expansion options and robust durability that consumer tablets lack, serving as a key hub connecting smart devices and digital intelligence in AIoT environments. North China Industrial Control has customized industrial computer product solutions for clients, utilizing the flagship AIoT chip RK3588 from Rockchip to create the Industrial Tablet PC PPC-3156QAR, which can be used as a “smart frontline terminal” in industries such as smart manufacturing, smart energy, and smart healthcare.
Part.1
Applicable AIoT Scenarios
Smart Manufacturing/Smart Factory
As an HMI (Human-Machine Interface), it enables monitoring of production line equipment status and production data, as well as human-machine interaction or remote control operations.
Used as an edge processing and display terminal for AI visual quality inspection, integrating cameras, sensors, etc., to perform real-time defect detection on products and immediately display results and abnormal alerts on the tablet.
Smart Energy
Deployed as a local monitoring terminal in substations, pump stations, etc., for SCADA system data display and remote operation.
Installed in wind farm tower control cabinets or photovoltaic station control cabinets to monitor power generation efficiency, equipment status, fault self-checking, and early warning.
Smart Healthcare
Integrated into mobile nursing carts or bedside monitors, helping to collect, analyze, and display vital sign data in real-time, and provide alerts for abnormalities.
Embedded in digital operating room consoles for unified control of environmental equipment, integrated display of patient imaging data, and remote consultations.
······
Part.2

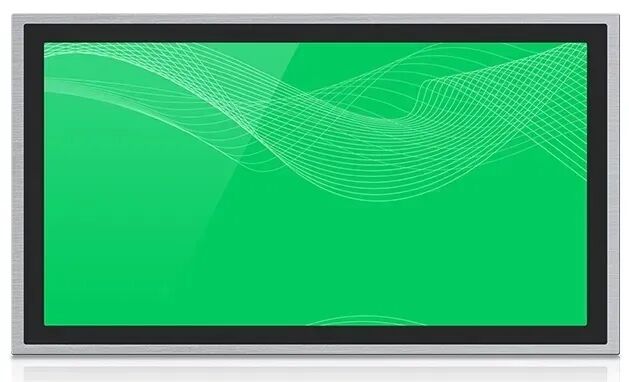

PPC-3156QAR Product Details
CPU/NPU/GPU Performance
Equipped with the RK3588 octa-core heterogeneous processor, integrating a 6 TOPs computing power NPU (expandable to 16T via M2 slot), capable of handling multi-task parallel processing loads;
Onboard LPDDR4/4X (4~16GB optional) memory, supporting 1*eMMC Flash (32~512GB optional), 1*TF (up to 1TB) interface, and 1*M.2 NVME expansion storage, meeting the requirements for large memory and high-speed cache;
Integrating Mali-G610 MP4 quad-core GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2 graphics programming interfaces, supporting 8K@60fps video decoding, 8K@30fps video encoding, and simultaneous encoding and decoding.
Excellent Human-Machine Interaction Features
Uses a capacitive touchscreen that supports multi-touch.
Configured with 1*dual-channel 24bit LVDS, 1*HDMI interface to provide superior display and human-machine interaction services.
High-Speed Communication Capabilities

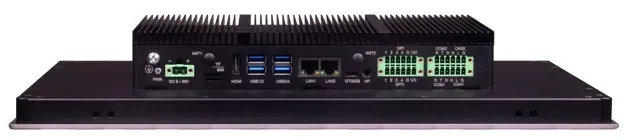

Onboard 2*Gigabit RJ45 network ports, 1*TYPE C interface (can be switched to Debug or OTG download via J7 jumper), 4*USB3.0 and 4*USB2.0 interfaces, meeting high bandwidth and high-density data transmission needs;
Supports 1*CPU COM (232/485/TTL optional) and 2*5PIN 2.00mm header built-in, providing stronger functional expansion and signal anti-interference capabilities;
Onboard 1*SIM card slot, and supports 1*Mini PCIe expansion for 4G/5G/mSATA modules to achieve multimodal network communication.
High I/O Expansion Capability
Supports 1*standard 4-section 3.5mm headphone interface, 1*Mic in, 1*Head Phone, 2*5W dual-channel amplifier interfaces, allowing multiple devices to connect in parallel without complex settings for high-quality audio transmission;
Supports 2*25 Pin expansion interfaces (including 1*PCIE/SATA, 1*USB 3.0, 2*SPI, 8*GPIO, etc.), paired with expansion board AFC-91208 or using 2*6 Phoenix terminals for more peripheral connections;
Supports 1*JFP pin header interface, 1*power button with LED. The entire machine features a modular, wireless hard connection design, allowing users to flexibly configure according to actual needs.
Harsh Environment Adaptability
The entire machine adopts a fanless wide-temperature heat dissipation structure, with a wide operating temperature range of -20℃ to 70℃, shock resistance, electromagnetic interference resistance, dustproof, moisture-proof, and other rugged features;
Compatible with the Linux operating system, developed with watchdog functionality, providing a more open and stable system operating environment;
Dimensions are 278x184x63.5mm, supporting DC 12V (optional 9~36V) power supply, suitable for panel embedded + VESA wall mounting, ideal for various industrial/commercial environments.
