1
MATLAB‘s Calculation Applications in MCM
01
Important foundational knowledge for MATLAB calculations
(1) General format of the command line
In the application of MATLAB, the most basic and simplest application is to directly input commands in the command window to achieve calculation or plotting functions.
The general format of a MATLAB command line is:
variable = expression For example: A = 1 + 2
expression For example: 1 + 2
(2) Command line operation editing
1.Using (>>)
After starting MATLAB, you can work with MATLAB. Since MATLAB is an interactive language, you can input commands at any time, and it will provide immediate calculation results.
To perform basic mathematical operations in MATLAB, simply enter the operation directly after the prompt (>>) and press Enter. For example:
>> (5 * 2 + 1.3 – 0.8) * 10 / 25
ans = 4.2000
Note!
① ans is a reserved MATLAB string that represents the return result of the previous expression, used as the default variable name for the result.
② “>>” is the MATLAB prompt symbol, but in PC Chinese Windows systems, due to different encoding methods, this prompt symbol often disappears, but this does not affect the calculation results in MATLAB.
③ Common operators in MATLAB include: addition (+), subtraction (-), multiplication (*), division (/), and exponentiation (^).
2.Using variable assignment
We can also assign the result of the above operation to another variable x:
x = (5 * 2 + 1.3 – 0.8) * 10^2 / 25
x = 42
At this point, MATLAB will directly display the value of x.
If you don’t want MATLAB to display the calculation result every time, just add a semicolon (;) at the end of the operation, as shown below:
y = sin(10) * exp(-0.3 * 4^2);
If you want to display the value of variable y, simply enter y:
>> y
Y = -0.0045.
02
MATLAB’s Calculation Applications in MCM Real Problems
Taking the 2017 MCM Problem B as an example, the problem is translated as shown in the figure below:

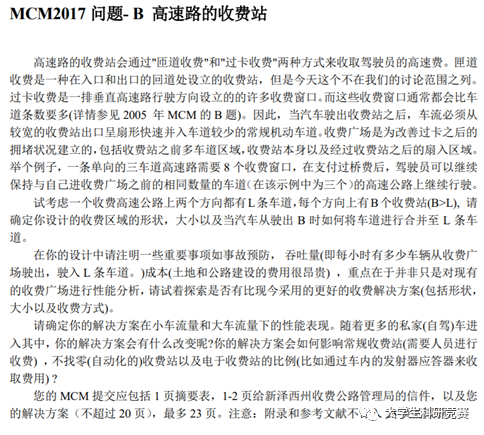

Figure 1 2017 MCM Problem B Title
The essence of the problem is to propose an optimized construction plan for highway toll stations based on certain constraints, including the shape and size of the toll area and the merging lane scheme. One of the popular approaches to solving the problem that year was to use cellular automata algorithms for simulation.
Cellular automata are essentially defined on a cellular space composed of discrete, finite states, evolving over discrete time dimensions according to certain local rules. They have been applied in fields such as physical simulation and biological simulation.
In Problem B, if you want to use cellular automata for simulation, you will inevitably need to solve complicated calculation problems. Such large-scale calculations are impossible to achieve ideal results through manual computation during the competition period, and using basic software like EXCEL is also very time-consuming.
However, in MATLAB, a cell can be understood as a square block composed of one or more points in a matrix, generally represented by one point in the matrix. Therefore, we can use MATLAB programming to make the complex calculations of cellular automata feasible and swift. The following image shows a participant’s code.

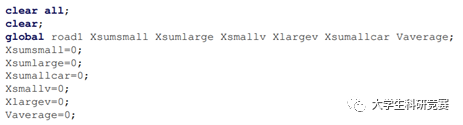

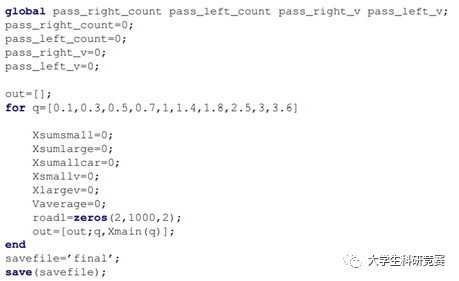

Figure 2 Part of the MATLAB Cellular Automata Code
2
MATLAB‘s Plotting Applications in MCM
01
Important foundational knowledge for MATLAB plotting
(1) Drawing 2D graphs
Since MATLAB graphics are implemented by plotting points and connecting lines, when drawing simple plane shapes, it is necessary to provide a series of x and y coordinates of points on the shape, and then link these points together. The specific plotting command is: plot(X,Y,’S’)
Where X and Y are vectors consisting of all points’ x and y coordinates, and S is a string used to determine the line color, point shape, and the way points are connected.
By entering the help plot command in the command window, you can view the specific way to write S. Y can sometimes be a matrix, in which case multiple curves will be plotted for the same independent variable.
Example 1. Plot a sine curve and a cosine curve.
Solution:
>> x = 0:pi/10:2*pi; % Construct vector
>> y1 = sin(x); % Construct corresponding y1 coordinates
>> y2 = cos(x); % Construct corresponding y2 coordinates
>> plot(x,y1,x,y2) % Plot a graph with x as the x-coordinate and y1, y2 as the y-coordinates

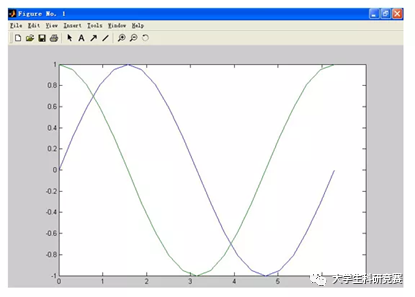

Figure 3 Example 1 Plot Result
Example 2. In an exam, 8% of students scored excellent, 20% scored good, 36% scored average, 24% passed, and 12% failed. Represent these using a pie chart and a bar chart.
Solution:
>> x = [8 20 36 24 12];
>> subplot(221); pie(x,[1 0 0 0 1]);
>> title(‘Pie Chart’);
>> subplot(222); bar(x,’group’);
>> title(‘Vertical Bar Chart’);
>> subplot(223); bar(x,’stack’);
>> title(‘Vertical Bar Chart with Cumulative Values as Y-axis’);
>> subplot(224); barh(x,’group’);
>> title(‘Horizontal Bar Chart’);

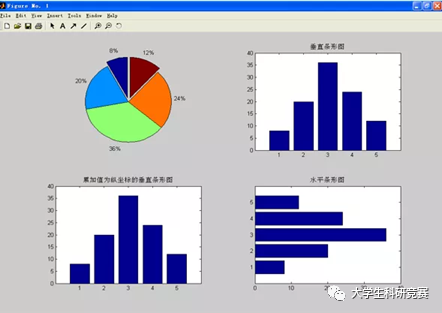

Figure 4 Example 2 Plot Result
(2) Curve control commands
When using commands like plot to draw curves, you can specify the color, line style, and data point markers of the curve. The basic calling format is:
plot(x,y,’color line-style marker’).
Table 1 MATLAB Plotting Color Calling Commands
|
Character |
Color |
Character |
Color |
|
b |
Blue |
m |
Magenta |
|
c |
Cyan |
r |
Red |
|
g |
Green |
w |
White |
|
k |
Black |
y |
Yellow |
Table 2 MATLAB Data Point Styles
|
Marker Symbol |
Data Point Style |
Marker Symbol |
Data Point Style |
|
. |
Solid Circle |
> |
Greater Than |
|
o (letter) |
Hollow Circle |
< |
Less Than |
|
x |
Cross |
s |
Square |
|
+ |
Plus |
d |
Diamond |
|
* |
Star |
h |
Hexagram |
|
v |
Downward Triangle |
p |
Pentagram |
|
^ |
Upward Triangle |
Example 3. Use red color, dotted line, and cross markers to draw the sine curve. Solution: >>x=0:0.2:8;>>y=sin(x);>>plot(x,y,’r:x’)

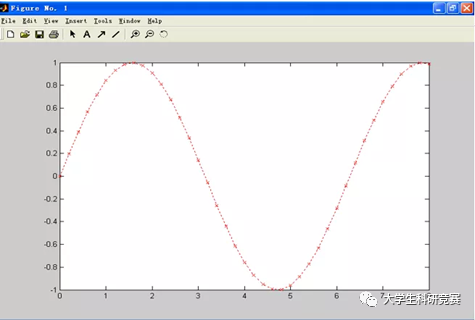

Figure 5 Example 3 Plot Result
02
MATLAB’s Plotting Applications in MCM Real Problems
Taking the 2017 MCM Problem F as an example, the essence of the problem is: under a series of constraints, please establish a scientific Mars colonization plan model and conduct a multi-faceted benefit analysis.
In this problem, many participants visualized the trajectory of Mars in a pictorial way. A common method was to search for images from literature and directly transfer them into the paper. If this method can be well handled in terms of the unity and integration of the entire image and text, it is also acceptable.
However, a more outstanding method is to simulate and output the graphics by oneself, which can be easily achieved by writing plotting code in MATLAB.
For example: t = -pi:pi/500:pi;
Y = tan(sin(t)) – sin(tan(t)); comet(t,y)

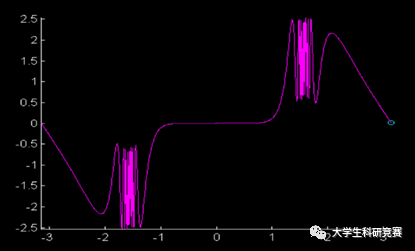

Figure 6 Mars Trajectory Plot Result
The above is an introduction to the main applications of MATLAB in real MCM problems, namely calculations and plotting. This is also one of the reasons why it is often said that mastering MATLAB is basically enough to solve MCM problems. The former is the pillar of the paper, while the latter is the flesh and blood of the paper, both complementing each other and playing a very important role in the competition results.
I recommend everyone, when learning MATLAB, firstly to master essential knowledge points, which can be self-taught through reference books and online resources; secondly, to apply what you have learned by researching the requirements of MATLAB in past real problems, focusing on the learning content, so that you can achieve twice the result with half the effort.
