Earthquake Response Spectrum Analysis Using MATLAB

I found an old assignment from a long time ago in the trash bin…

This is a frequency-time hybrid algorithm based on the Newmark-β implicit integration method, utilizing the Piecewise Exact Method (PEM) to perform batch calculations of the elastic response spectrum for a single degree of freedom (SDOF) system under seismic excitation. The seismic acceleration time history is treated as a piecewise linear load, and the state transition matrix A and load interpolation matrix B are constructed using the analytical solution of Duhamel’s integral. The displacement, velocity, absolute acceleration, and pseudo-spectral quantities are solved recursively with unconditional stability and second-order accuracy for any damping ratio ζ and structural period T. First, the seismic records are read in units of gravitational acceleration g, converted to international standard units using a conversion factor of 9.8067 m/s², and then a parameter scan is performed for damping ratios ζ ∈ {0, 0.05, 0.10, 0.20} and structural periods T ∈ [0.1, 6] s (with a step size of 1 ms) to calculate and cache the peak responses for each condition. The program outputs the seismic time history curve and the absolute acceleration response spectrum, relative displacement response spectrum, relative velocity response spectrum, pseudo-acceleration response spectrum, and pseudo-velocity response spectrum corresponding to different damping levels.

The MATLAB plots are as follows:

Earthquake Response Spectrum Analysis Using MATLABEarthquake Response Spectrum Analysis Using MATLABEarthquake Response Spectrum Analysis Using MATLABEarthquake Response Spectrum Analysis Using MATLABEarthquake Response Spectrum Analysis Using MATLABEarthquake Response Spectrum Analysis Using MATLAB

The MATLAB code is as follows:

% Clear environment
clear;
clc;
close all;

% Read seismic records
% Assume the seismic wave data is stored in the 'filename' file
% The first column is time, the second column is acceleration (in g)
filename = '01.txt'; % Please replace with the actual file name
data = readmatrix(filename);
time = data(:, 1); % Time column
acceleration_g = data(:, 2); % Acceleration column (in g)
acceleration = acceleration_g * 9.8067; % Convert acceleration to m/s^2

% Initialize parameters
dampingRatios = [0, 0.05, 0.1, 0.2]; % Damping ratio array
structuralPeriods = 0.1:0.001:6; % Structural period range
timeStep = time(2) - time(1); % Time interval
N = length(acceleration); % Length of acceleration data

% Initialize matrix to store maximum responses for different damping ratios
maxAbsAccResponses = zeros(length(dampingRatios), length(structuralPeriods)); % Absolute acceleration
maxRelDispResponses = zeros(length(dampingRatios), length(structuralPeriods)); % Relative displacement
maxRelVelResponses = zeros(length(dampingRatios), length(structuralPeriods)); % Relative velocity
maxPseudoAccResponses = zeros(length(dampingRatios), length(structuralPeriods)); % Pseudo-acceleration
maxPseudoVelResponses = zeros(length(dampingRatios), length(structuralPeriods)); % Pseudo-velocity

% Calculate seismic responses
for k = 1:length(dampingRatios)
    params.dampingRatio = dampingRatios(k); % Current damping ratio

    % Initialize storage vectors
    response.displacement = zeros(1, N); % Relative displacement
    response.velocity = zeros(1, N); % Relative velocity
    response.absoluteAcceleration = zeros(1, N); % Absolute acceleration
    response.pseudoAcceleration = zeros(1, N); % Pseudo-acceleration
    response.pseudoVelocity = zeros(1, N); % Pseudo-velocity

    for idx = 1:length(structuralPeriods)
        T = structuralPeriods(idx); % Current structural period

        % Calculate natural frequency and damped frequency
naturalFrequency = 2 * pi / T;
dampedFrequency = naturalFrequency * sqrt(1 - params.dampingRatio^2);

        % Pre-calculate common values
e_t = exp(-params.dampingRatio * naturalFrequency * timeStep);
s = sin(dampedFrequency * timeStep);
c = cos(dampedFrequency * timeStep);
d_f = (2 * params.dampingRatio^2 - 1) / (naturalFrequency^2 * timeStep);
d_3t = params.dampingRatio / (naturalFrequency^3 * timeStep);

        % Assemble A matrix
        A = [
            e_t * (s * params.dampingRatio / sqrt(1 - params.dampingRatio^2) + c), e_t * s / dampedFrequency;
            -naturalFrequency * e_t * s / sqrt(1 - params.dampingRatio^2), e_t * (-s * params.dampingRatio / sqrt(1 - params.dampingRatio^2) + c)
        ];

        % Assemble B matrix
        B = [
            e_t * ((d_f + params.dampingRatio / naturalFrequency) * s / dampedFrequency + (2 * d_3t + 1 / naturalFrequency^2) * c) - 2 * d_3t, ...
            -e_t * (d_f * s / dampedFrequency + 2 * d_3t * c) - 1 / naturalFrequency^2 + 2 * d_3t;
            e_t * ((d_f + params.dampingRatio / naturalFrequency) * (c - params.dampingRatio / sqrt(1 - params.dampingRatio^2) * s) - ...
            (2 * d_3t + 1 / naturalFrequency^2) * (dampedFrequency * s + params.dampingRatio * naturalFrequency * c)) + 1 / (naturalFrequency^2 * timeStep), ...
            e_t * (1 / (naturalFrequency^2 * timeStep) * c + s * params.dampingRatio / (naturalFrequency * dampedFrequency * timeStep)) - 1 / (naturalFrequency^2 * timeStep)
        ];

        % Calculate responses based on seismic records
        for i = 1:(N-1)
            response.displacement(i+1) = A(1,1) * response.displacement(i) + A(1,2) * response.velocity(i) + B(1,1) * acceleration(i) + B(1,2) * acceleration(i+1);
            response.velocity(i+1) = A(2,1) * response.displacement(i) + A(2,2) * response.velocity(i) + B(2,1) * acceleration(i) + B(2,2) * acceleration(i+1);
            response.absoluteAcceleration(i+1) = -2 * params.dampingRatio * naturalFrequency * response.velocity(i+1) - naturalFrequency^2 * response.displacement(i+1);

            % Calculate pseudo-acceleration and pseudo-velocity
            response.pseudoAcceleration(i+1) = response.absoluteAcceleration(i+1) + acceleration(i+1); % Pseudo-acceleration is the sum of absolute acceleration and ground acceleration
            response.pseudoVelocity(i+1) = response.velocity(i+1) + (acceleration(i+1) - acceleration(i)) * timeStep; % Pseudo-velocity is relative velocity plus the velocity change caused by ground acceleration
        end

        % Store maximum responses
        maxAbsAccResponses(k, idx) = max(abs(response.absoluteAcceleration));
        maxRelDispResponses(k, idx) = max(abs(response.displacement));
        maxRelVelResponses(k, idx) = max(abs(response.velocity));
        maxPseudoAccResponses(k, idx) = max(abs(response.pseudoAcceleration));
        maxPseudoVelResponses(k, idx) = max(abs(response.pseudoVelocity));

        % Reset storage vectors for the next period's calculation
        response.displacement = zeros(1, N);
        response.velocity = zeros(1, N);
        response.absoluteAcceleration = zeros(1, N);
        response.pseudoAcceleration = zeros(1, N);
        response.pseudoVelocity = zeros(1, N);
    end
end

% Plot charts

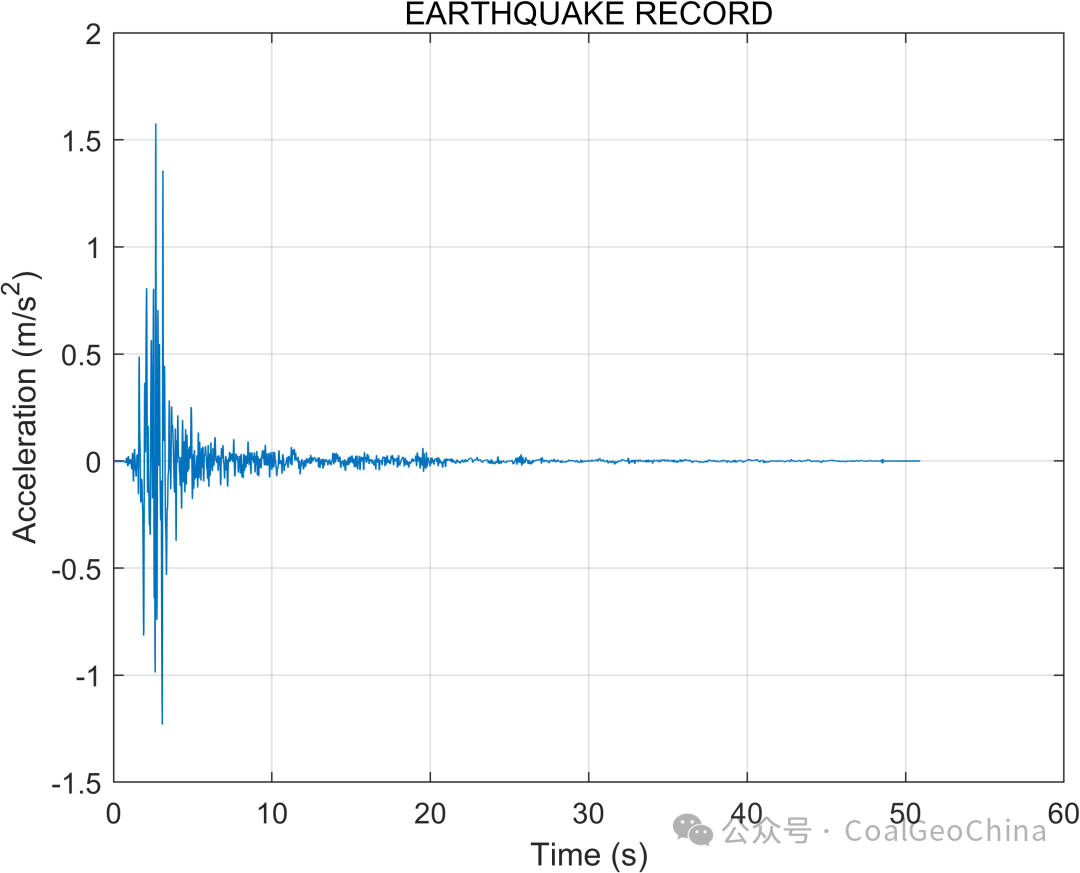

% Plot seismic record chart
figure;
plot(time, acceleration);
title('EARTHQUAKE RECORD');
xlabel('Time (s)');
ylabel('Acceleration (m/s^2)');
grid on;

outputFileName1 = 'EARTHQUAKE RECORD.png';
exportgraphics(gca, outputFileName1, 'Resolution', 500);

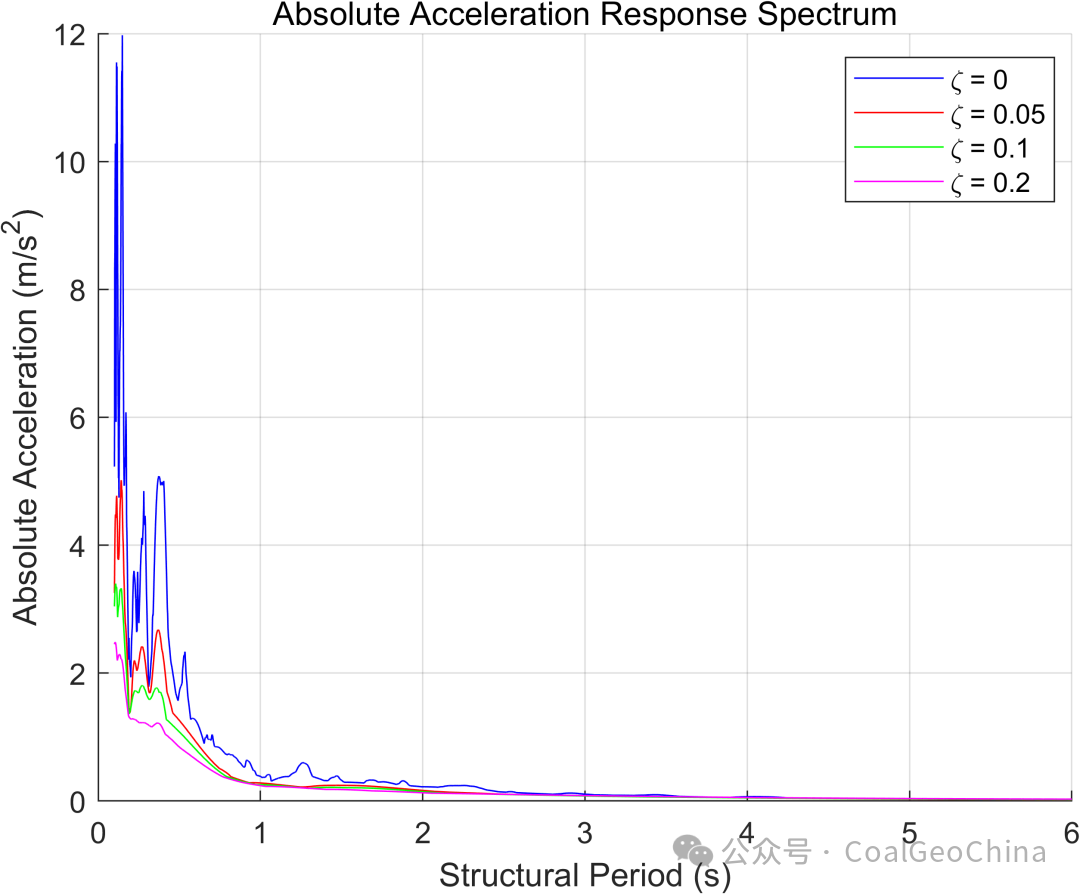

% Plot absolute acceleration response spectrum
figure;
hold on;
colors = {'b', 'r', 'g', 'm'}; % Define color array
for k = 1:length(dampingRatios)
    plot(structuralPeriods, maxAbsAccResponses(k, :), ['-', colors{k}]);
    legendEntries{k} = ['\zeta = ', num2str(dampingRatios(k))]; % Create legend entry
end
hold off;
title('Absolute Acceleration Response Spectrum');
xlabel('Structural Period (s)');
ylabel('Absolute Acceleration (m/s^2)');
legend(legendEntries, 'Location', 'Best');
grid on;

outputFileName2 = 'Absolute Acceleration Response Spectrum.png';
exportgraphics(gca, outputFileName2, 'Resolution', 500);

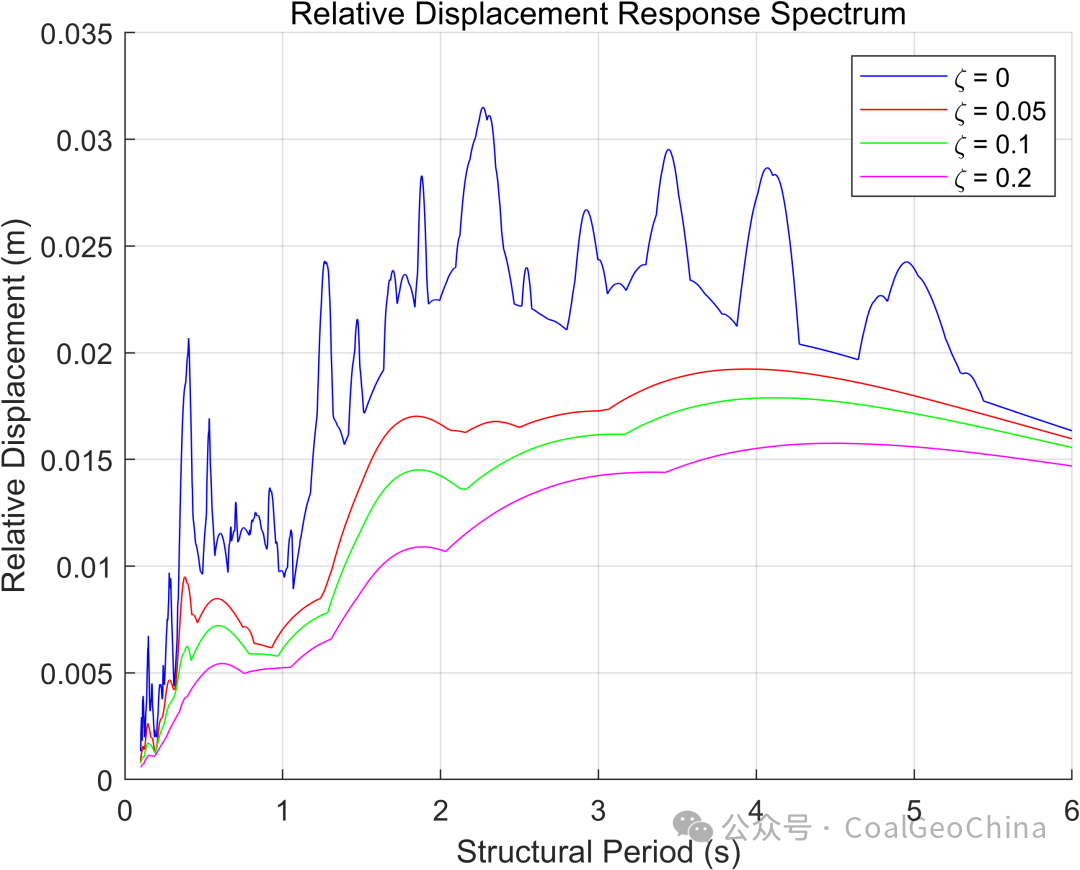

% Plot relative displacement response spectrum
figure;
hold on;
for k = 1:length(dampingRatios)
    plot(structuralPeriods, maxRelDispResponses(k, :), ['-', colors{k}]);
end
hold off;
title('Relative Displacement Response Spectrum');
xlabel('Structural Period (s)');
ylabel('Relative Displacement (m)');
legend(legendEntries, 'Location', 'Best');
grid on;

outputFileName3 = 'Relative Displacement Response Spectrum.png';
exportgraphics(gca, outputFileName3, 'Resolution', 500);

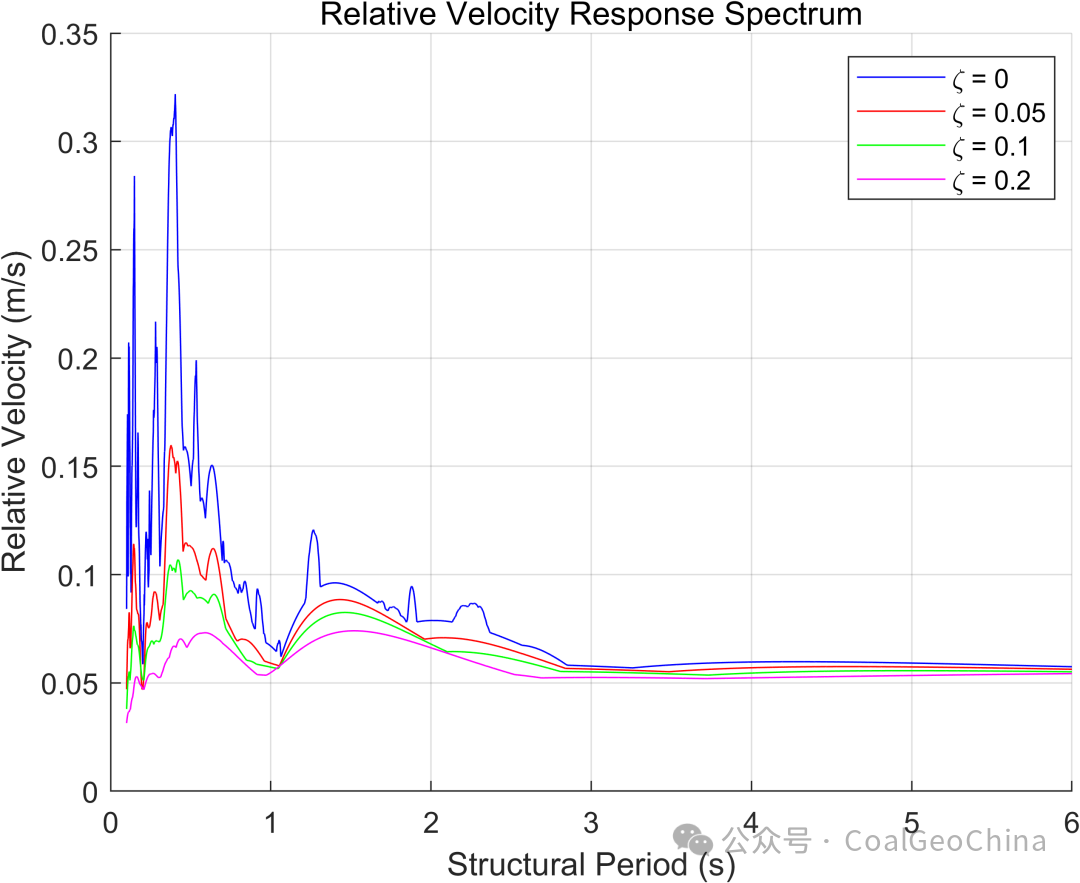

% Plot relative velocity response spectrum
figure;
hold on;
for k = 1:length(dampingRatios)
    plot(structuralPeriods, maxRelVelResponses(k, :), ['-', colors{k}]);
end
hold off;
title('Relative Velocity Response Spectrum');
xlabel('Structural Period (s)');
ylabel('Relative Velocity (m/s)');
legend(legendEntries, 'Location', 'Best');
grid on;

outputFileName4 = 'Relative Velocity Response Spectrum.png';
exportgraphics(gca, outputFileName4, 'Resolution', 500);

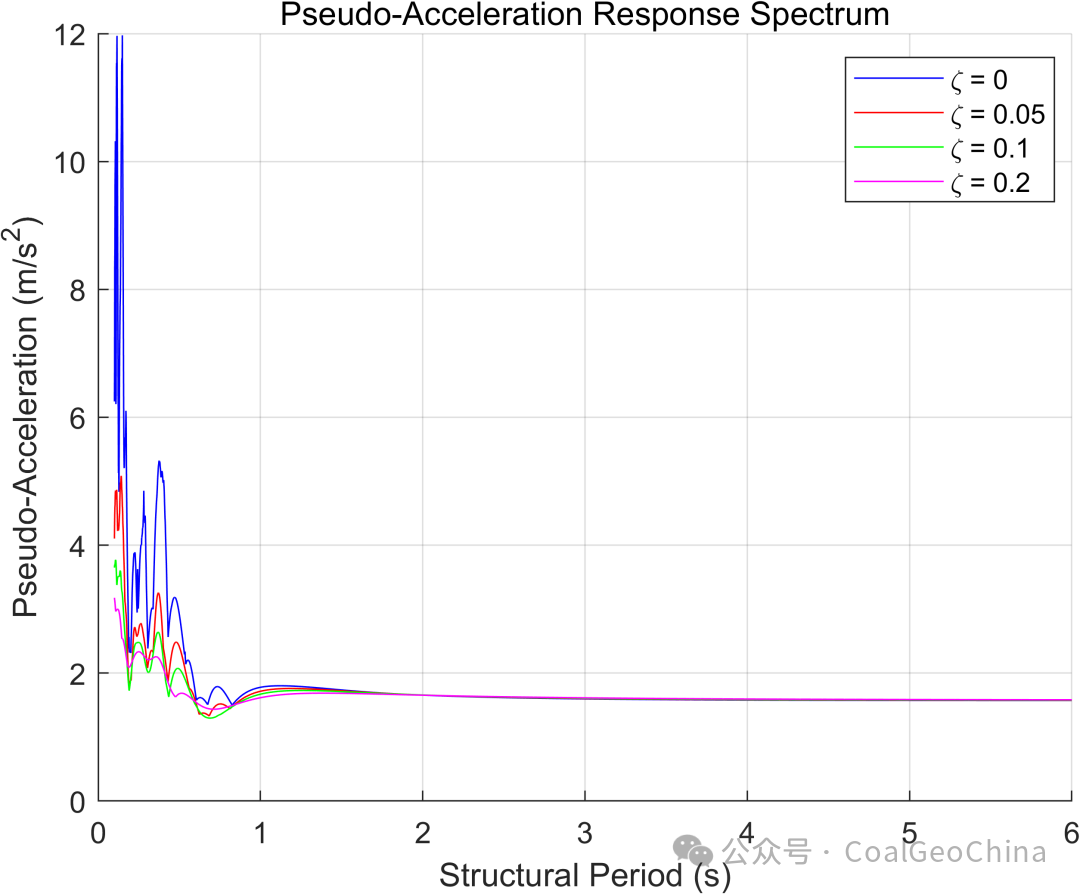

% Plot pseudo-acceleration response spectrum
figure;
hold on;
for k = 1:length(dampingRatios)
    plot(structuralPeriods, maxPseudoAccResponses(k, :), ['-', colors{k}]);
end
hold off;
title('Pseudo-Acceleration Response Spectrum');
xlabel('Structural Period (s)');
ylabel('Pseudo-Acceleration (m/s^2)');
legend(legendEntries, 'Location', 'Best');
grid on;

outputFileName5 = 'Pseudo-Acceleration Response Spectrum.png';
exportgraphics(gca, outputFileName5, 'Resolution', 500);

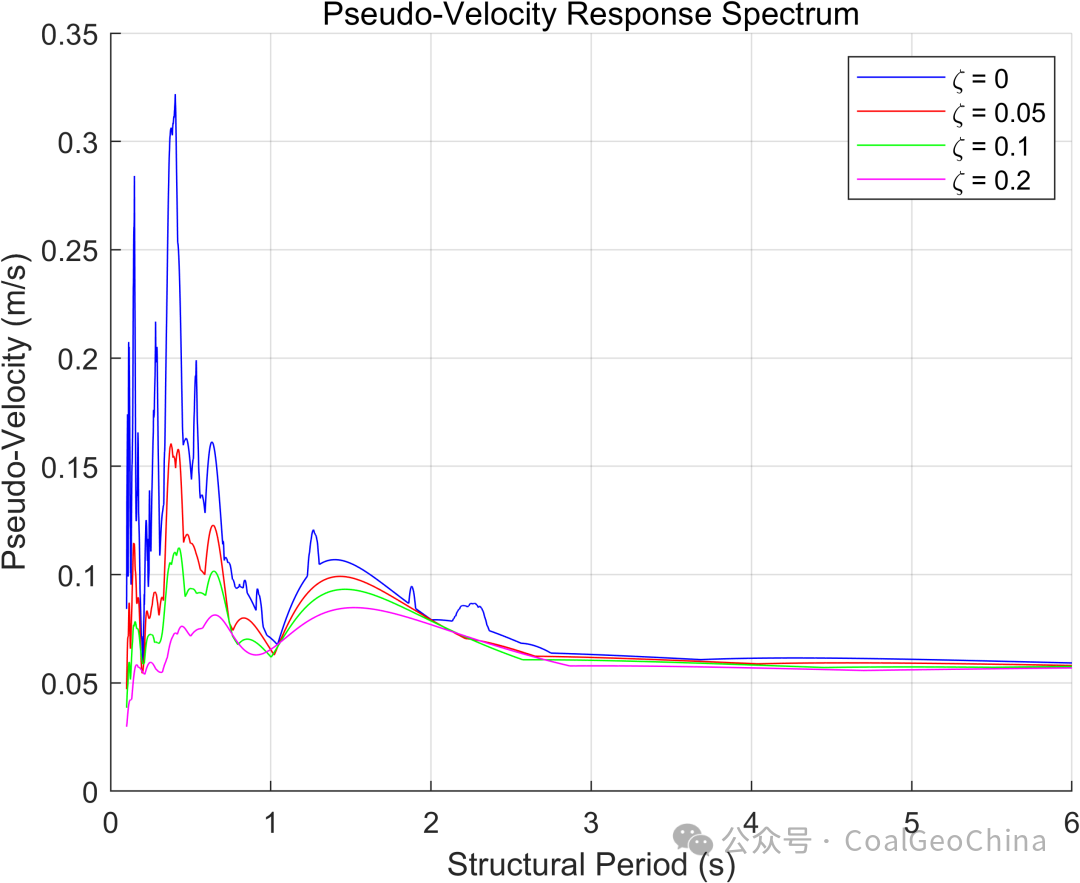

% Plot pseudo-velocity response spectrum
figure;
hold on;
for k = 1:length(dampingRatios)
    plot(structuralPeriods, maxPseudoVelResponses(k, :), ['-', colors{k}]);
end
hold off;
title('Pseudo-Velocity Response Spectrum');
xlabel('Structural Period (s)');
ylabel('Pseudo-Velocity (m/s)');
legend(legendEntries, 'Location', 'Best');
grid on;

outputFileName6 = 'Pseudo-Velocity Response Spectrum.png';
exportgraphics(gca, outputFileName6, 'Resolution', 500);

% Set output file names and paths
% outputFileName1 = 'EARTHQUAKE RECORD.png';
% outputFileName2 = 'Absolute Acceleration Response Spectrum.png';
% outputFileName3 = 'Relative Displacement Response Spectrum.png';
% outputFileName4 = 'Relative Velocity Response Spectrum.png';
% outputFileName5 = 'Pseudo-Acceleration Response Spectrum.png';
% outputFileName6 = 'Pseudo-Velocity Response Spectrum.png';

% Use exportgraphics function to export images, specifying resolution of 300 DPI
% exportgraphics(gca, outputFileName1, 'Resolution', 500);
% exportgraphics(gca, outputFileName2, 'Resolution', 500);
% exportgraphics(gca, outputFileName3, 'Resolution', 500);
% exportgraphics(gca, outputFileName4, 'Resolution', 500);
% exportgraphics(gca, outputFileName5, 'Resolution', 500);
% exportgraphics(gca, outputFileName6, 'Resolution', 500);
