Disassembling Siemens S7-1200 PLC: A Look Inside the Chip

Next, let’s disassemble the old chip of the 1200 PLC and appreciate the internal aesthetics of the world’s best-selling PLC.

S7-1200

Mainly discussing the MCUController Chip

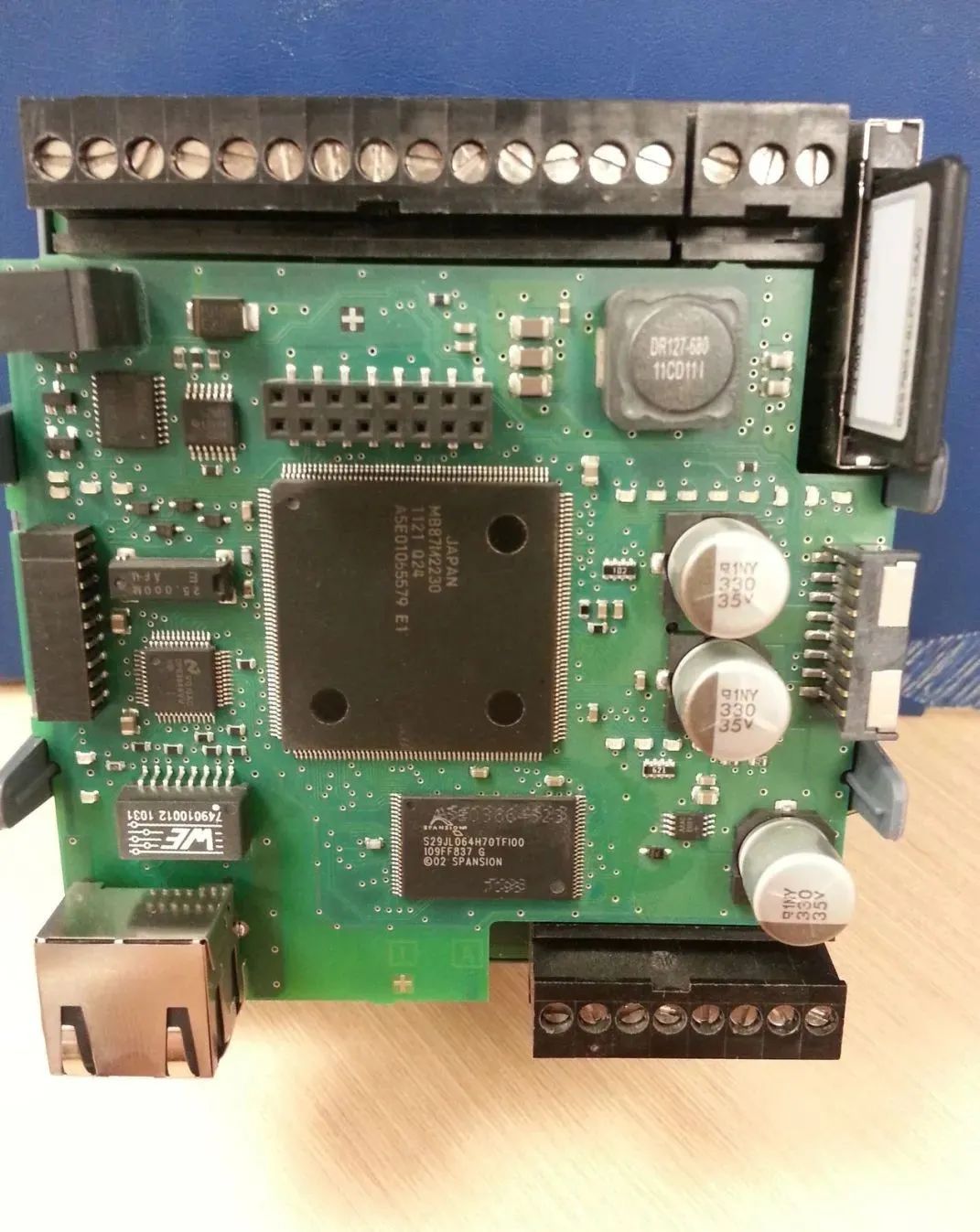

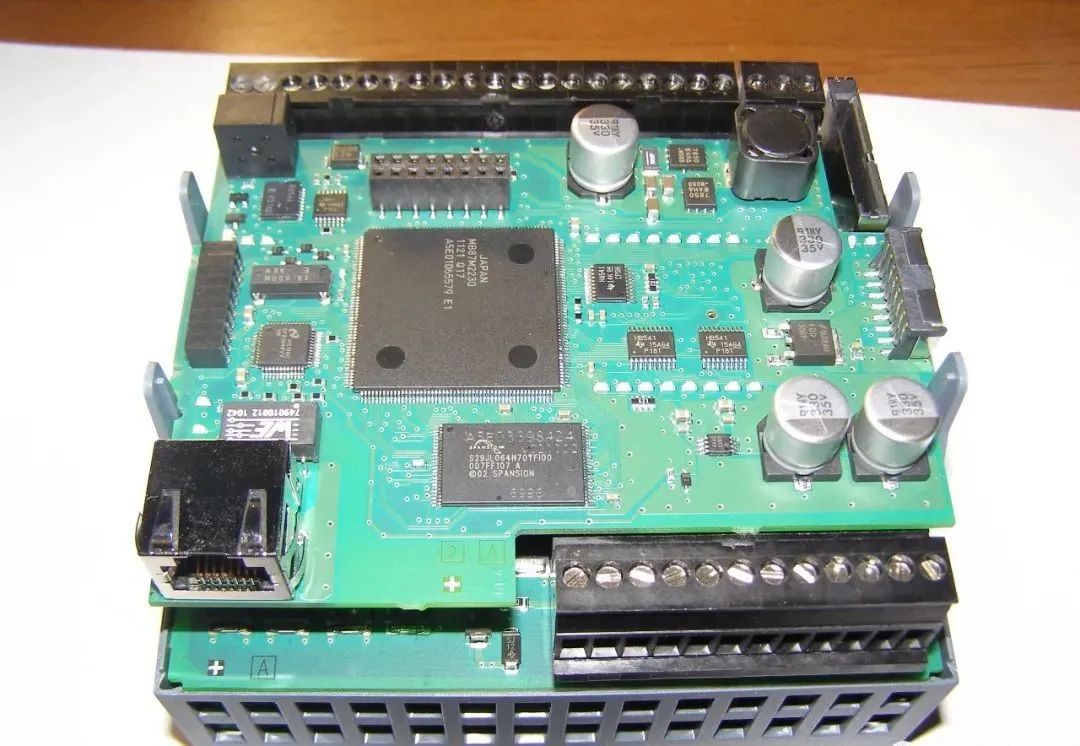

MCUController Chip：

MCU: Siemens collaborated with Japan’s second-largest MCU manufacturer Fujitsu to design and develop the control board and chip for the 1200 series PLC. Later, after Fujitsu was acquired by Spansion (American Spansion Semiconductor), Siemens decided to migrate from Fujitsu to Japan’s largest MCU manufacturer Renesas Electronics chips.

On April 30, 2013, Spansion, the world’s largest company specializing in flash memory development, production, and marketing, acquired Fujitsu’s microcontroller (MCU) and analog business units. (Fujitsu’s MCU is powerful, reputedly strong in withstand voltage testing, making it suitable for industrial control and white goods.) Spansion was established as a semiconductor company by Fujitsu and AMD in 2003.

On March 17, 2015 – Cypress Semiconductor and Spansion announced on March 12 that their $5 billion all-stock tax-free merger transaction was completed.

On June 3, 2019, Infineon Technologies AG acquired American chip manufacturer Cypress. According to the announcement, Cypress has a differentiated product portfolio, including microcontrollers, software, and connectivity components, which highly complements Infineon’s leading power semiconductors, sensors, and security solutions.

Ethernet PHYEthernet Chip：（All major automation companies are troubled by over a year of delivery times）

Ethernet PHY Ethernet physical layer interface chip: TI DP83848VY

Ethernet PHY Ethernet physical layer interface chip: Microchip Phy (1215 used)

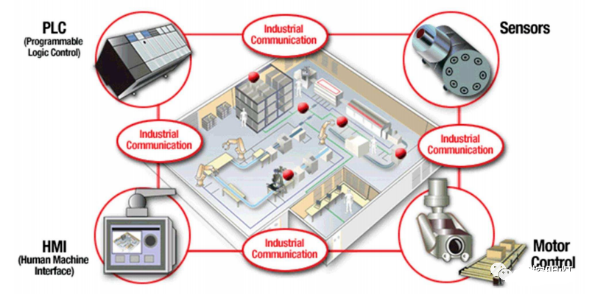

Any Ethernet physical layer interface chip can run any Ethernet protocol:

10/100 Mbps Ethernet (Profinet, Ethernet/IP, EtherCAT, SERCOS III, and CC-Link)

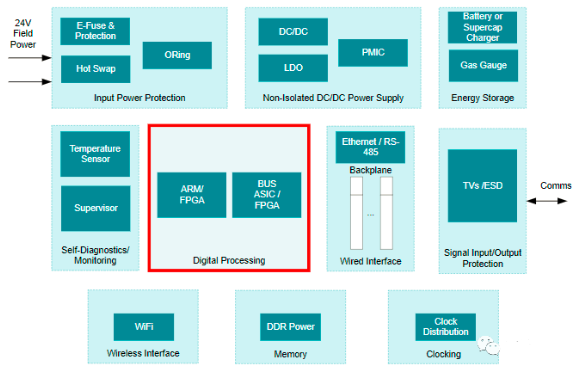

Circuit Diagram of Medium PLC

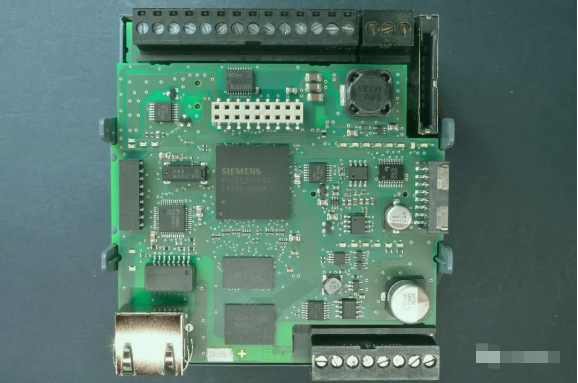

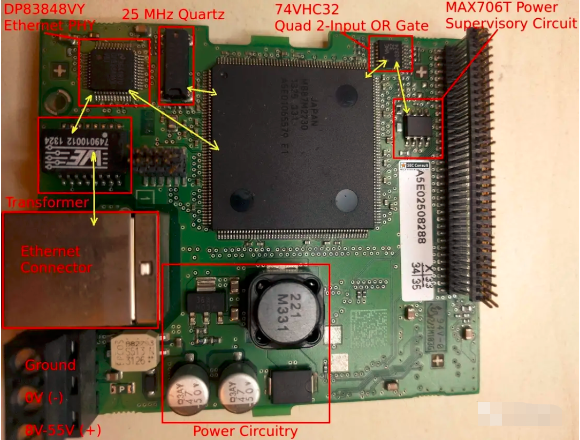

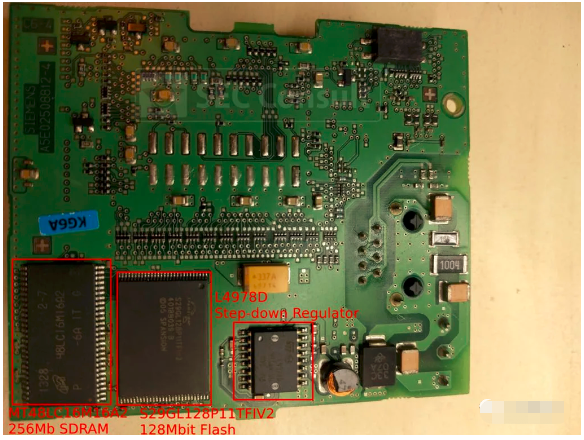

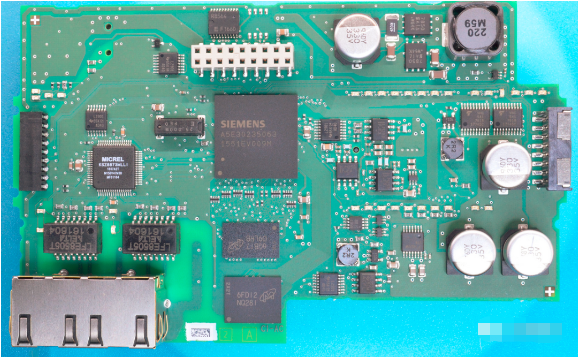

Quickly browse the printed circuit board (PCB) of S7-1212C, where you can see the Ethernet PHY, Flash chip, RTC, Quartz, and other components.S7-1212C reveals an Ethernet PHY, a Flash Chip, a RTC, a Quartz and other parts.

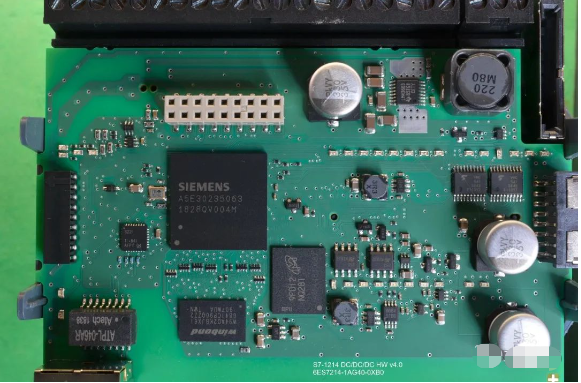

The BGA chip in the center of the PCB is marked “Siemens A5E30235063” chip.ARM Cortex-R4

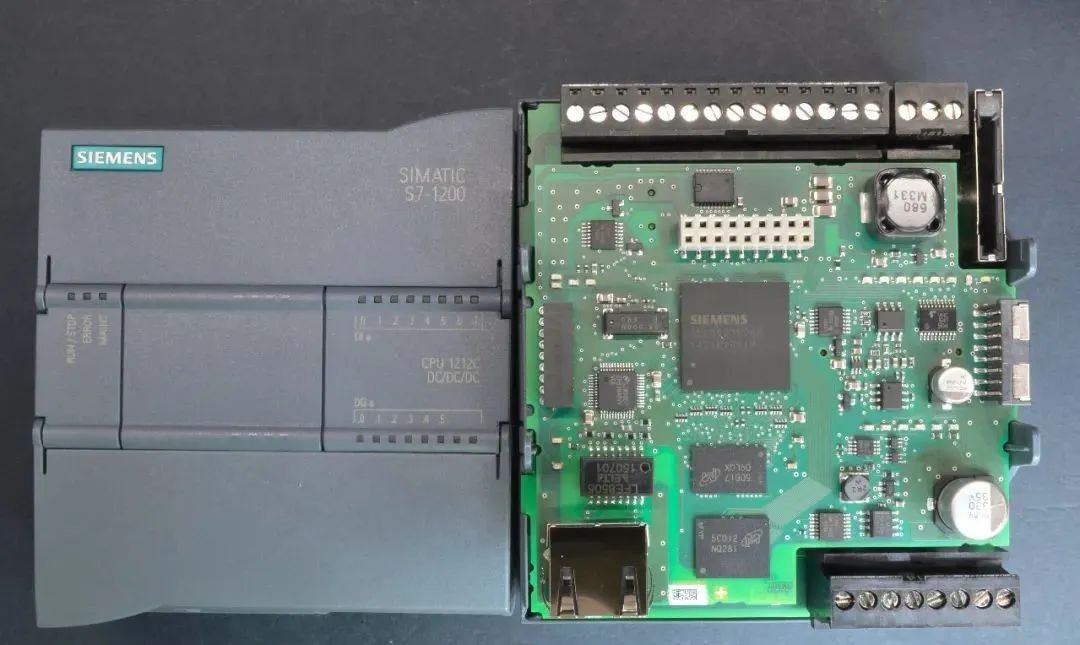

S7-1212C V3.0 (made in CHINA)6ES7212-1AE30-0XB0

CPU 1212C, DC/DC/DC, 8DI/6DO/2AI

S7-1212C V4.0 (made in GERMANY)

6ES7212-1AE40-0XB0

CPU 1212C, DC/DC/DC, 8DI/6DO/2AI

S7-1214C V3.06ES7214-1AE30-0XB0

CPU 1214C, DC/DC/DC, 14DI/10DO/2AI

S7-1214C V4.06ES7214-1AG40-0XB0

CPU 1214C, DC/DC/DC, 14DI/10DO/2AI

S7-1215C V4.0

6ES7215-1AG40-0XB0

CPU 1215C, DC/DC/DC, 14DI/10DO/2AI/2AO
