Abstract

How to better predict mechanical failures and manage health is a key concern for modern mechanical manufacturing enterprises. With the development of sensor hardware technology and advancements in computer storage technology, massive amounts of data can be processed and stored. Data-driven mechanical equipment fault prediction and maintenance technology is gradually gaining widespread application.

• “Data-Driven Mechanical Equipment Fault Prediction and Maintenance Strategy Optimization” provides a detailed analysis of fault prediction and maintenance strategies based on data-driven approaches.

0 Introduction

Traditional experience-based maintenance strategies often fail to adapt to the complex operational states and changes in working environments of different equipment. Data-driven methods can analyze large volumes of operational data to uncover hidden patterns and rules behind the data, enabling accurate prediction of equipment failures and the formulation of optimized maintenance strategies.

Data-Driven

A methodology centered on data, aimed at collecting, storing, and analyzing large amounts of data to gain insights into phenomena, rules, or patterns.

Applications of Data-Driven Approaches

In mechanical equipment fault prediction and maintenance optimization, data-driven methods can utilize operational data, sensor data, maintenance records, and more to identify signs of potential equipment failures and influencing factors by establishing mathematical models or using machine learning algorithms, thereby formulating appropriate maintenance strategies.

By analyzing and mining large volumes of operational data, accurate predictions of equipment failures can be achieved, along with the formulation of rational maintenance strategies to enhance equipment reliability and operational efficiency.

• This paper aims to explore the application of data-driven methods in mechanical equipment fault prediction and maintenance strategy optimization and propose corresponding solutions.

1 Concept of Mechanical Equipment Fault Prediction

Mechanical equipment fault prediction refers to the use of data and analytical methods to monitor and analyze the operational states and behaviors of mechanical equipment to predict potential failures or malfunctions in advance.

• Data Collection and Monitoring:

Using sensors, monitoring devices, or other data collection means to obtain operational data of mechanical equipment (such as vibration, temperature, pressure, current, etc.).

• Feature Extraction:

Extracting useful features from the collected equipment data, such as frequency domain features, time domain features, statistical features, etc. These features can describe the operational state and performance of the equipment.

• Establishing Predictive Models:

Using machine learning, statistical analysis, or other data analysis methods to establish fault prediction models. These models can be trained and learned from historical data to identify fault patterns and predict the probability of failures.

• Fault Prediction and Warning:

Utilizing the established predictive models to analyze and predict real-time or recent equipment data, assessing whether there are potential fault risks and providing corresponding warning information.

• Maintenance and Preventive Measures:

Based on the results of fault predictions, developing corresponding maintenance plans or preventive measures, including repairing faults, replacing parts, and conducting preventive maintenance to minimize the impact of failures on production.

Objectives of Mechanical Equipment Fault Prediction

To improve equipment reliability and operational efficiency, reduce downtime and maintenance costs, and optimize maintenance plans.

2 Formation of Mechanical Failures

Mechanical Failures

Unexpected failures or malfunctions occurring during the operation of mechanical equipment that prevent normal operation or cause adverse effects.

Contributing Factors

Wear and fatigue, lubrication issues, high temperatures and overloads, design and manufacturing defects, as well as improper operation and maintenance are among the factors.

• Wear and Fatigue:

Prolonged operation and repetitive work cycles can lead to wear and fatigue of mechanical components.

• Inadequate Lubrication and Lubricant Quality:

Normal operation of mechanical equipment requires adequate lubrication. Insufficient lubrication or the use of low-quality lubricants increases friction and wear between components, leading to mechanical failures.

• High Temperatures and Overloads:

Nitrogen generation units, refrigeration units, and air compressor units often operate under high temperatures and high loads. Prolonged exposure to high temperatures can cause component expansion, deformation, and thermal expansion issues, which can trigger mechanical failures; overload operation can also impose additional stress and pressure on equipment, accelerating wear and failure of components.

• Design and Manufacturing Defects:

Defects in the design and manufacture of mechanical equipment can lead to mechanical failures.

• Improper Operation and Maintenance:

Such as inadequate cooling water circulation in nitrogen generation units leading to overheating, insufficient refrigerant in refrigeration units causing poor circulation, and filters in air compressor units not being replaced in time leading to air path blockages.

3 Theoretical Foundations

By utilizing machine learning and deep learning algorithms, hidden patterns and rules can be mined from data to achieve accurate predictions of equipment failures. Convolutional Neural Networks (CNN), Recurrent Neural Networks (RNN), and Long Short-Term Memory Networks (LSTM) have demonstrated powerful modeling capabilities in fields such as image recognition, natural language processing, and time series analysis.

3.1 Theory of Convolutional Neural Networks

A deep learning model particularly suited for processing data with grid structures, such as images and sequential data.

It extracts features through multiple layers of convolution and pooling. The convolutional layer uses filters (also known as convolution kernels) to perform convolution operations on the input to capture spatial features within the input. The pooling layer is used to reduce the dimensionality of feature maps, retaining important features while reducing the number of parameters. Finally, the extracted features are mapped to specific output categories through fully connected layers.

3.2 Theory of Recurrent Neural Networks

A type of neural network with memory capabilities, capable of processing sequential data and temporal information.

Recurrent neural networks maintain the flow of hidden state information within the network by introducing recurrent connections. The input at each time step considers not only the current input data but also the output from the previous time step as input.

This recurrent connection enables recurrent neural networks to capture temporal relationships and contextual information in sequential data, making them suitable for applications in speech recognition, natural language processing, and more.

3.3 Theory of Long Short-Term Memory Networks

An improvement over traditional recurrent neural networks, aimed at addressing the shortcomings of gradient vanishing and explosion when processing long sequences.

LSTM introduces a gating mechanism, including input gates, forget gates, and output gates, to control the flow of information and the retention of memory.

• The input gate determines whether new information is added to memory.

• The forget gate determines whether previous memory is forgotten.

• The output gate determines which information in memory is output.

This gating mechanism allows LSTM to better handle long sequences and achieve significant results in time series data modeling and prediction tasks.

4 Data-Driven Mechanical Fault Prediction and Maintenance

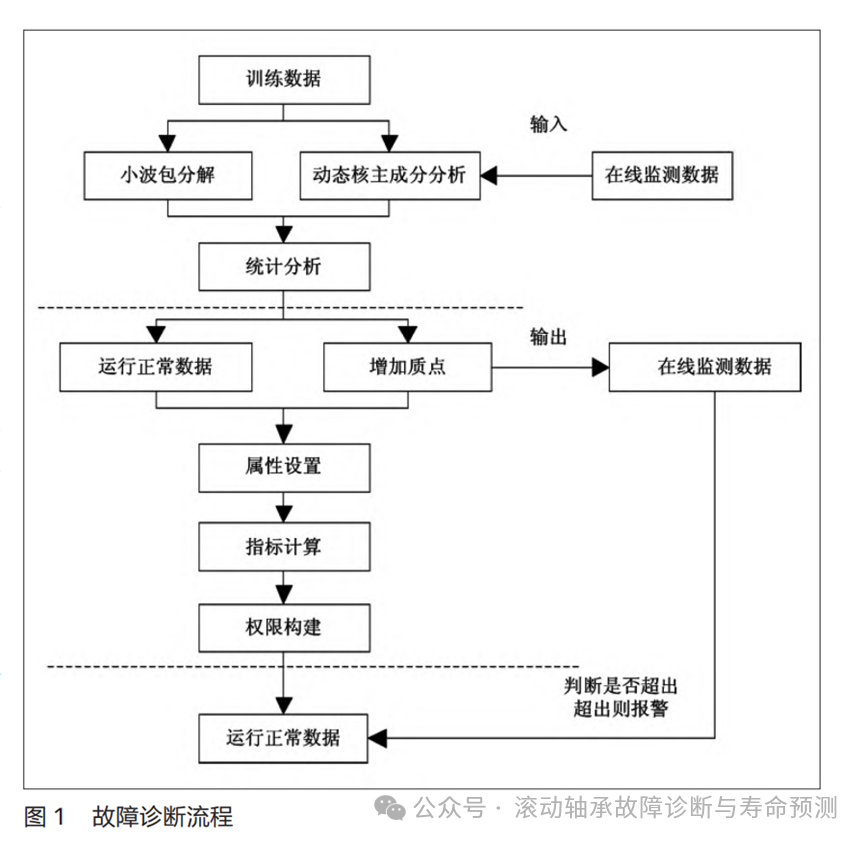

4.1 Fault Diagnosis Process

By collecting training data, performing statistical analysis, establishing fault diagnosis models, and online monitoring, it is possible to assess the operational state of equipment in real-time during operation and predict and identify potential faults in advance.

4.2 Fault Data Collection

The development of fault data collection is closely related to advancements in sensor technology and the Internet of Things (IoT). The miniaturization, high precision, and diversification of sensors, along with the rise of IoT, have made large-scale fault data collection and storage possible.

• Objective:

To monitor the health status and fault characteristics of equipment in real-time, promptly identifying and recognizing potential fault risks. This helps improve equipment reliability and safety, reducing the impact of failures on production. Additionally, the collected fault data can be used to build fault diagnosis models and optimize maintenance strategies, enabling intelligent maintenance and operational management of equipment.

4.3 Hyperparameter Analysis

Hyperparameters

Parameters that need to be set manually when establishing a model, such as learning rate, batch size, number of layers, etc.

By analyzing and tuning hyperparameters, the performance and generalization ability of the model can be improved. Hyperparameter analysis can be conducted using methods such as grid search, random search, and Bayesian optimization. During hyperparameter analysis, appropriate evaluation metrics, such as accuracy, recall, and F1 score, should be set to assess the predictive performance of the model. By repeatedly adjusting hyperparameters and evaluating model performance, the best combination of hyperparameters can be selected to obtain the optimal fault prediction model.

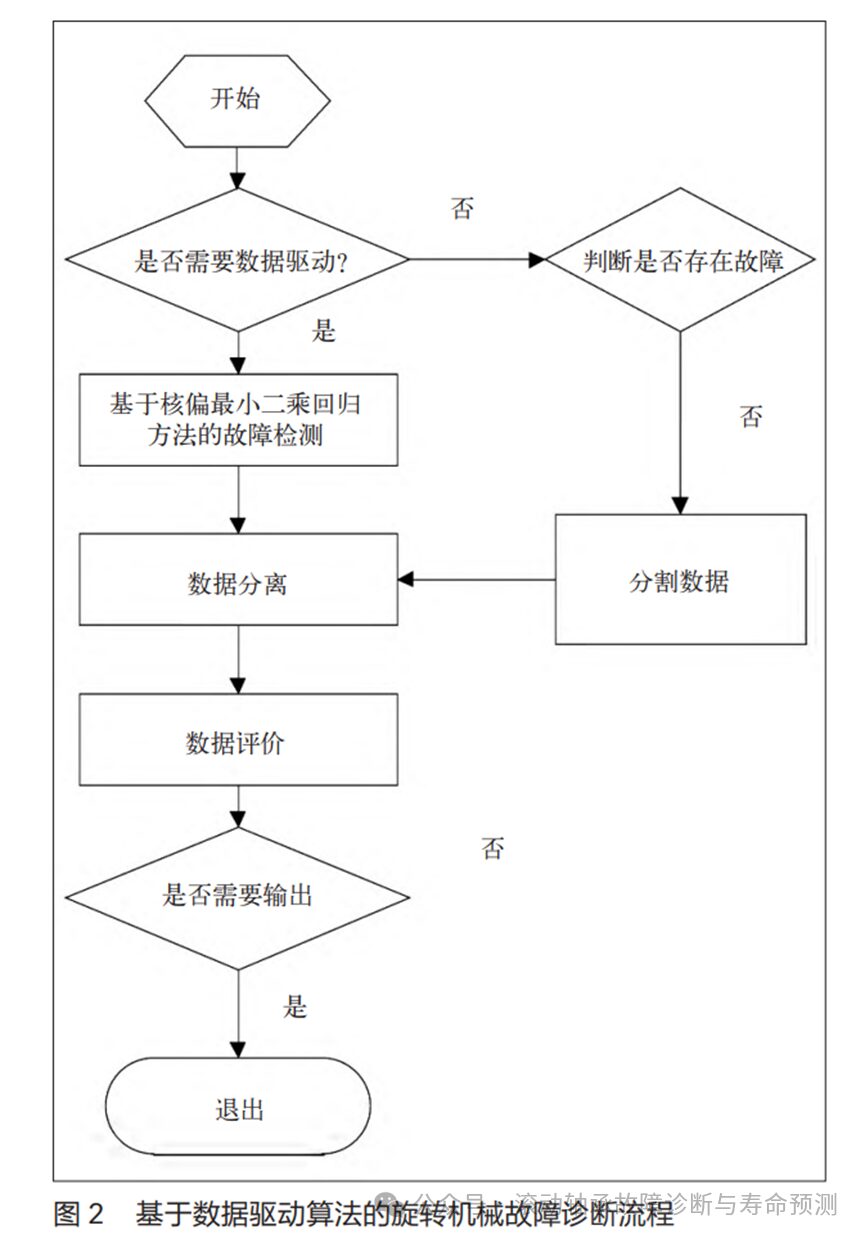

4.4 Fault Prediction

The process includes data collection, data preprocessing, feature extraction, model training, and prediction.

4.5 Data-Driven Mechanical Equipment Maintenance

The key to data-driven mechanical equipment maintenance is to utilize a large amount of operational data for modeling and analysis. By collecting real-time and historical data from equipment, fault prediction models can be established, and the equipment can be monitored and evaluated. Based on the predicted fault probabilities and risk assessments from the models, maintenance priorities and plans can be determined.

5 Conclusion

This paper successfully applies data-driven methods to mechanical equipment fault prediction and maintenance strategy optimization. By establishing accurate fault prediction models and optimizing maintenance strategies, equipment availability can be improved, maintenance costs reduced, and production planning and resource scheduling optimized. This provides important technical support for industrial production, promoting intelligent maintenance and operational management of equipment.

However, further research and improvement are still needed to enhance the accuracy and reliability of fault predictions and to promote the widespread application of data-driven methods in the field of mechanical equipment fault prediction.

– THE END –

References:

Yang Hongyun. Data-Driven Mechanical Equipment Fault Prediction and Maintenance Strategy Optimization [J]. China Machinery, 2023, (20): 103-106.
