I. System Configuration
1. Project Requirements
To collect sewage flow data from a certain location and upload it to the municipal cloud platform once every hour.
2. Software and Hardware Used
1) Siemens S7-1200 Smart.
2) Fanless Touch Screen (must have 4G network capability).
3) Cloud Server (Node-RED installed on the cloud server to read MQTT data and send it to the municipal platform).
II. MQTT Configuration of the Fanless Touch Screen

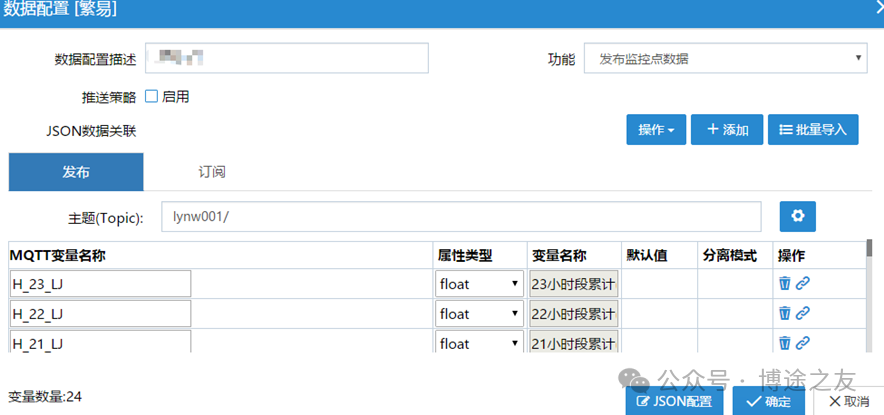

MQTT configuration for sending data, note the topic name lynw001/
III. Node-RED Development on the Cloud Server

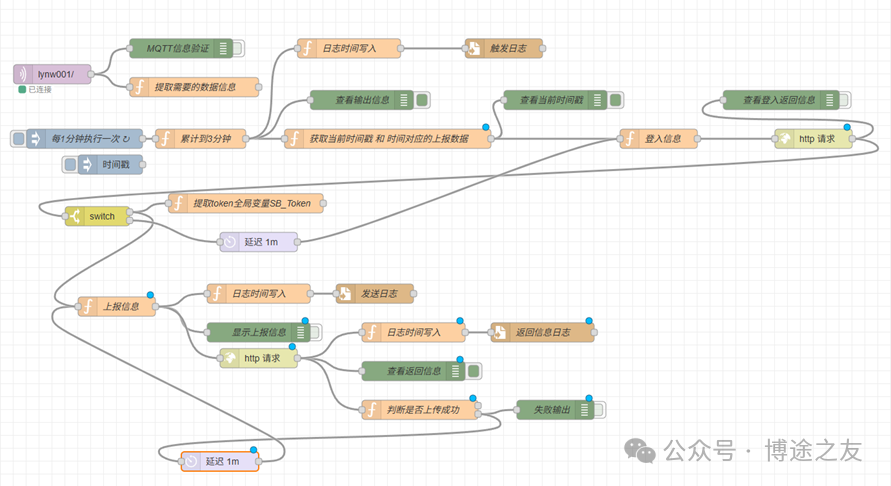

1. Complete Workflow of Node-RED

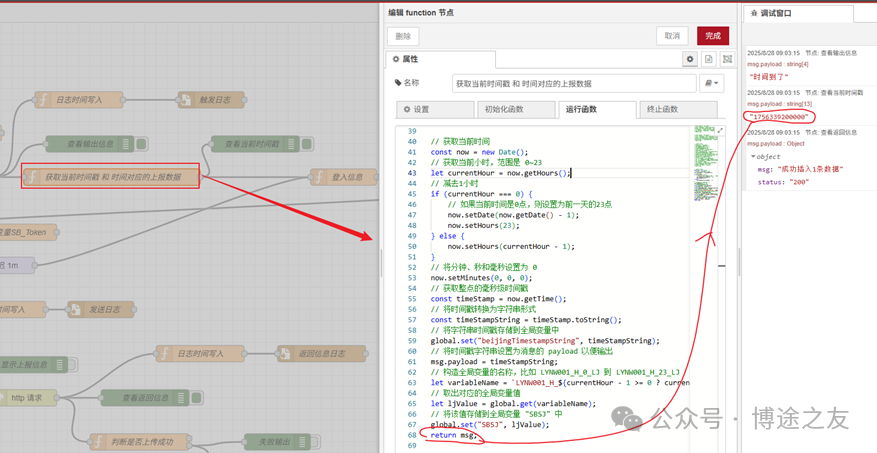

2. Node-RED Reading Data from the Fanless Touch Screen

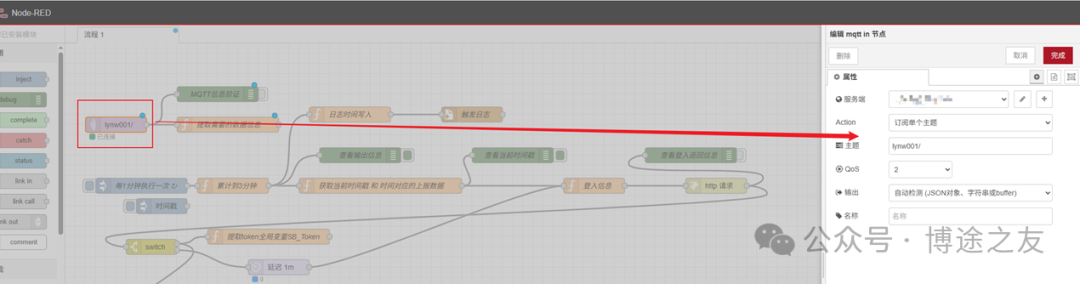

1) Node-RED connects to MQTT to obtain data, ensuring the topic name is consistent: lynw001/

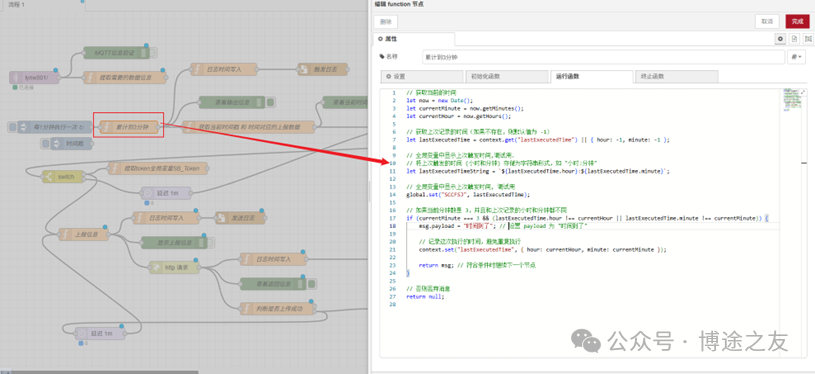

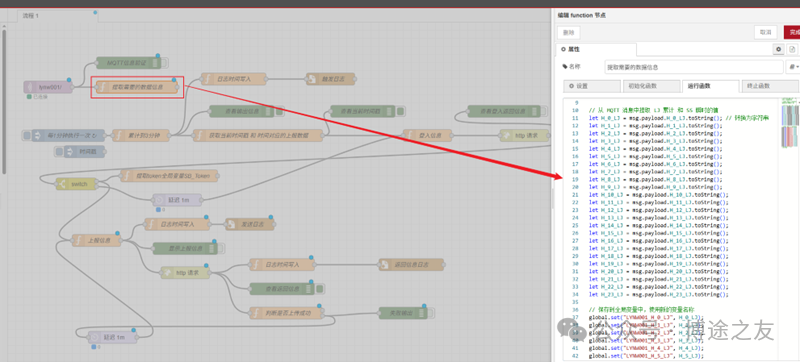

2) Store MQTT data in Node-RED’s global variables for easy calculations.
3) Trigger upload to the cloud platform at the third minute of every hour; the uploaded flow data is the cumulative total from the previous hour.
4) Retrieve the timestamp from the previous hour.
3. Node-RED Writing Data to the Municipal Platform

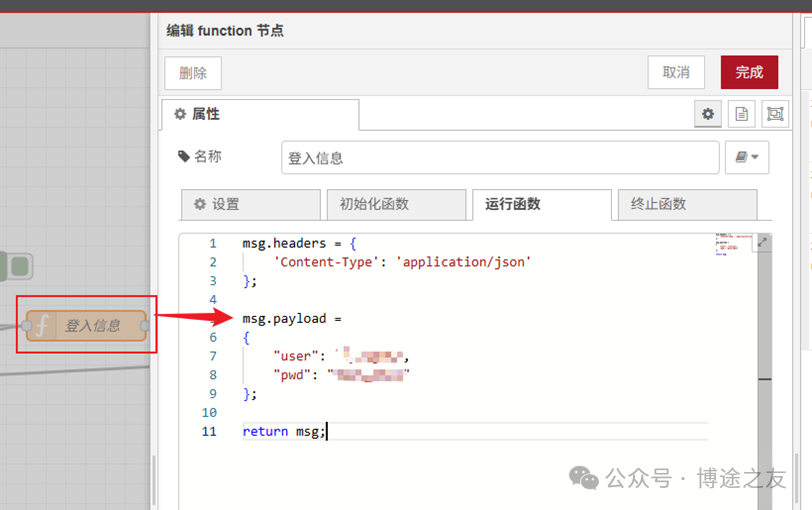

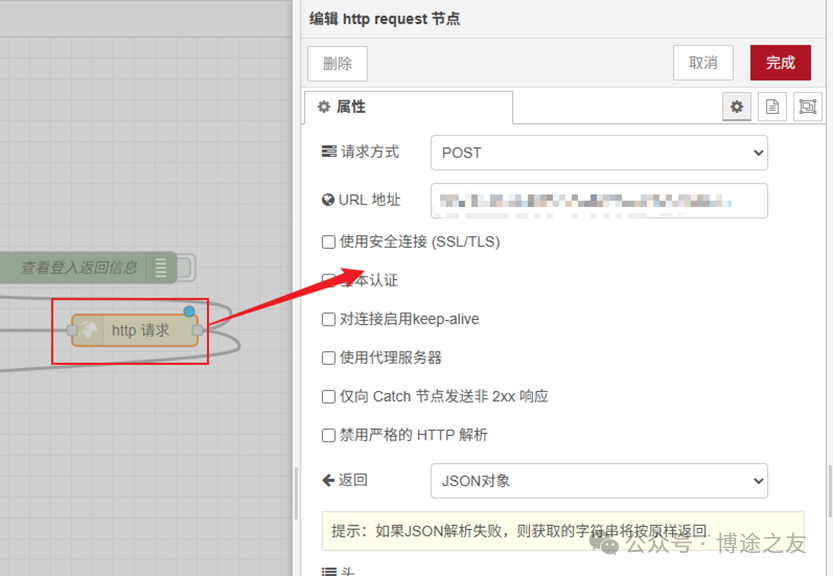

1) Use JSON data format to log in to the cloud platform and obtain a token.

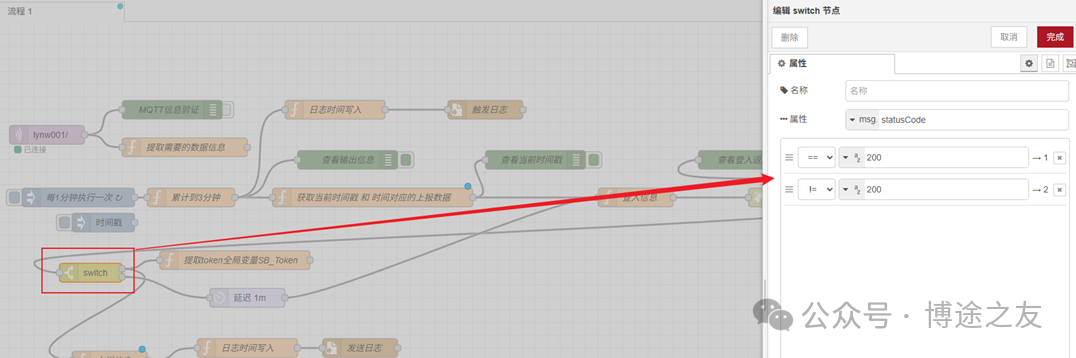

==200 Token obtained successfully;
!=200 Token acquisition failed, wait 1 minute and return to the previous step to obtain the token again.

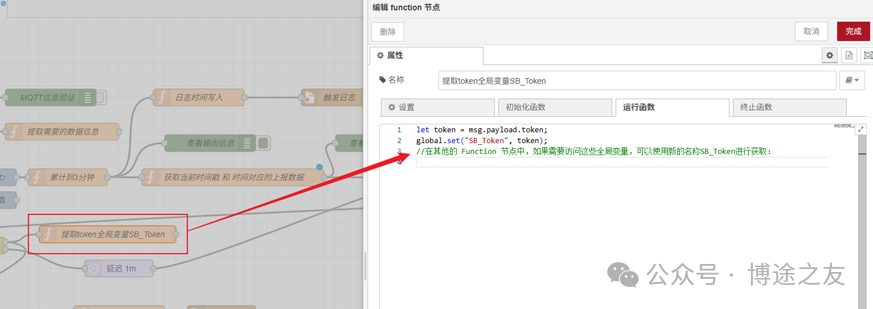

2) Store the token in a global variable.

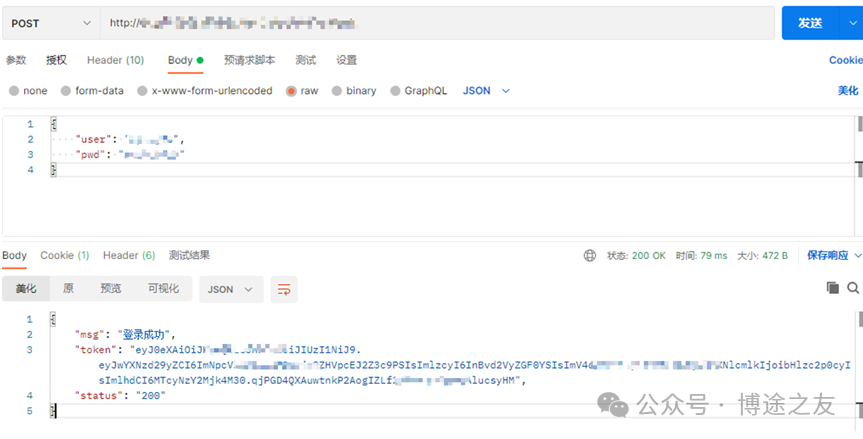

Open Postman software to use the interface URL provided by the municipal cloud platform and log in with username and password to view the token data structure.

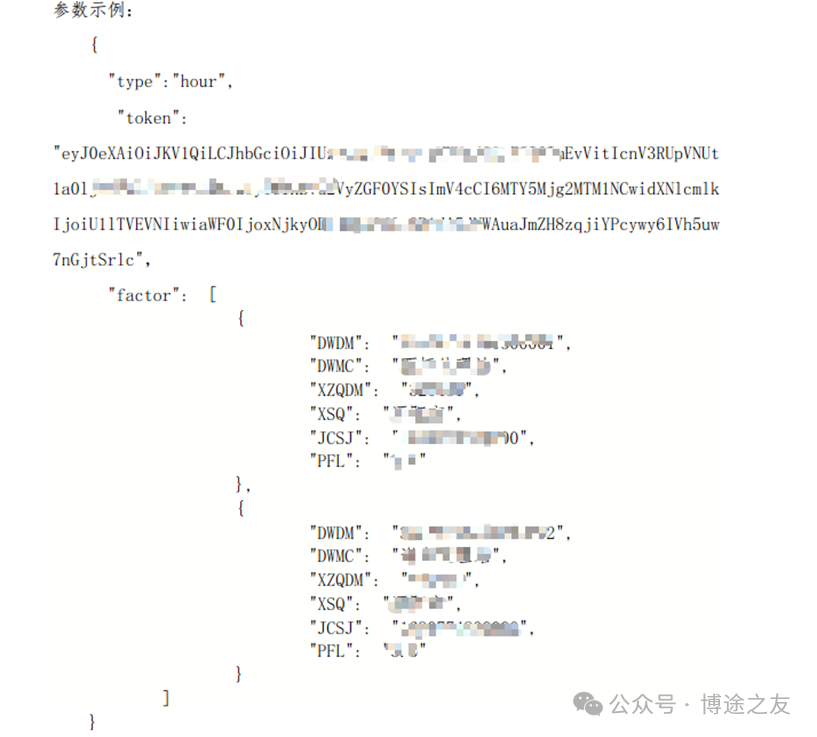

3) The data format needs to be confirmed with the municipal platform management personnel.

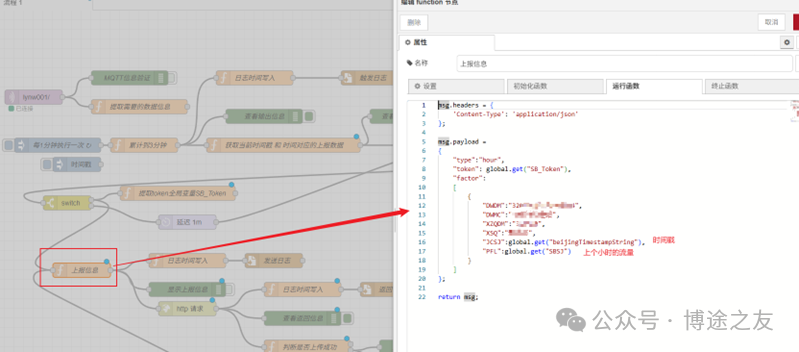

4) Combine the reported data.

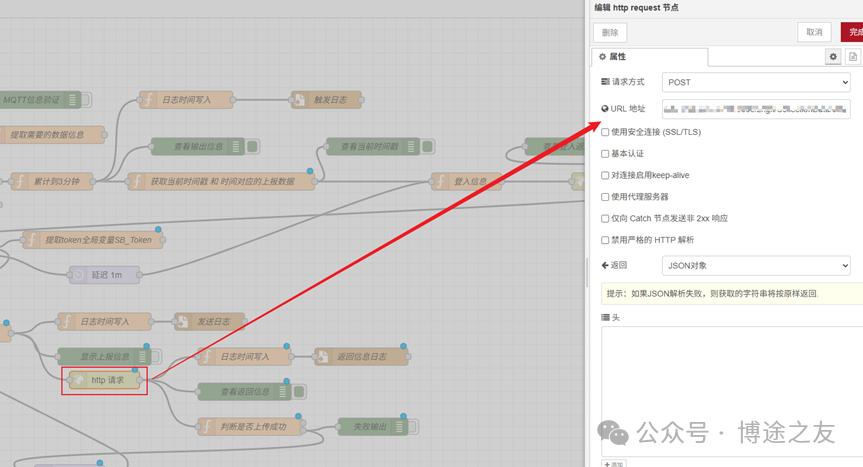

5) The request URL is the interface URL provided by the cloud platform.

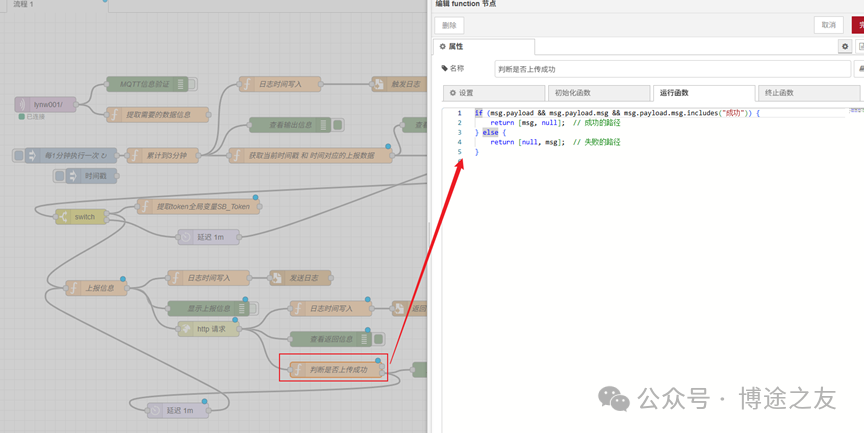

6) Determine if the request was successful; if not, wait 1 minute and return to the previous step.

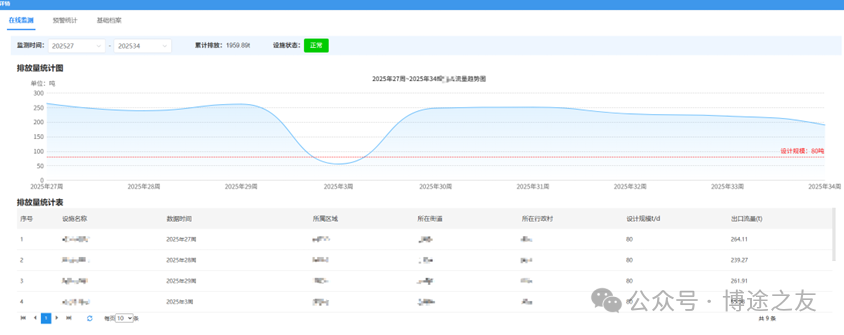

IV. Display Effect on the Municipal Platform
Conclusion: The collaboration of cloud, edge, and terminal is the trend in technological development!
