1. Product Introduction
The first domestic industrial computer in the Mountain series, QT-850, is composed of the Loongson 3A3000 CPU, the domestic Kylin operating system, and the domestic QTouch software, making it a fully domestic application product.

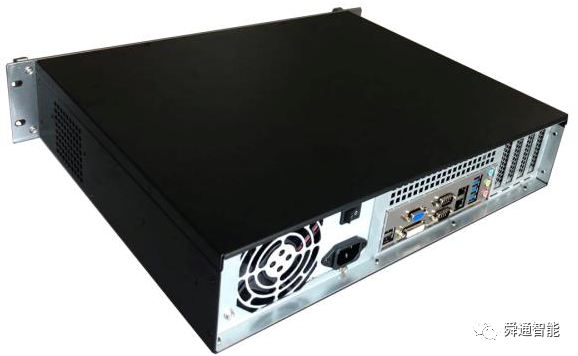

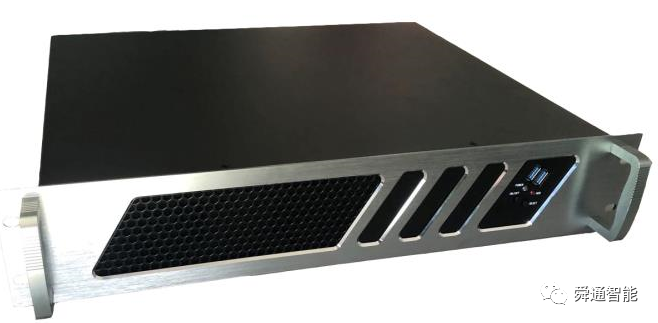

The product is shown in the images below:

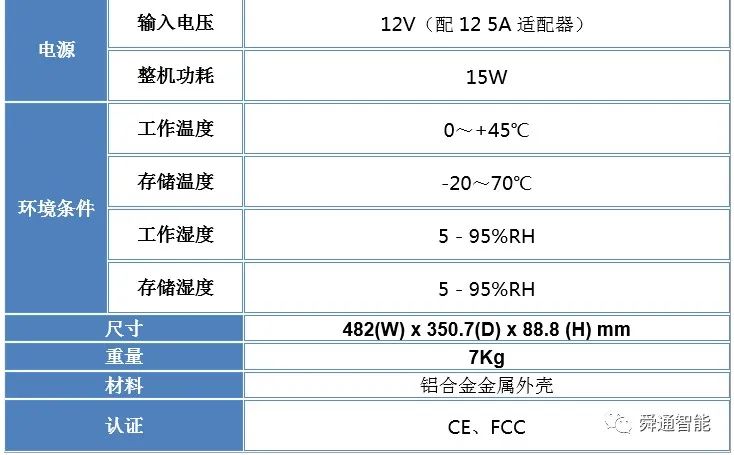

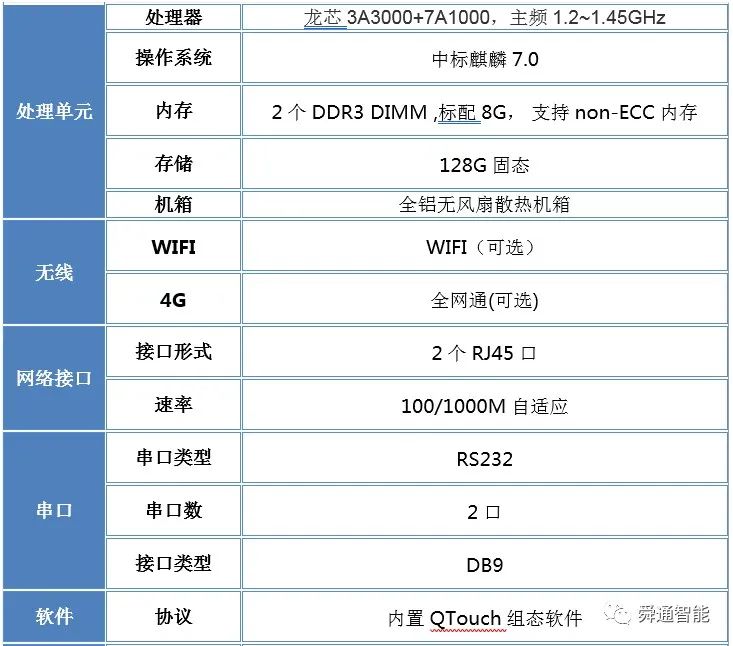

2. Product Specifications:
3. Product Details
1. Loongson 3A CPU
The Loongson 3A3000/3B3000 is the latest upgraded product in the Loongson 3 series of processors. Based on the design of the Loongson 3A2000, the 3A3000 has undergone minor structural improvements, increasing the number of key queue items in the processor core and expanding the on-chip private/shared cache capacity, which benefits performance at the same frequency. Additionally, it has achieved a chip frequency increase under new processes, with actual measured frequencies exceeding 1.5GHz. The memory interface meets DDR3-1600 specifications, significantly enhancing overall chip performance. It also includes support for adjusting the chip substrate bias, better balancing performance and power consumption, and broadening the chip’s applicability. Furthermore, it maintains pin compatibility with the previous Loongson 3A1000/3A2000 chips, allowing for direct replacement and improved user experience through BIOS and kernel upgrades. The Loongson 3B3000 supports up to four fully associative multi-consistency interconnects based on the Loongson 3A3000.

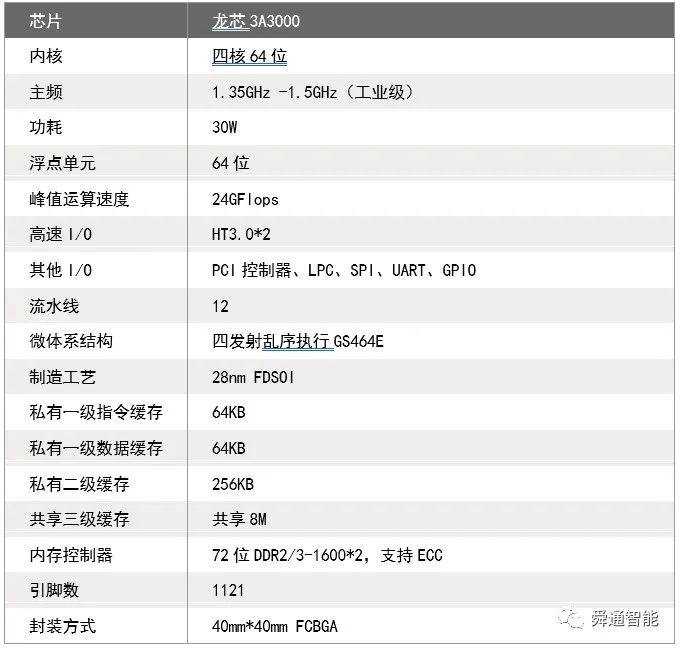

The specifications of the Loongson 3A CPU are shown in the table below:
2. Kylin Operating System

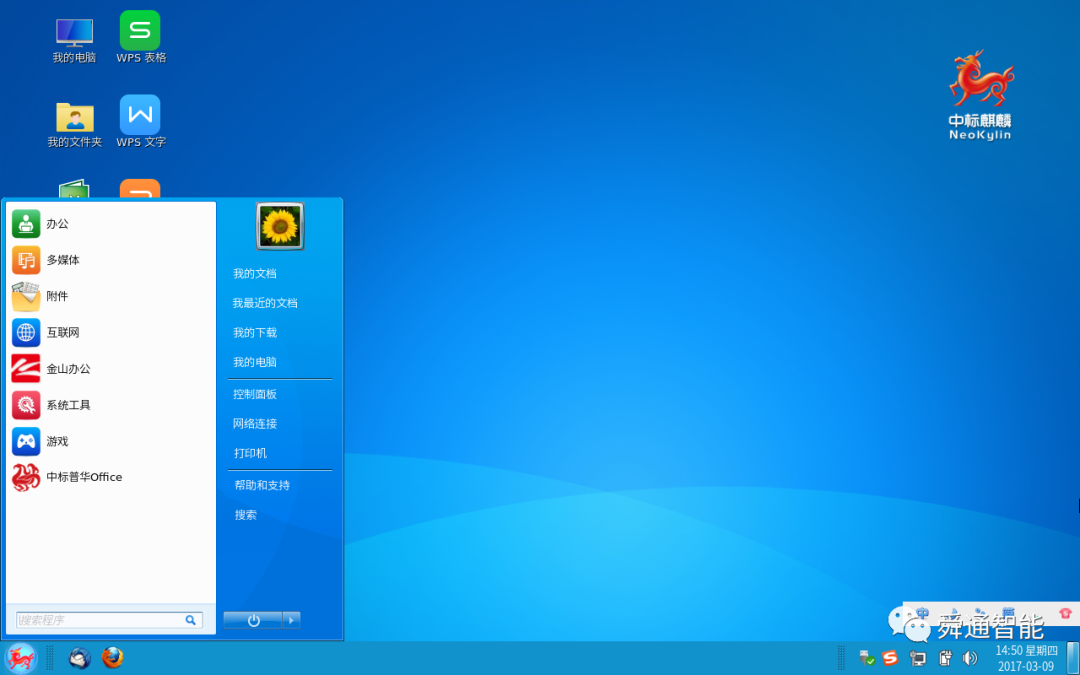

The Kylin desktop operating system is a graphical desktop operating system aimed at desktop applications, independently developed for x86 and domestic CPU platforms such as Loongson, Shenwei, Zhongzhi, and Feiteng. It was the first to support both x86 and domestic CPU platforms, providing optimal performance operating system products. By further adapting to hardware peripherals, optimizing desktop application migration, and constructing application scenario solutions, it fully meets the needs of project support, application development, and system customization.
The features of the Kylin desktop operating system are as follows:
1) Same-source development, cross-platform support, consistent user experience
The new generation of Kylin desktop operating system software achieves consistent source code across different hardware platforms through same-source development and cross-platform compilation, allowing for “one-time development, cross-platform deployment” while maintaining a consistent user experience.
2) New and classic interface, fully considering user habits
The new generation of Kylin desktop operating system continuously improves user-oriented desktop environment design. The new 7.0 version provides a new and classic system interface, making the overall operating experience more efficient, convenient, and user-friendly; it also fully considers existing operating habits, helping users transition smoothly to the domestic operating system and effectively reducing migration training costs.
3) Core upgrades, effective performance improvements
The new generation of Kylin desktop operating system software V7.0 fully supports 64-bit applications; it is the first large-scale application deployment system for the Loongson 64-bit platform. It upgrades the system kernel and core parameters to fully leverage the overall performance of the operating system and hardware platform.
4) Comprehensive system upgrade and maintenance mechanism, supporting online and offline updates
The Kylin desktop operating system software V7.0 provides a comprehensive system upgrade and maintenance mechanism, and has been deployed in multiple domestic projects, continuously improving based on actual application needs, offering online and offline upgrades, scheduled updates, and shutdown updates among other practical features.
5) Rich desktop applications, new software center
The new generation of Kylin desktop operating system software V7.0 further enriches graphical application software, with a large number of built-in desktop applications and tools, ready to use upon booting. It also introduces a new Kylin software center, supporting software search, upgrade, and uninstallation functions, providing a wealth of software options for users.
6) Compatibility
Hardware Compatibility
Whole machine: supports mainstream x86 PCs; supports whole machines based on domestic CPU platforms such as Loongson, Shenwei, and Zhaoxin, including various models from Lenovo, Loongson, Longmeng, Shuguang, Great Wall, Inspur, and WanFang. Peripherals: adapts to support various mainstream printers, scanners, graphic tablets, touch screens, cameras, projectors, and other common peripherals.
Software Compatibility
Office applications: supports Kingsoft WPS office software, Kylin Puhua Office software, Yongzhong Office software; Shuke Network OFD format suite, Foxit format suite; Founder electronic signature, Xinan Center electronic signature, etc.
Security software: supports Rising, 360 security software; supports Zhongfu, Weishitong, Tianrongxin, Beixin Source, and other security audit software.
Domestic databases: supports Dameng database, Shentong database, Renmin University Golden Warehouse database, and Nanjing University General database.
Domestic middleware: supports Zhongchuang middleware, Kingdee middleware, Dongfangtong middleware, etc.
4. QTouch Configuration Software
QTouch cross-platform automation software is designed using cross-platform libraries, integrating functions such as device communication, graphical display, data conversion, and logic processing, providing an automation platform software for secondary development. Its powerful functionality, rich protocols, ease of use, and cross-platform support make it a pioneering product in domestic automation platform software, with international leading levels.
1.1 Cross-platform Support

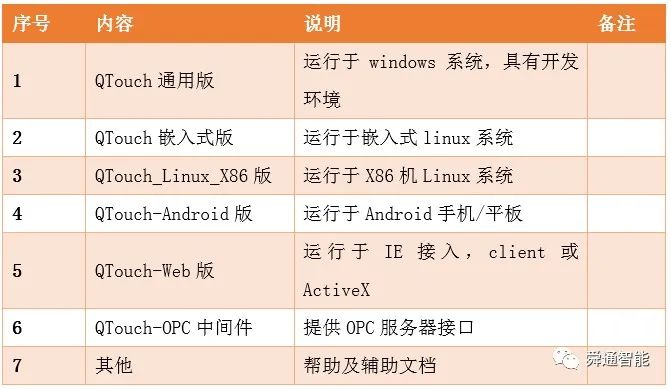

QTouch cross-platform automation software supports numerous operating systems, enabling multi-platform operation and collaboration, with a unified development platform and multi-platform collaborative operation, achieving intelligence and IoT. The supported operating systems are shown below:

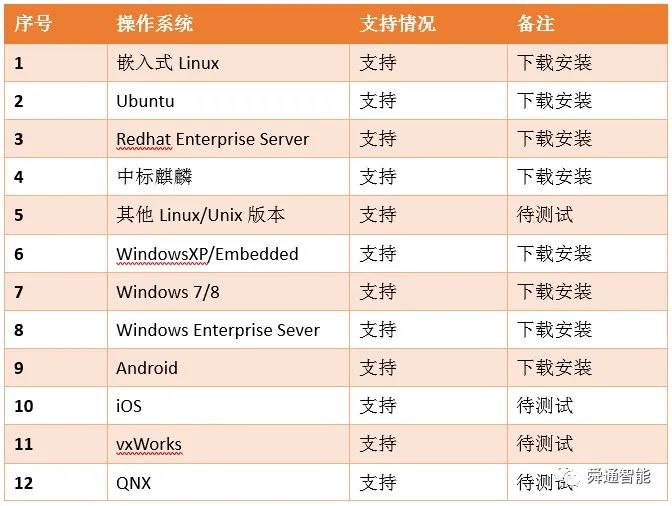

In addition to the common OS mentioned above, the complete OS support list is as follows:
Note: The installation and download described in the remarks can be downloaded for trial from the official website: www.sitcsys.com.

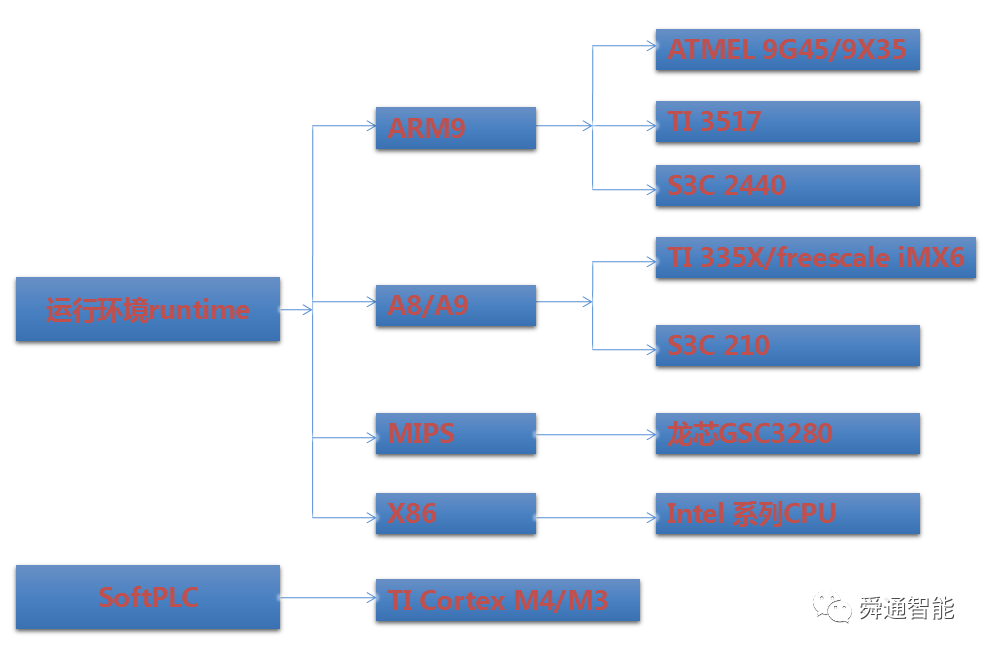

1.2 Support for Intelligent Processors
QTouch performs well in supporting intelligent terminals, supporting not only general Intel processors but also more ARM-based RISC processors, allowing users to quickly assemble their intelligent products using QTouch software.
1.3 Operating Modes

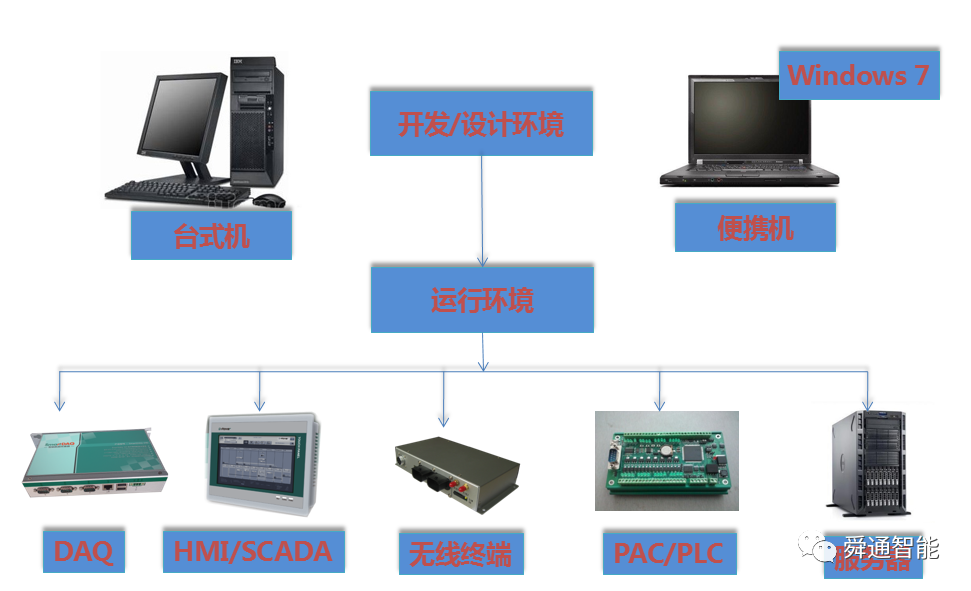

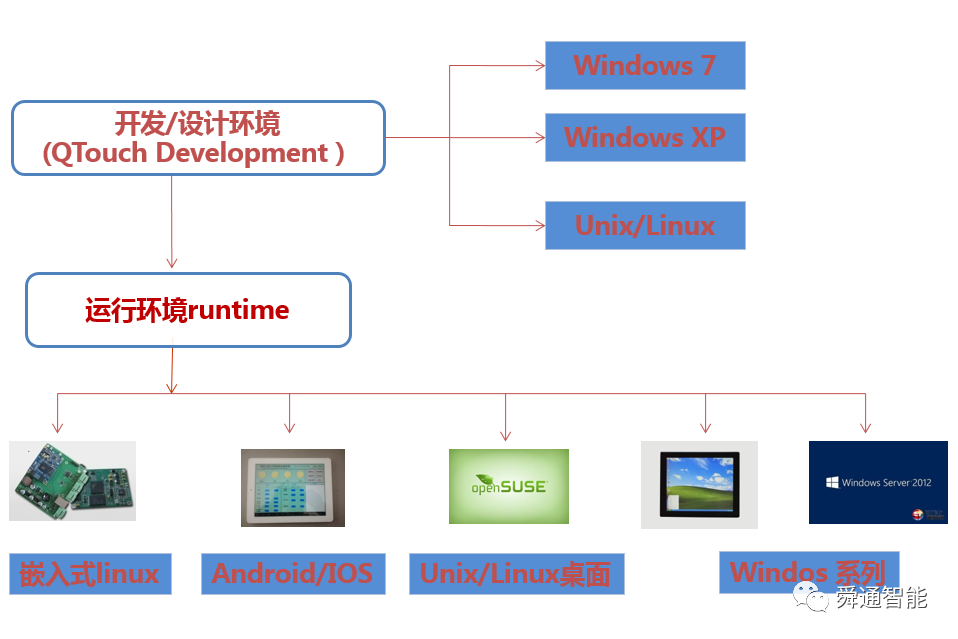

QTouch operates in two modes: design development environment and runtime environment. The design development environment can be run on a desktop or laptop, while the runtime environment can run on various devices, requiring only USB or RJ45 network for downloading. The operating modes are shown in the image below:
1.4 Function List
QTouch software integrates four major automation applications: device communication, graphical interface, data conversion, and logic processing, providing a unified secondary development environment. It supports four operational modes: intelligent device operation, web access interface, mobile APP applications, and local computer operation.

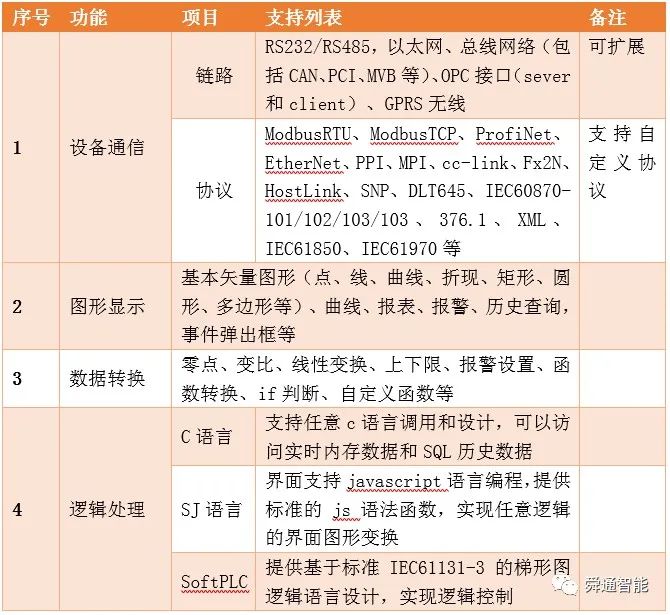

The function list is described as follows:

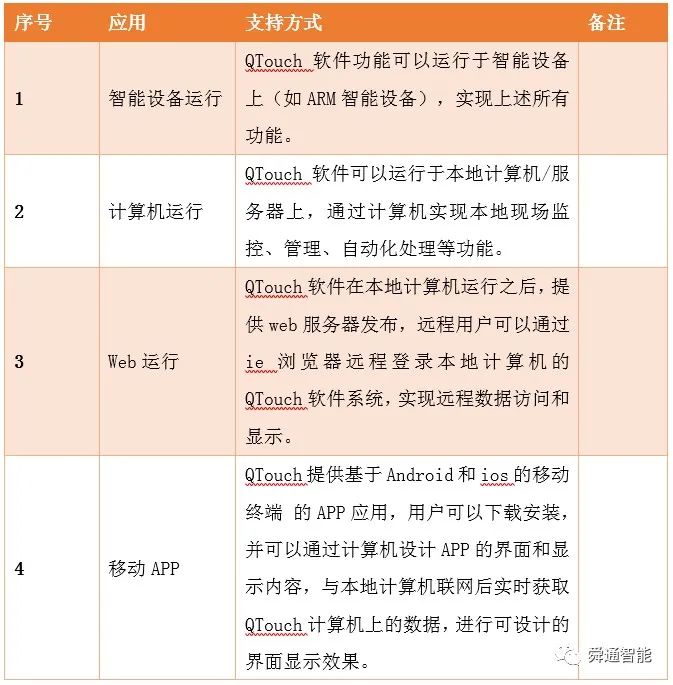

The application support is described as follows:
1.5 Typical Application Directions

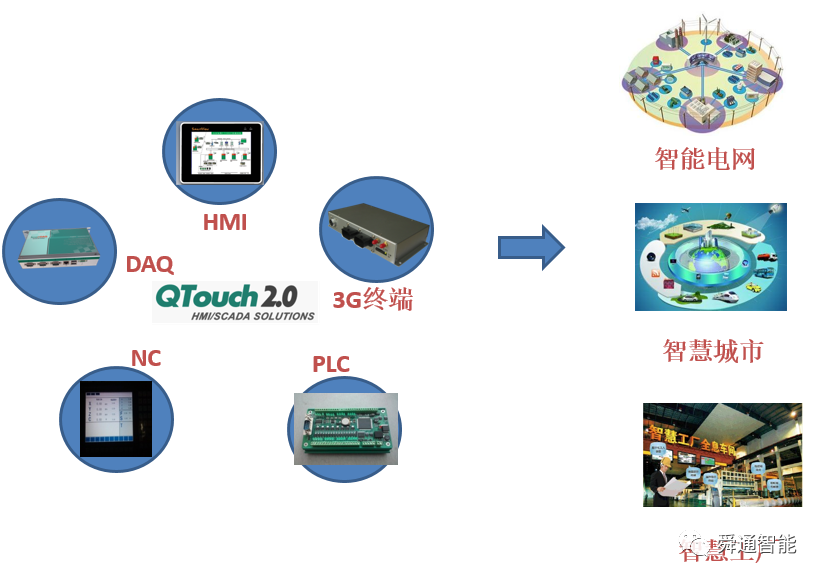

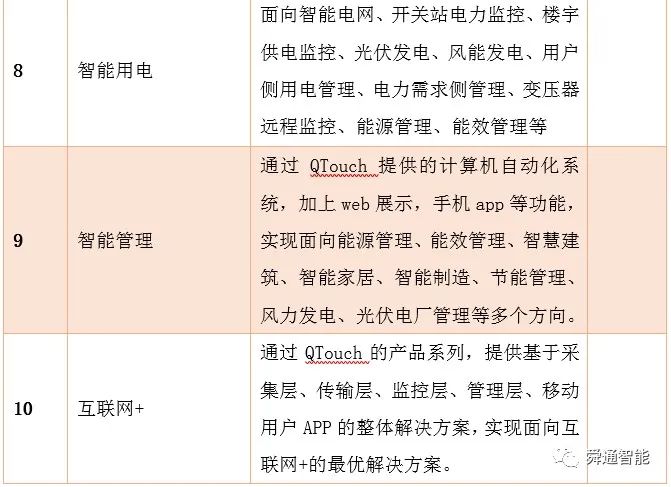

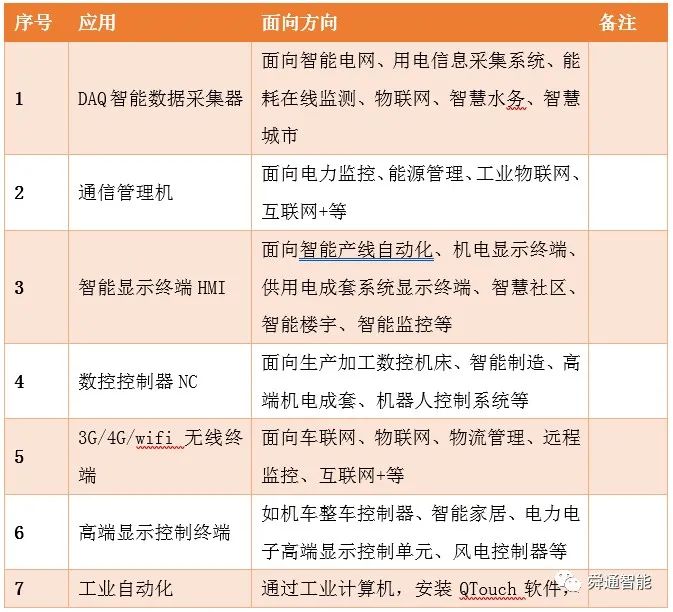

QTouch has four automation-related functions and four application modes, covering almost all applications related to industrial automation. It particularly excels in industrial equipment networking applications, offering multi-dimensional implementation methods, thus serving as both a foundational platform for automation control and management and a multi-system, multi-dimensional access solution, making it the most advanced platform software in the trend of intelligent development. Its typical applications are shown below:
2 QTouch Technical Details
2.1 QTouch Download and Installation
Users can download the QTouch software from the official website of Wuhan Shuntong Intelligent Technology Co., Ltd. at www.sitcsys.com. The download page includes the following versions and content:
2.2 QTouch Project Manager
After installing QTouch, users will find two icons on the desktop: one for QTouch Project Manager and one for QTouch Runtime. The QTouch Project Manager serves as the secondary design platform for projects, while QTouch Runtime runs the designed project on the computer. The display is as follows:

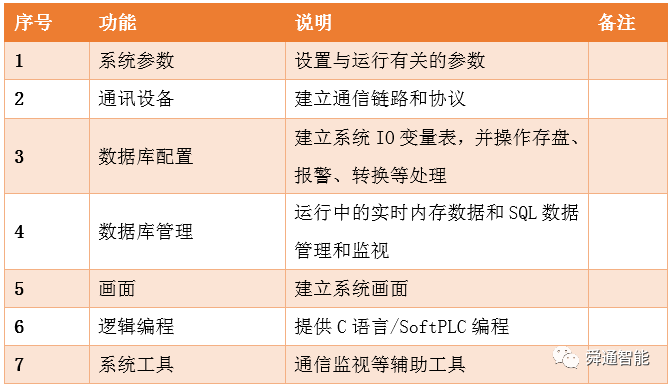

The Project Manager has the following design functions:
2.3 Screen Design

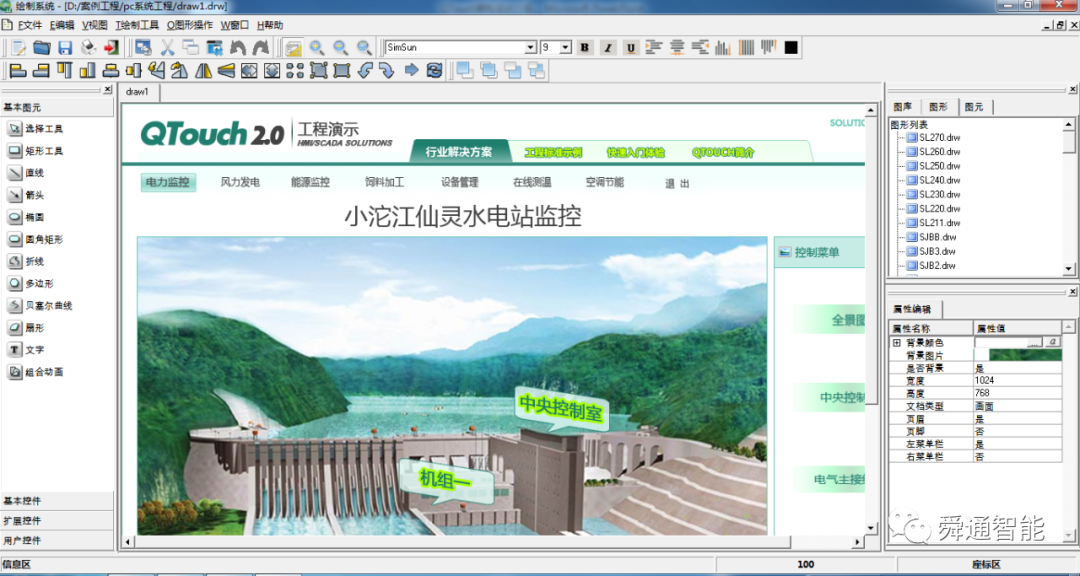

After establishing a project through the Project Manager, users can create screens by double-clicking to start the screen editing environment, allowing them to design screens and associate data for operation, as shown below:

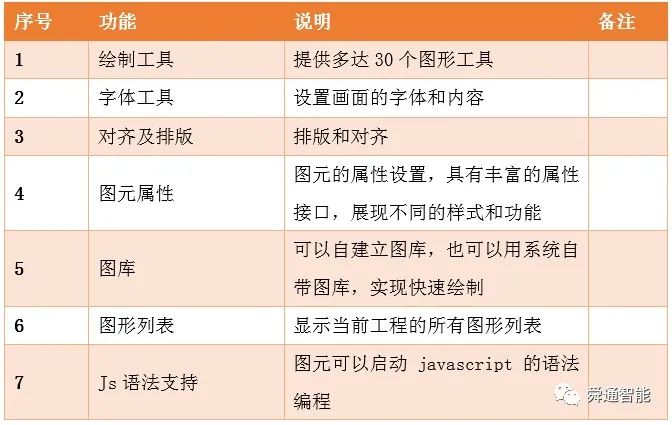

The drawing system has the following design functions:

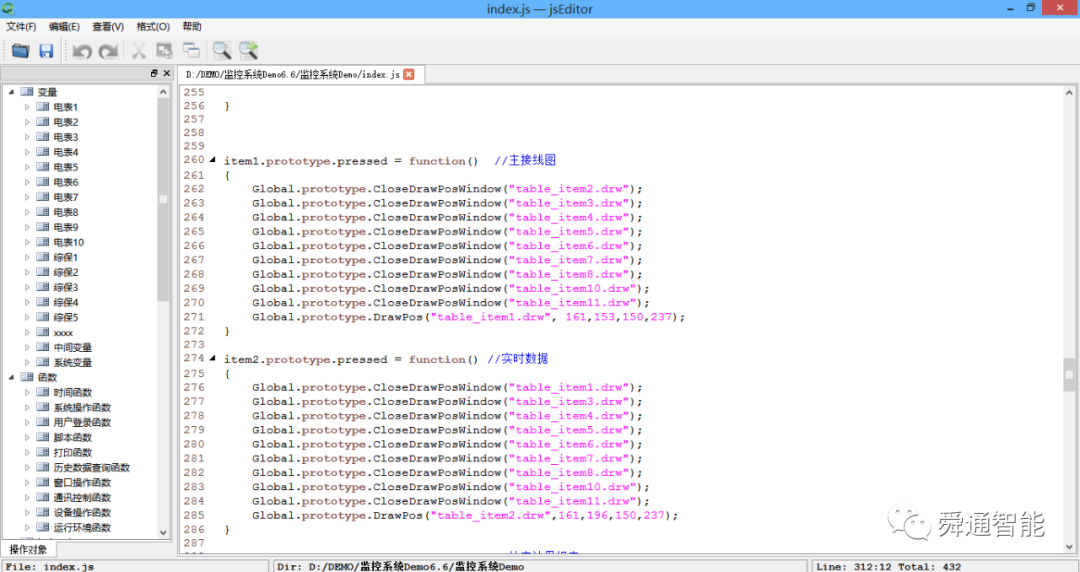

The JS development environment is shown below:
2.4 Device Communication Management

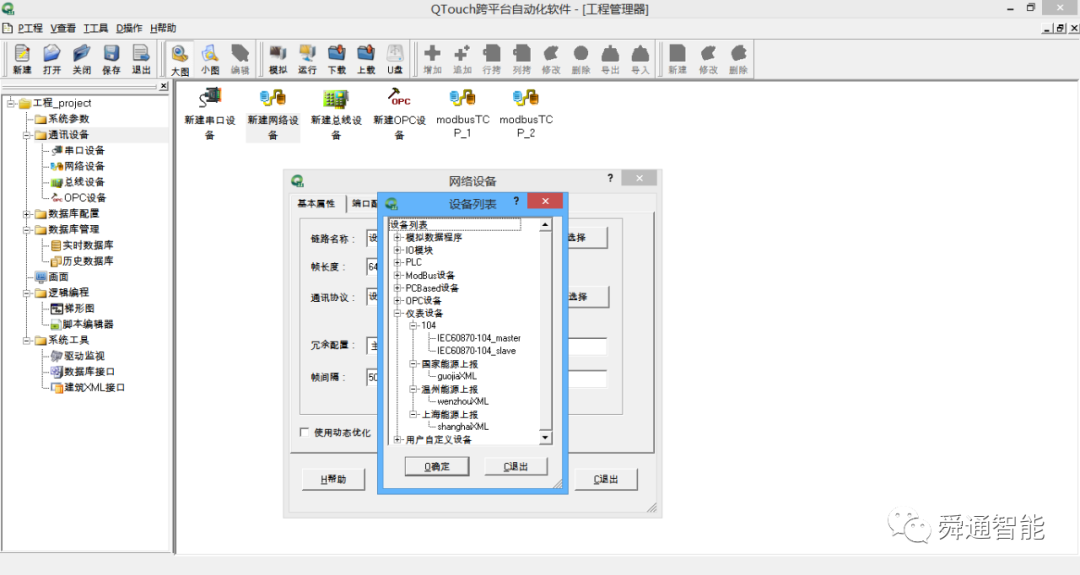

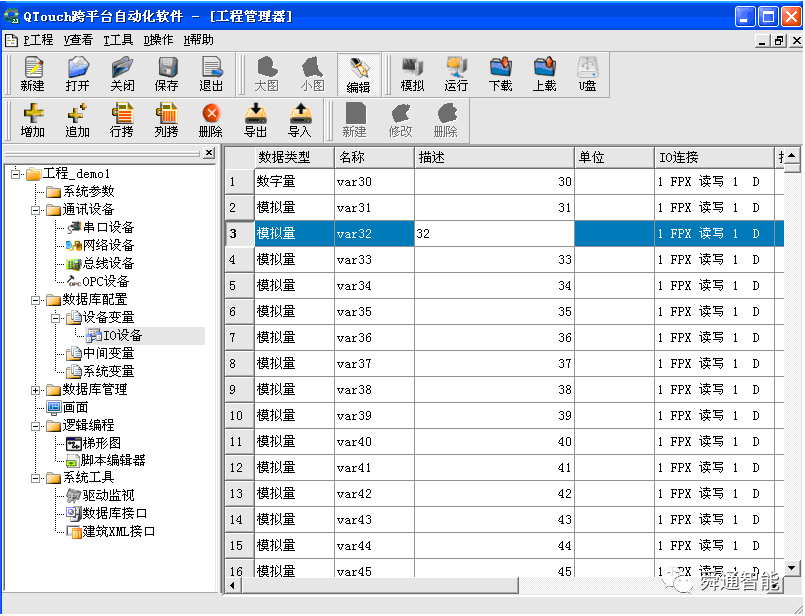

Through the QTouch Project Manager, users can set up communication devices and configure variables, facilitating the rapid establishment of device communication networks for data access and management. The system interface is shown below:

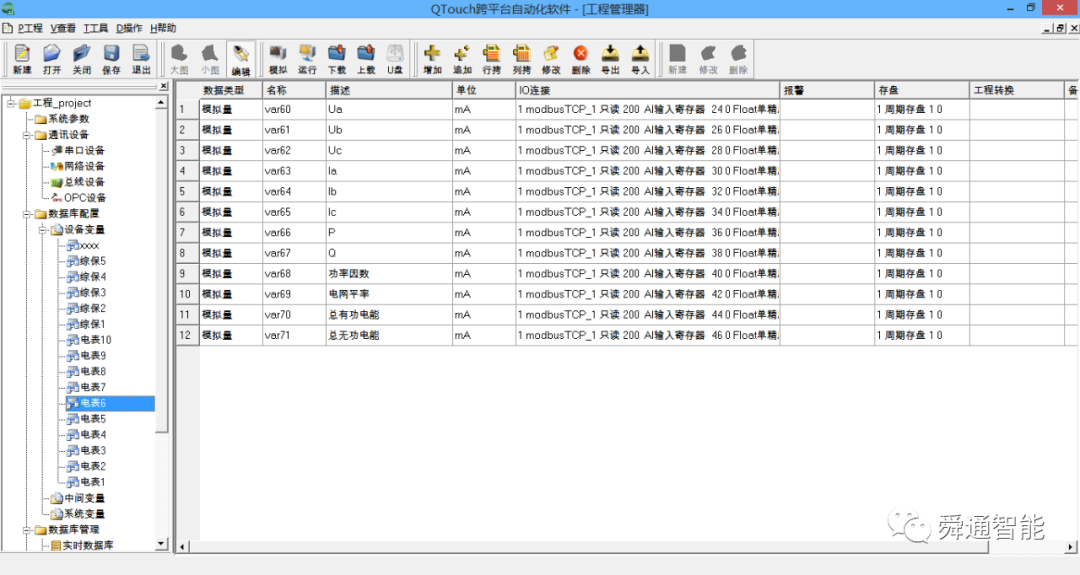

Once the devices are established, the database configuration tool is used to configure the device communication point table. Only after completing the point table configuration can the QTouch system retrieve data from the devices through the communication line and enter the QTouch database system, as shown below:
2.5 Logic Programming
QTouch has rich logic programming capabilities, providing two methods of logic processing: one based on the IEC61131-3 standard softPLC and the other based on a C language editing and compiling system. With these two logic programming methods, any logic processing algorithm can be implemented.

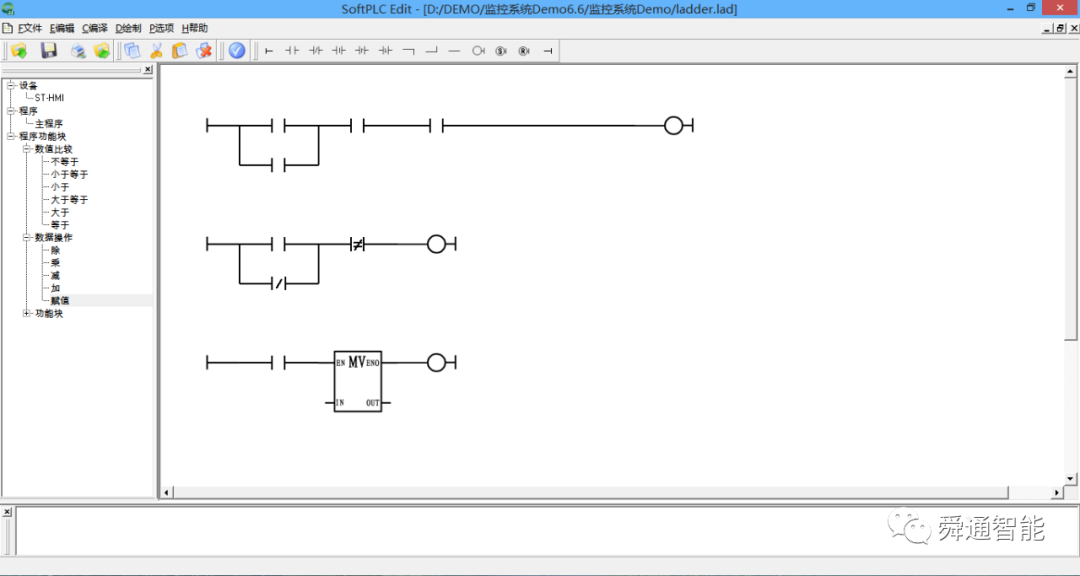

The ladder diagram programming environment is shown below:

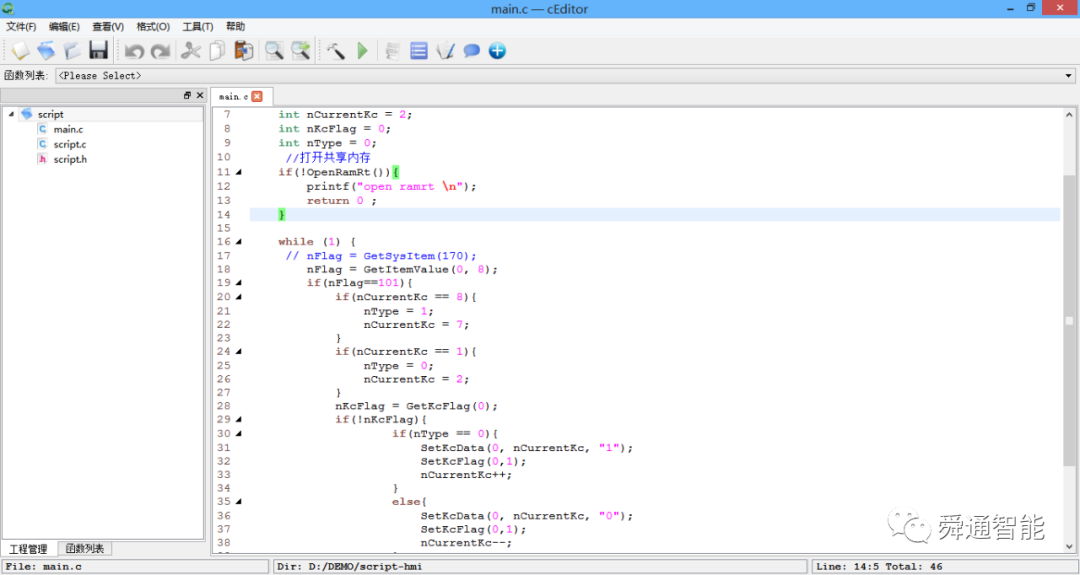

The C language programming environment is shown below, where users can embed their C language code or develop their own, calling QTouch memory data or SQL data through APIs.
