CK6855M1 Bluetooth Offline Voice Recognition Light Control Module User Manual

——————————————-——————————————-——————————————-——-

1. Function Description

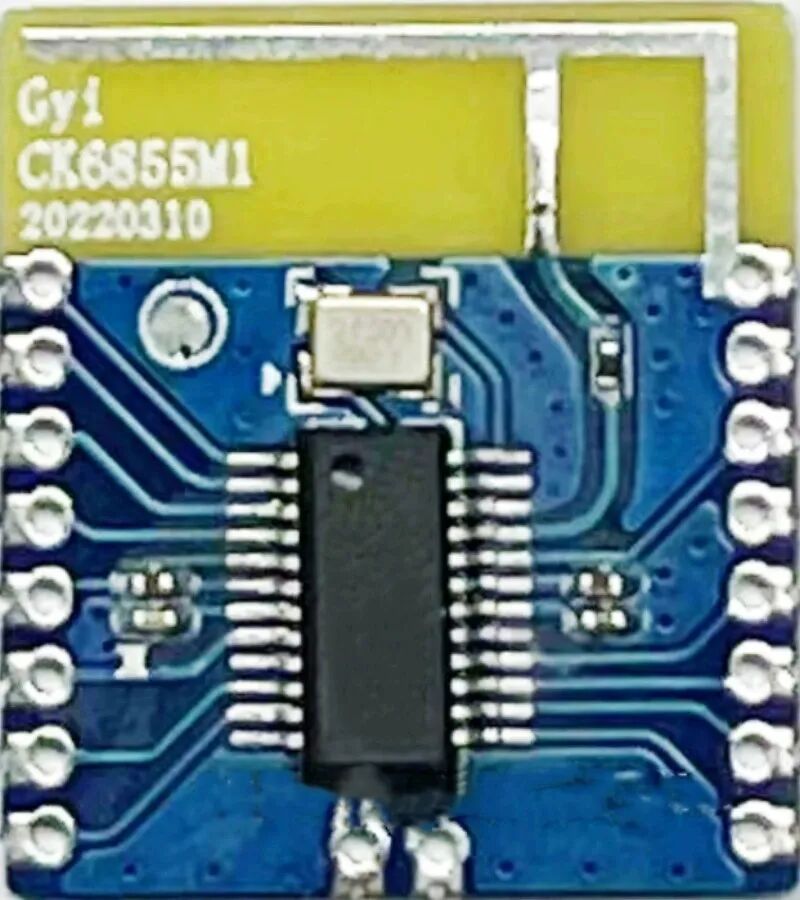

CK6855M1 module is an offline Bluetooth voice recognition module designed specifically for lighting products. The module supports infrared remote control reception, RGB+W+Y light control, stepless dimming, AD button light control, and audio playback control, supporting Bluetooth 5.1 music playback. Users only need to follow the wiring diagram to successfully implement the product’s functions and achieve production goals.

2. Why Design CK6855M1

1. 1. This is a brand new solution aimed at solving the problem that traditional lighting products require a remote control or buttons to control different lighting modes, whileCK6855M1 liberates hands to achieve voice control.
2. 2. Traditional lighting can only serve as a lighting product, whileCK6855M1 module not only has5 channels of PWM for lighting control but also features Bluetooth 5.0 audio playback, bringing an innovative chip product to the traditional lighting industry.
3. 3. Unlike networkWIFI AI voice recognition, AI recognition requires cooperation with an APP or obtaining copyrights from certain platforms, and products controlled by AI are limited byWIFI connectivity, which is significantly affected by the instability of theWIFI connection. If the network speed is unstable, it can directly lead to ineffective or failed voice control. However,CK6855M1 does not require aWIFI connection, eliminating control issues.
4. 4. CK6855M1 features all light control programs are pre-set and ready to use, with remote control reception already configured, including the mute function for amplifiers, which can basically meet the needs of all Bluetooth bulb/ceiling lights/table lamps on the market without excessive modifications for immediate use.
5. 5. CK6855M1 has a standby power consumption of 15mA, which is not suitable for battery-powered products. We will address this pain point in future versions, so stay tuned.

3. Performance Parameters

*1*.Operating Voltage: 3~5.5V, do not exceed 5.2V

*2*.Module Size: Length x Width x Height 22.6*20.1*2.54mm

*3*.Bluetooth Version: BT5.0+EDR

*4*.Need to connectWIFI/APP:No, offline voice control can be achieved by simply speaking.

*5*.5 channels of PWM control: RGB+ white light+ warm light

*6*.Supports 1 channel infrared remote control recognition

*7*.Stereo audio output

*8*.Supports RGB music rhythm, supports RGB breathing light, supports360 degree colorful lights

*9*.Standby power consumption 15mA, battery-powered products need to add a wake-up button

*10*.Application scenarios: ceiling lights, bulb lights, table lamps, etc.

*11*.1 channel AD port, specifically for AD touch button control

*12*.1 channel MUTE pin to control amplifier mute, can connect high-side/ low-side amplifiers, software automatically recognizes

4. Schematic Diagram

5. Remote Control Selection

Standard infrared NEC encoding format, available on the market or online, just ensure the code values match, and the panel can be matched with remote control suppliers

1. 1. Use 38kHz carrier frequency
2. 2. Guiding code interval is 9ms+4.5ms
3. 3. Use 16 bit customer code
4. 4. Use 8 bit data code plus data inverse code
5. 5. Customer code 00FF

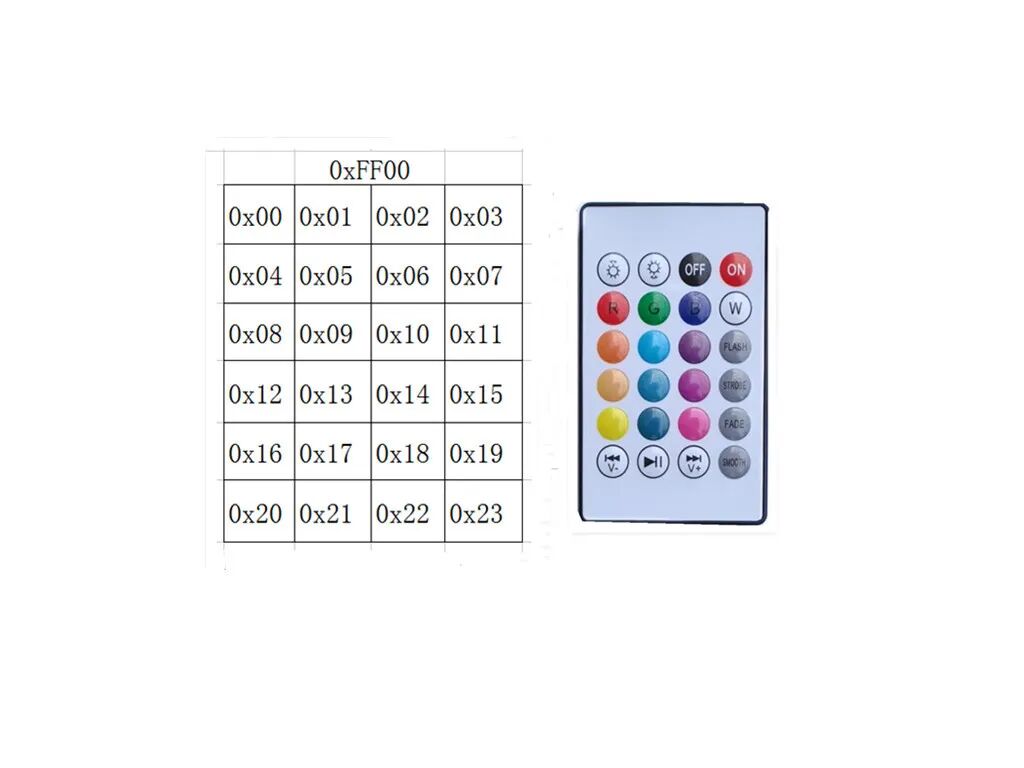

6. 6. Key codes are as follows:

6. Pin Description

1：USB_DM: USB upgrade/USB data pin, reserved connection solder points on the board

2：USB_DP: USB upgrade/USB data pin, reserved connection solder points on the board

3:Y_LED: warm light driver pin, high level to turn on light (leave unconnected if no warm light function)

4:W_LED: white light driver pin, high level to turn on light (leave unconnected if no white light function)

5：MIC+ microphone positive (select microphone -32db omnidirectional)

6：MIC- microphone negative (select microphone -32db omnidirectional)

7：DACL audio output left channel

8：DACR audio output right channel

9：3.3V module LDO output 3.3V (can power infrared head, indicator light, etc.)

10:GND module ground (same as pin 10)

11：B_LED: RGB blue light driver pin, high level to turn on light (leave unconnected if no RGB function)

12：G_LED: RGB green light driver pin, high level to turn on light (leave unconnected if no RGB function)

13：R_LED: RGB red light driver pin, high level to turn on light (leave unconnected if no RGB function)

14：ADKEY: AD button (specific button functions and parameters refer to the schematic)

15：MUTE amplifier chip mute function control pin

16：IR infrared receiving pin

17：VBAT module power pin (3~5.2V)

18：GND module ground (same as pin 10)

7. Voice Command List:

1. Turn on the light2. Turn off the light3. Brighten the light4. Dim the light5. Set to yellow light6. Set to white light7. Set to natural light8. Red light9. Orange light10. Yellow light11. Green light12. Cyan light13. Blue light14. Purple light15. White light16. Music mode17. DJ mode18. Constant light mode19. Rainbow mode/ rainbow color change20. Stop color change

21. More English or other language versions can be defined (for custom definitions, please contact the factory)

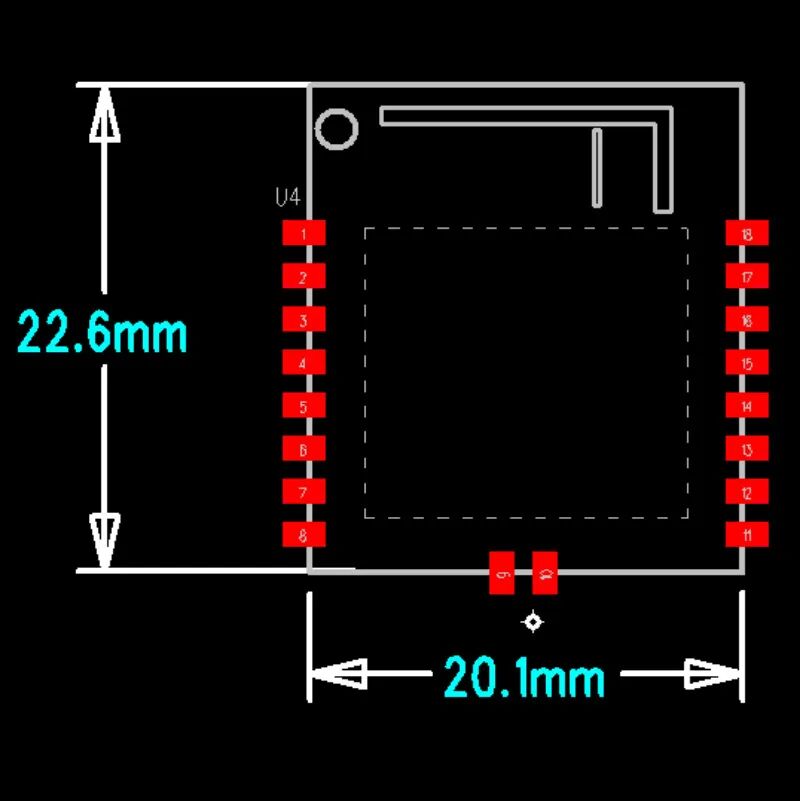

8. Dimensions

9. Frequently Asked Questions

Question	Can I connect Bluetooth and play music just by powering it on?
Answer	After powering on, the light circuit can connect to Bluetooth from the mobile phone and play music
Question	Why is the infrared remote control not working?
Answer	Check if the infrared receiver pin is connected correctly, then check if the infrared remote control’s code and values match
Question	Why is there no sound from the connected amplifier?
Answer	For amplifiers that turn off at high level, add a pull-up resistor to the MUTE pin; for amplifiers that turn off at low level, add a pull-down resistor to the MUTE pin
Question	Can it pass certification? Is there technical support for certification?
Answer	The chip has passed BQB, and all certifications can be supported with technical services provided
Question	How do I adjust the light mode?
Answer	You can adjust it using the remote control / AD port touch button / voice command
Question	Can I add my own commands? Can foreign language commands be added?
Answer	Yes, you can customize commands with the factory, specific business conditions can be consulted with the manufacturer
Question	Is there a power limit for the LED lights?
Answer	No. Just connect the corresponding color LED beads according to the module’s light control interface
