Applying AI in Audit Work, Starting with Small Scenarios. There are many methods to achieve the same goal, including direct Q&A, using Coze, n8n, Yingdao, or calling locally deployed or online large models with Python.

Today, I will demonstrate the method of extracting specified information from images in audit work using Python and Ollama.

1. Addressing Pain Points: The “Nightmare of Image Information Extraction” in Audit Work

Those involved in auditing, finance, or project management will surely understand this pain:

• A pile of acceptance forms, scanned contracts, and reimbursement vouchers require manual entry of fields such as “contract number, acceptor, quantity”.

• Images are blurry and inconsistent in format, OCR recognition misses characters and makes errors, checking each image is time-consuming and labor-intensive.

• Urgent projects require speed, manually processing dozens or hundreds of images often leads to working late into the night.

I have tried various tools before:

• Online OCR tools: Limited upload per session, sensitive data risks exposure.

• Paid software: Costly per use, weak batch processing capabilities.

• Traditional Python scripts: Dependence on third-party APIs, unstable and costly.

Until the explosion of local large models, deploying qwen3-vl:8b multimodal large model with Ollama, combined with Python to achieve local batch extraction of image fields, running entirely offline, ensuring data security and improving efficiency!

2. Technology Selection: Why Ollama + qwen3-vl:8b?

1. Core Tool Combination

Tool / Model	Function	Core Advantages
Ollama	Local large model deployment platform	Lightweight, one-click deployment, supports visual models
qwen3-vl:8b	Qwen multimodal visual and language large model	8 billion parameters, strong image understanding, supports Chinese OCR
Python	Batch processing + Excel output	Flexible expansion, adaptable to various folders/formats
Pillow	Image preprocessing	Improves recognition accuracy of blurry images
Pandas	Data structuring	Quickly generates standard Excel reports

2. Why Abandon Traditional Solutions?

• Online APIs: Dependence on the internet, risk of sensitive audit data exposure.

• Commercial software: High costs, weak customization capabilities.

• Small parameter models: Local deployment is stress-free, even a laptop can run (8GB RAM is sufficient).

3. Core Logic: 3 Steps to Achieve Batch Extraction of Image Fields

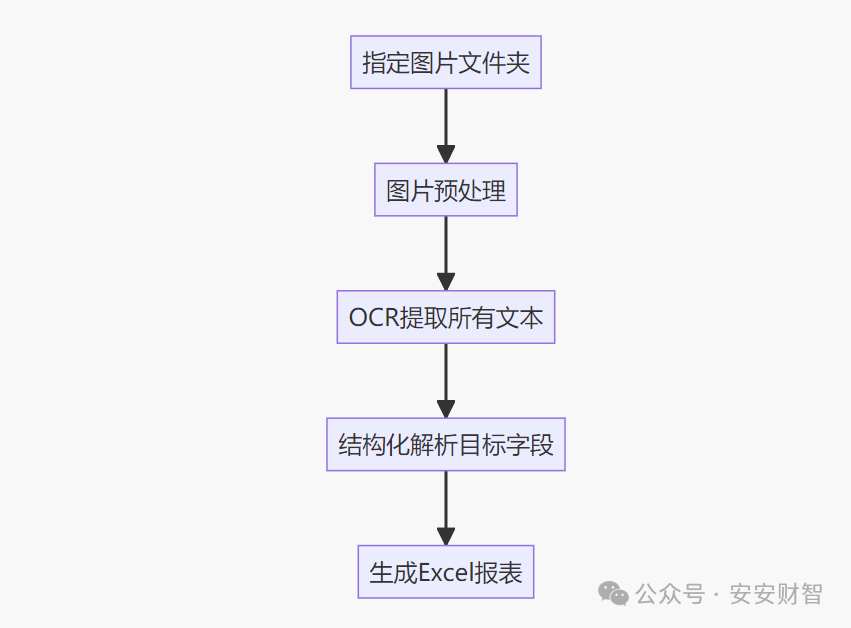

1. Overall Process Breakdown

2. Key Technical Details (Core Highlights of the Code)

(1) Image Preprocessing: Accurate Recognition of Blurry Images

To address common issues in audit images such as “scanned blur, insufficient brightness”, enhancement logic is added:

• Automatically convert image mode (RGBA→RGB) to solve transparent background recognition issues.

• Contrast + 50%, Brightness + 20%, to enhance text clarity.

• Lanczos algorithm Resize, maintaining aspect ratio without distortion.

• Supports various formats such as JPG/PNG/BMP/GIF.

(2) Dual-Prompt Strategy: Doubling Accuracy

• First round: Full OCR extraction, leaving no text behind (temperature 0.0, ensuring objectivity).

• Second round: Structured parsing, strictly outputting target fields in JSON format.

• Fallback backup plan: Directly ask questions about the image to avoid OCR failure.

(3) Fault Tolerance Mechanism: Maximizing Stability

• Automatically detect if the Ollama service is running.

• Automatically pull missing models (qwen3-vl:8b).

• Automatically clean up extra characters on JSON parsing failure.

• Return empty strings for missing fields, ensuring Excel generation is unaffected.

4. Practical Steps

1. Environment Preparation (3 Steps to Complete)

(1) Install Ollama

• Download from the official website: https://ollama.com/

• Start the service: Enter the command <span>ollama serve</span> (keep the window open).

(2) Deploy the Visual Model

Execute in the command line:

ollama pull qwen3-vl:8b  # Recommended 8G RAM, 16G RAM can try qwen3-vl:14b

(3) Install Python Dependencies

pip install pandas pillow openpyxl ollama

2. Code Configuration (2 Modifications Required)

# Only need to change these 2 lines!

IMAGE_FOLDER = "path_to_your_image_folder"  # e.g., "D:/audit_images/2024_acceptance_forms"

OUTPUT_FILE = "extraction_results.xlsx"  # Output Excel file name

3. Running Effect Demonstration

(1) Processing Log

Testing Ollama connection...

✓ Successfully connected to Ollama service

✓ Found model: qwen3-vl:8b

Validating model capabilities...

✓ Model visual capability validation passed

Found 28 images, starting processing...

=== Processing image 1/28: acceptance_form_001.jpg ===

Text content in the image:

Project: XX Park Renovation Project

Name: LED Display

Contract Number: JY-2024-0328

Model Specification: P2.55m×3m

Quantity: 2 units

Situation Description: Equipment operates normally, meets acceptance standards

Acceptance Unit: XX Construction Engineering Co., Ltd.

Acceptor: Zhang San

Acceptance Date: May 18, 2024

Structured extraction result: {"Project":"XX Park Renovation Project","Name":"LED Display","Contract Number":"JY-2024-0328","Model Specification":"P2.55m×3m","Quantity":"2 units","Situation Description":"Equipment operates normally, meets acceptance standards","Acceptance Unit":"XX Construction Engineering Co., Ltd.","Acceptor":"Zhang San","Acceptance Date":"May 18, 2024"}

Processing complete! Results saved to extraction_results.xlsx

Successfully extracted information from images: 28/28

(2) Excel Output Effect

Image File Name	Project	Name	Contract Number	Model Specification	Quantity	Acceptor	Acceptance Date
acceptance_form_001.jpg	XX Park Renovation Project	LED Display	JY-2024-0328	P2.55m×3m	2 units	Zhang San	May 18, 2024
acceptance_form_002.jpg	Office Equipment Procurement	Laptop	CG-2024-0415	ThinkPad X1	10 units	Li Si	June 2, 2024

5. Code Optimization Highlights (Advanced Techniques)

1. Image Enhancement: Solving Blurry Image Recognition Issues

def enhance_image(image):

   # Contrast +50%, Brightness +20%, slight sharpening

   enhancer = ImageEnhance.Contrast(image)
   image = enhancer.enhance(1.5)

   enhancer = ImageEnhance.Brightness(image)
   image = enhancer.enhance(1.2)

   image = image.filter(ImageFilter.SHARPEN)

   return image

2. Dual-Prompt: Improving Structured Extraction Accuracy

• First round: Full OCR, leaving no text behind.

• Second round: Based on OCR results, enforce JSON format output.

• Fault tolerance: Automatically clean up extra characters in JSON to avoid parsing failures.

3. Batch Processing + Retry on Failure

• Automatically traverse all images in the folder (supports multiple formats).

• Main strategy failure automatically switches to backup plan.

• Detailed log output for easy troubleshooting.

4. Data Security: Entirely Local Operation

• No image uploads to the cloud, sensitive data remains secure.

• Supports offline use, can work without internet.

6. Common Problem Troubleshooting

1. Ollama Connection Failed?

• Check if the service is running: Enter the command <span>ollama serve</span>

• Ensure the model has been pulled:<span>ollama pull qwen3-vl:8b</span>

• Disable VPN, ensure local network is normal.

2. Low Recognition Accuracy?

• Image preprocessing: Ensure images are clear, manually crop irrelevant areas if necessary.

• Adjust prompts: Clearly specify field formats in structured prompts (e.g., acceptance date must be in YYYY-MM-DD format).

• Upgrade model: 16GB RAM can try qwen3-vl:14b.

3. Excel Save Failed?

• Install dependencies:<span>pip install openpyxl</span>

• Close any open Excel files.

• Check if the output path has write permissions.

7. Extended Scenarios: Beyond Auditing

This solution can also be used for:

• Financial reimbursements: Extract invoice information (amount, invoice date, seller).

• Human resources: Extract key information from resumes (name, phone, work experience).

• Education: Extract exam questions, student scores.

• Administrative office: Extract key contract terms (party A, party B, validity period).

Simply modify the <span>structured_prompt</span><span> fields to adapt to different scenarios!</span>

8. Complete Code

import os
import json
import pandas as pd
from PIL import Image, ImageEnhance, ImageFilter
import io
import ollama
import traceback

def enhance_image(image):
    """Enhance image clarity, improve recognition effect"""
    # Adjust contrast and brightness
    enhancer = ImageEnhance.Contrast(image)
    image = enhancer.enhance(1.5)

    enhancer = ImageEnhance.Brightness(image)
    image = enhancer.enhance(1.2)

    # Slight sharpening
    image = image.filter(ImageFilter.SHARPEN)

    return image

def process_image_for_model(image_path):
    """Preprocess image and return binary data"""
    try:
        with Image.open(image_path) as img:
            # Convert to RGB mode
            if img.mode in ('RGBA', 'LA'):
                background = Image.new(img.mode[:-1], img.size, (255, 255, 255))
                background.paste(img, mask=img.split()[-1])
                img = background
            elif img.mode == 'P':
                img = img.convert('RGB')
            else:
                img = img.convert('RGB')

            # Image enhancement
            img = enhance_image(img)

            # Resize (maintaining aspect ratio, fixed width of 1200px)
            width, height = img.size
            new_width = 1200
            new_height = int(height * (new_width / width))
            img = img.resize((new_width, new_height), Image.Resampling.LANCZOS)

            # Save as high-quality JPEG
            buffer = io.BytesIO()
            img.save(buffer, format='JPEG', quality=95, optimize=True)
            return buffer.getvalue()
    except Exception as e:
        print(f"Image preprocessing failed {image_path}: {str(e)}")
        return None

def extract_info_with_multiple_prompts(image_path, model="qwen3-vl:8b"):
    """Multi-round prompt strategy for information extraction"""
    image_data = process_image_for_model(image_path)
    if not image_data:
        return None

    # First round: Extract all text content (OCR mode)
    ocr_prompt = """Please recognize all text content in the image, output line by line, do not omit any information."""

    try:
        # Step 1: Get all text in the image
        ocr_response = ollama.generate(
            model=model,
            prompt=ocr_prompt,
            images=[image_data],
            stream=False,
            options={"temperature": 0.0}
        )

        all_text = ocr_response.get("response", "").strip()
        print(f"\nText content in the image:\n{all_text}\n")

        # Second round: Structured parsing based on extracted text
        structured_prompt = f"""The following is the text content in the image:\n{all_text}\n\nPlease extract the following field information from the above text, strictly return in JSON format:\n- Project\n- Name\n- Contract Number\n- Model Specification\n- Quantity\n- Situation Description\n- Acceptance Unit\n- Acceptor\n- Acceptance Date\n\nIf a field does not exist or cannot be recognized, return an empty string for the corresponding value. Only return JSON, do not add any other content.\nExample output: {{"Project":"","Name":"","Contract Number":"","Model Specification":"","Quantity":"","Situation Description":"","Acceptance Unit":"","Acceptor":"","Acceptance Date":""}}"""

        structured_response = ollama.generate(
            model=model,
            prompt=structured_prompt,
            stream=False,
            options={"temperature": 0.0}
        )

        raw_result = structured_response.get("response", "").strip()
        print(f"Structured extraction result: {raw_result}")

        # Parse JSON
        if raw_result:
            # Clean up possible extra characters
            if not raw_result.startswith('{'):
                raw_result = '{' + raw_result.split('{')[-1]
            if not raw_result.endswith('}'):
                raw_result = raw_result.split('}')[0] + '}'

            result = json.loads(raw_result)
            result["Image File Name"] = os.path.basename(image_path)
            result["Original Text"] = all_text[:500]  # Save part of the original text for debugging
            return result

    except json.JSONDecodeError as e:
        print(f"JSON parsing failed: {str(e)}")
        print(f"Original response: {raw_result}")
    except Exception as e:
        print(f"Extraction failed: {str(e)}")
        traceback.print_exc()

    return None

def fallback_extract(image_path, model="qwen3-vl:8b"):
    """Backup extraction strategy: directly use detailed prompts"""
    image_data = process_image_for_model(image_path)
    if not image_data:
        return None

    detailed_prompt = """Please carefully examine the image and extract the following structured information:\n\n1. Project: The project name or number displayed in the image\n2. Name: Product/service name\n3. Contract Number: Contract number in letter+number combination, usually contains keywords like "contract", "number", "No."\n4. Model Specification: Model and specification parameters of the product\n5. Quantity: Quantity information in numerical form, may include units like "units", "pieces", "sets"\n6. Situation Description: Description of the acceptance situation\n7. Acceptance Unit: Name of the unit conducting the acceptance\n8. Acceptor: Name of the acceptor\n9. Acceptance Date: Date format (e.g., YYYY-MM-DD, YYYY年MM月DD日, etc.)\n\nPlease strictly return in JSON format, use empty strings for field values when empty, do not add any explanations:\n{"Project":"","Name":"","Contract Number":"","Model Specification":"","Quantity":"","Situation Description":"","Acceptance Unit":"","Acceptor":"","Acceptance Date":""}"""

    try:
        response = ollama.generate(
            model=model,
            prompt=detailed_prompt,
            images=[image_data],
            format="json",
            stream=False,
            options={"temperature": 0.0}
        )

        result = json.loads(response["response"].strip())
        result["Image File Name"] = os.path.basename(image_path)
        result["Extraction Strategy"] = "Backup Strategy"
        return result
    except:
        return None

def batch_process_with_fallback(folder_path, output_excel="extracted_info.xlsx"):
    """Batch processing with backup strategy"""
    supported_formats = ('.jpg', '.jpeg', '.png', '.bmp', '.tiff', '.gif')
    image_files = []

    # Collect all image files
    for filename in os.listdir(folder_path):
        if filename.lower().endswith(supported_formats):
            image_files.append(os.path.join(folder_path, filename))

    if not image_files:
        print("No image files found!")
        return

    print(f"Found {len(image_files)} images, starting processing...")
    results = []

    for i, image_path in enumerate(image_files):
        filename = os.path.basename(image_path)
        print(f"\n=== Processing image {i+1}/{len(image_files)}: {filename} ===")

        # Main strategy extraction
        info = extract_info_with_multiple_prompts(image_path)

        # If main strategy fails, use backup strategy
        if not info or all(v == "" for k, v in info.items() if k not in ["Image File Name", "Original Text", "Extraction Strategy"]):
            print("Main strategy extraction failed, trying backup strategy...")
            info = fallback_extract(image_path)

        # If both fail, fill with default values
        if not info:
            info = {
                "Project": "", "Name": "", "Contract Number": "", "Model Specification": "",
                "Quantity": "", "Situation Description": "", "Acceptance Unit": "", "Acceptor": "",
                "Acceptance Date": "", "Image File Name": filename,
                "Extraction Strategy": "Extraction Failed", "Original Text": ""
            }

        results.append(info)

    # Save results
    if results:
        df = pd.DataFrame(results)

        # Organize column order
        columns = ["Image File Name", "Project", "Name", "Contract Number", "Model Specification",
                  "Quantity", "Situation Description", "Acceptance Unit", "Acceptor", "Acceptance Date",
                  "Extraction Strategy", "Original Text"]
        df = df.reindex(columns=columns, fill_value="")

        # Save to Excel
        df.to_excel(output_excel, index=False, engine="openpyxl")
        print(f"\nProcessing complete! Results saved to {output_excel}")

        # Count results
        success = sum(1 for r in results if r.get("Project") or r.get("Name") or r.get("Contract Number"))
        print(f"Successfully extracted information from images: {success}/{len(results)}")

def verify_model_capability():
    """Verify the model's visual capabilities (not dependent on test images)"""
    print("Verifying model capabilities...")
    try:
        # Create a simple test image (pure text)
        from PIL import ImageDraw, ImageFont

        # Create test image
        test_img = Image.new('RGB', (500, 200), color='white')
        d = ImageDraw.Draw(test_img)

        # Try to load font
        try:
            font = ImageFont.truetype("arial.ttf", 20)
        except:
            font = ImageFont.load_default(size=20)

        # Draw test text
        test_text = """Project: Test Project\nName: Test Product\nContract Number: TEST-2024-001\nModel Specification: V1.0\nQuantity: 10\nAcceptance Date: 2024-01-01"""

        d.text((20, 20), test_text, fill='black', font=font)

        # Save to memory
        buffer = io.BytesIO()
        test_img.save(buffer, format='JPEG')
        buffer.seek(0)

        # Test model
        prompt = "Please recognize the text content in the image"
        response = ollama.generate(
            model="qwen3-vl:8b",
            prompt=prompt,
            images=[buffer.getvalue()],
            stream=False
        )

        if "Test Project" in response.get("response", ""):
            print("✓ Model visual capability validation passed")
            return True
        else:
            print("⚠️ Model response may not meet expectations")
            print(f"Response content: {response.get('response', 'No response')}")
            return True  # Continue execution even if recognition is inaccurate

    except Exception as e:
        print(f"Model capability verification warning: {str(e)}")
        print("Continuing with image processing...")
        return True

def test_ollama_connection():
    """Test Ollama connection and model"""
    print("Testing Ollama connection...")
    try:
        # Check service connection
        models = ollama.list()
        print("✓ Successfully connected to Ollama service")

        # Check qwen3-vl model
        model_found = False
        for model in models.get('models', []):
            if 'qwen3-vl' in model.get('name', ''):
                model_found = True
                print(f"✓ Found model: {model.get('name')}")
                break

        if not model_found:
            print("⚠️ qwen3-vl model not found, pulling...")
            for progress in ollama.pull("qwen3-vl:8b", stream=True):
                if 'status' in progress:
                    print(f"  {progress['status']} ({progress.get('completed', 0)}/{progress.get('total', 0)})", end='\r')
            print("\n✓ Model pull complete")

        return True

    except Exception as e:
        print(f"✗ Ollama connection failed: {str(e)}")
        print("\nPlease ensure:")
        print("1. Ollama service is running (ollama serve)")
        print("2. qwen3-vl model is installed (ollama pull qwen3-vl:8b)")
        return False

if __name__ == "__main__":
    # Configuration
    IMAGE_FOLDER = "your_folder_path"  # Replace with your image folder path
    OUTPUT_FILE =  "extraction_results.xlsx"  # Replace with your result output path

    # First test connection
    if test_ollama_connection():
        # Verify model capability
        verify_model_capability()

        # Batch process images
        batch_process_with_fallback(IMAGE_FOLDER, OUTPUT_FILE)

This concludes today's sharing, thank you for your attention and reading.
