Automotive PMIC Research: Domestic Substitution Process Under Chip Shortage

Zuosi Automotive Research has released the 2023 Automotive Power Management Chip Industry Research Report.

Automotive power management chips (PMIC) are widely used in scenarios such as automotive intelligent cockpits, autonomous driving, body electronics, instrument and entertainment systems, lighting systems, and battery management systems (BMS). By product, PMIC can be mainly divided into AC/DC, DC/DC, LDO, driver chips, battery management ICs, etc.

PMIC Device Classification

Source: Zuosi Automotive Research, 2023 Automotive Power Management Chip Industry Research Report

There Is a Huge Supply Gap for Automotive AFE Chips, Strong Demand for Domestic Substitution

In the supply of automotive power management ICs, the gap is particularly large for AFE chips in the automotive battery management system (BMS). AFE (Analog Front End) chips are the core components of the BMS system, responsible for collecting voltage and temperature from the battery cells, estimating parameters such as SOC and SOH using specific algorithms, and sending the results to the control chip.

AFE Chip Working Principle

Source: Jiewahte

1) Demand Side for Automotive AFE Chips: Development from 400V Platform to 800V Platform, Doubling Demand for AFE Chips

Due to the impact of the endurance and charging efficiency of new energy vehicles, mainstream automotive companies are beginning to layout high-voltage platforms, with the transition from the current mainstream 400V platform to the 800V platform becoming a major trend. Therefore, to achieve higher voltage, it is almost necessary to connect proportionally more battery cells in series, which will significantly increase the demand for AFE chips. It is expected that the platform voltage will rise from 400V to 800V, doubling the demand for automotive-grade AFE chips.

Global Automotive AFE Chip Market Size Forecast

Source: Zuosi Automotive Research, 2023 Automotive Power Management Chip Industry Research Report

2) Supply Side for Automotive AFE Chips: Domestic Market Relies on Imports, Significant Market Gap, Urgent Need for Domestic Alternatives

Due to high technical barriers and stringent automotive certification requirements, domestic production of automotive-grade AFE chips is limited. Over 90% of AFE chips used in automotive power batteries still rely on imports, dominated by foreign analog chip giants such as TI, ADI, and Infineon. Domestic AFE chips in the automotive power battery field are still in the initial layout stage.

TI, as a mainstream supplier in the automotive-grade BMIC chip market, has seen its BQ series chip products fall into a shortage and price increase situation, with order delivery times extended to 2023, causing a significant market gap.

Due to the supply-demand gap for domestic automotive-grade AFE chips, domestic terminal manufacturers and lithium battery manufacturers have a strong demand for chip domestic substitution and are entering the power BMIC from different angles.

Domestic Layout of Automotive-grade AFE Chips

Source: Zuosi Automotive Research, 2023 Automotive Power Management Chip Industry Research Report

Chipways: Has made several core technological breakthroughs in the series of chips for the BMS system, including automotive-grade BMS AFE analog front-end sampling chips (ASIL C/D), automotive-grade BMS digital isolation communication interface chips, and automotive-grade 32-bit microcontroller MCU chips, and can provide complete software development tools in product development.

Chipways’ automotive-grade battery pack monitoring chip XL8806/XL8812 series products meet both AEC-Q100 automotive reliability standards and ISO 26262 ASIL-C automotive functional safety standards; they use LQFP 48 packaging and can operate in a temperature range of -40℃ to 125℃, supporting 4 to 12 battery cells in series with high-precision ΣΔ ADC, ±1.5mV measurement accuracy, supporting multiple chips in series, and supporting master-slave reversible bidirectional communication.

Automotive-grade battery pack monitoring chips XL8814/XL8816/XL8818 series products can meet AEC-Q100 automotive reliability standards and ISO 26262 ASIL-D automotive functional safety standards. The products further add more than 30 safety mechanisms, reaching ASIL D functional safety level, improving the number of monitoring series per chip while ensuring measurement accuracy, with a maximum support of 14/16/18 series battery connections, measurement time controlled within 120us, built-in balancing current maximum of 400mA, while functionally adding monitoring for Busbar, supporting sleep monitoring and reverse wake-up functions.

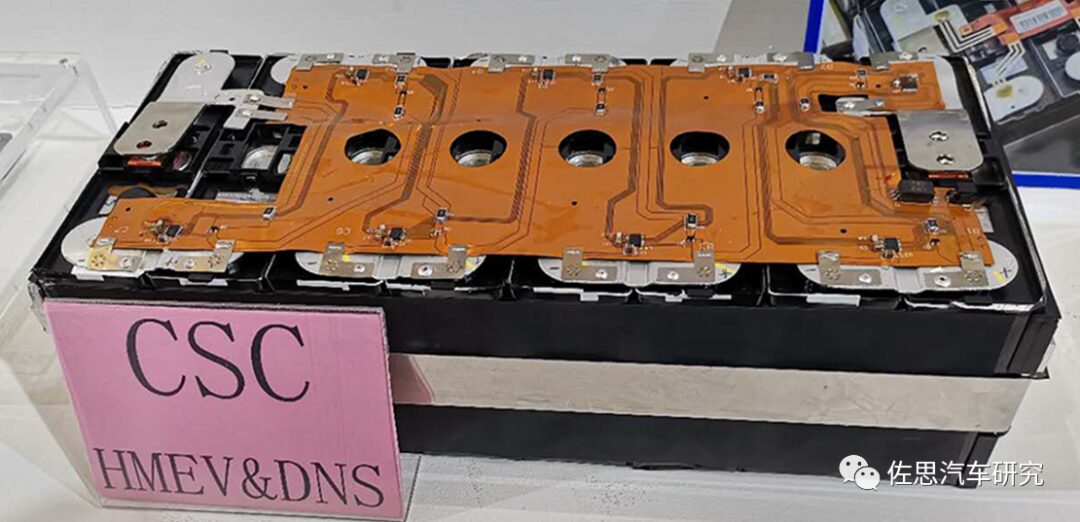

NXP Semiconductors: DNB1168 is an integrated voltage monitoring, temperature monitoring, and AC impedance monitoring BMS AFE chip that can support up to 250 chips in series, daisy chain communication, meets automotive-grade certification, and has passed ISO 26262:2018 ASIL-D certification. For example, for the thermal runaway issue that is difficult to control in power batteries, the DNB1168 solution uses the AC impedance monitoring function to achieve rapid detection of thermal runaway. Compared to traditional NTC (thermocouple) methods, the AC impedance monitoring function can provide a response capability that can be called seconds-level, greatly improving the safety threshold of power batteries and extending battery life.

The DNB1168 series automotive-grade AFE chips from NXP Semiconductors have three major application advantages: material savings, space savings, and faster, safer three-dimensional monitoring, applicable to various types of electric vehicles’ BMS systems, including BEV, EREV, PHEV, HEV, etc. Currently, DNB1168 can provide engineering samples and will be mass-produced in 2023.

NXP DNB1168 Chip Battery Monitoring Unit

Source: Electronic Engineering World

BYD Semiconductor: Launched the first generation of 16 cells in 2020, with an accuracy of ±2.5mV, meeting ISO 26262 functional safety standards and AEC-Q100 standard Grade 1 level automotive-grade AFE chip BF8X15A series products.

Automotive-grade DC/DC Chips Will Enter the Domestic Substitution Cycle

DC/DC chips are widely used in automotive electronics, suitable for applications such as automotive intelligent cockpits, charging piles, motor controllers, on-board chargers, and automotive lighting. Currently, domestic PMIC manufacturers have successively achieved mass production of automotive-grade products in categories such as LDO and DC/DC.

Domestic Layout of Automotive-grade DC/DC Chips

Source: Zuosi Automotive Research, 2023 Automotive Power Management Chip Industry Research Report

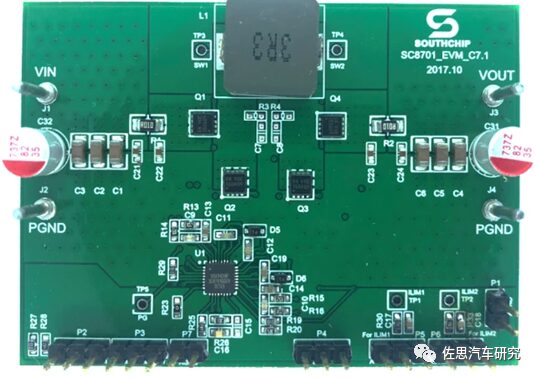

In the automotive on-board charging application field, Nanxin Semiconductor has launched the SC8101Q series automotive-grade 32V/5A synchronous buck converter and the automotive-grade buck-boost chip SC8701Q series, which can be applied to 60W wired fast charging and the ECU of the ADAS 360° surround view system to supply power to the Camera. In addition, it can also be applied to on-board wireless charging applications. Currently, it has been adopted by multiple Tier 1 manufacturers and appears in various models from brands such as BYD, SAIC General Motors, FAW Hongqi, Hyundai, and is about to be equipped in multiple overseas models.

Nanxin Semiconductor Automotive-grade SC8701Q Chip

Source: Charging Head Network

Domestic Wafer Fab BCD Process Breakthrough, “Chip Shortage Crisis” Accelerates the Domestic Substitution Process of Automotive PMIC

Power management chips do not pursue Moore’s Law in the manufacturing process, and have lower process requirements. Compared to other types of integrated circuits, PMIC is a relatively mature and stable sub-field. Currently, the mainstream production nodes for power management chips are mainly based on commonly used 8-inch production line processes ranging from 0.32μm to 90nm, mostly manufactured using the BCD (Bipolar-CMOS-DMOS) specialty process of wafer foundries, with a wide variety of product part numbers and highly fragmented market share.

In 2022, the automotive industry experienced a structural shortage of chips, among which the production capacity most severely affected was the power management IC capacity of mature processes above 8-inch 0.18um nodes. The production capacity of automotive power management chips is mainly controlled by IDM large manufacturers, including Texas Instruments, Infineon, ADI, STMicroelectronics, NXP, etc. Other chip design (Fabless model) companies need to obtain production capacity from wafer foundries.

Domestic wafer foundries such as SMIC, GigaDevice, Huahong Grace, and Jinghe Integrated Circuit can provide power management IC wafer foundry services, and are also accelerating the expansion of mature and specialty process production lines. In 2022, SMIC’s 55nm BCD process (high-voltage display driver platform) has completed platform development and introduced customers for mass production, playing an extremely important role in industrial control, smart vehicles, display drivers, and power management. Currently, the mainstream BCD processes globally are 180/130/90nm, with the industry’s top BCD technology level being 60nm.

Development Status of Domestic Wafer Foundry BCD Process Platforms

Source: Zuosi Automotive Research, 2023 Automotive Power Management Chip Industry Research Report

To respond to the rapidly growing demand in the automotive field and the insufficient capacity of automotive chips, wafer foundries such as TSMC and UMC have increased automotive chip capacity, and international IDM manufacturers have allocated automotive chip capacity while starting large-scale expansions.

Currently, the supply-demand situation of automotive-grade power management chips in some fields has improved, and some automotive chips have begun to lower prices, including LED driver ICs, motor driver ICs, PMICs, and some control ICs. However, the demand for automotive-grade products remains stable due to the transition from fuel vehicles to electric vehicles, preventing significant price fluctuations.

This “chip shortage crisis” has given domestic PMIC manufacturers more time to layout the automotive electronics field, achieve breakthroughs in domestic automotive-grade PMICs, and accelerate the substitution of domestic automotive-grade PMIC chips. At the same time, automakers also need to reassess their industrial layout strategies under special circumstances, especially the cross-regional production and transportation of components. The localization of the component supply chain may be more beneficial for the overall supply chain organization, and can also form a coordinated effect with local vehicle dealers. Once uncontrollable factors hinder normal vehicle sales, components will also be affected simultaneously. With a significant mismatch between supply and demand in the automotive PMIC market, opportunities have arisen for domestic PMIC manufacturers to enter the automotive industry supply chain.
