More and more people are traveling in RVs, and the RV Internet of Things is becoming increasingly common. Today, we will discuss the application of the Qiming WT5010-S2 Bluetooth module in RV power monitoring and gateways.

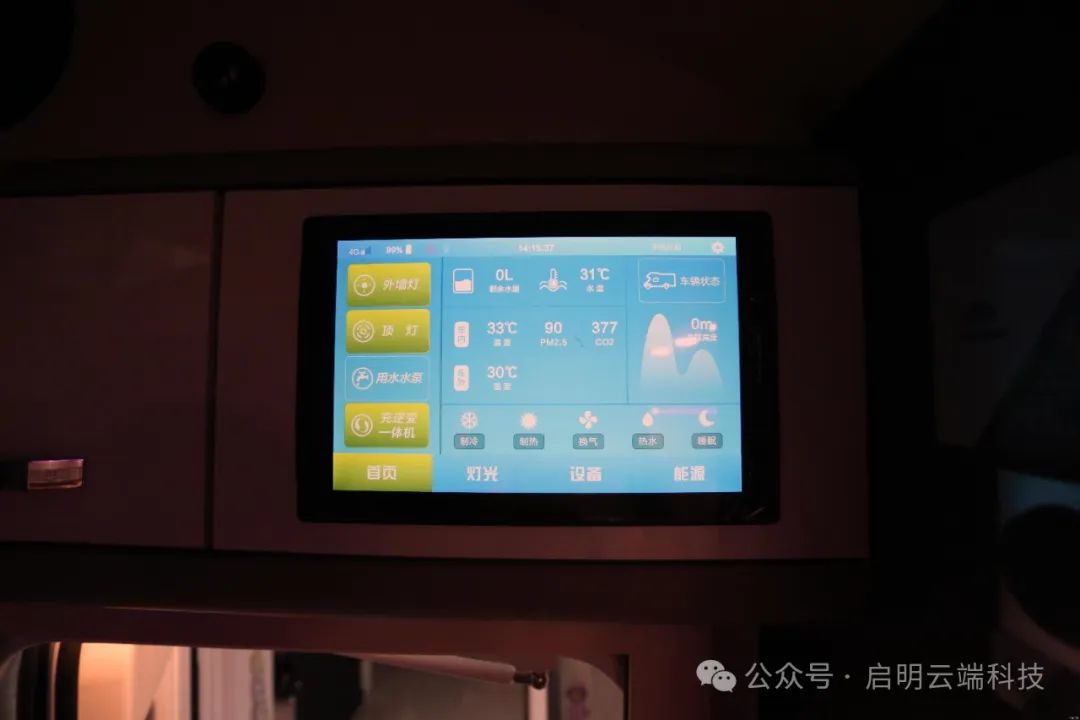

Power consumption during RV travel has always been a critical issue. In addition to developing batteries with longer endurance, it is also essential to monitor the RV’s power consumption in real-time for timely charging.
Case Details
This case study focuses on the WT5010-S2 Bluetooth module, which is primarily used for RV power monitoring and gateways. By utilizing the WT5010-S2 Bluetooth module, RV owners can monitor the status of their RV batteries at any time, check the battery level via Bluetooth, and receive warnings when the battery level is low.
LPG cylinder detection allows users to check the liquid level of the cylinder at any time, making it easier to replenish energy. This sensor supports both steel and aluminum gas cylinders. Via Bluetooth, the sensor can detect the contents of the cylinder every 1.2 seconds.
WT5010-S2 Bluetooth Module Specifications
Bluetooth BLE5.0 / BLE5.1
– Supports 125Kbps/500Kbps/1Mbps/2Mbps
Bluetooth MESH
– Supports BLE SIG Mesh
– Supports private MESH
MCU Core
– 32-bit CPU core
– Maximum frequency of 64MHz
– Maximum 64KB Data SRAM storage
– Maximum 512 KB Data Flash storage
– Supports dual-line debugging protocol
Communication Interface
– 2 I2C interfaces (supporting bus arbitration)
– 2 SPI interfaces
– 3 UART (supporting ISO7816, LIN, IrDA, etc.)
Audio Interface
– 2 PDM interfaces, supporting digital MIC
– 1 I2S interface
– General IO
Operating Temperature: -40℃ to 80℃
The WT5010-S2 Bluetooth module supports BLE SIG Mesh and private MESH, making it suitable for applications with strict power consumption requirements and certain data transmission demands.
This concludes the application of the Qiming WT5010-S2 Bluetooth module in RV power monitoring and gateways. If you have any questions, feel free to consult us in the background.
