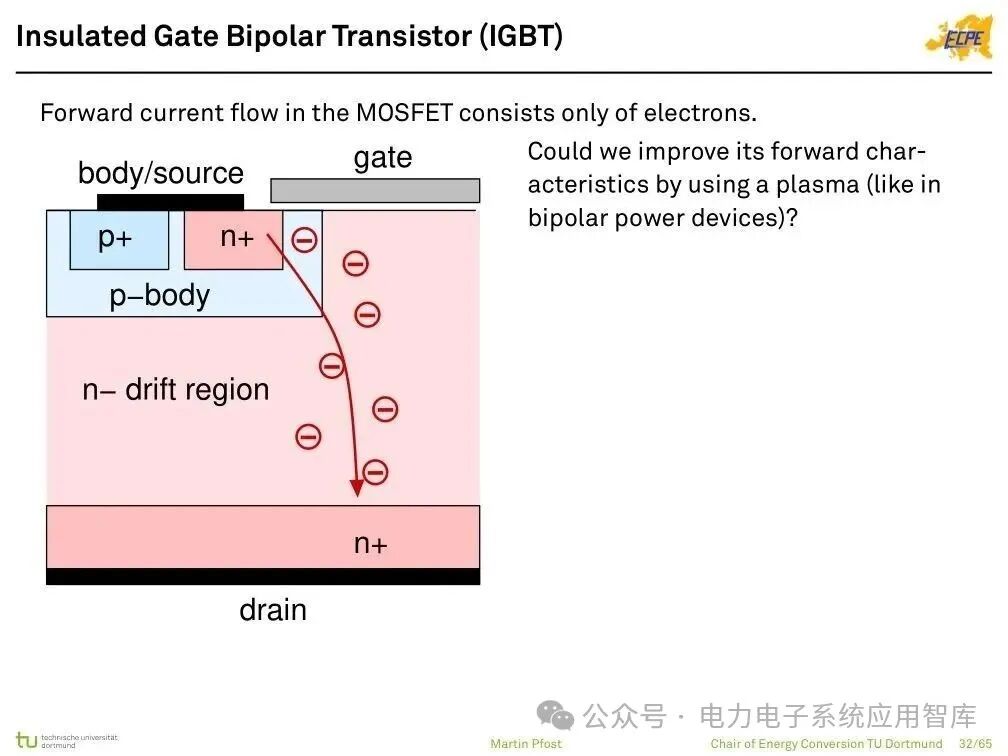

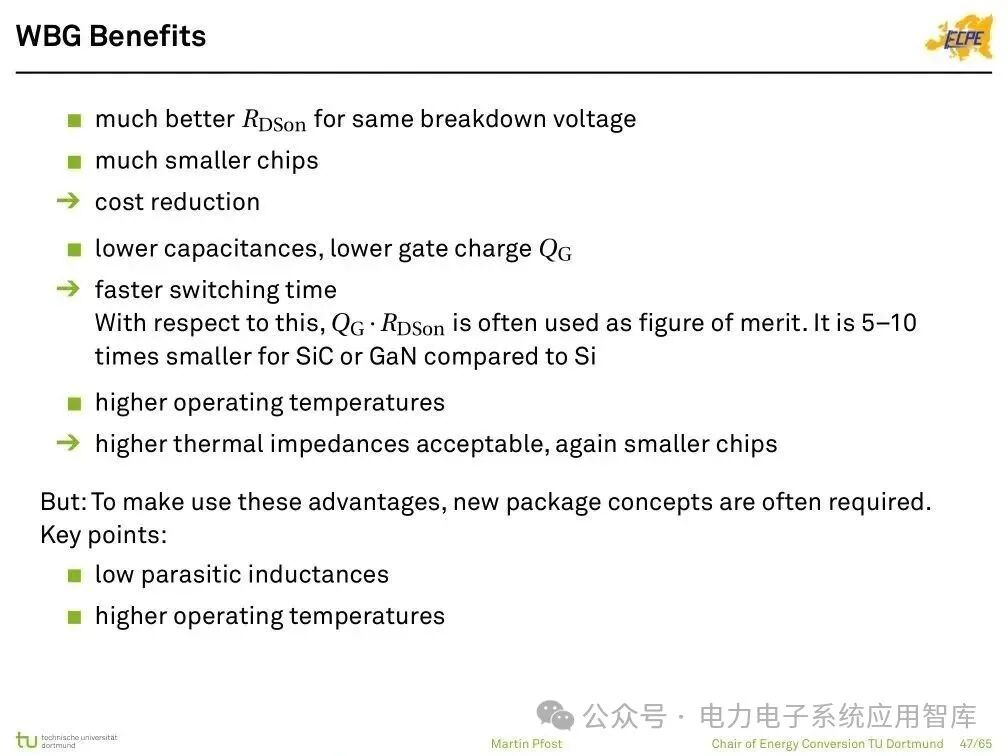

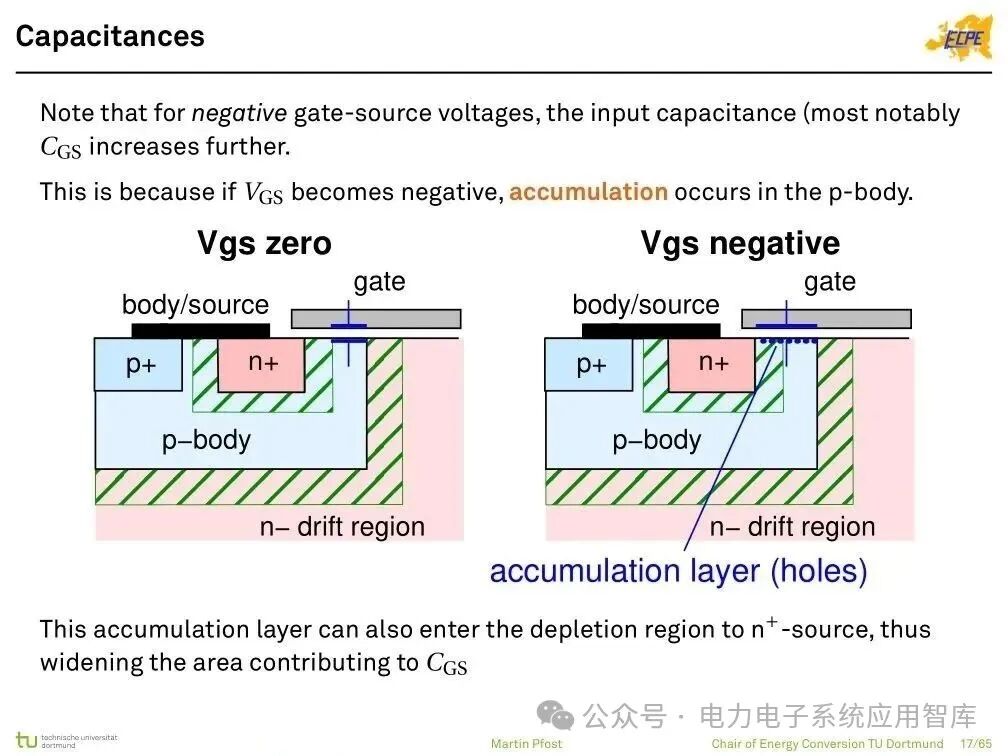

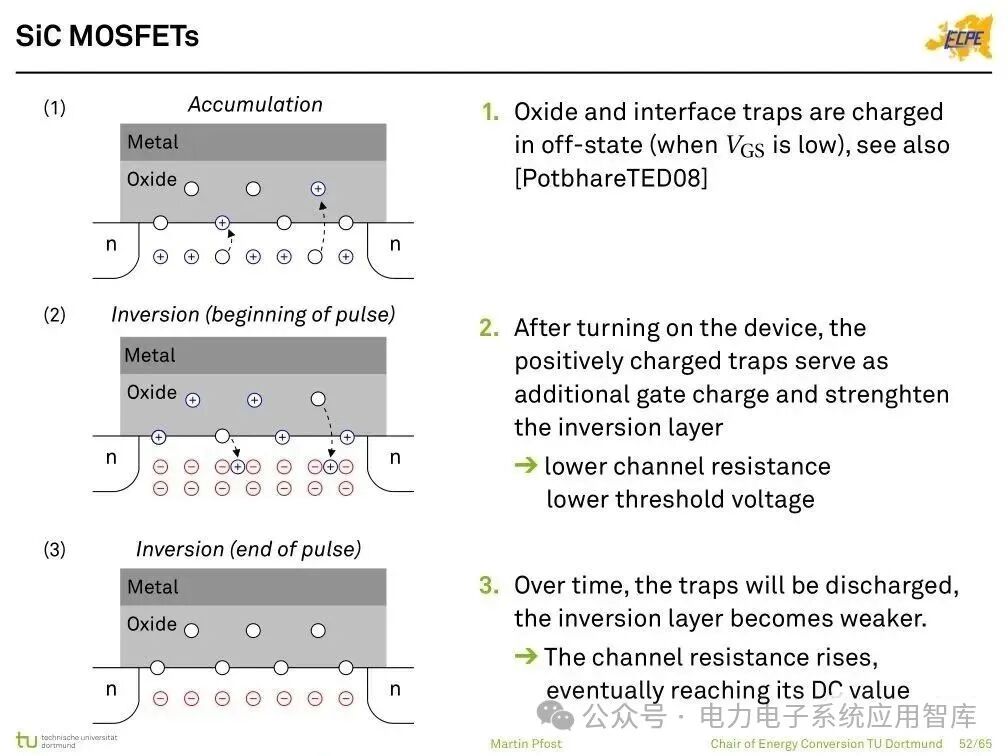

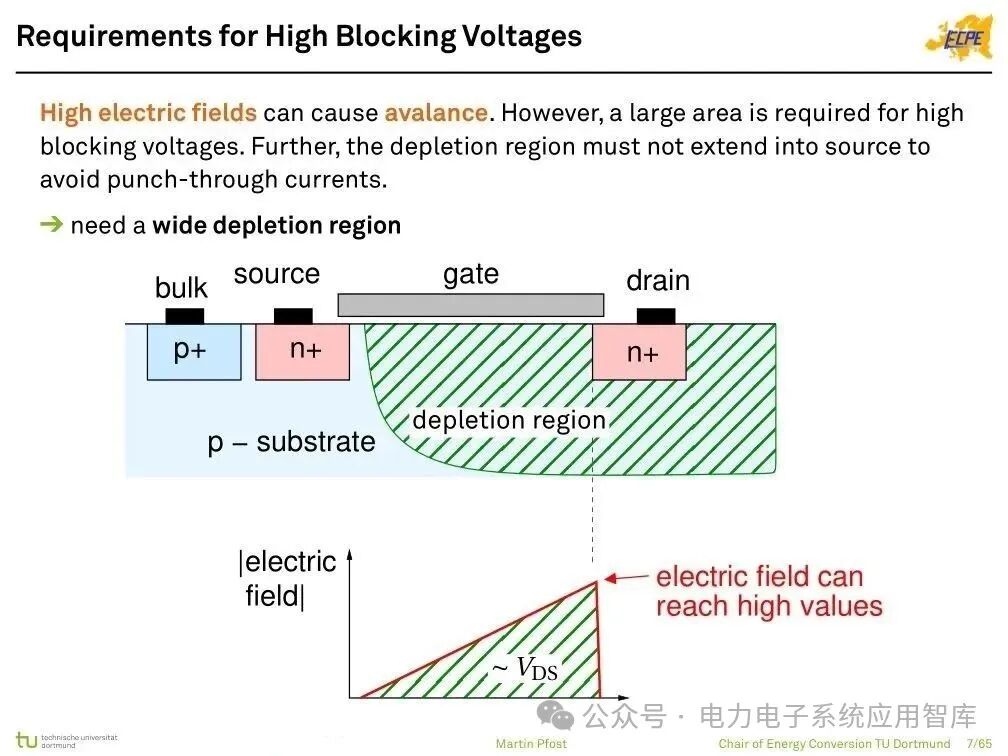

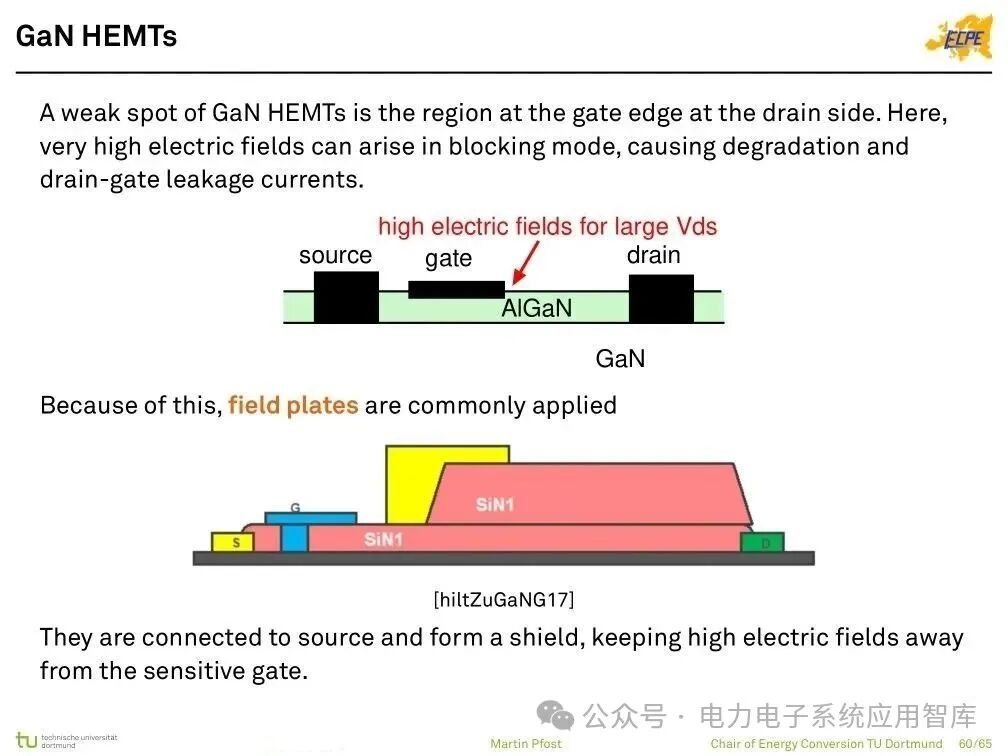

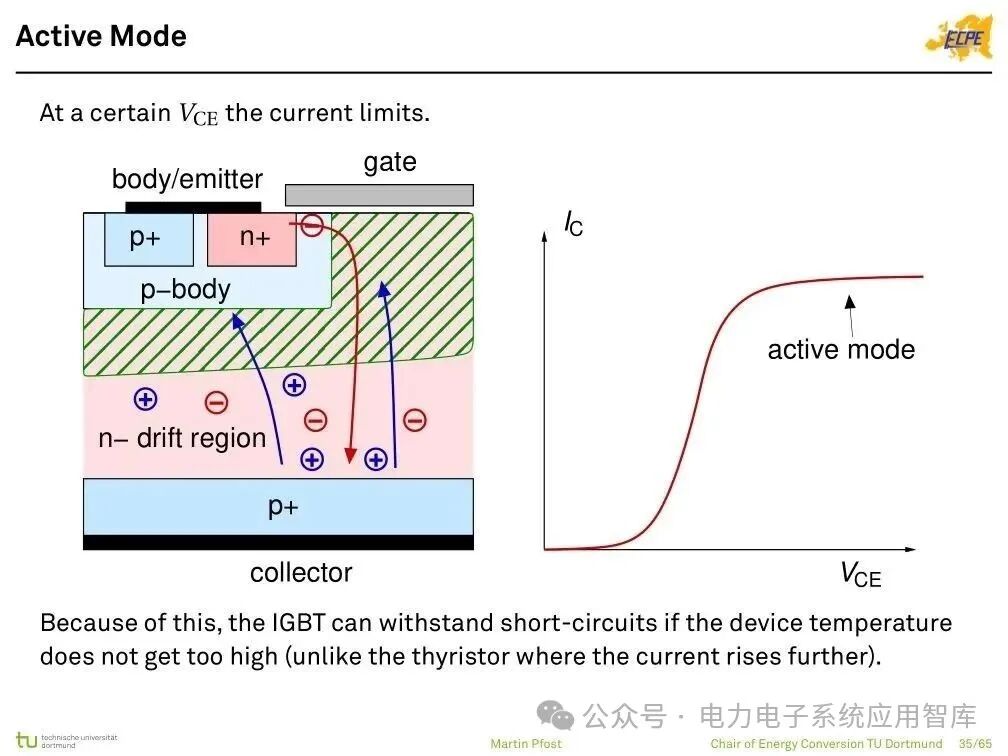

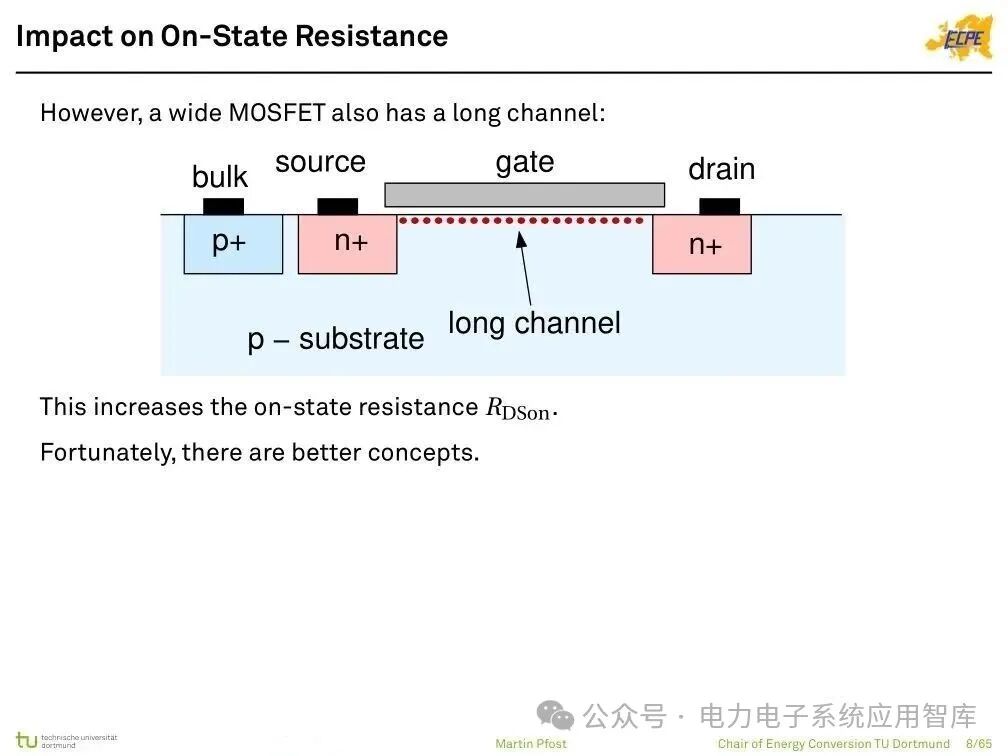

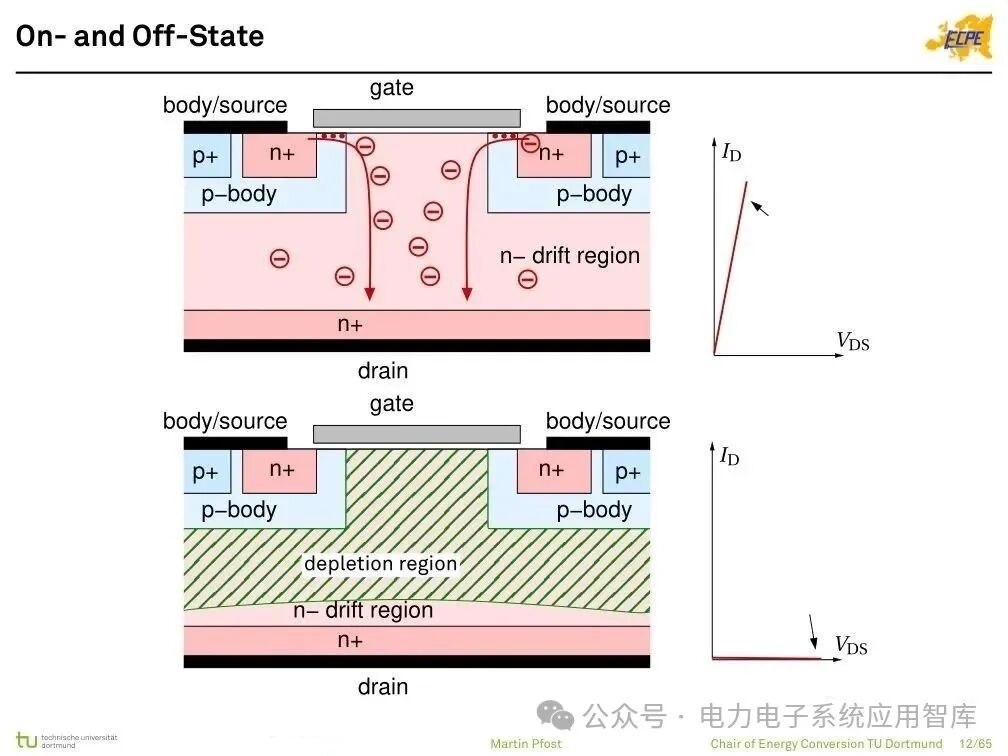

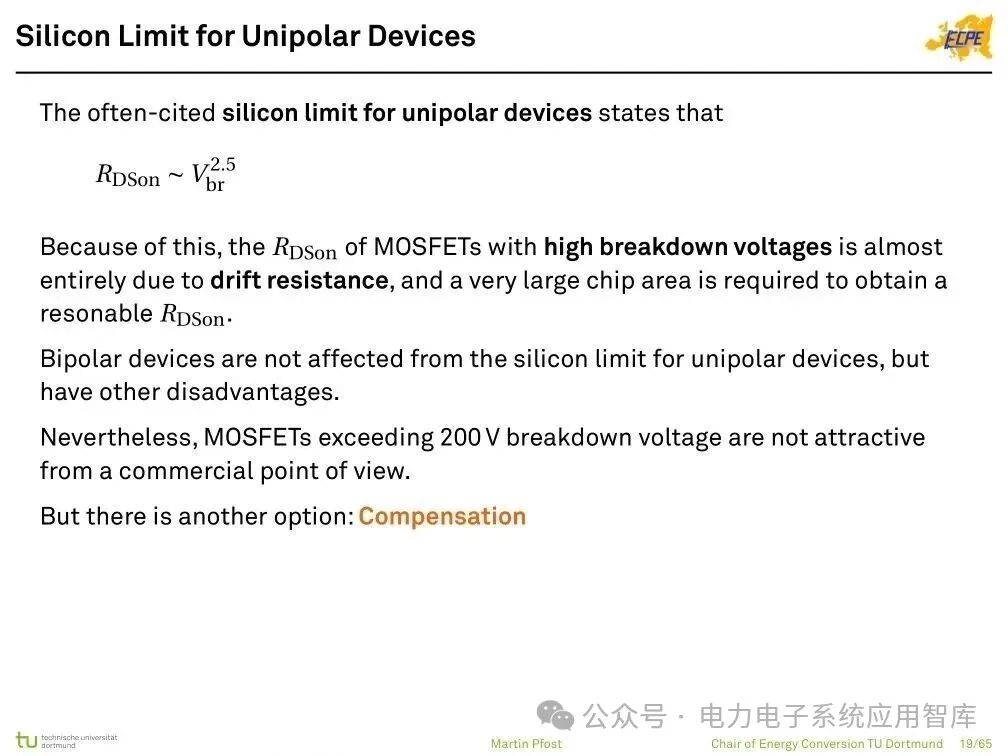

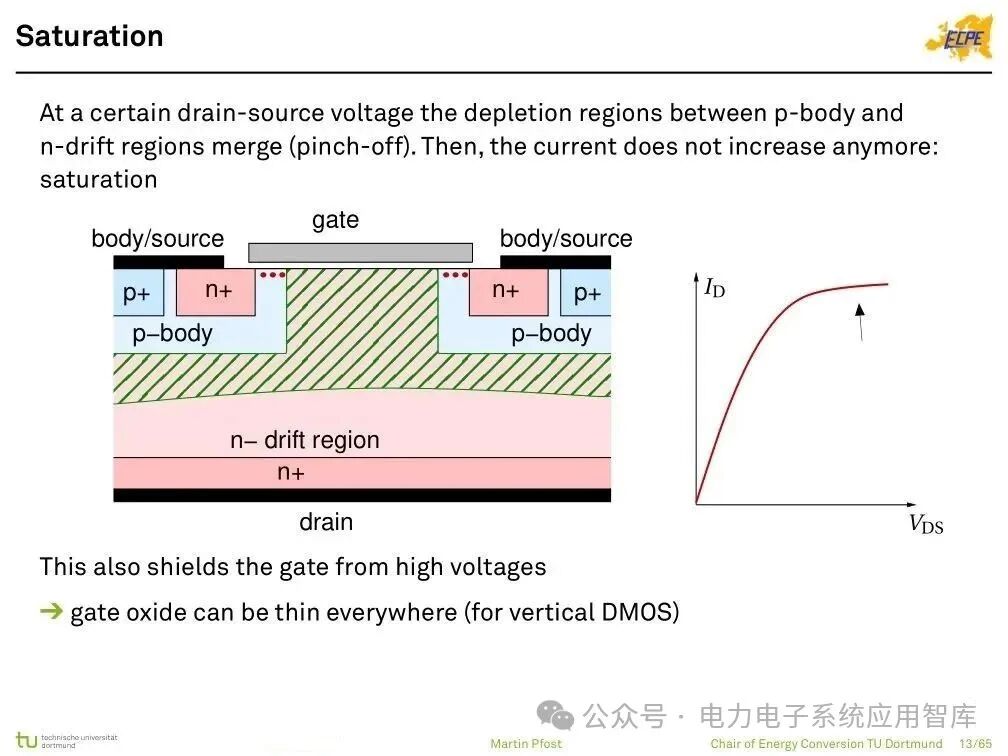

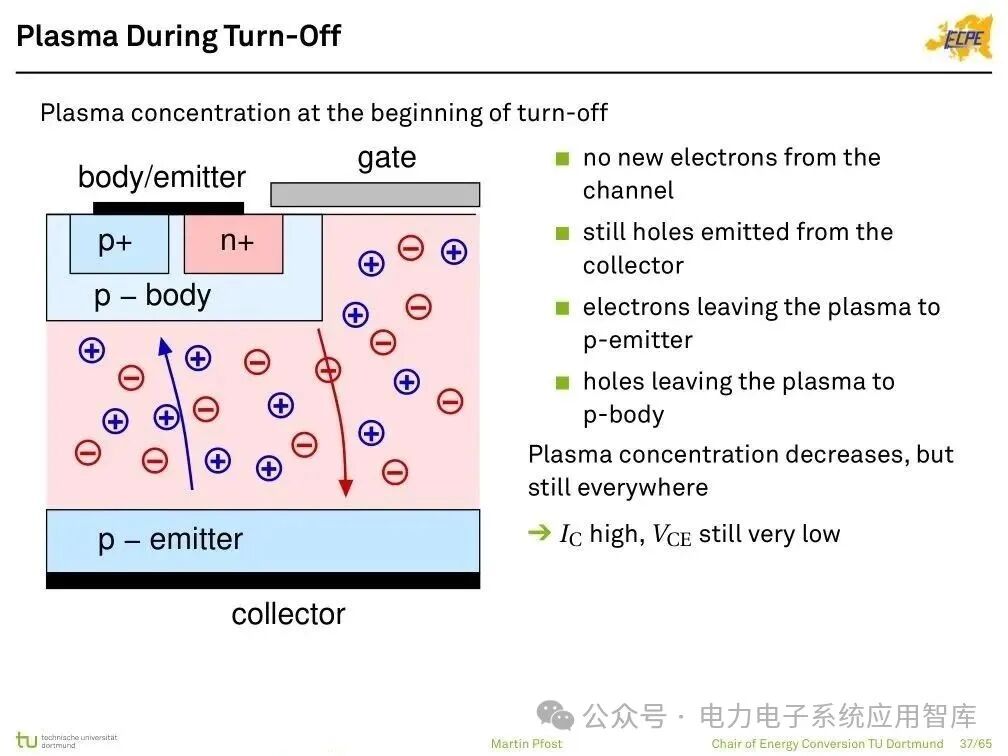

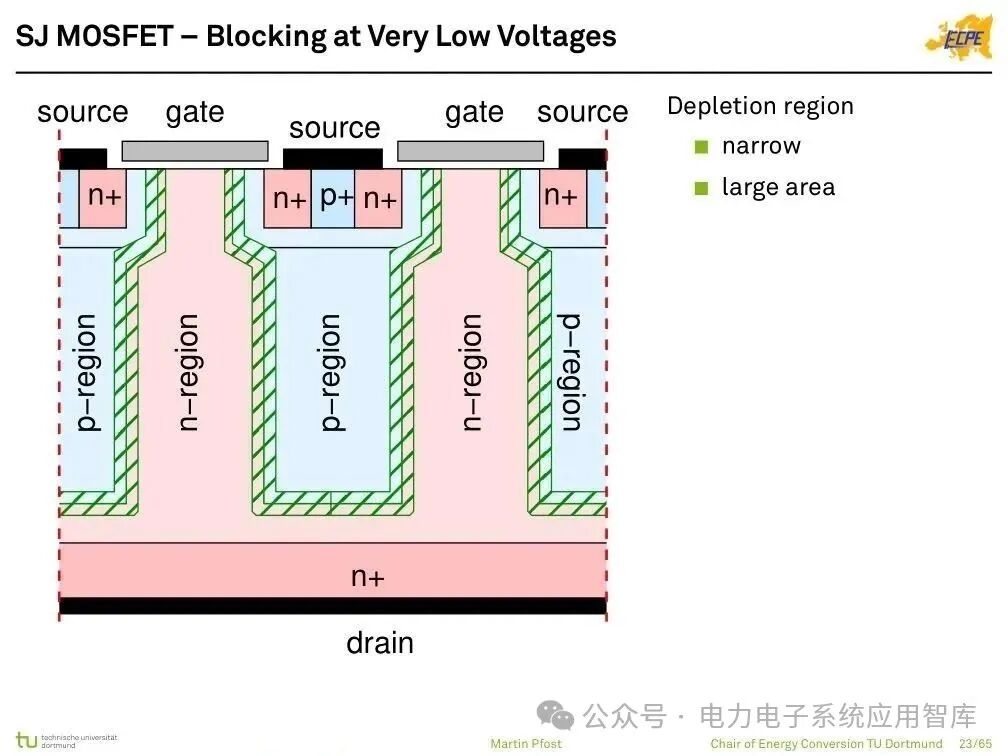

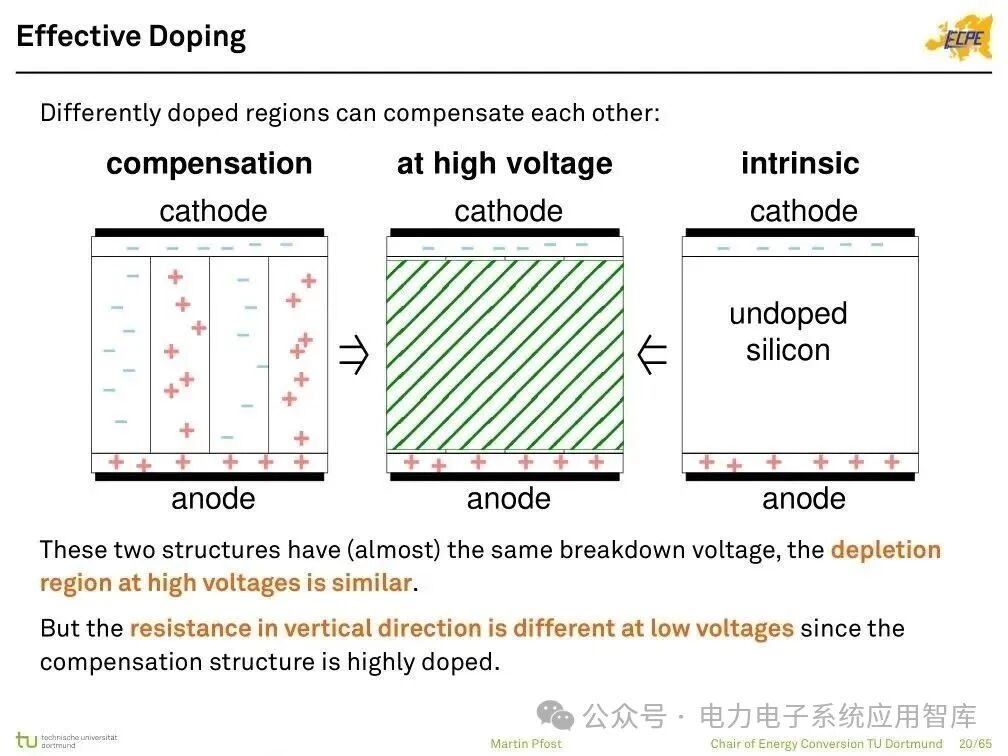

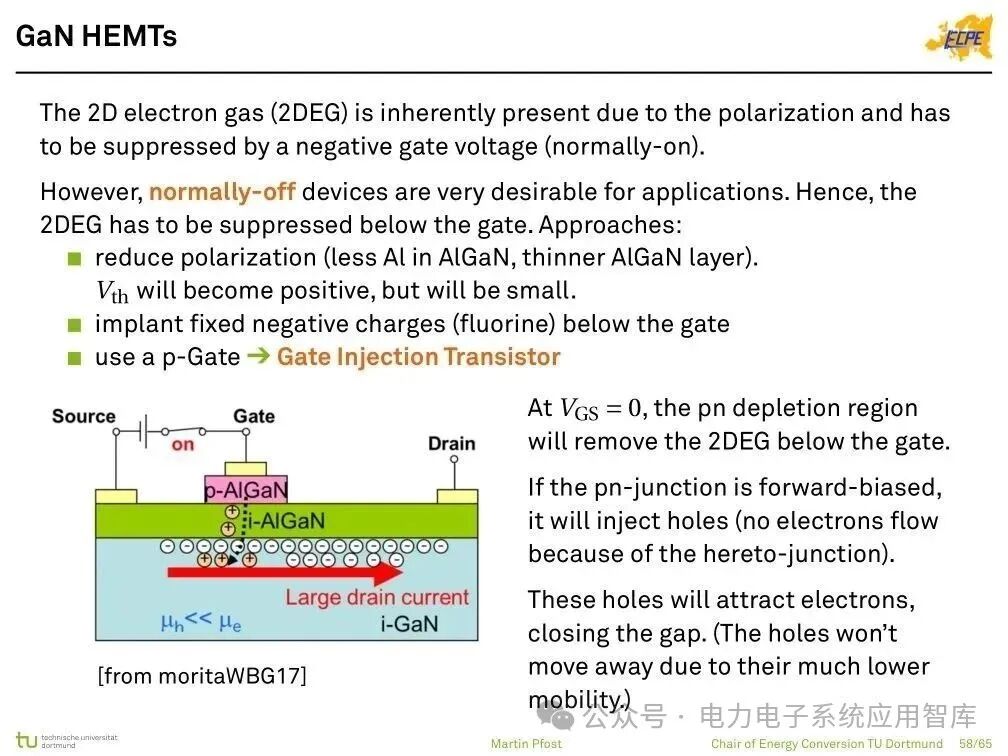

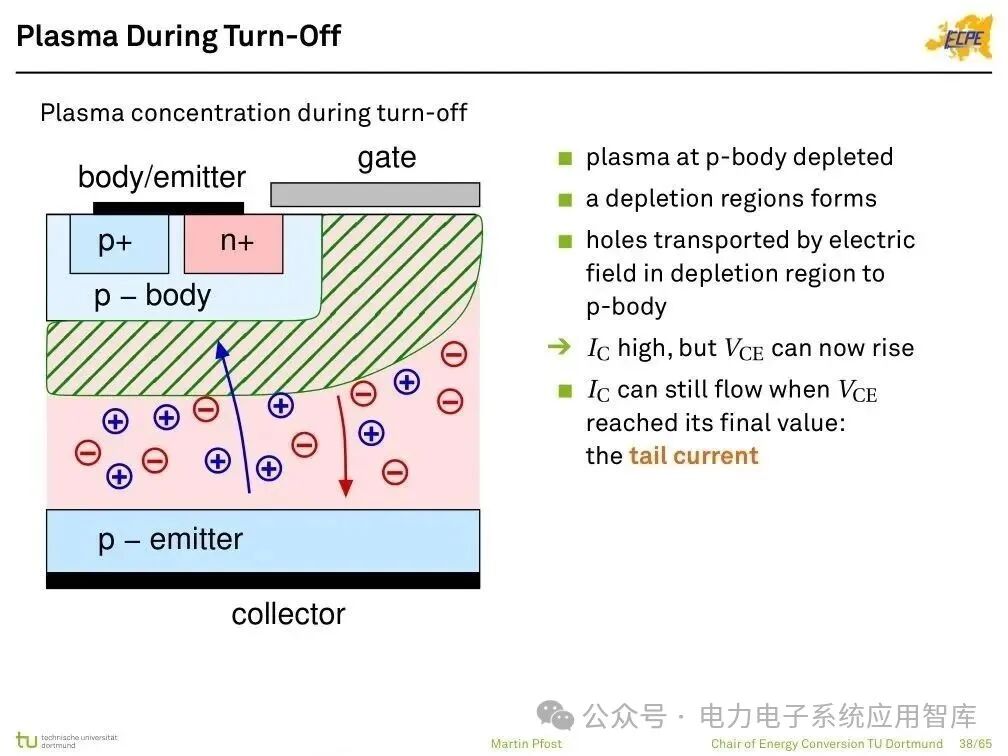

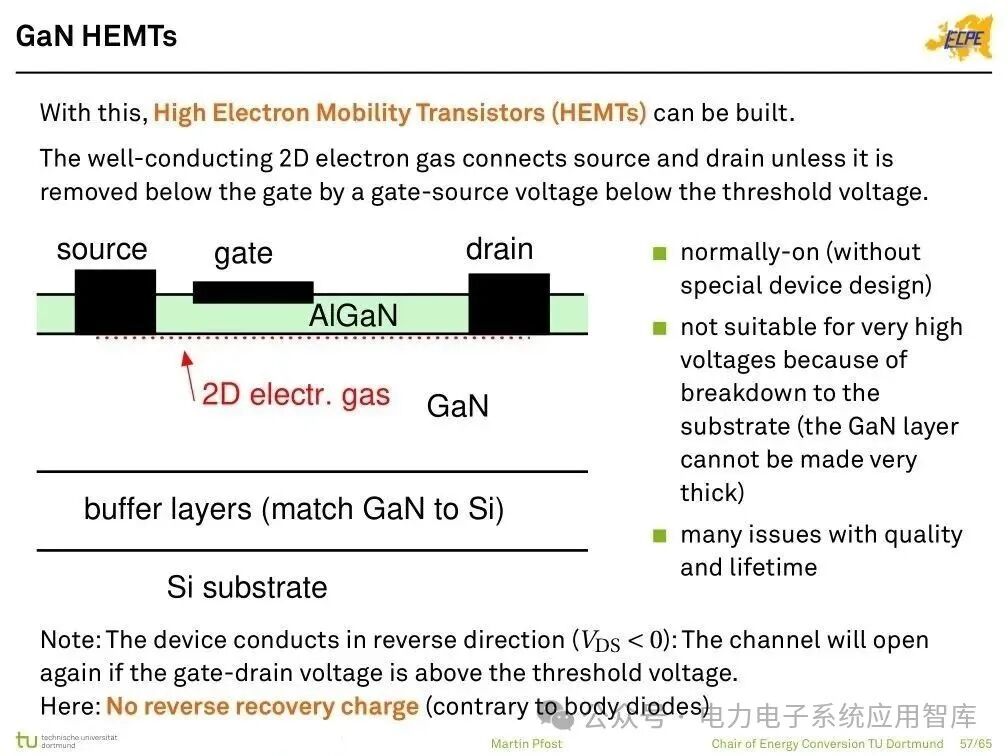

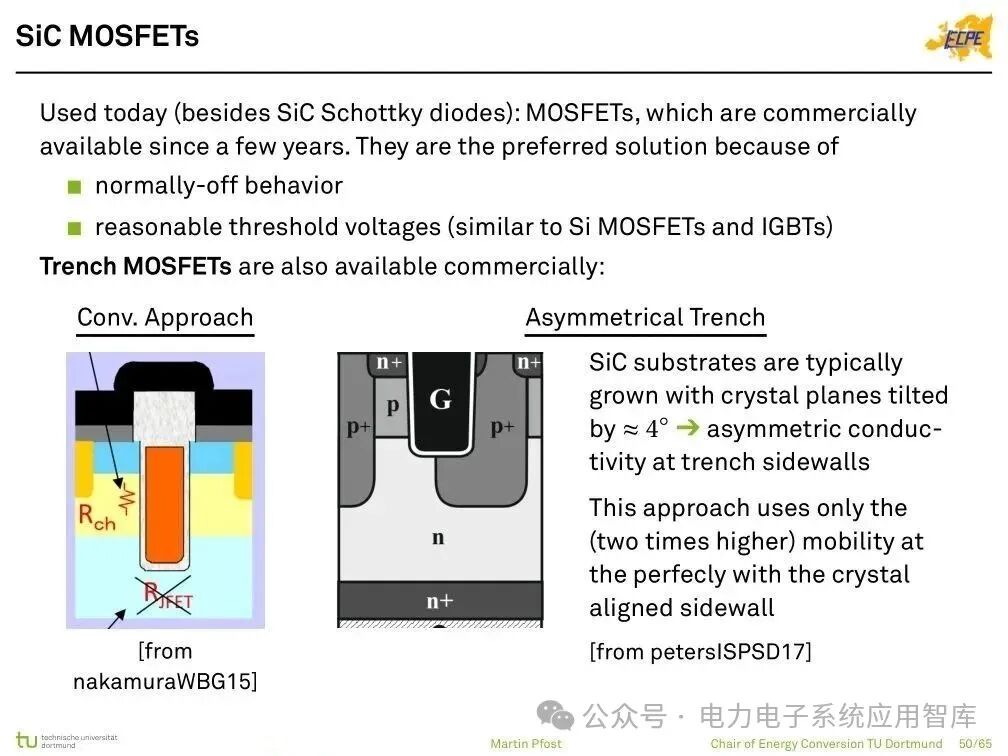

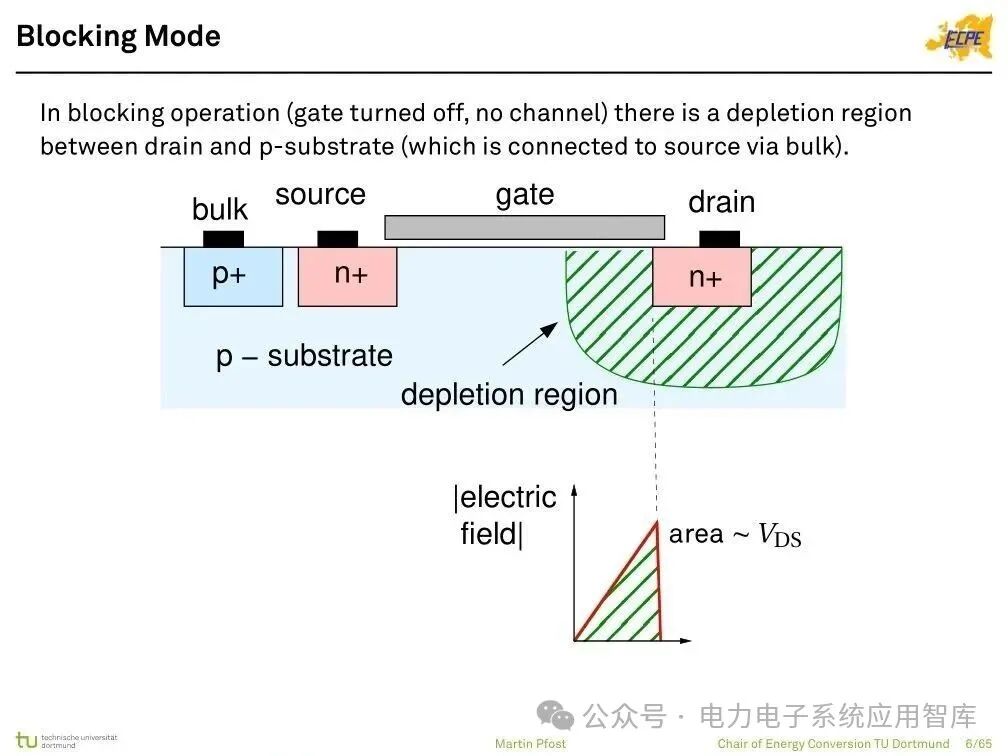

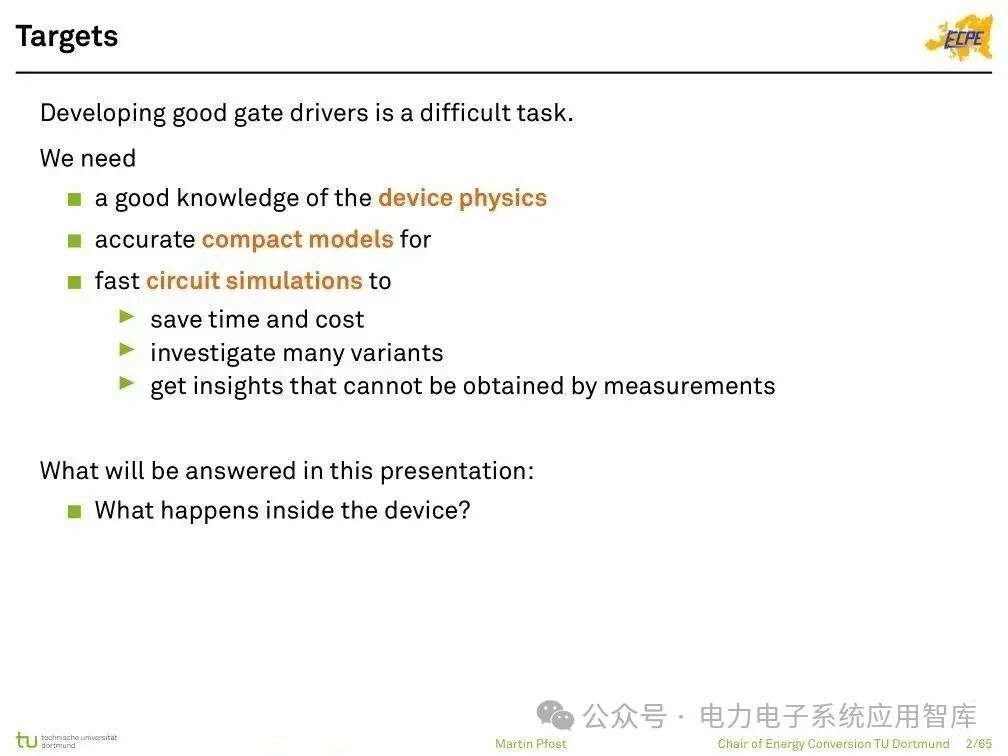

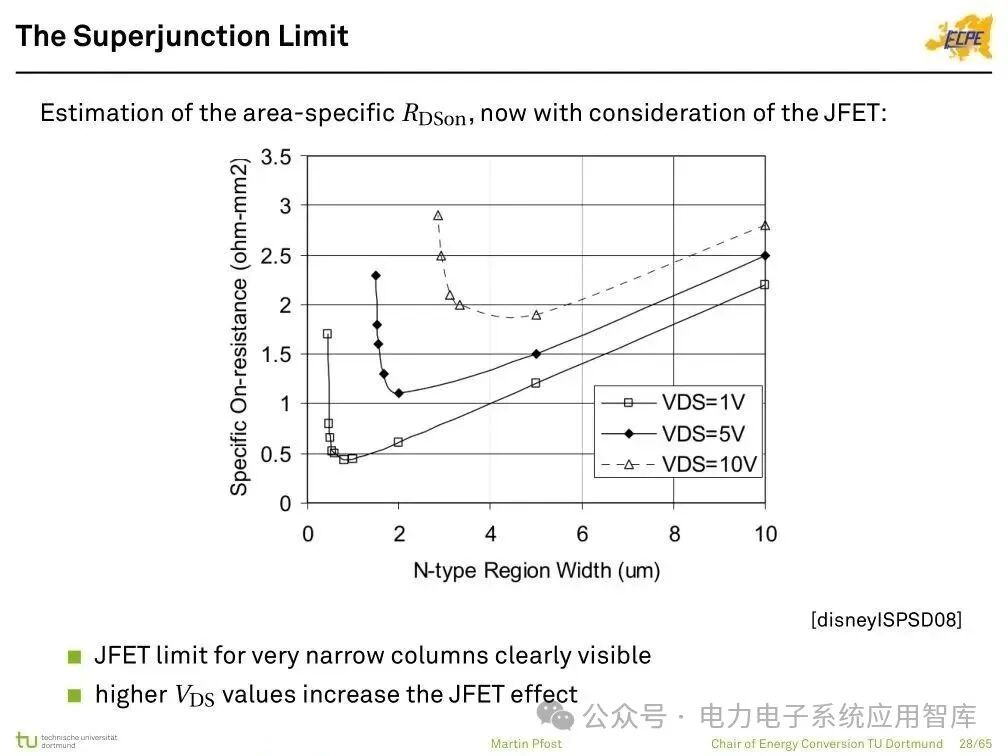

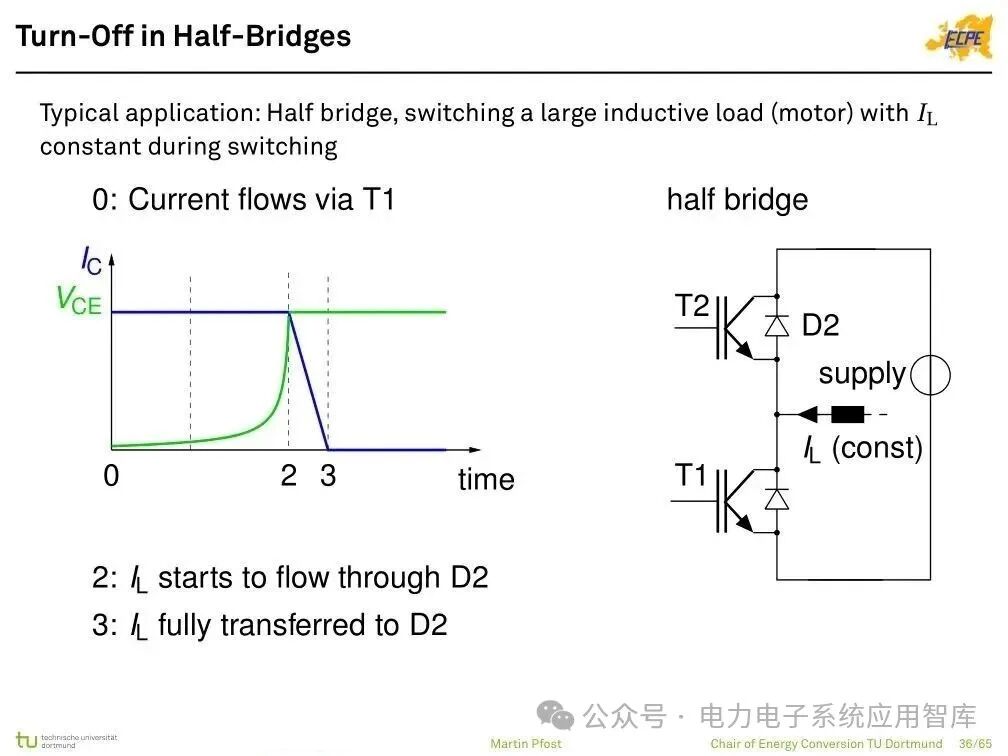

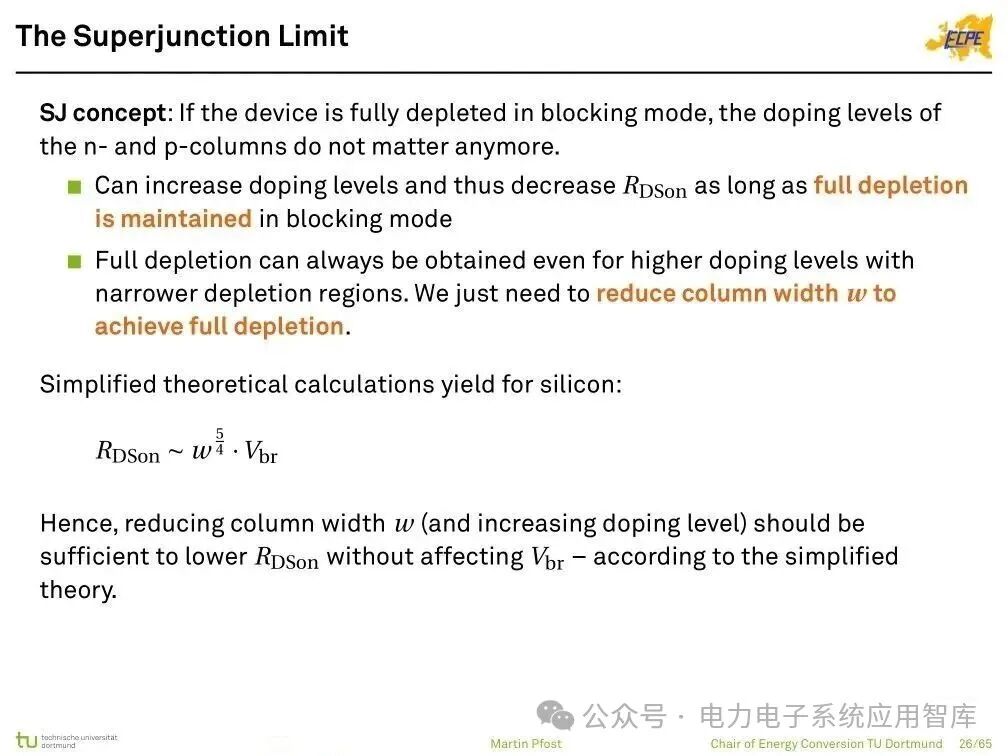

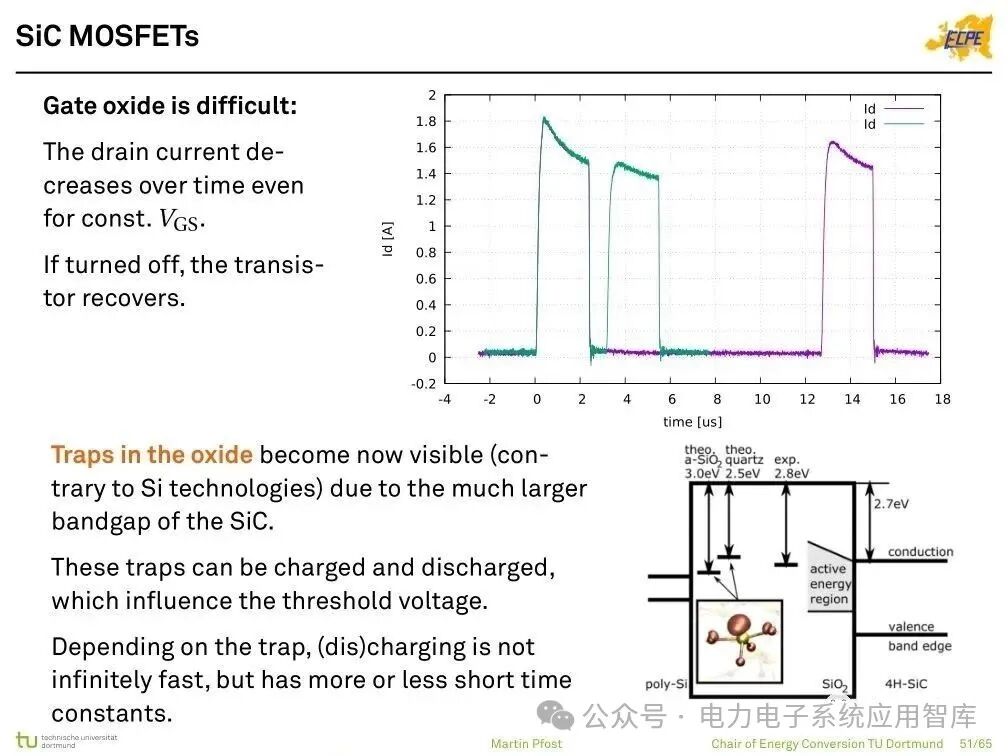

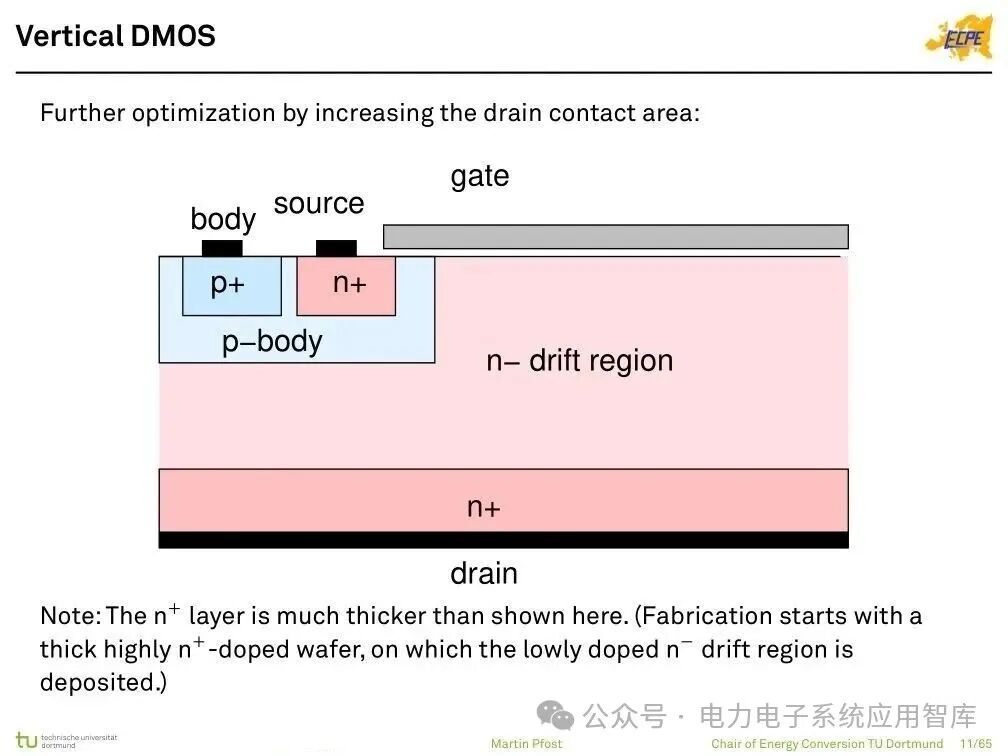

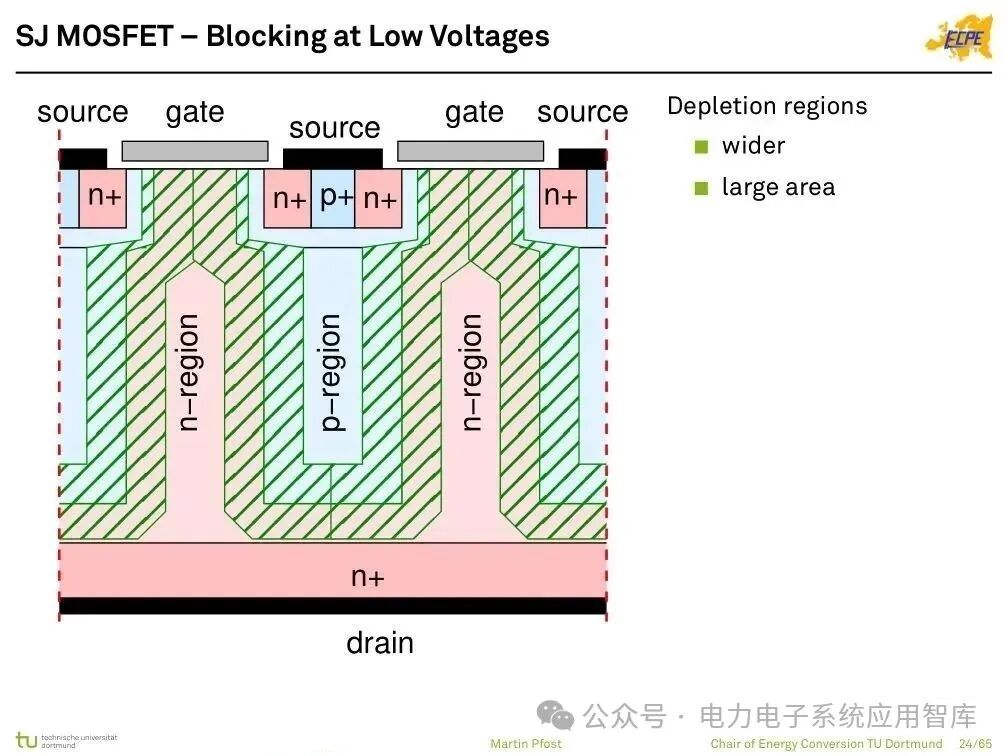

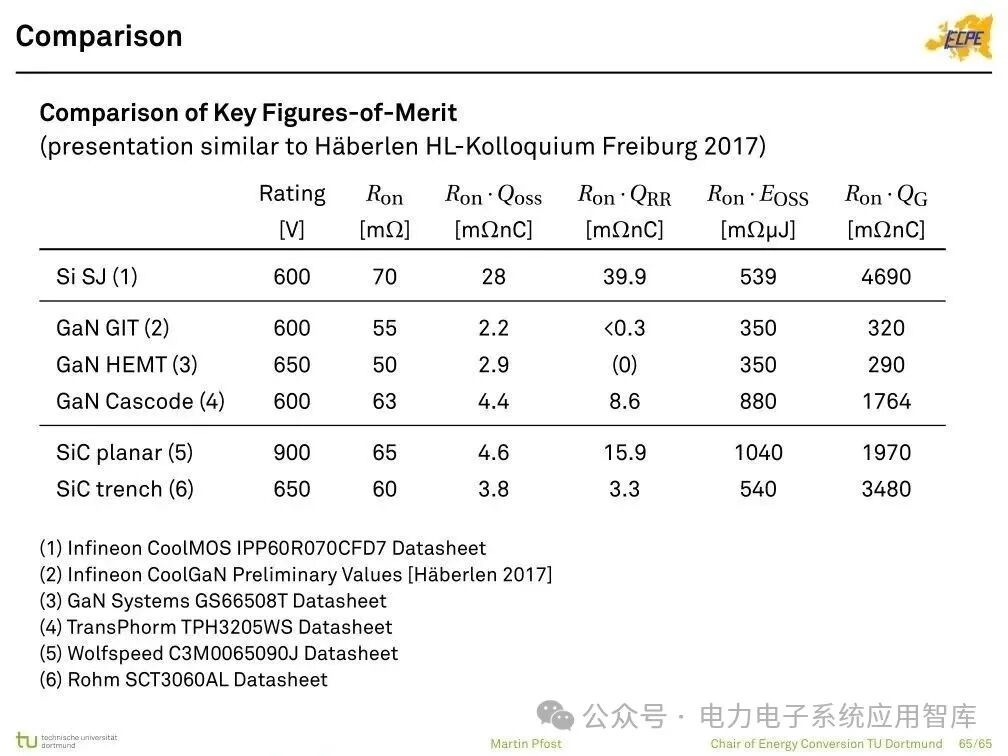

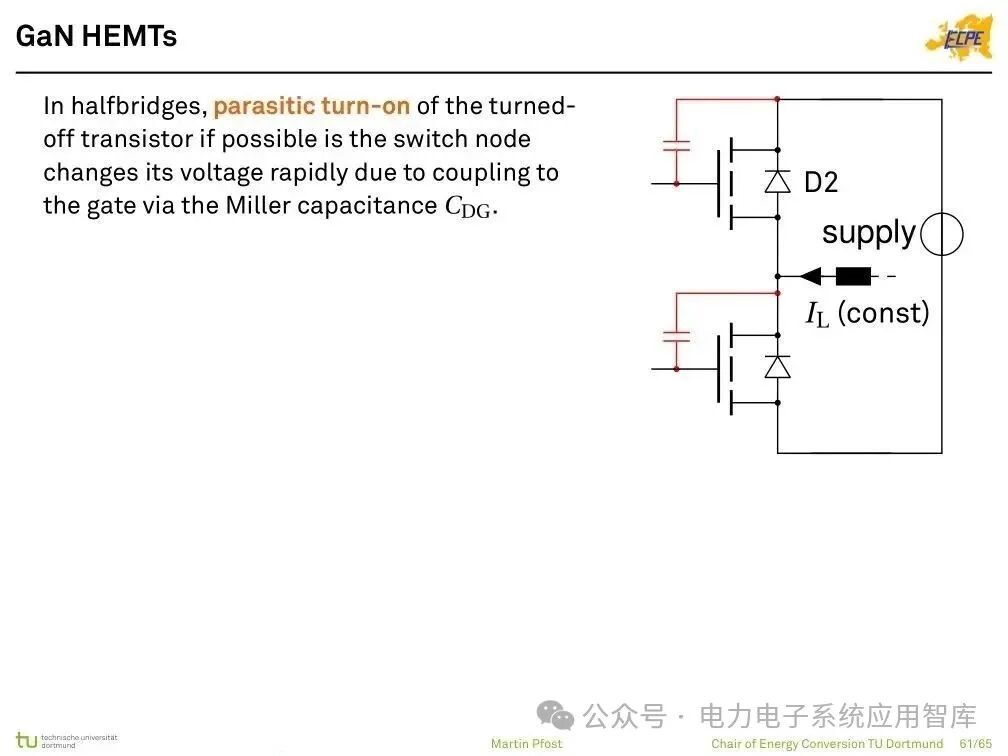

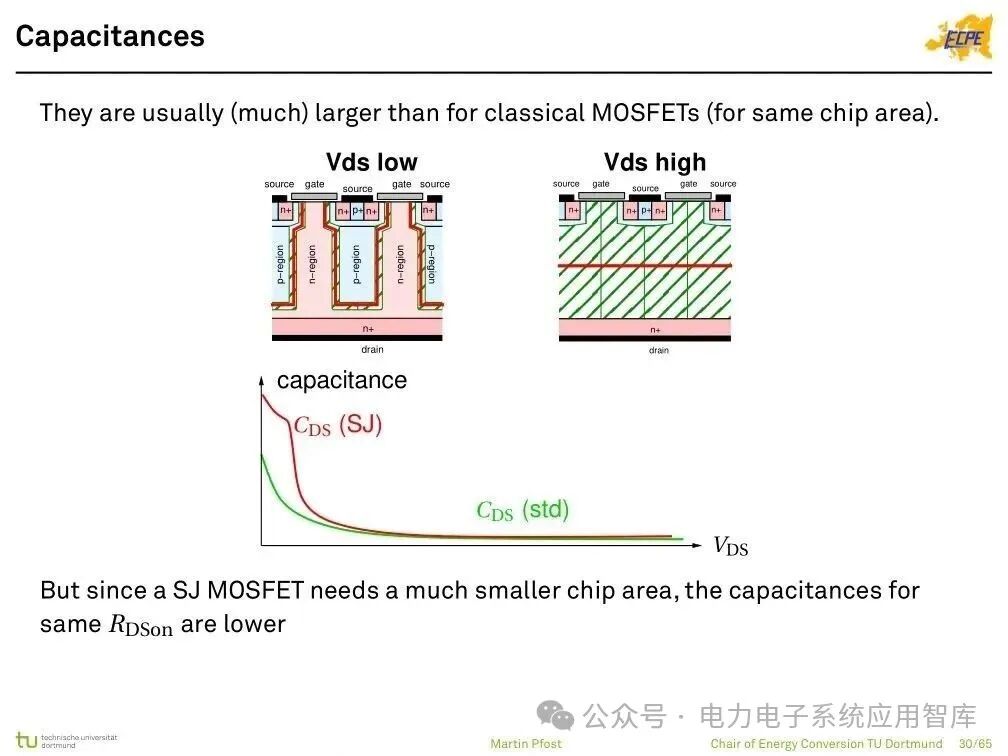

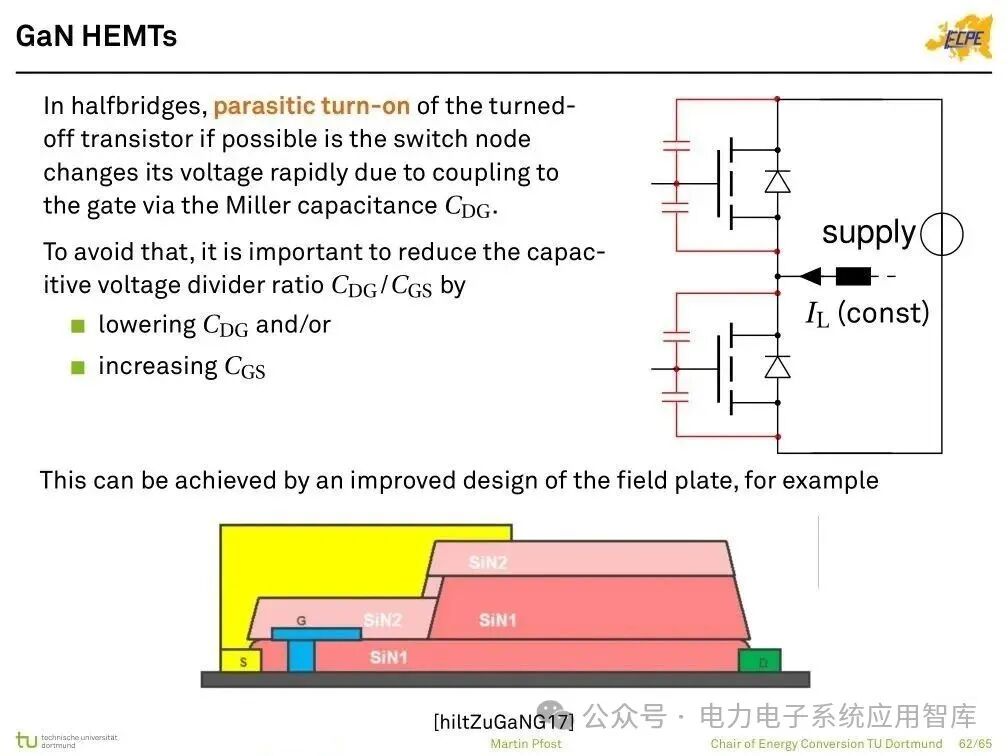

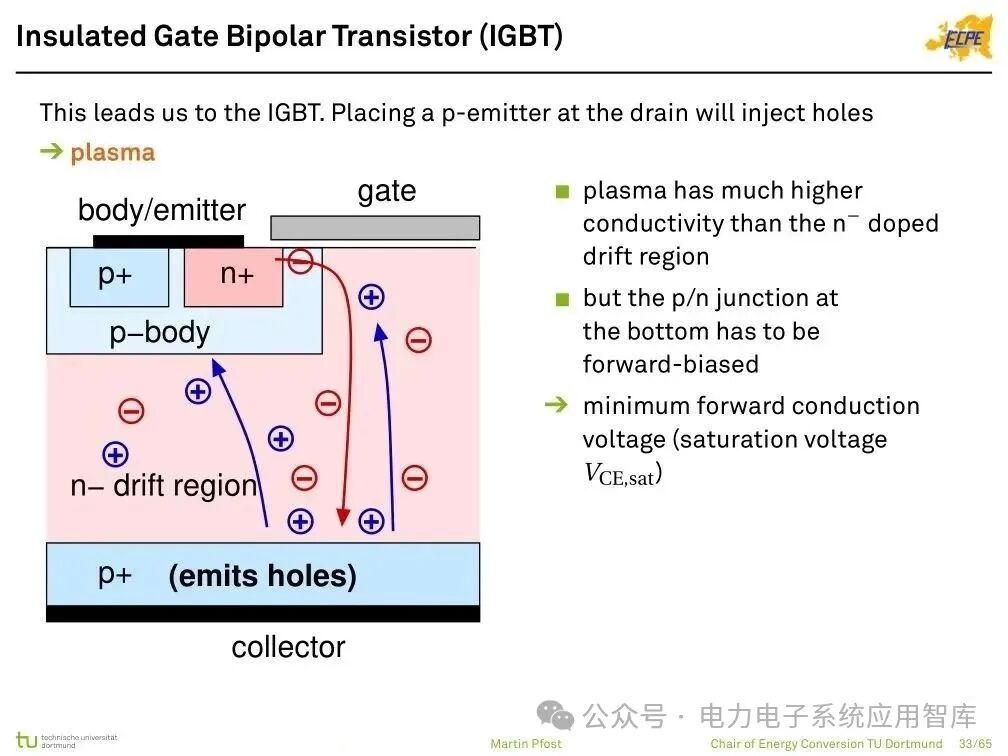

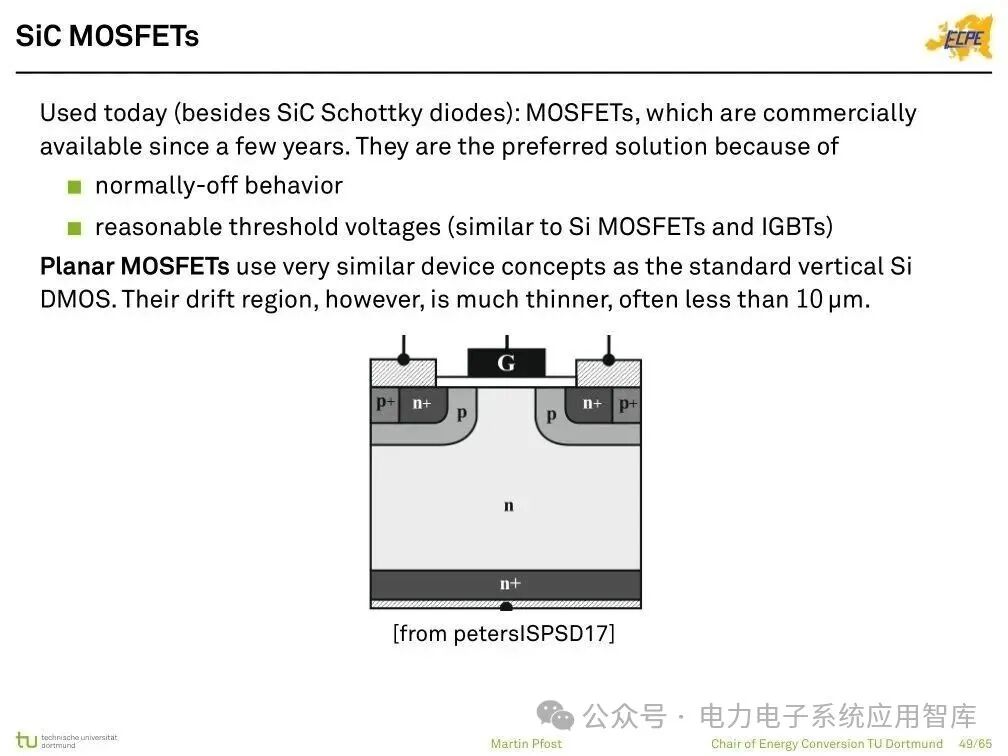

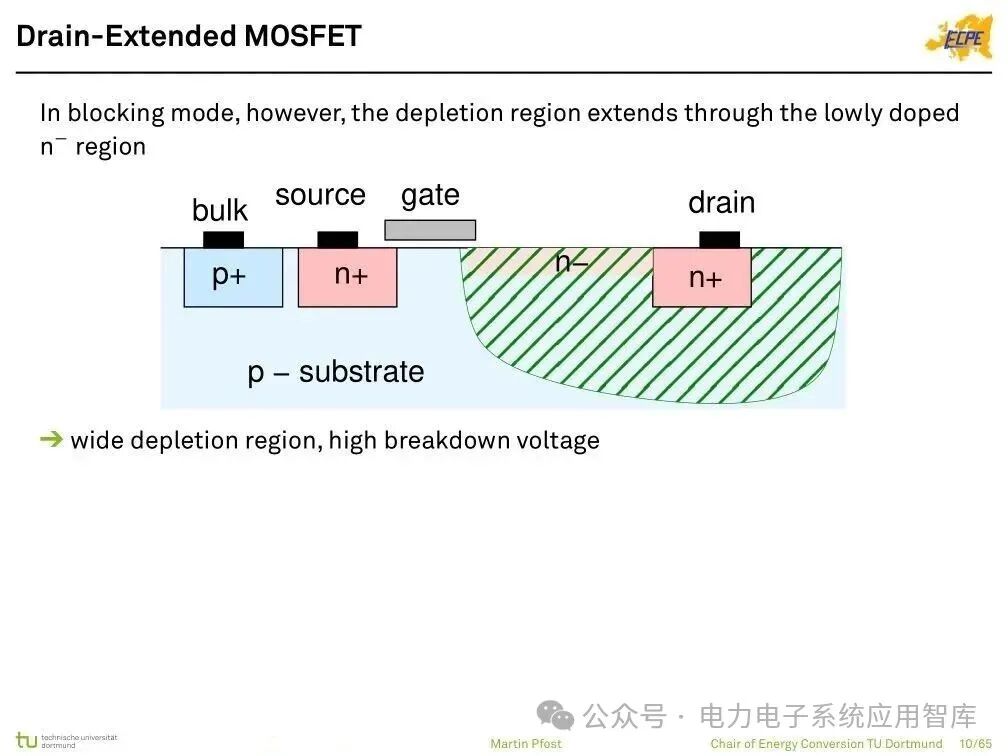

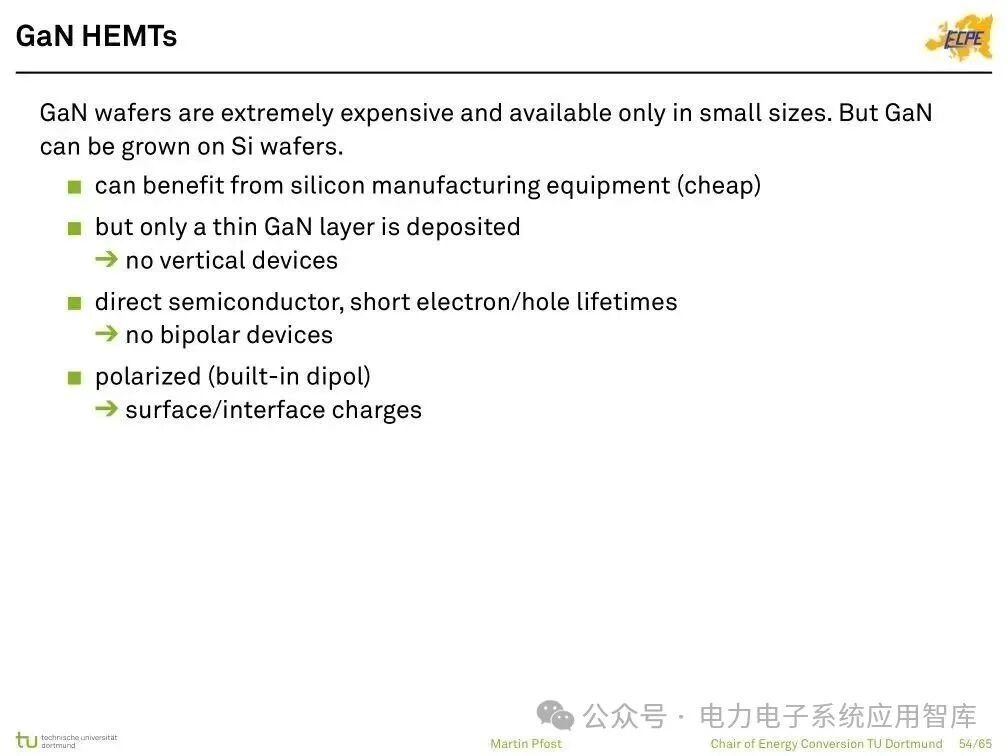

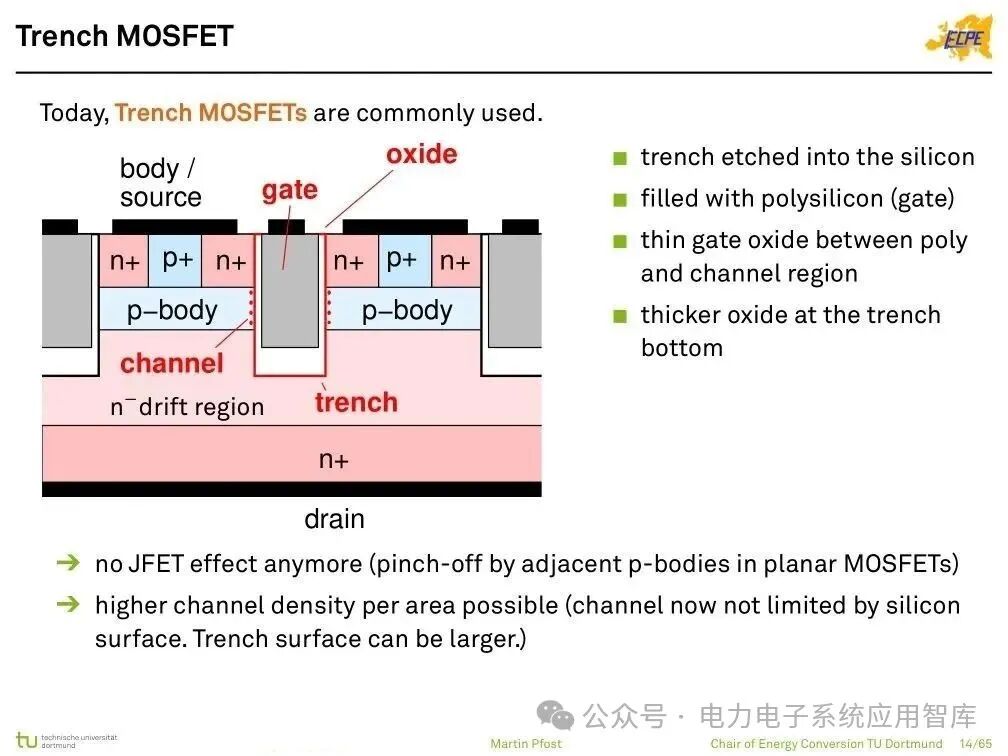

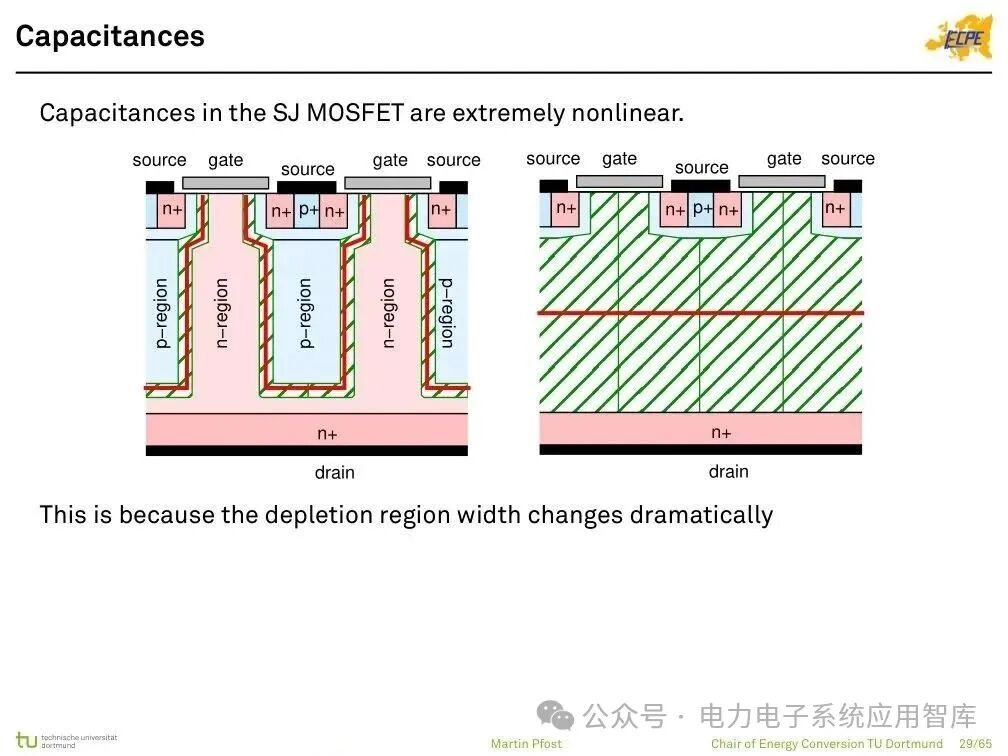

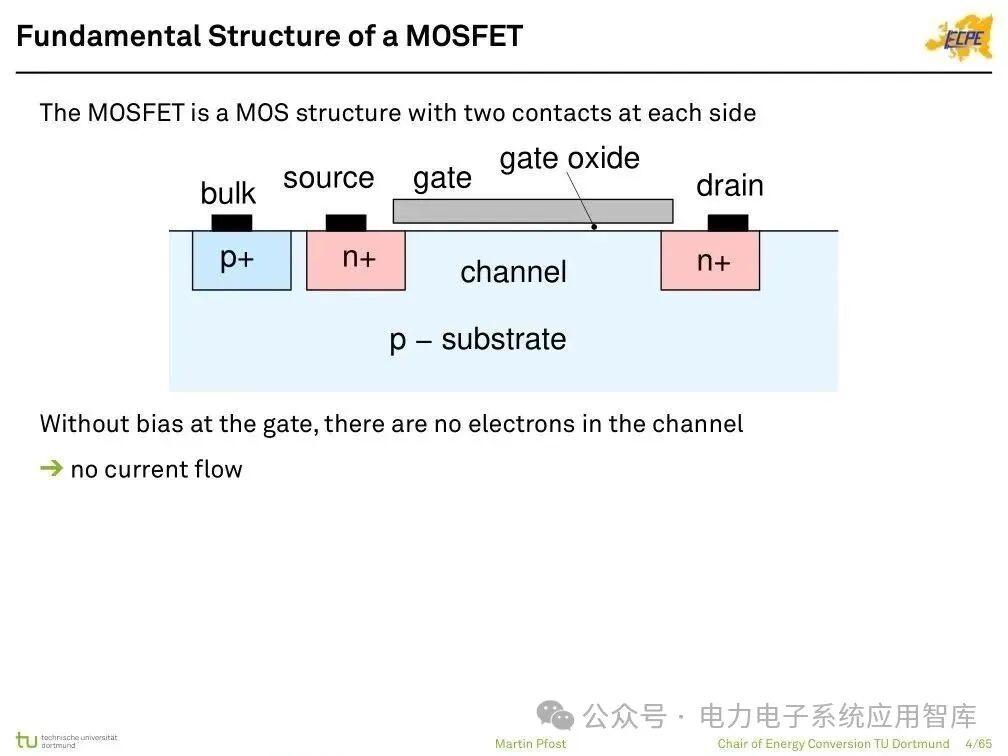

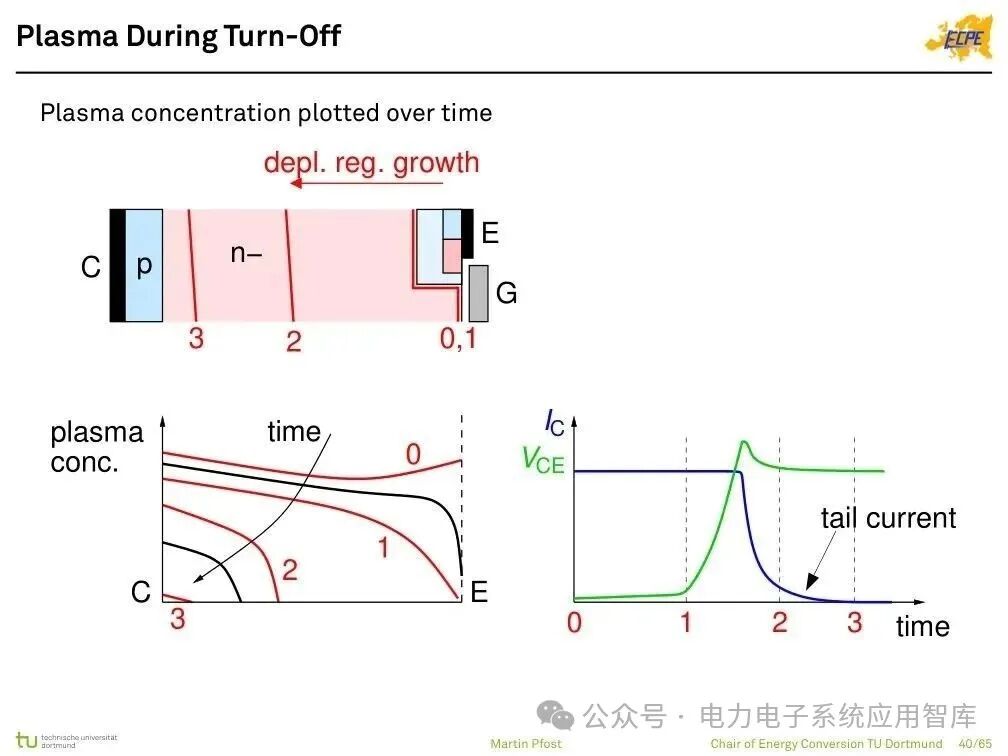

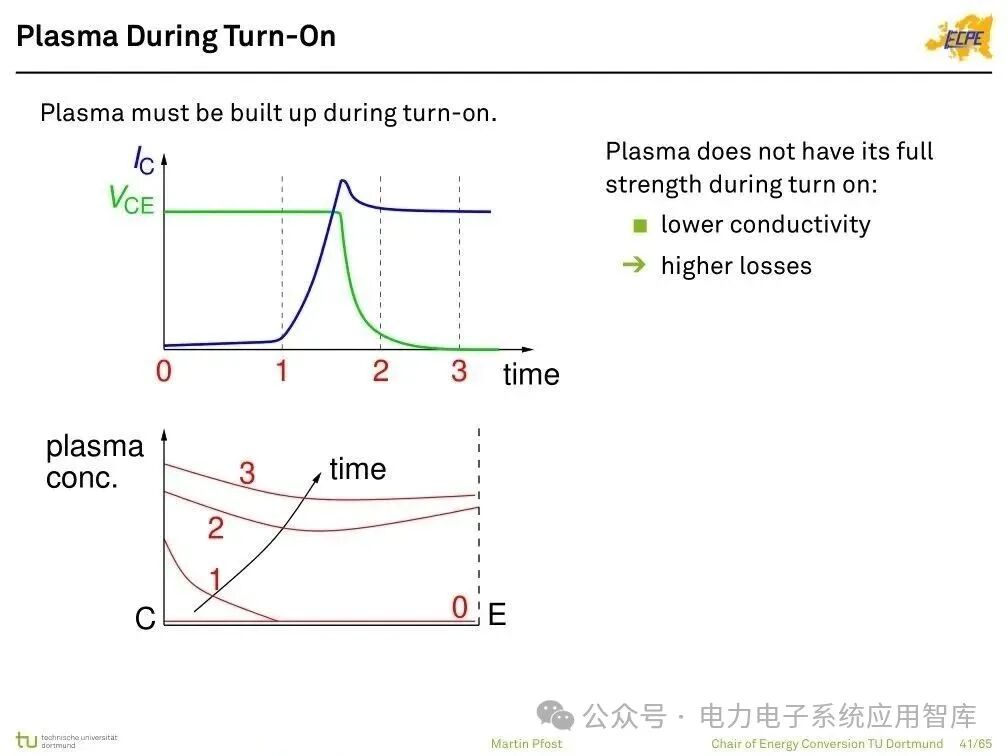

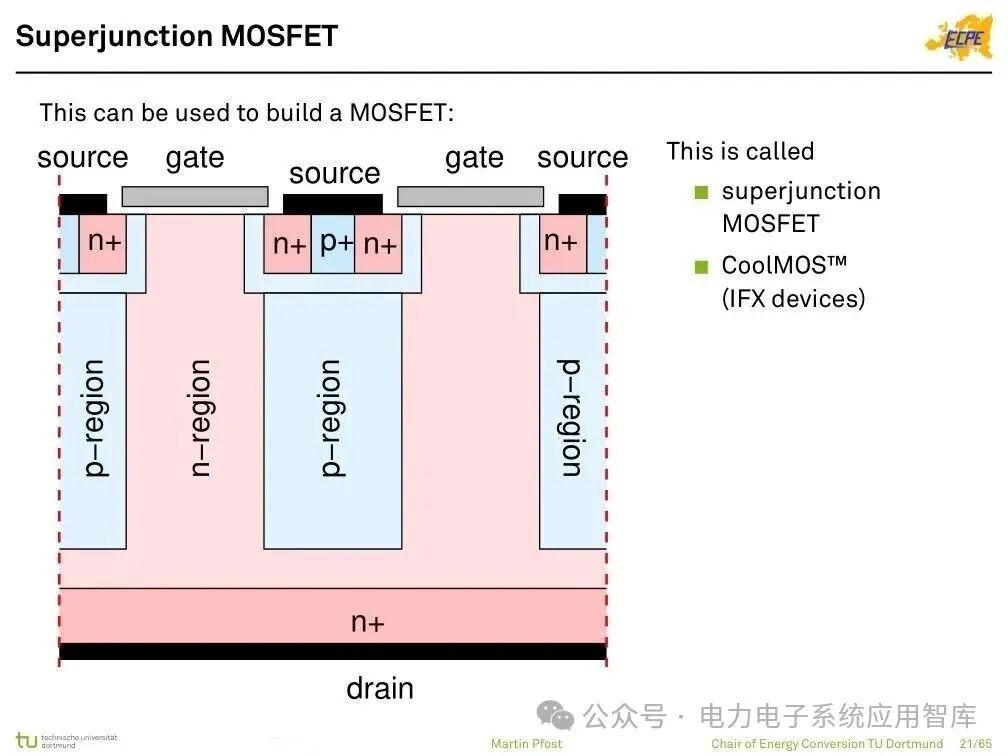

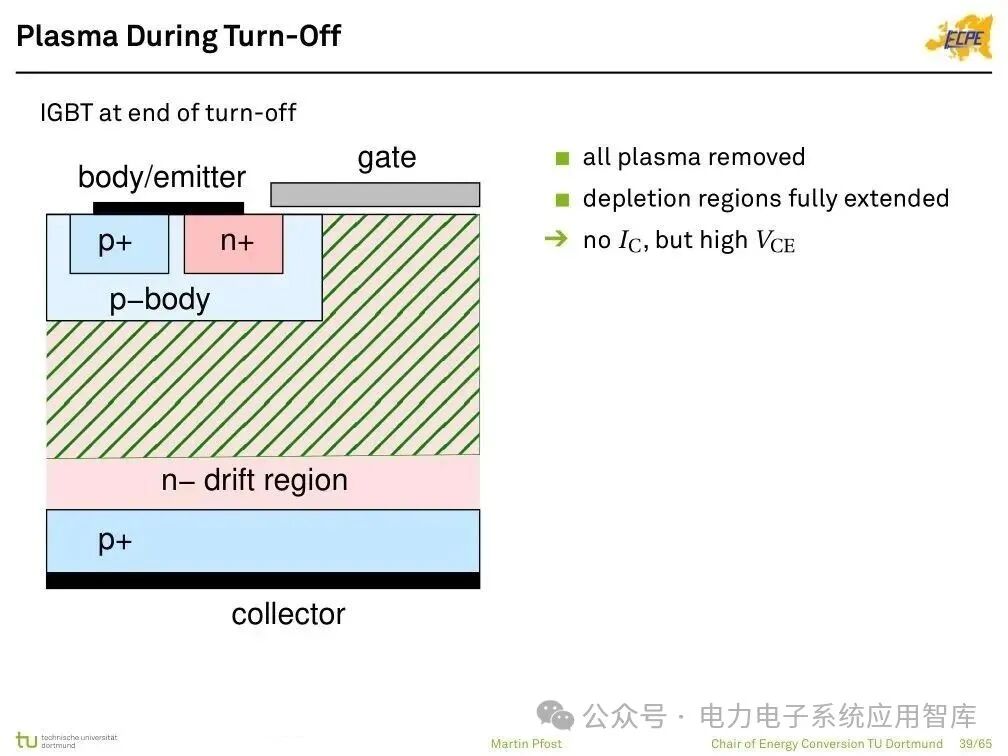

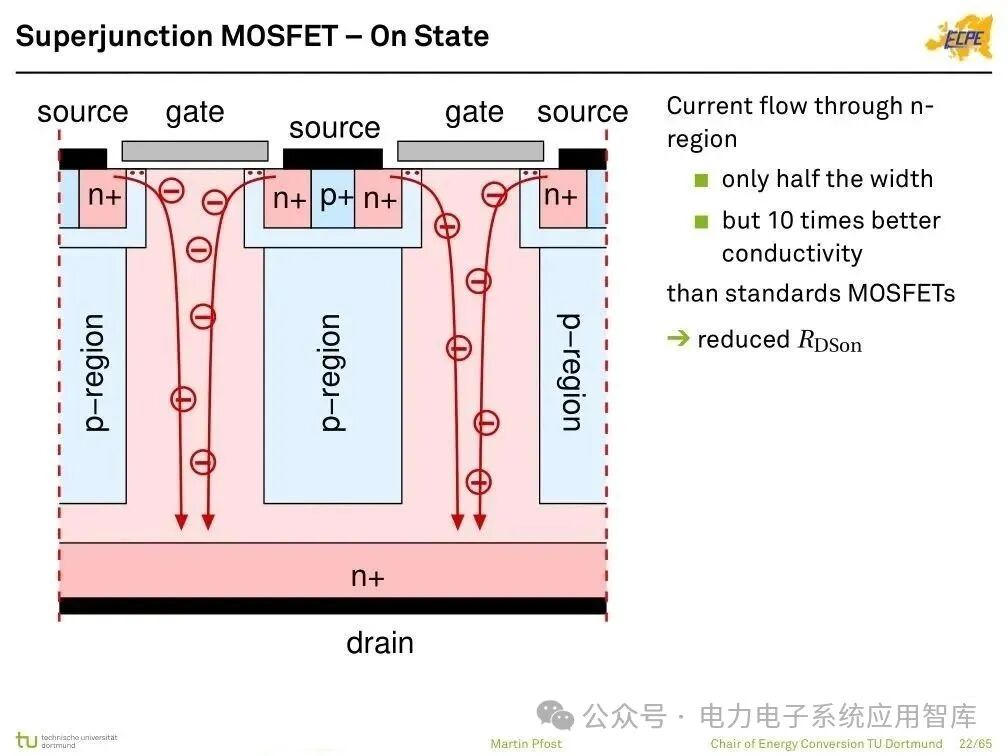

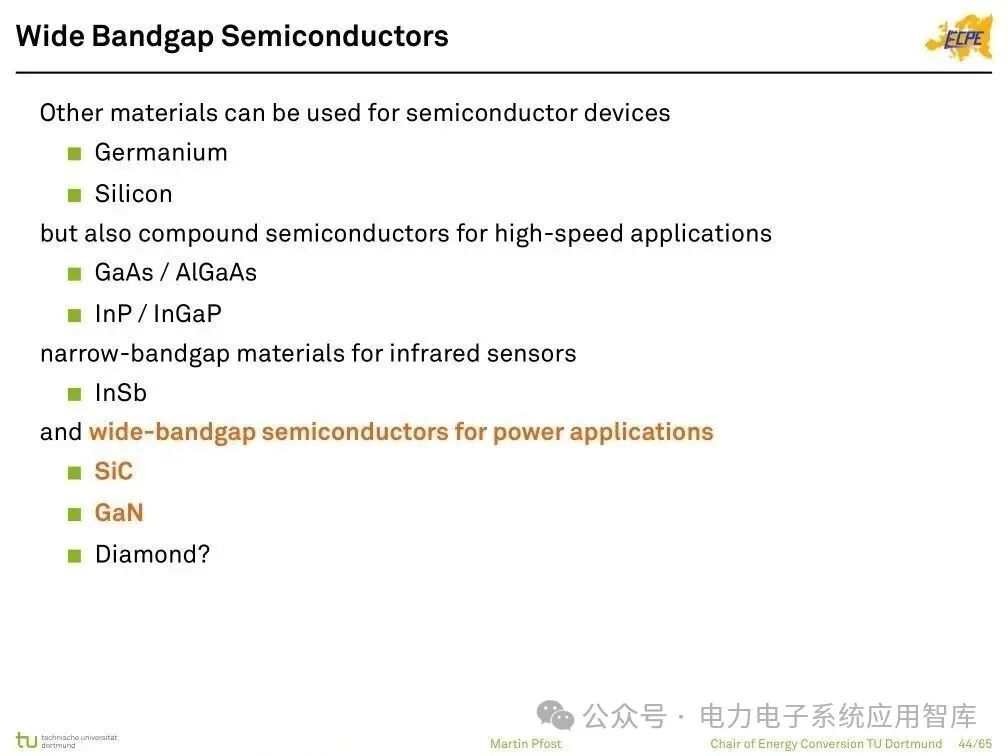

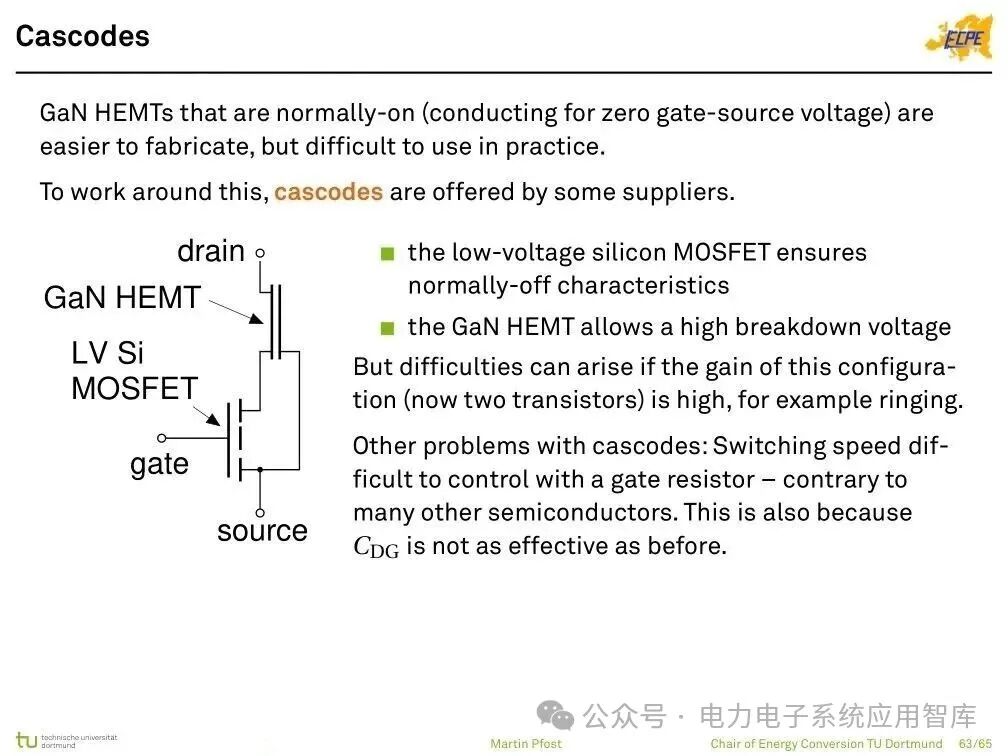

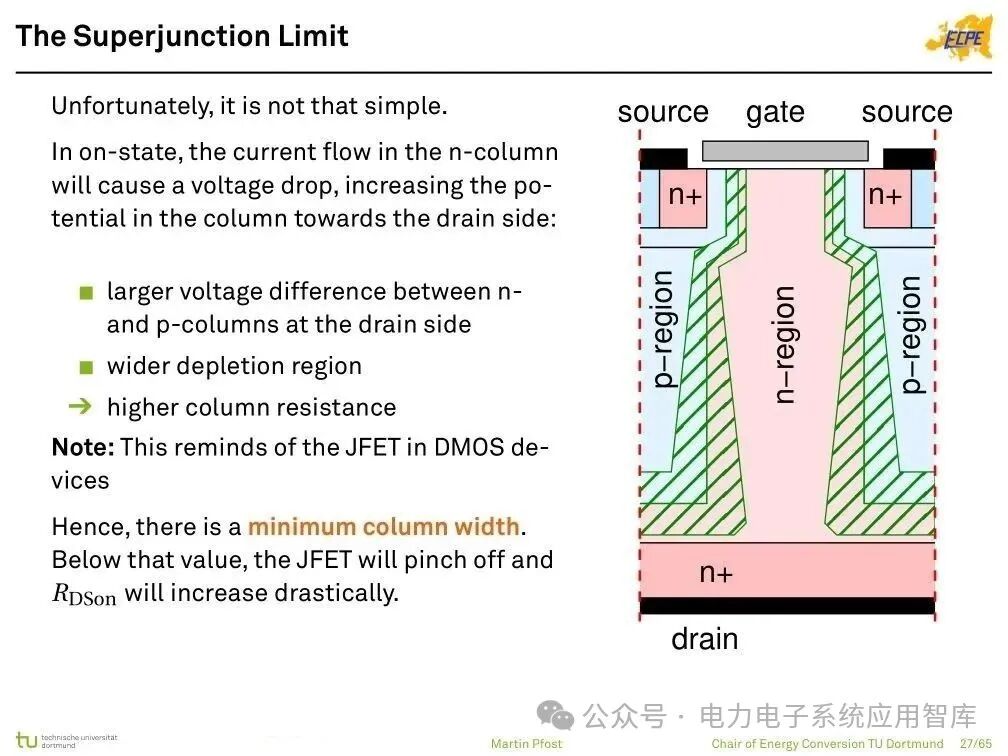

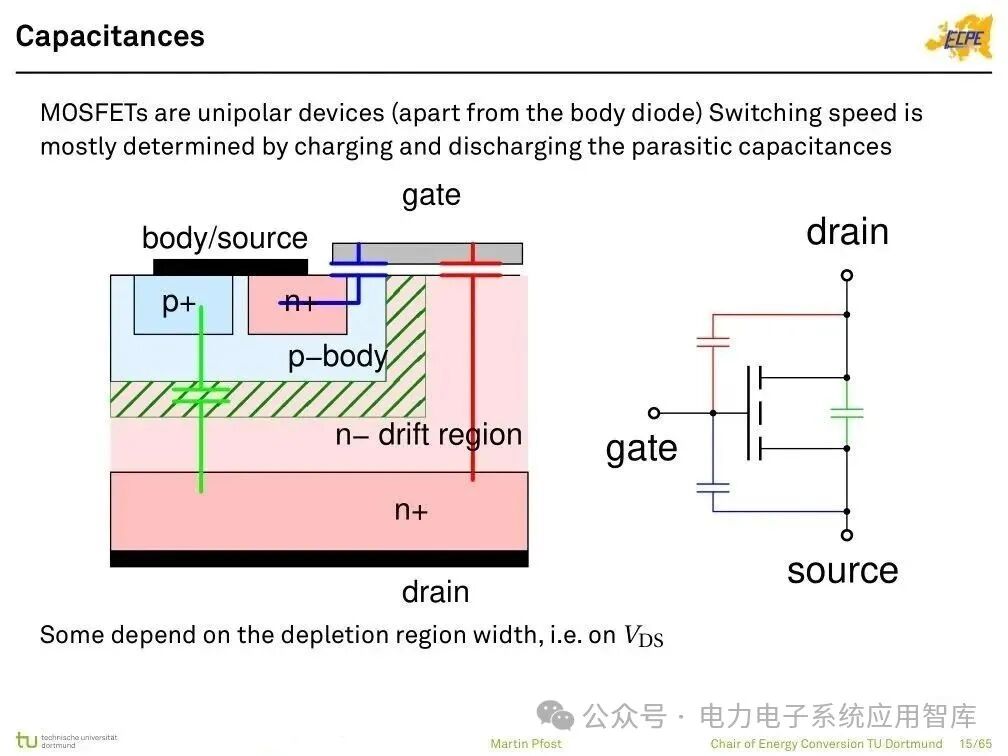

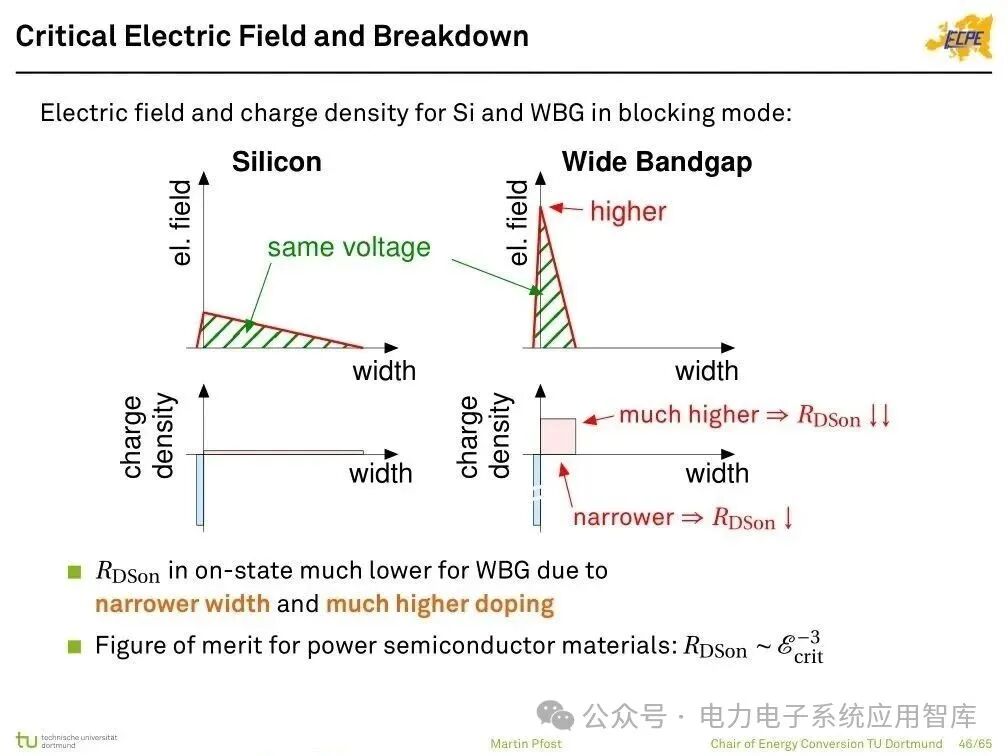

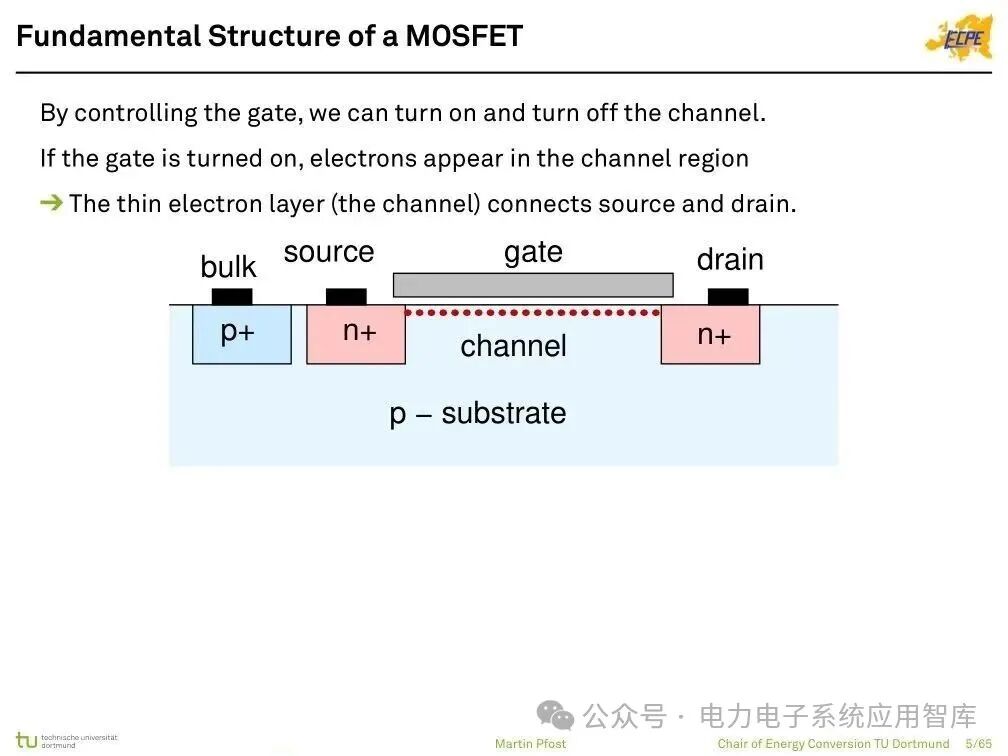

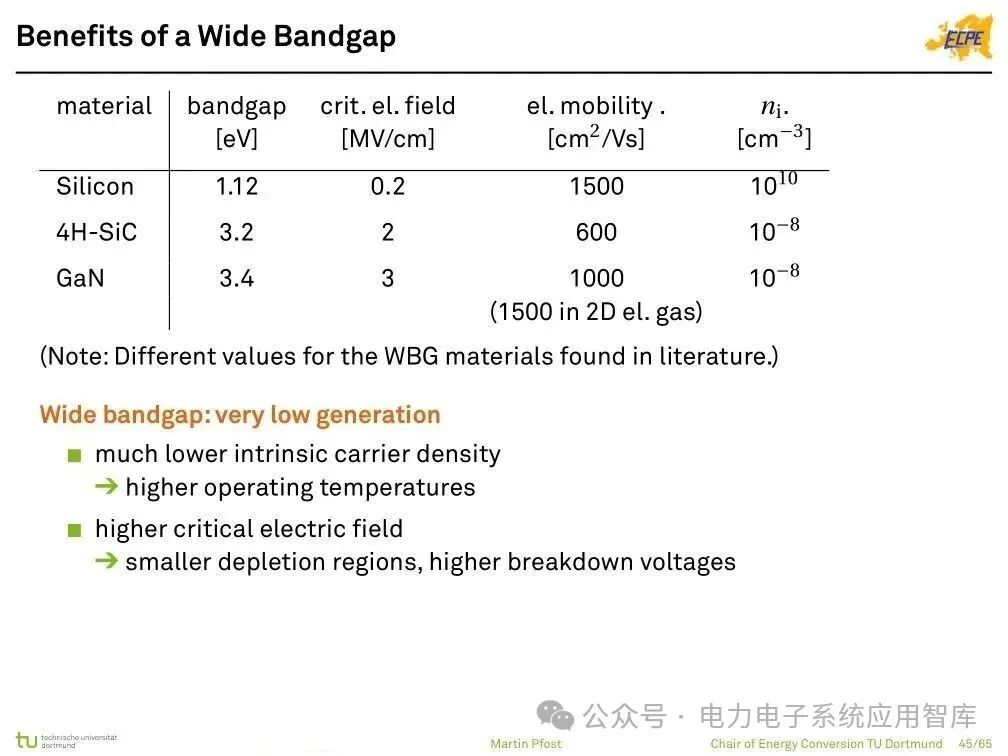

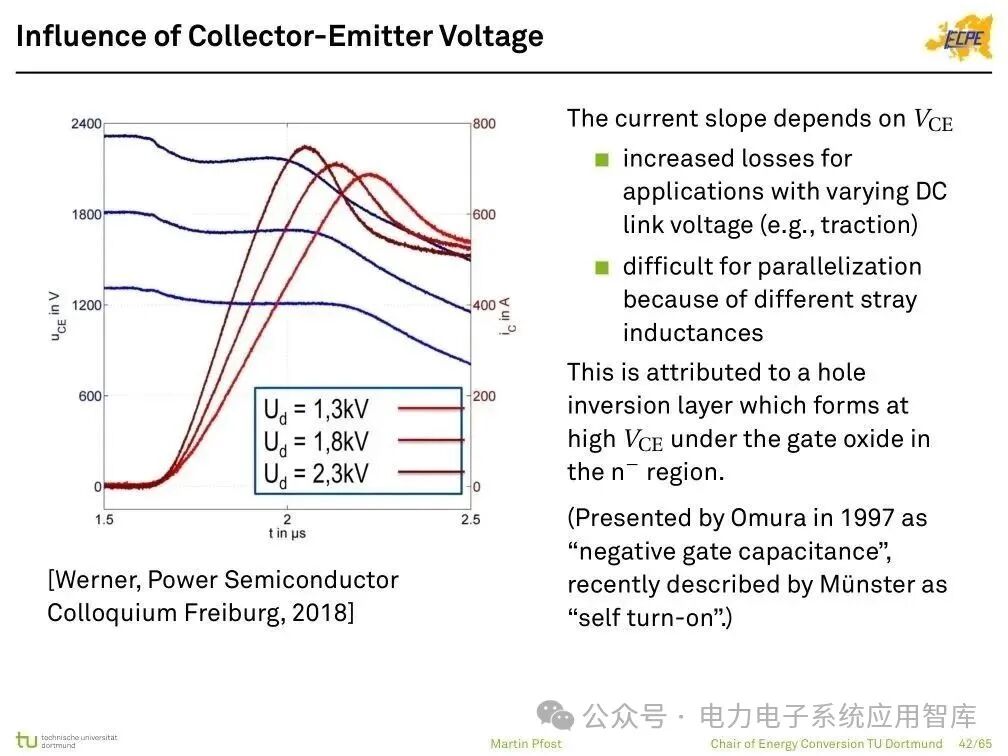

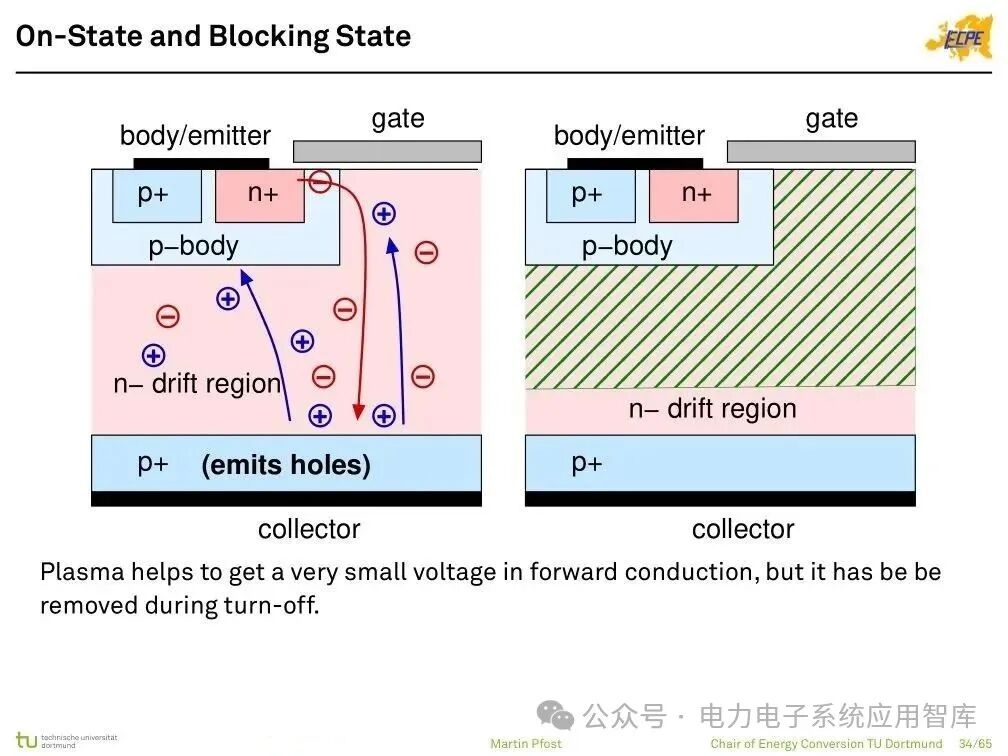

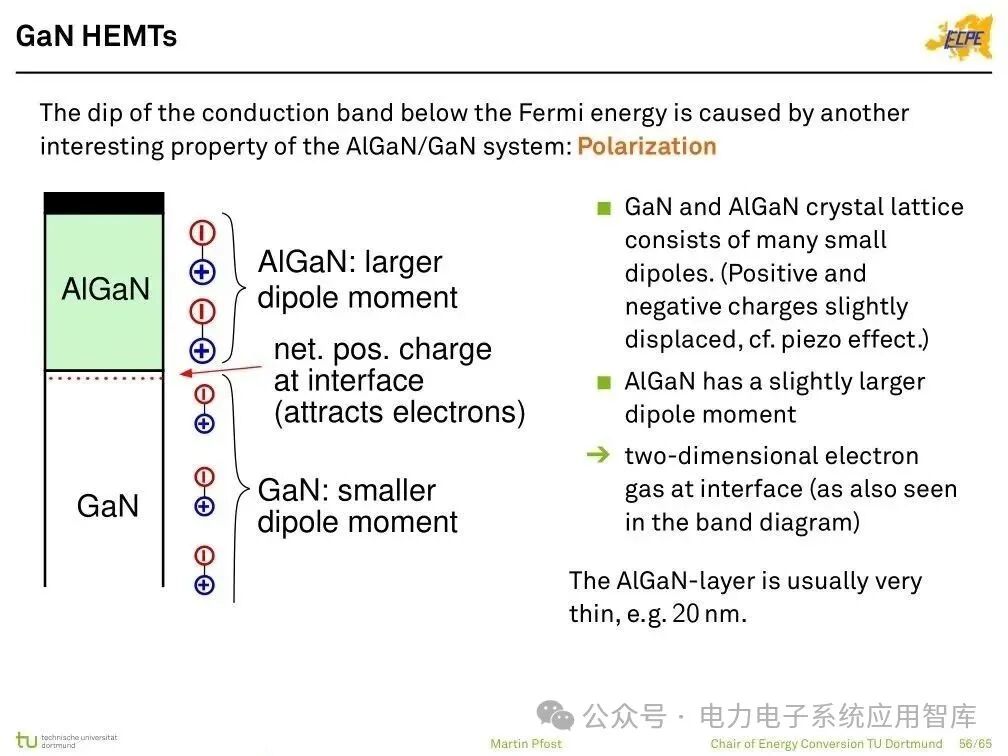

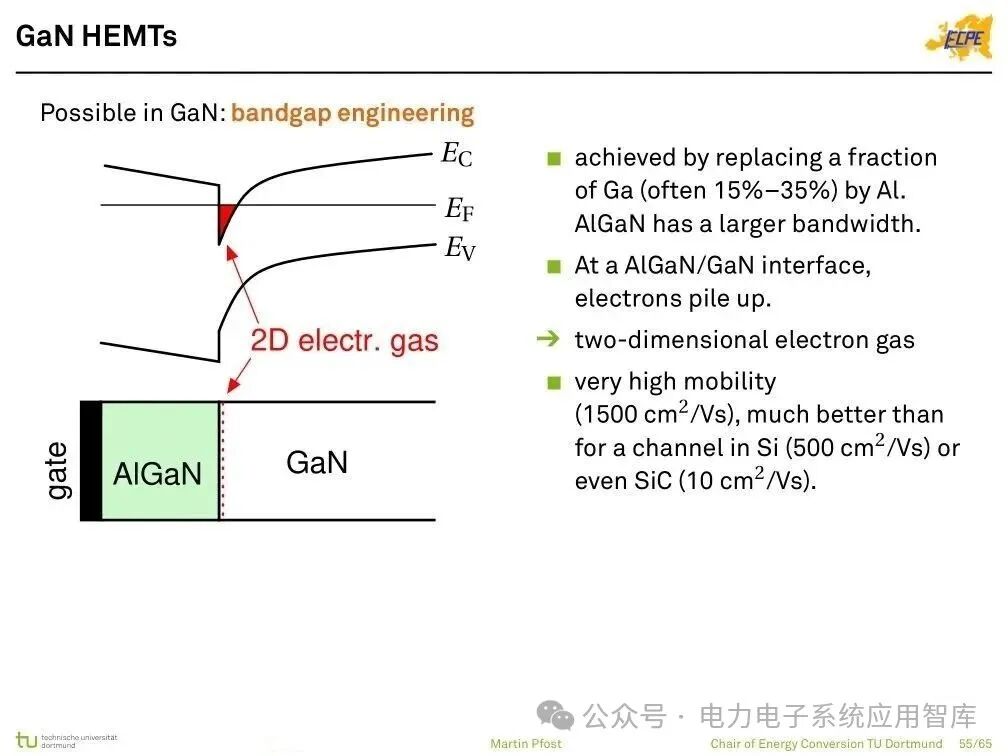

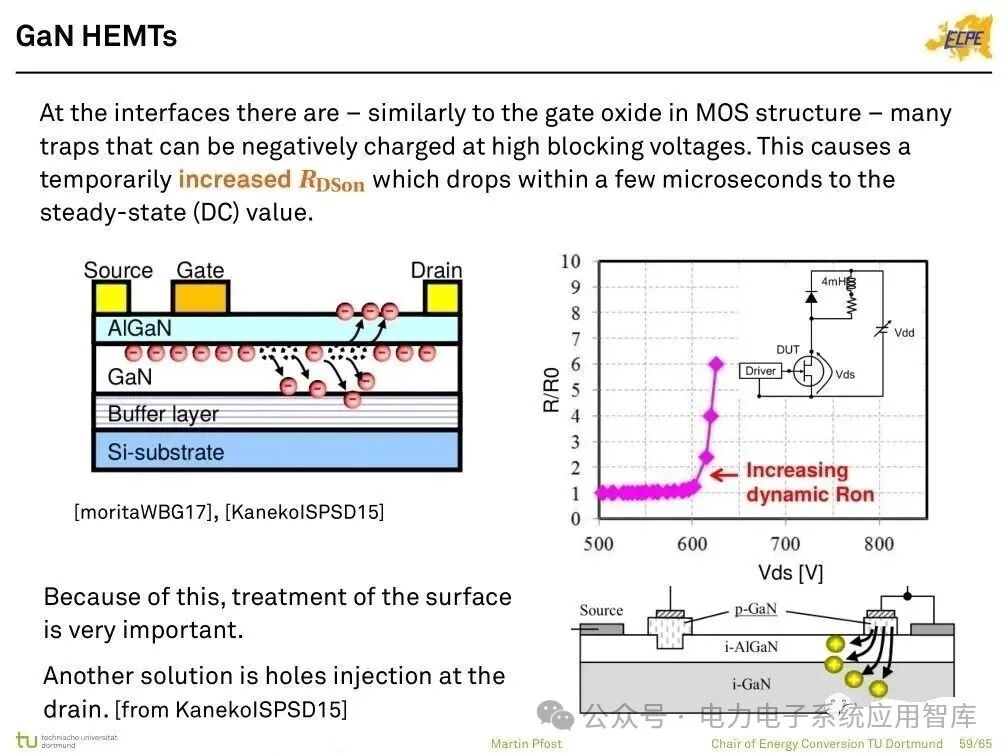

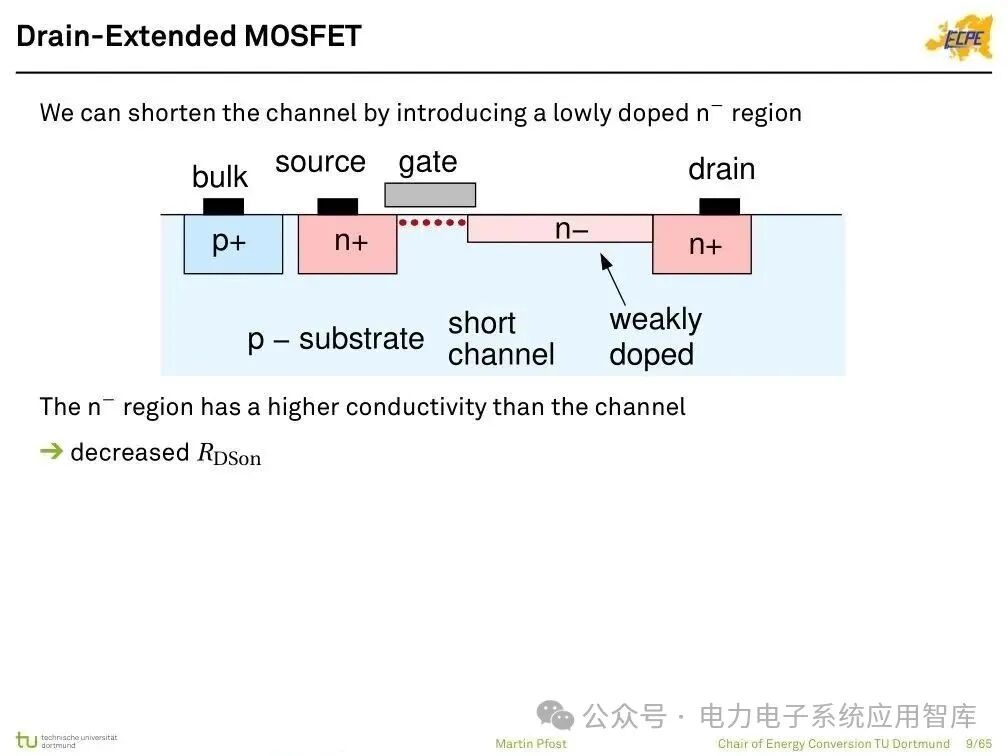

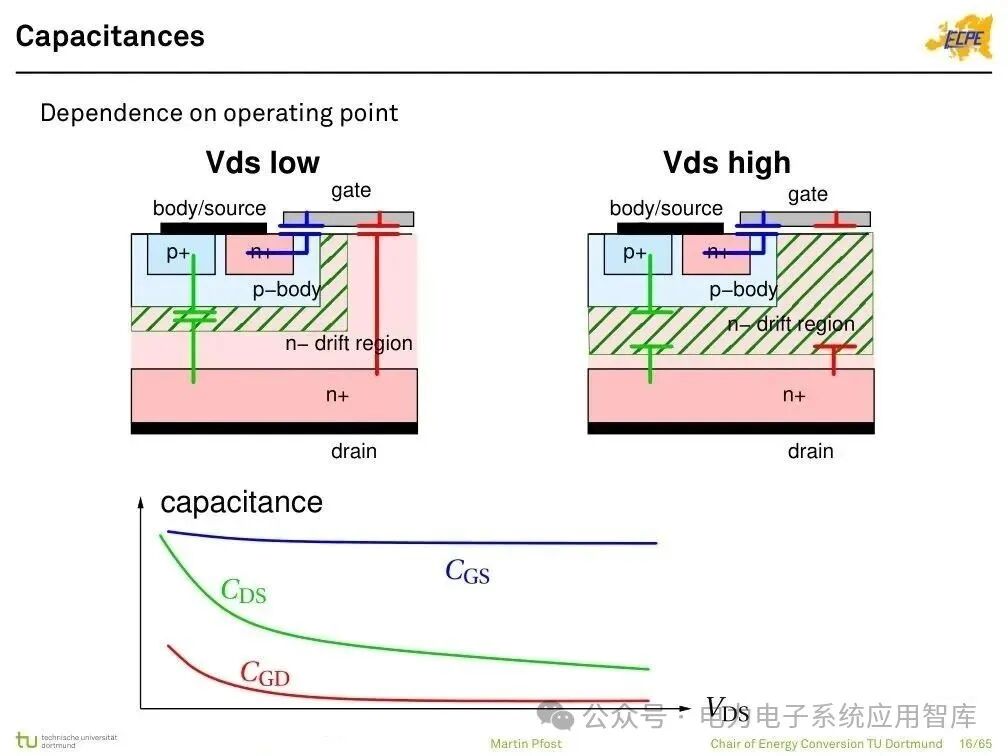

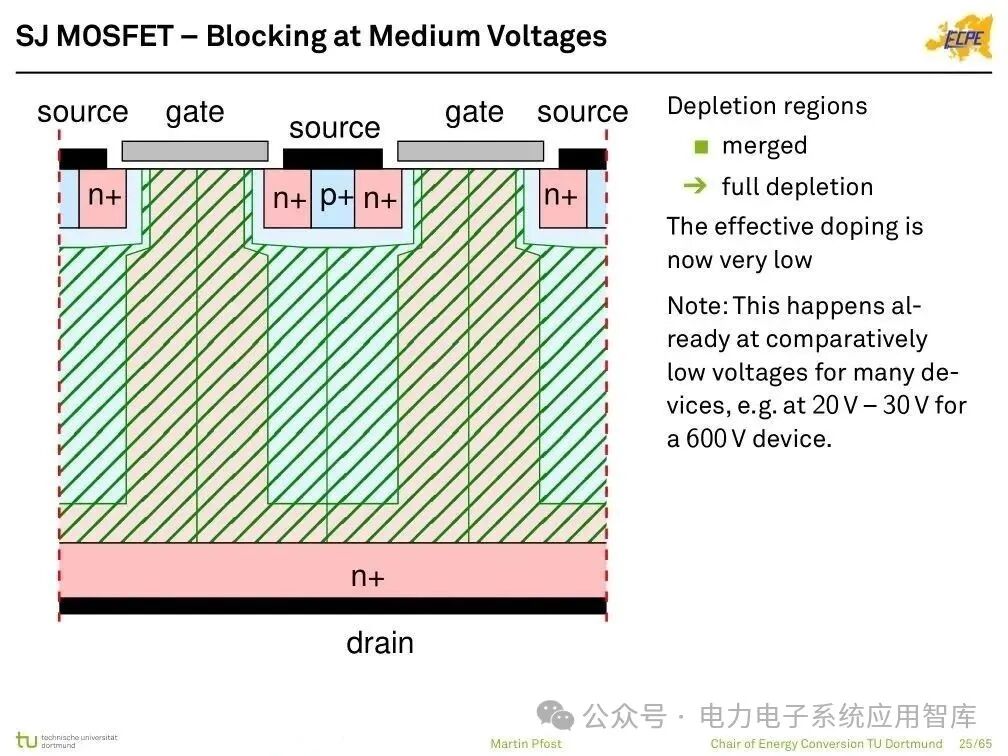

Introduction:The efficient operation of power electronic systems relies on various power semiconductor devices. A thorough understanding of the physical structure of power semiconductor devices is beneficial for grasping their working principles, understanding their charge transfer paths and processes, and laying a solid foundation for further efficient applications.This article shares the physical fundamentals of power semiconductors..Analysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor StructuresAnalysis of Power Semiconductor Technology | Mosfet, SJ Mos, IGBT, SiC and GaN Semiconductor Structures【All content above must be cited】【Disclaimer】The article represents the author’s independent views and does not reflect the position of the public account. If there are issues regarding the content, copyright, etc., please contact us within 30 days of publication for deletion or copyright negotiation. Thank you!【Further Reading on Motor Drive and Control】
