Using Arduino Uno to control an automated String Art machine, transforming ordinary photos into intricate string art works.
1. Project Overview
The core of this project isto convert digital images into physical artworks made of strings and nails through computer algorithms and precise mechanical control. Below is a table summarizing the key aspects of this project:
| Aspect | Description |
|---|---|
| Project Name | String Art Photo (String Art Portrait Machine) |
| Core Controller | Arduino Uno |
| Main Function | Automatically convert uploaded photos into string art works composed of strings and nails on a circular board |
| Key Technologies and Components | Image processing algorithms, stepper motors (for controlling string movement), servos (for controlling string winding), mechanical structures using 3D printing and laser cutting |
| Workflow | Upload photo → Algorithm calculates optimal winding path → Mechanical system automatically nails and winds string |
| Innovations | Using pin headers instead of traditional nails to improve installation efficiency and accuracy; algorithm optimization ensures the best image effect with minimal string usage |
2. Project Implementation Path
2.1 Image Processing:
First, the user uploads a photo (such as the example of Justin Timberlake’s portrait). The computer preprocesses the image, typically converting it to a high-contrast black-and-white image and extracting the main edges and contour information. The algorithm calculates which nails to wind the string around and the order of winding to represent these contours and light-dark variations, aiming to express as much detail as possible with as few lines as possible.
2.2 Path Planning:
The algorithm calculates the optimal winding order and path based on the image analysis results. This step is crucial as it determines the accuracy and artistic effect of the final work, while also affecting production efficiency.
2.3 Mechanical Control:

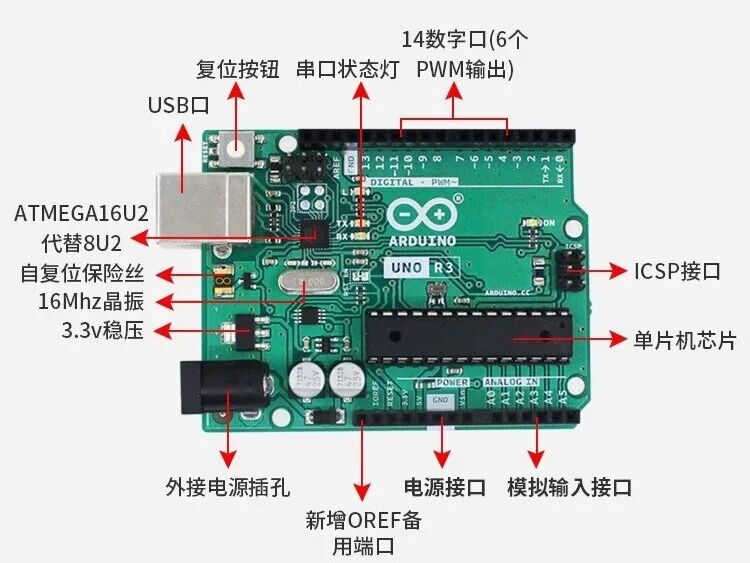

Arduino Uno acts as the brain of the system, receiving commands from the computer and precisely controlling the stepper motors and servos to work together. The stepper motors are responsible for accurately positioning the winding mechanism on the target nails along the X and Y axes (and possibly rotation), while the servos may control actions such as string tensioning, winding, or cutting.
2.4 Automated Production:
The machine begins to work automatically. It may first control a small hammer device to automatically nail down all the required nails (pin headers), and then guide the string along the planned path between the nails. By controlling the density, overlap, and direction of the lines, it expresses the light-dark and contour of the image—areas with dense lines appear darker, while sparse areas appear lighter.
3. Features and Innovations
3.1 Automation and Precision:
Automating the traditionally time-consuming and labor-intensive manual string art production, ensuring high precision and fidelity through algorithms and mechanics.
3.2 Integration of Art and Technology:
The project cleverly combines computer image processing, mechanical design, electronic control, and traditional craftsmanship, making it an excellent interdisciplinary practice project.
3.3 Material Innovation:
Using pin headers instead of traditional nails greatly enhances installation efficiency and accuracy.
4. Try It Yourself
Even without hardware, you can use an open-source generator to experience the charm of “string art” through software.
Open-source web tools like StringArtGenerator allow you to upload images, adjust parameters (such as the number of nails and lines), generating line art images or even G-code for CNC machines, enabling you to preview the effect or create manually.
StringArtGenerator is a web-based string art generator that allows users to convert images into string art. The project is inspired by Reddit user /u/kmmeers’s work, providing a simple web interface for users to upload images and generate steps for string art. The generated string art can be used for DIY projects, such as handmade artworks or automated production with CNC machines.
Visit the website
https://halfmonty.github.io/StringArtGenerator/

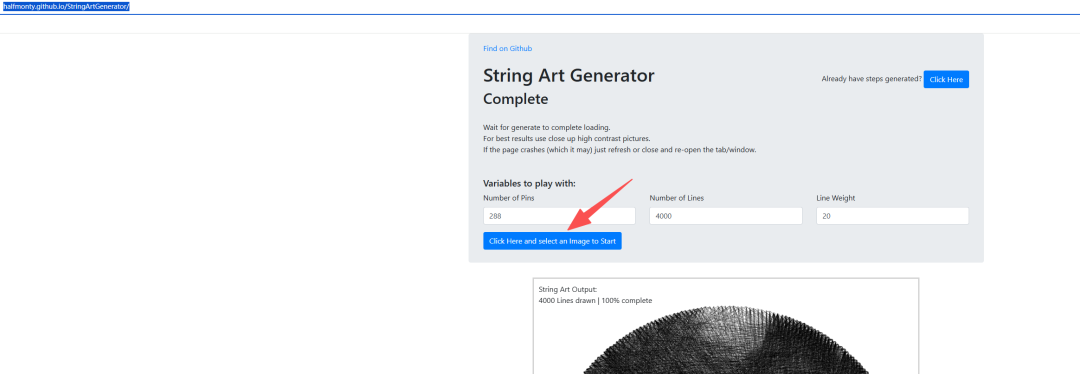

Upload Image
Click the button to upload an image

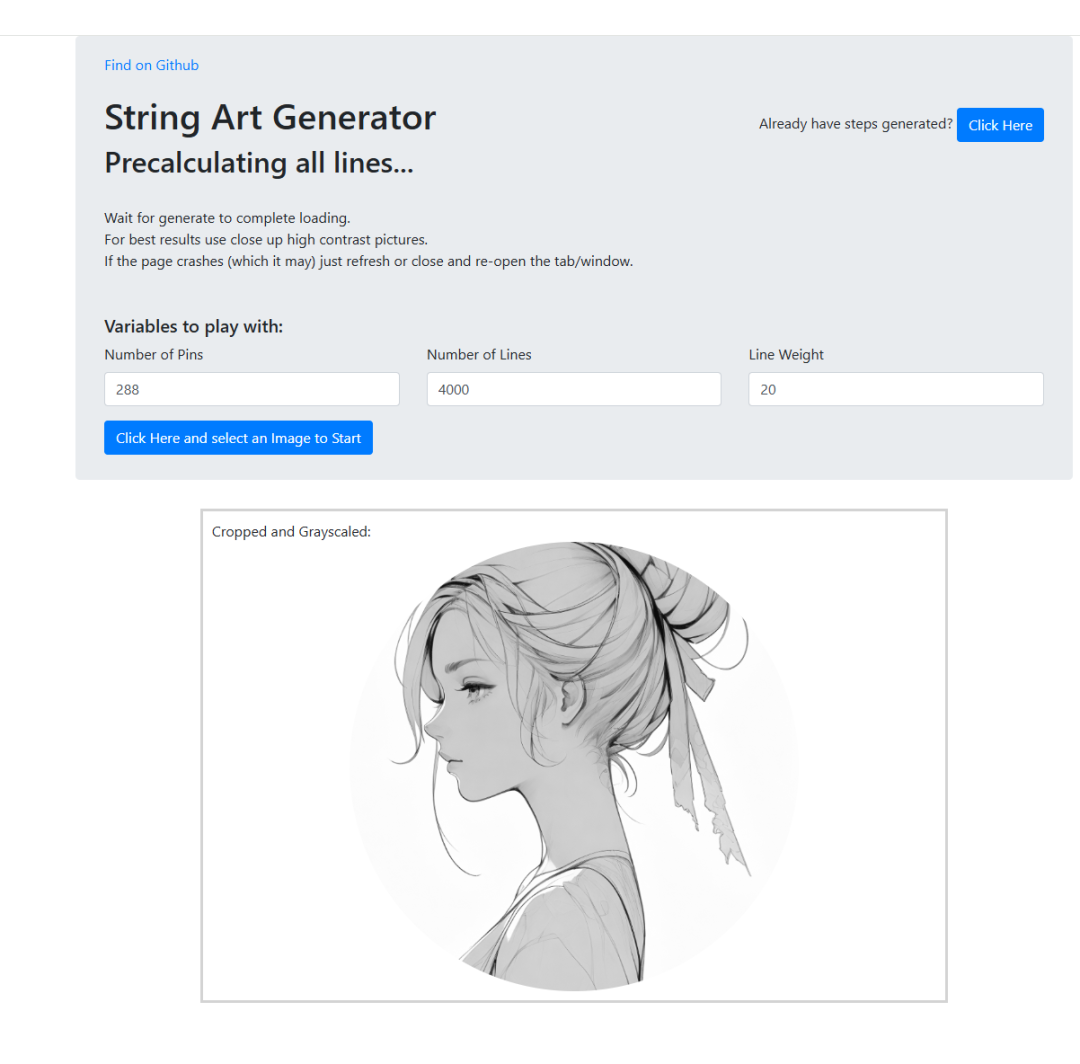

Start generating line art

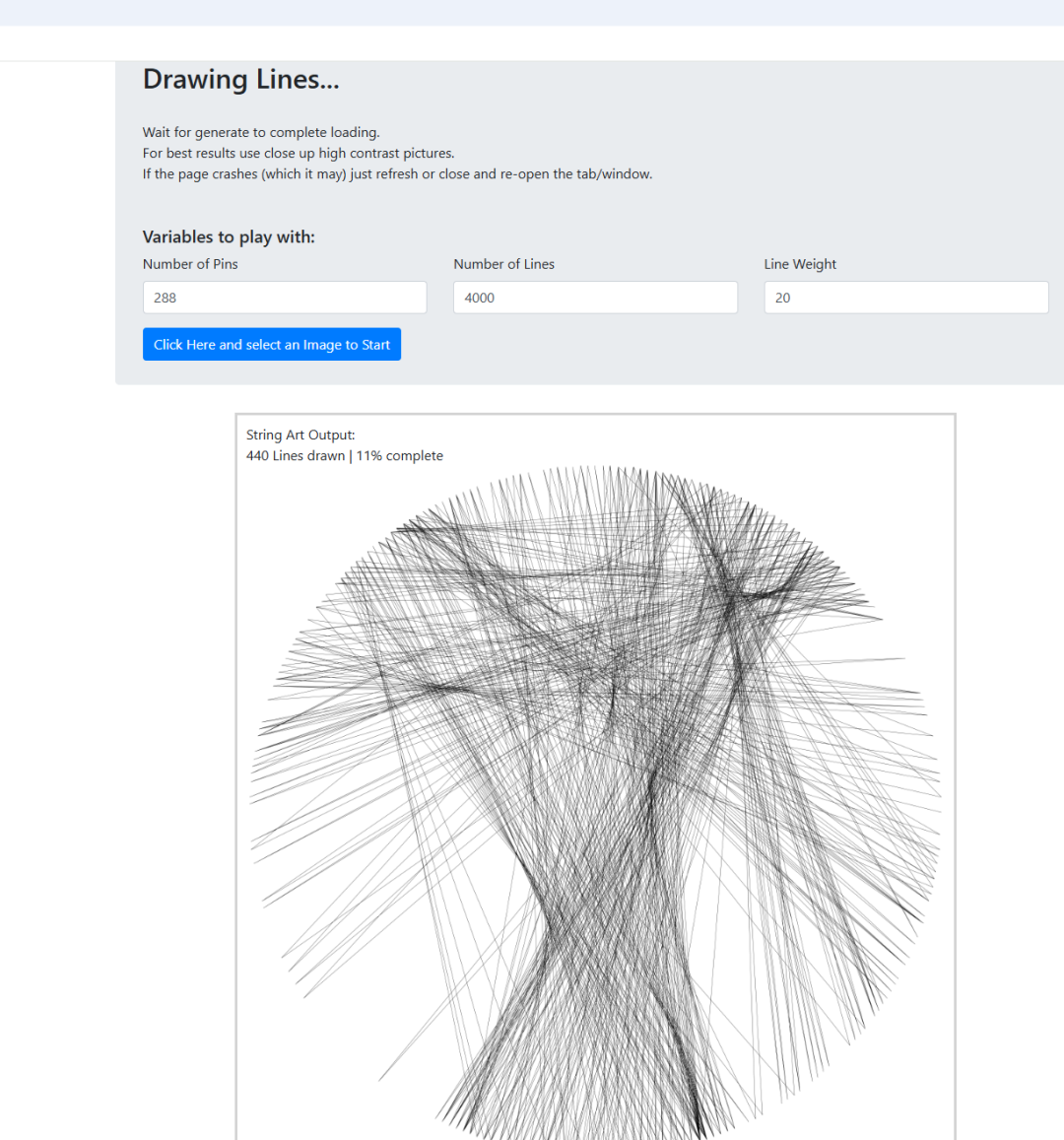

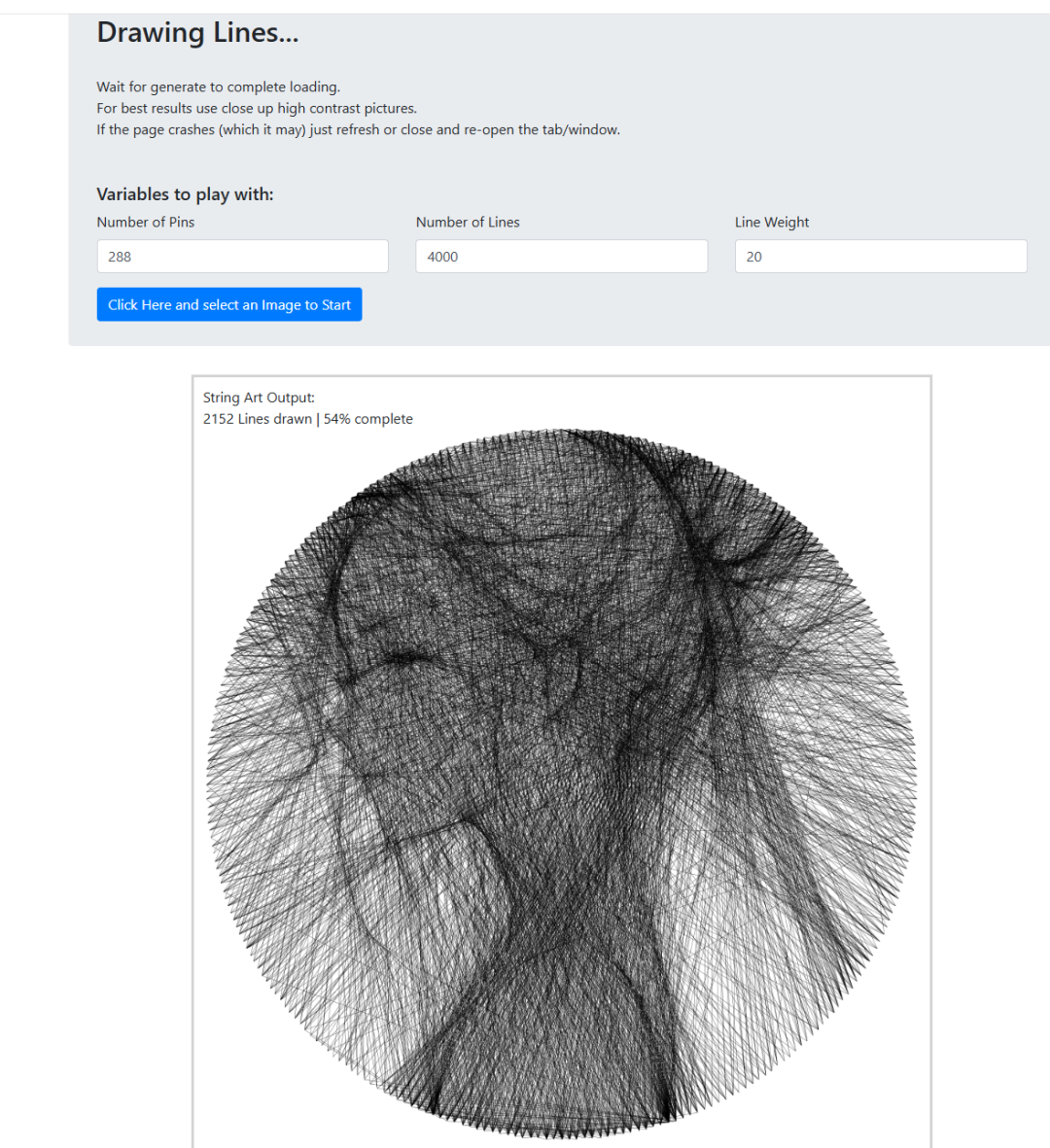

Outline begins to show

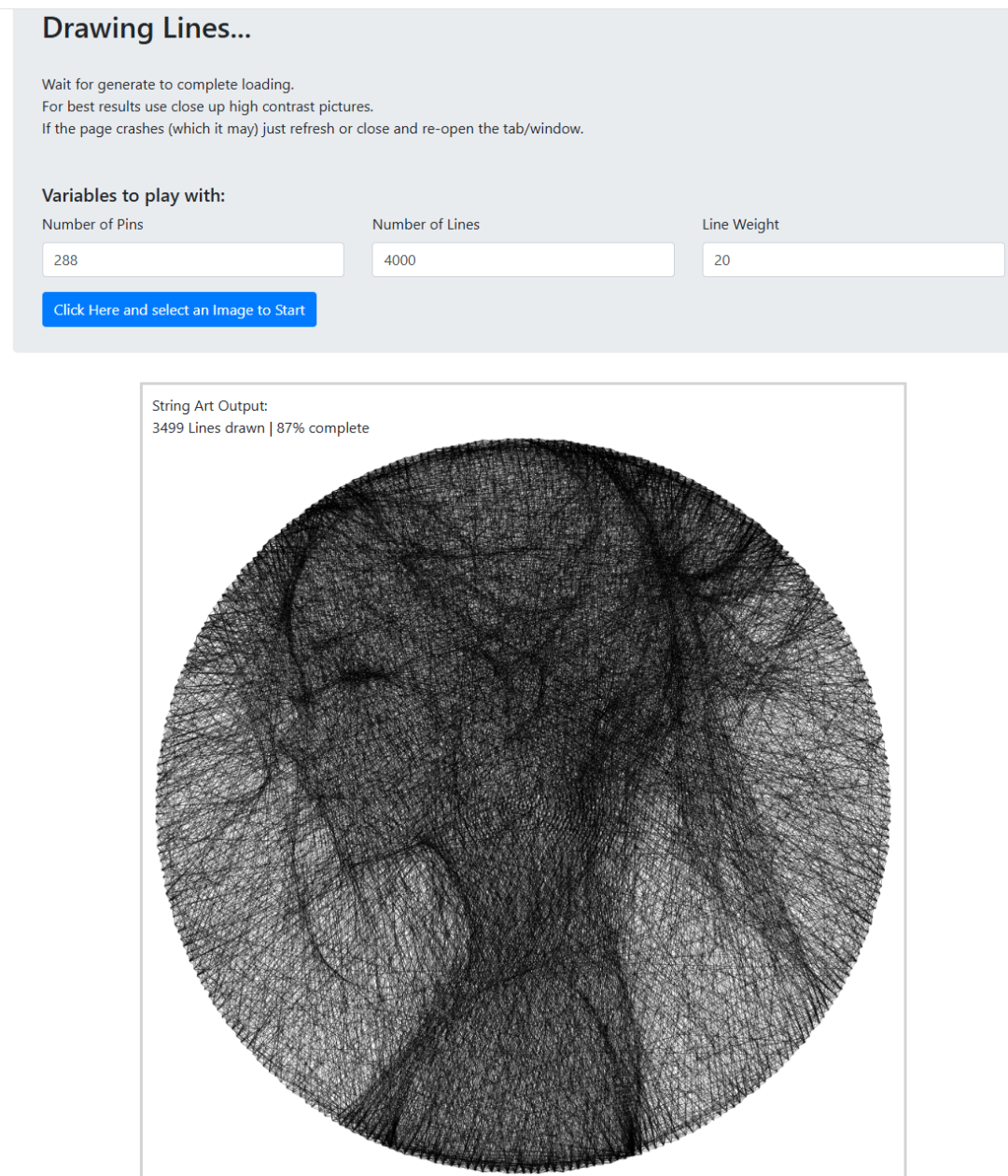

Completion at 80%

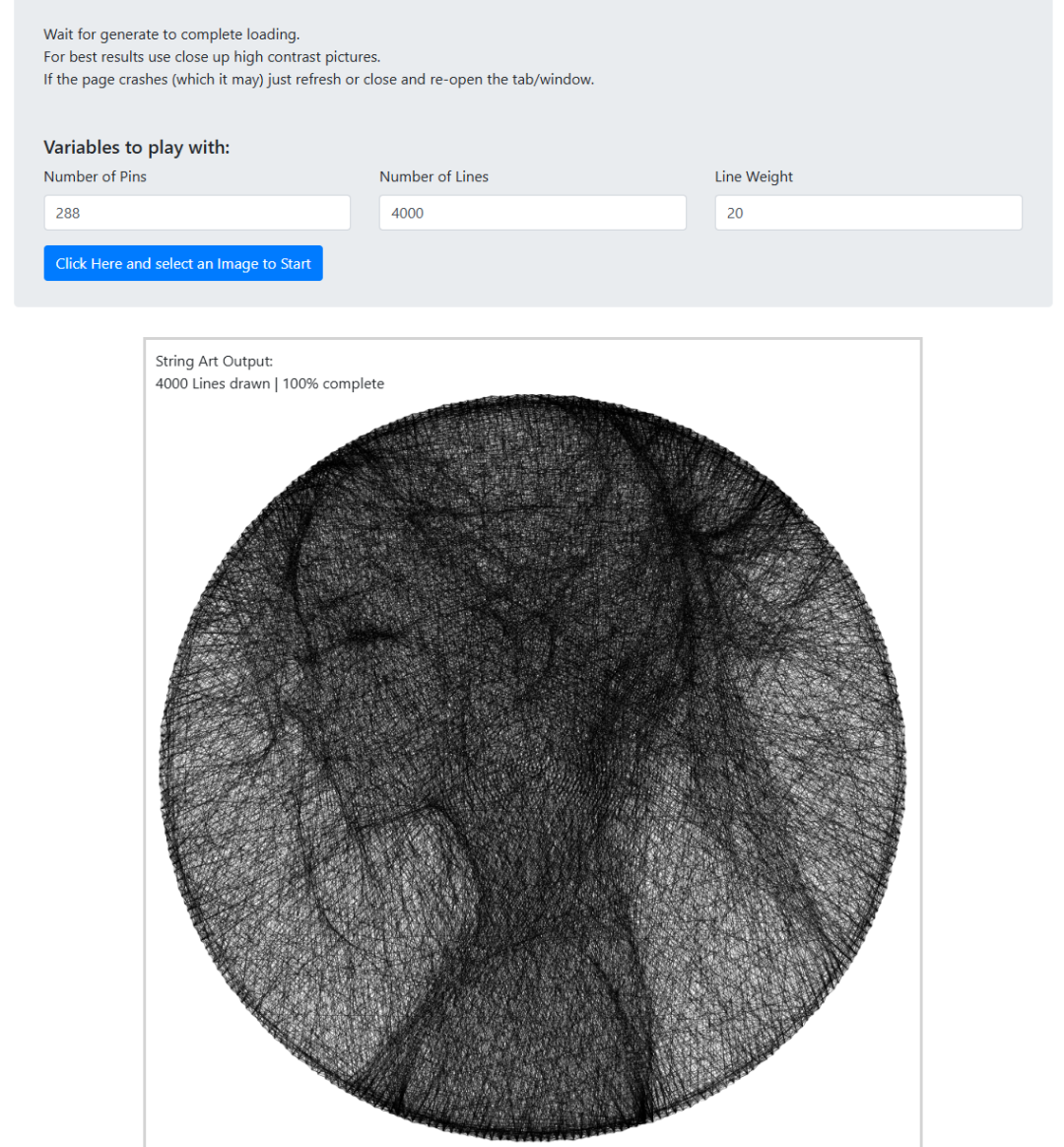

Final result! Cool!
