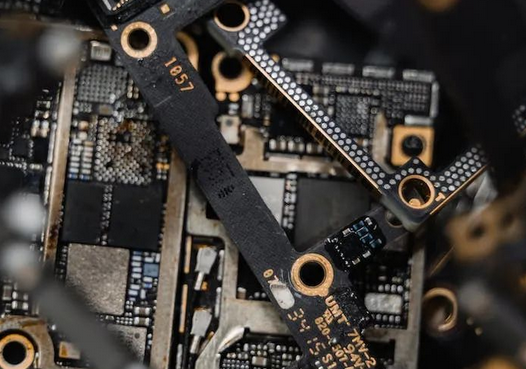

In the design and manufacturing process of PCB circuits, electronic components and devices play a crucial role. However, due to various influencing factors, some components are more prone to damage and failure than others. Do you know which components they are? The answer will be provided below.
1. Capacitors
Capacitors are one of the common components in electronic circuits, used for storing and releasing charge. However, capacitors are prone to damage when handling high voltages or high-frequency signals. This may be due to excessive voltage or frequency exceeding their rated range, leading to overheating or dielectric breakdown inside the capacitor. Therefore, correctly selecting the capacitor’s rated voltage and frequency range and ensuring proper layout and insulation are key to preventing capacitor damage.
2. Diodes
Diodes are used in circuits for rectification, protection, and switching functions. However, diodes are susceptible to damage when facing excessive reverse voltage or overcurrent. Excessive reverse voltage may lead to diode breakdown, while overcurrent may cause the diode to overheat or even burn out. To prevent diode damage, it is essential to select appropriate rated reverse voltage and current capacity based on circuit requirements and to design proper heat dissipation to ensure the diode operates within its working range.
3. Integrated Circuits
Integrated circuits are among the most complex and critical components in electronic devices. ICs are vulnerable to damage from electrostatic discharge (ESD) and overheating during manufacturing and use. Electrostatic discharge can damage or cause failure of the internal circuits of the IC, while overheating may destroy the internal structure of the IC chip. To protect ICs, anti-static measures should be taken, such as using anti-static workstations and wearing anti-static gloves. Additionally, a reasonable heat dissipation system should be designed to ensure that the IC operates within an acceptable temperature range.
4. Crystal Oscillators
Crystal oscillators are used to generate stable clock signals, providing a reference for the normal operation of circuits. However, crystal oscillators are easily affected by mechanical stress and temperature changes. Mechanical stress may cause the crystal to break or detune, while temperature changes may affect the frequency stability of the crystal. To protect crystal oscillators, attention should be paid to PCB layout design to avoid excessive concentration of mechanical stress and to provide a stable working temperature environment.
In addition to the components mentioned above, other components such as inductors, transformers, and transistors may also be prone to damage under specific conditions. To protect these components, engineers should have a thorough understanding of the characteristics and working conditions of the components and take appropriate protective measures. Common protective measures include correct component selection, reasonable circuit design, good heat dissipation design, and suitable power supply and voltage stability.
