In the chemical, petroleum, and energy industries, flow meters serve as critical process monitoring devices, responsible for material measurement, pipeline pressure monitoring, and other core functions. However, traditional Profibus buses frequently encounter signal loss and data errors in long-distance, high electromagnetic interference environments, leading to abnormal flow meter data, delayed control commands, and even production accidents. Naisun Automation’s Profibus to fiber optic technology is reshaping the reliability boundaries of flow meter communication with a disruptive solution.
TraditionalProfibus copper cables have three major fatal shortcomings in flow meter applications:
Short transmission distance: Standard Profibus-DP cables only support transmission within 120 meters; beyond that, repeaters are required, increasing system complexity;
Poor anti-interference capability: Strong electromagnetic fields generated by devices such as frequency converters and welding machines (>100V/m) cause signal distortion, with a bit error rate exceeding 5%;
Uncontrollable delay: At high baud rates (12Mbps), traditional copper cables have delays of >10 bit time (>830ns), affecting real-time control.

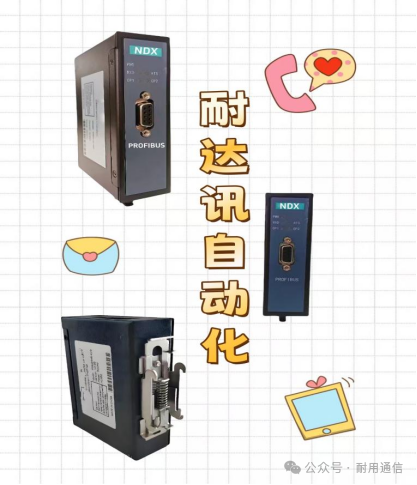

Naisun Automation’s Profibus to fiber optic solution completely addresses the above pain points through optoelectronic conversion + fiber optic transmission. Its core device is equipped with a high-precision codec chip that converts RS-485 differential electrical signals in real-time into optical signals with wavelengths of 850nm/1310nm/1550nm, transmitted via multimode/single-mode fiber. Key parameters are as follows: Ultra-long distance transmission: Single-mode fiber supports stable transmission over 20 kilometers (@12Mbps), while multimode fiber can reach 2 kilometers;
Anti-interference capability: The insulating properties of fiber optics +2500V AC RMS electrical isolation shields against interference from frequency converters, welding machines, and other sources;
Low latency assurance: End-to-end transmission delay <1 bit time (<83ns), clock synchronization accuracy ±1μs;
Environmental adaptability: Wide temperature design (-40℃~85℃), IP67 protection level, suitable for harsh conditions such as high temperatures and dust.
Practical verification: The “ultimate answer” for flow meter communication

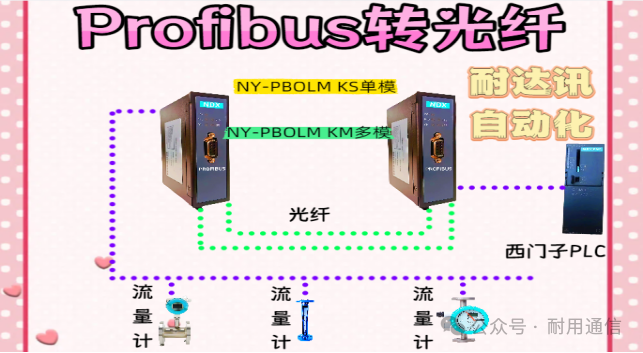

A large chemical plant’s storage tank area deployed multiple mass flow meters to monitor the delivery of liquid hydrocarbon materials. The original Profibus copper cables frequently dropped connections due to distance limitations (3 kilometers), with a data loss rate of 0.5%. After adopting Naisun’s NY-PBOLM KS single-mode fiber module, communication performance significantly improved:
Error rate dropped from0.5% to0.001%, and flow meter data refresh delay optimized to5ms;
Flexible topology: Supports star + chain hybrid networking, with an expanded node count of up to256;
Remote diagnostic function: Built-in Web/Telnet interface, real-time monitoring of optical power (-27.5dBm) and link status, improving fault location efficiency by60%.
Naisun Automation’s Profibus to fiber optic technology injects new vitality into flow meter communication through protocol-transparent transmission and redundant ring network design (MRP failover <200ms), successfully achieving in fields such as energy, water treatment, and mining:
Inter-workshop control: Underground PLC interacts in real-time with surface flow meters;
High-speed synchronous control: Multiple flow meters monitor errors in parallel<0.1%;
Zero interruption guarantee: The communication reliability of the subway fuel supply system reaches99.999%.
Conclusion: While traditional Profibus copper cables struggle in electromagnetic storms, Naisun Automation’s Profibus to fiber optic solution, with its three core advantages of long distance, anti-interference, and high real-time performance, has become the ultimate solution for flow meter communication. Whether in the high-temperature and high-pressure environments of chemical plants or the remote monitoring scenarios of oil fields, it can provide stable and reliable performance, helping enterprises break through technical bottlenecks and achieve cost reduction and efficiency improvement.
