The “Time Manager” of Smart Energy Meters
With the popularization of household energy storage systems and the digital upgrade of energy, single-phase energy meters serve as the“core perception layer” for household electricity data collection, requiring high-precision measurement, time-of-use pricing settlement, fault event location, remote meter reading, and other functions. This relies on a precise clock chip—it must operate stably for a long time in complex power grid environments, meet millisecond-level timestamp recording, and have low power consumption for over10 years, with strict requirements for full temperature range (-40℃~105℃) error compensation.
Domestic RTC Chip SD8825: Breaking Performance Barriers
As a domestic clock chip with full temperature compensation algorithms,SD8825 redefines the real-time clock standard with three major features: “high reliability, no calibration, ultra-low power consumption”:

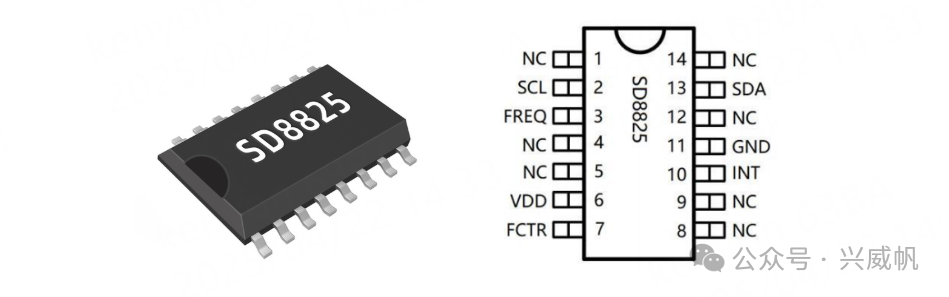

SD8825 Pin Diagram
1. Fully Automatic Temperature Compensation
Built-in crystal oscillator+high-precision compensation algorithm,-40℃~+85℃ error <±5ppm (annual error only2.6 minutes), high-temperature performance far exceeds traditional external crystal oscillator solutions.
2. Hardware-Level Simplified Design
No external crystal oscillator/capacitor required,14 pin SOP package compatible with mainstream RTC chips (such as SD3025T, 8025T).
3. Millisecond-Level Time Management
1/1024 second register supports 1ms timestamp recording, combined with minute/second interrupt wake-up mechanism, meeting the event sequence recording requirements of energy meters.
4. Extreme Low Power Consumption
0.6μA static current (3V power supply), timing voltage 1.5V~5.5V.
5. Multi-Dimensional Security Assurance
Communication XOR check+ read-write protection mechanism, dual protection against data tampering risks;
Built-in unique ID code (8 bytes), effectively preventing device forgery costs.

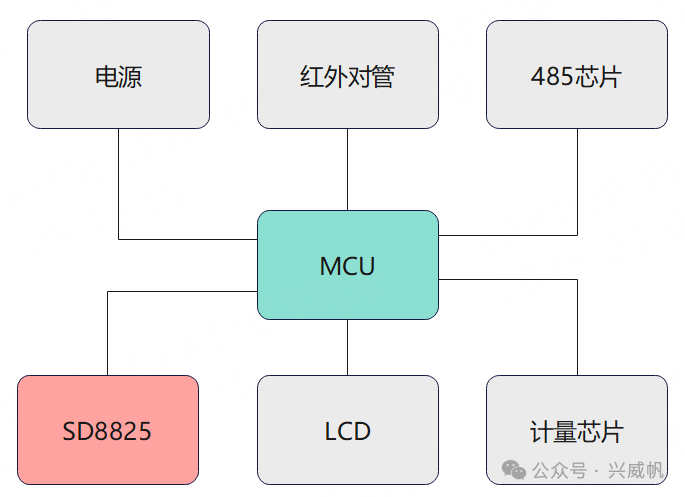

Single-Phase Energy Meter Principle Block Diagram
Advantages of SD8825 in Single-Phase Energy Meter Applications
SD8825’s innovative design directly addresses industry pain points, aiding in the development of high-efficiency, high-reliability energy meter solutions:
Core Scene Advantages
1. Simplified System Design
Eliminates the crystal oscillator matching debugging phase, shortening the development cycle by 60%; supports IIC bus communication.
2. Ensures Time-of-Use Billing Accuracy
Built-in leap year automatic correction algorithm, supporting millisecond-level switching for peak and valley pricing strategies.
Conclusion
Currently, the SD8825 chip has passed the testing and certification of the State Grid Metering Center. SD8825 provides a “chip-level time reference solution” for household single-phase energy meters through its built-in full temperature compensated clock source+ multifunctional hardware design, significantly reducing the risk of billing disputes caused by clock errors.
Act now to empower the upgrade of single-phase energy meter devices!
