In the rapidly developing field of automotive electronics technology, the demand for high-performance and high-reliability data transmission is increasing day by day. From in-vehicle infotainment systems to the collaborative operation of various sensors and advanced driver assistance systems, efficient data connectivity has become the key link to achieving these complex functions.Ruicheng Semiconductor has been committed to providing cutting-edge solutions for the industry, and the newly launched MIPI A-PHY IP will support a more diverse and agile “neural network” for smart automotive applications.
Faster Speeds
Lower Latency
Longer Transmission Distances
MIPI A-PHY
Stronger Anti-Interference Capability
MIPI A-PHY is a high-speed serializer/deserializer (SerDes) physical layer interface standard designed specifically for the automotive industry, developed by the MIPI Alliance, aimed at meeting the data transmission requirements of high bandwidth, long distance, high reliability, and strong anti-interference capability in automotive applications.
A-PHY provides an asymmetric data link that supports point-to-point or daisy-chain topologies, enabling high-speed unidirectional data transmission, embedded bidirectional control data transmission, and optional power transmission over a single cable. Compared to GMSL (ADI) and FPD-Link (TI), A-PHY offers more open and richer features.
The features of A-PHY greatly simplify wiring, reduce costs and weight, while providing system designers with the flexibility to optimize system performance, cost, and complexity based on different use cases, meeting a wide range of speed and design requirements.
MIPI A-PHY
Born for Automotive

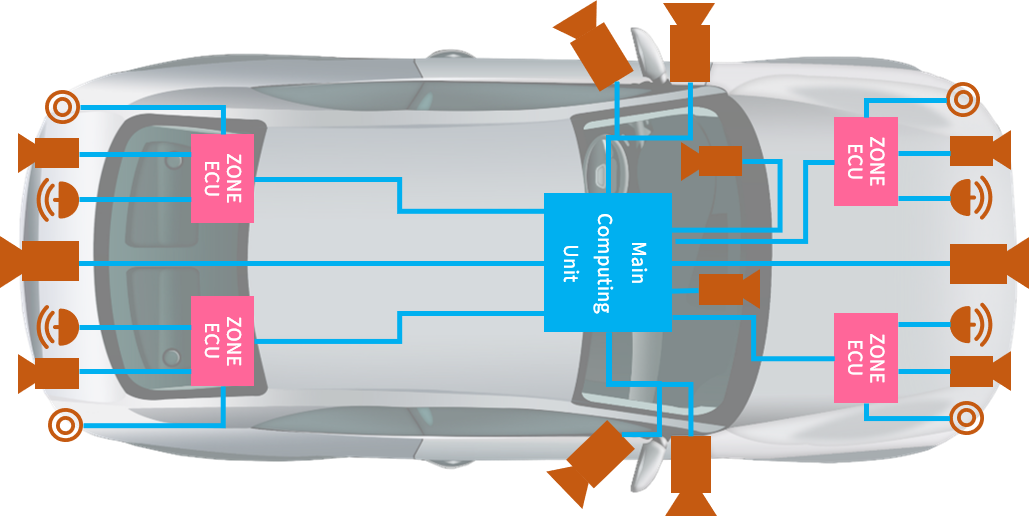

Advanced Driver Assistance Systems
In the new advanced driver assistance systems, a large number of sensors such as cameras, radar, and LiDAR need to quickly and accurately transmit the massive data collected to the intelligent driving computing unit for processing. MIPI A-PHY, with its high bandwidth and low latency characteristics, can ensure real-time transmission of sensor data, providing a solid guarantee for safe driving. For example, in intelligent driving scenarios, image data captured by high-definition cameras can be transmitted at high speed via A-PHY to the onboard computing platform, enabling precise perception and decision-making of the road environment.
In-Vehicle Infotainment Systems (IVI)
As consumer demands for in-vehicle entertainment experiences continue to rise, IVI systems need to support higher resolution displays and richer multimedia content. MIPI A-PHY can provide stable and high-speed connections for high-resolution infotainment displays, achieving smooth video playback and interactive experiences, enhancing the entertainment enjoyment of passengers.
MIPI A-PHY IP
Ruicheng Semiconductor
Ruicheng Semiconductor has successfully developed the MIPI A-PHY IP and, in conjunction with partners’ PCS layers and controller IP, has assisted multiple customers’ chip products into the tape-out verification stage. Through close collaboration with partners and customers, Ruicheng Semiconductor will continue to optimize and improve the layout of MIPI A-PHY IP to better meet the growing demands of the automotive electronics market.
Features
High Bandwidth and Low Latency: Ruicheng Semiconductor’s MIPI A-PHY IP meets the A-PHY V1.1 standard, supporting downlink data rates of up to 5Gbps (Downlink Gear G2 is 4Gbps) and 50M uplink data rates, ensuring that large amounts of data can be transmitted quickly. Additionally, it features extremely low latency, meeting the real-time requirements of applications such as ADAS and autonomous driving, allowing vehicles to respond quickly to various road conditions and driving situations.
Long-Distance Transmission Capability: The A-PHY standard supports transmission distances of up to 15 meters, which is particularly important for the complex wiring environment within vehicles. Whether installing sensors or surround-view cameras at the front, rear, or sides of the vehicle, stable data connections can be achieved through A-PHY without concerns about signal degradation or transmission stability issues.
Exceptional Reliability and Anti-Interference Capability: Vehicles face various complex electromagnetic environments during operation, and Ruicheng Semiconductor’s MIPI A-PHY IP has ultra-high anti-interference capabilities, maintaining data transmission accuracy and stability even under strong electromagnetic interference. Its packet error rate is extremely low, providing reliable communication assurance for the safe operation of vehicles. Additionally, the IP has higher ESD capability, passing the 8kV HBM test.
Support for Various Cable Types: Ruicheng Semiconductor’s MIPI A-PHY IP is compatible with various cable types, such as shielded twisted pair (STP) and coaxial cables. This feature allows system designers to flexibly choose suitable cable solutions based on different application scenarios and cost budgets, effectively optimizing system costs while ensuring signal performance.
Automotive Electronic Application-Oriented
Platform IP Solutions
Ruicheng Semiconductor has built a complete IP platform based on a rich and powerful IP library, providing partners with comprehensive automotive IP platform solutions for different applications.
High-Speed Connection Interface IP
Ruicheng Semiconductor has a wide range of interface IPs in the industry, such as PCIe, USB, LVDS, MIPI DPHY, and DP. These interface IPs ensure the quality and reliability of automotive electronic systems such as driver assistance systems and infotainment systems, providing stable and high-speed transmission channels for data exchange between different devices.
High-Performance and Ultra-Low Power Analog and Mixed-Signal IP
Ruicheng Semiconductor offers a rich array of analog IP products, including power, clock, ADCs, and sensors, which work together to provide a one-stop solution for the design of automotive electronic systems, helping customers shorten design cycles, reduce development costs and risks, and enhance product competitiveness.
High-Reliability Embedded Storage IP
Ruicheng Semiconductor is committed to the research and development of high-reliability embedded non-volatile memory (eNVM) IP, including MTP, eFlash, OTP, etc. The automotive-grade MTP IP developed for automotive electronic applications has obtained AEC-Q100 Grade 0 automotive certification, meeting the reliability storage needs of various automotive chips.
High-Performance Wireless RF Communication IP
Ruicheng Semiconductor has successively launched low-power Bluetooth (BLE) IP solutions, dual-mode Bluetooth (BT/BLE dual mode) IP solutions, and Wi-Fi 6 IP solutions. Based on years of successful development and mass production experience in Bluetooth RF IP, Ruicheng Semiconductor has developed Bluetooth RF IP for wBMS (wireless battery management systems) on automotive-grade process platforms, which has been licensed to leading wBMS chip manufacturers for full-mask tape-out.
In the wave of continuous innovation in automotive electronics technology, Ruicheng Semiconductor’s rich IP product portfolio will bring more differentiated vitality to the automotive chip industry. Whether for current ADAS applications or the future vision of autonomous driving, Ruicheng Semiconductor will work hand in hand with partners to contribute to a bright future in the automotive electronics field with reliable technology and high-quality products.
About Ruicheng Semiconductor
Chengdu Ruicheng Semiconductor Technology Co., Ltd. (abbreviated as: Actt; Ruicheng Semiconductor) was established in 2011 and is a national-level “specialized, refined, and new” high-tech enterprise engaged in the design and licensing of integrated circuit intellectual property (IP) products. The company is based on low-power technology and has gradually developed and constructed a product pattern centered on analog and mixed-signal IP, embedded storage IP, wireless RF communication IP, and wired connection interface IP, holding over 150 domestic and international patents. It has established partnerships with more than 30 global foundries, covering various process platforms such as CMOS, FinFET, eFlash, BCD, HV, SiGe, and FD-SOI, promoting over 1000 IPs and serving hundreds of integrated circuit design companies worldwide, with products widely used in automotive electronics, industrial control, IoT, wireless communication, edge computing, and other fields.
Ruicheng Semiconductor is committed to providing excellent products and services to partners, adhering to the values of integrity, responsibility, cooperation, and win-win, and is dedicated to building deeply collaborative relationships to become an outstanding integrated circuit IP partner in the industry ecosystem.
