Porting MQTT on ARM Linux (Paho, Mosquitto)

Introduction

Here we will do two things: 1) Compile the C version libraries of two open-source projects, paho.mqtt and mosquitto (the mosquitto library will not be used) 2) Compile the library that depends on paho.mqtt and write examples + mosquitto server.

Host Platform: Ubuntu 16.04 ARM Platform: s5p6818 SSL: openssl-1.0.2t MQTT Client: paho.mqtt.c

Now we will proceed with the porting of the MQTT client.

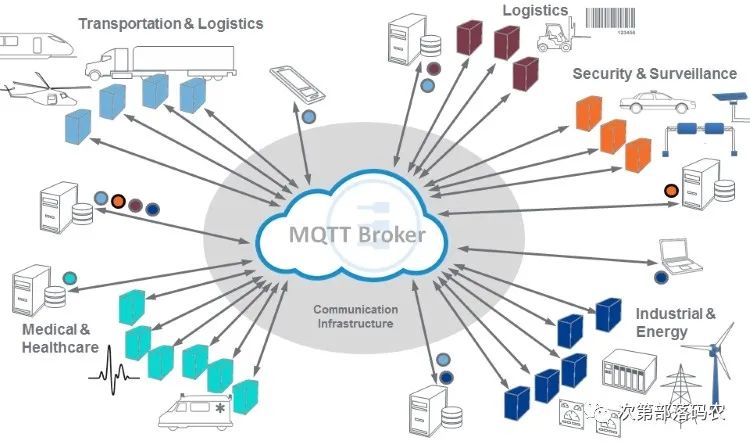

The MQTT server (Broker) is included in many cloud servers, and there is no need for porting unless there are special requirements; furthermore, even if the Broker is ported, it is relatively simple.

Host Preparation

You can use the following script.

The previous article “Setting Up MQTT Communication Environment and Packet Capture Testing” did not introduce compiling and running the mosquitto server under Linux, so the script below also includes this. For details, refer to: make_mosquitto ()

bash

##
#    Copyright By Schips, All Rights Reserved
#    https://gitee.com/schips/
#    File Name:  make.sh
#    Created  :  Sat 30 Nov 2019 01:56:37 PM CST
##
#!/bin/sh
BUILD_HOST=arm-linux-
ARM_GCC=${BUILD_HOST}gcc
ARM_CPP=${BUILD_HOST}g++
BASE=`pwd`
OUTPUT_PATH=${BASE}/install

OPENSSL=openssl-1.0.2t

make_dirs () {
    # To facilitate management, create related directories
    cd ${BASE} && mkdir compressed install source -p
}

tget () { #try wget
    filename=`basename $1`
    echo "Downloading [${filename}]..."
    if [ ! -f ${filename} ];then
        wget $1
    fi

    echo "[OK] Downloaded [${filename}] "
}

tgit () { #try git and tar
    filename=`basename $1 | sed 's/.git//g'`

    echo "Clone [${filename}]..."
    if [ ! -f ${filename}.tgz ];then
        git clone $1
        rm ${filename}/.git* -rf
        echo "Making a tar file."
        tar -zcf ${filename}.tgz ${filename}
        rm ${filename} -rf
    fi

    echo "[OK] Cloned [${filename}] "
}

download_package () {
    cd ${BASE}/compressed
    # Download packages
    tget  https://www.openssl.org/source/${OPENSSL}.tar.gz
    tgit  https://github.com/eclipse/paho.mqtt.c.git
    tgit  https://github.com/eclipse/mosquitto.git
}

tar_package () {
    cd ${BASE}/compressed
    ls * > /tmp/list.txt
    for TAR in `cat /tmp/list.txt`
    do
        tar -xf $TAR -C  ../source
    done
    rm -rf /tmp/list.txt
}

pre_make_ssl () {
    cd ${BASE}/source/${OPENSSL}
    startLine=`sed -n '/install_html_docs	r/' Makefile`
    echo $startLine
    # To avoid multi-line results
    for startline in $startLine
    do
        lineAfter=99
        endLine=`expr $startline + 999`
        sed -i $startline','$endLine'd' Makefile
        echo "install_html_docs:" >> Makefile
        echo "	@echo skip by Schips" >> Makefile
        echo "install_docs:" >> Makefile
        echo "	@echo skip by Schips" >> Makefile
        echo "# DO NOT DELETE THIS LINE -- make depend depends on it." >> Makefile
        break
    done
}

make_ssl () {
    # Compile and install zlib
    cd ${BASE}/source/${OPENSSL}
    rm ${OUTPUT_PATH}/${OPENSSL} -rf
    echo "SSL ABOUT"
    CC=${ARM_GCC} ./Configure no-asm shared --prefix=${OUTPUT_PATH}/${OPENSSL}

    sed 's/-m64//g'  -i Makefile # Remove -m64 keyword (arm-gcc does not support)
    #sudo mv /usr/bin/pod2man /usr/bin/pod2man_bak
    #mv doc/apps /tmp/
    pre_make_ssl
    make && make install
}

make_paho_mqtt_c () {
    cd ${BASE}/source/paho.mqtt.c

    make CFLAGS+="-I ${OUTPUT_PATH}/${OPENSSL}/include" \
         LDFLAGS+="-L${OUTPUT_PATH}/${OPENSSL}/lib" \
         CC=${ARM_GCC} \
         prefix=${OUTPUT_PATH}/paho.mqtt.c

    # BUG: make install does not meet our intention
    rm ${OUTPUT_PATH}/paho.mqtt.c -rf
    mkdir ${OUTPUT_PATH}/paho.mqtt.c/lib -p
    mkdir ${OUTPUT_PATH}/paho.mqtt.c/bin -p
    mkdir ${OUTPUT_PATH}/paho.mqtt.c/include -p

    cp ${BASE}/source/paho.mqtt.c/build/output/lib*    ${OUTPUT_PATH}/paho.mqtt.c/lib -d -v
    cp ${BASE}/source/paho.mqtt.c/build/output/samples ${OUTPUT_PATH}/paho.mqtt.c/bin -r -v
    cp ${BASE}/source/paho.mqtt.c/build/output/test    ${OUTPUT_PATH}/paho.mqtt.c/bin -r -v
    cp ${BASE}/source/paho.mqtt.c/src/*.h       ${OUTPUT_PATH}/paho.mqtt.c/include    -v
}

make_mosquitto () {
    cd ${BASE}/source/mosquitto

    sed -r -i "/WITH_DOCS:=/ s/.*/WITH_DOCS:=no/"                       config.mk
    sed -r -i "/WITH_SRV:=/ s/.*/WITH_SRV:=no/"                         config.mk
    sed -r -i "/WITH_UUID:=/ s/.*/WITH_UUID:=no/"                       config.mk
    sed -r -i "/WITH_WEBSOCKETS:=/ s/.*/WITH_WEBSOCKETS:=no/"           config.mk
    sed -r -i "/WITH_STRIP:=/ s/.*/WITH_STRIP:=yes/"                    config.mk
    # Do not add ssl support
    sed -r -i "/WITH_TLS:=/ s/.*/WITH_TLS:=no/"                         config.mk
    sed -r -i "/WITH_TLS_PSK:=/ s/.*/WITH_TLS_PSK:=no/"                 config.mk

    # Specify toolchain
    sed -i "N;2aCC=${BUILD_HOST}gcc"                                     config.mk
    sed -i "N;2aCXX=${BUILD_HOST}g++"                                    config.mk
    sed -i "N;2aCPP=${BUILD_HOST}g++"                                    config.mk
    sed -i "N;2aCC=${BUILD_HOST}gcc"                                     config.mk
    sed -i "N;2aAR=${BUILD_HOST}ar"                                      config.mk
    sed -i "N;2aLD=${BUILD_HOST}ld"                                      config.mk
    sed -r -i "/STRIP\?=/ s/.*/STRIP\?=${BUILD_HOST}strip/"     config.mk
    # Set output path
    echo "DESTDIR=${OUTPUT_PATH}/mosquitto"                 >>  config.mk
    echo "prefix=\" >>  config.mk

    make  && make install

    # Add ssl support for the compiled mosquitto
   #sed -r -i "/WITH_TLS:=/ s/.*/WITH_TLS:=yes/"                        config.mk
   #sed -r -i "/WITH_TLS_PSK:=/ s/.*/WITH_TLS_PSK:=yes/"                config.mk
   #make \
   #    CFLAGS+="-I ${OUTPUT_PATH}/${OPENSSL}/include" \
   #    LDFLAGS+="-L${OUTPUT_PATH}/${OPENSSL}/lib -lssl -lcrypto"

   #make \
   #    CFLAGS+="-I ${OUTPUT_PATH}/${OPENSSL}/include" \
   #    LDFLAGS+="-L${OUTPUT_PATH}/${OPENSSL}/lib -lssl -lcrypto" \
   #    install
}

make_dirs
download_package
tar_package
make_ssl
make_paho_mqtt_c
make_mosquitto
exit $?

Target Board Preparation

Copy the runtime libraries from the install directory to the board and add them to the path.

Testing

Use the following test program, specifying the server according to your needs.

The relevant examples can be found in ${paho_mqtt_c}/src/samples.

cpp

/*
#    Copyright By Schips, All Rights Reserved
#    https://gitee.com/schips/
#
#    File Name:  main.cpp
#    Created  :  Sun 09 Feb 2020 10:14:44 AM CST
*/

#include <iostream>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <MQTTClient.h>   /* Location of MQTT header file */
#include <sys/time.h>
#include <termios.h>


#define ADDRESS     "tcp://localhost:1883"   /* Specify the server's IP address here using the local mosquitto for testing */
#define CLIENTID    "ExampleClientPub"
#define TOPIC       "MQTT Examples"
#define PAYLOAD     "Hello World!"
#define QOS         1
#define TIMEOUT     10000L

using namespace std;
int main(int argc, char* argv[]){
    MQTTClient client;
    MQTTClient_connectOptions conn_opts = MQTTClient_connectOptions_initializer;
    MQTTClient_message pubmsg = MQTTClient_message_initializer;
    MQTTClient_deliveryToken token;

    MQTTClient_message *receivemsg = NULL ;
    char* topicName_rev = NULL;
    int   topicLen_rev;

    int rc;
    int i;

    MQTTClient_create(&client, ADDRESS, CLIENTID,
    MQTTCLIENT_PERSISTENCE_NONE, NULL);
    conn_opts.keepAliveInterval = 60;
    conn_opts.cleansession = 1;

    if ((rc = MQTTClient_connect(client, &conn_opts)) != MQTTCLIENT_SUCCESS)
    {
        printf("Failed to connect, return code %d\n", rc);
        exit(-1);
    }
    pubmsg.payload = (void *)PAYLOAD;
    pubmsg.payloadlen = strlen(PAYLOAD);
    pubmsg.qos = QOS;
    pubmsg.retained = 0;
    MQTTClient_subscribe(client, "test", 1);                        /* Subscribe to a topic for a client */
    usleep(10000);
    MQTTClient_publishMessage(client, TOPIC, &pubmsg, &token); /* Send message */
    printf("Waiting for up to %d seconds for publication of %s\n"
            "on topic %s for client with ClientID: %s\n",
            (int)(TIMEOUT/1000), PAYLOAD, TOPIC, CLIENTID);
    rc = MQTTClient_waitForCompletion(client, token, TIMEOUT);
    printf("Message with delivery token %d delivered\n", token);
    for(;;)
    {
               if(MQTTClient_isConnected(client) == true)   /* Check connection status */
               {
                   printf("alive \n");
               }else{
                   printf(" no alive \n");
                   break;
               }
            rc = MQTTClient_receive(client,&topicName_rev, &topicLen_rev, &receivemsg,5000); /* Receive message */
               if(rc == MQTTCLIENT_SUCCESS)
               {
                printf("Message REv  %d delivered\n", rc);
                printf("topicName: %s  topicName_LEN: %d \n", topicName_rev,topicLen_rev);
                if(topicName_rev != NULL)                          /* Filter out heartbeat packets */
                {
                    printf("topicName: ");
                    for(i=0;i<topicLen_rev;i++)
                    {
                        printf(" %c ", topicName_rev[i]);
                    }
                    printf("\n");
                    printf("Data: %s  len:%d msgid: %d \n",(char *)receivemsg->payload,receivemsg->payloadlen,receivemsg->msgid);
                     if(strcmp((char *)receivemsg->payload,"ESC") == 0)
                    {
                        printf("ESC \n");
                        break;
                    }
                }
            }

            usleep(10000);
            usleep(100000);
    }
    MQTTClient_disconnect(client, 10000);
    MQTTClient_destroy(&client);
    return rc;
}

Compile Command

arm-linux-g++ -I ./paho.mqtt.c/src -L ./paho.mqtt.c/build/output/ -lpaho-mqtt3c main.cpp  -o client
