The Y series core board has added a new member following the release of RK3566 and Allwinner A133. LianZuan has launched the Y-3399 core board based on the Rockchip RK3399 processor. The core board features a stamped hole interface, offering high-performance computing and data processing capabilities, specifically designed for multimedia data processing, high-speed data transmission, and machine vision applications.

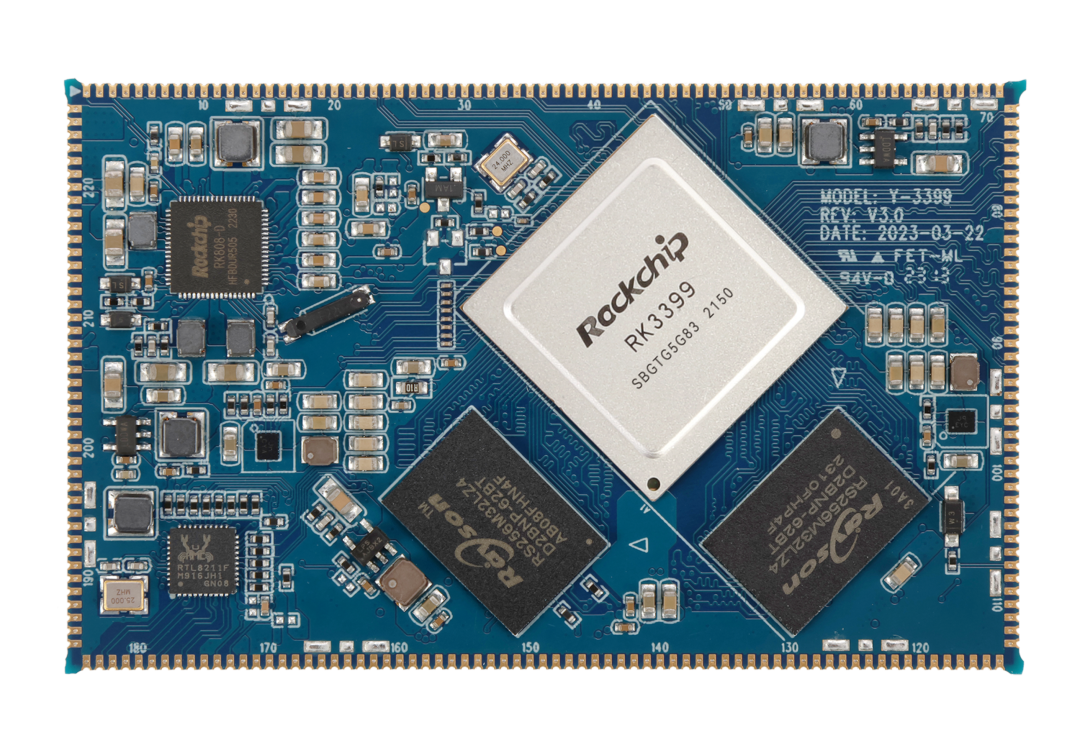

Six-Core High-Performance Processor
Equipped with the RK3399 (dual Cortex-A72 big cores + four Cortex-A53 small cores) six-core 64-bit ultra-powerful CPU, with a clock speed of up to 1.8GHz, the overall performance is improved by 45% compared to the previous generation. Additionally, it is equipped with the next-generation high-end image processor Mali-T864 GPU, which can be applied to practical applications such as gaming, computer vision, machine learning, 4K, and 3D rendering.

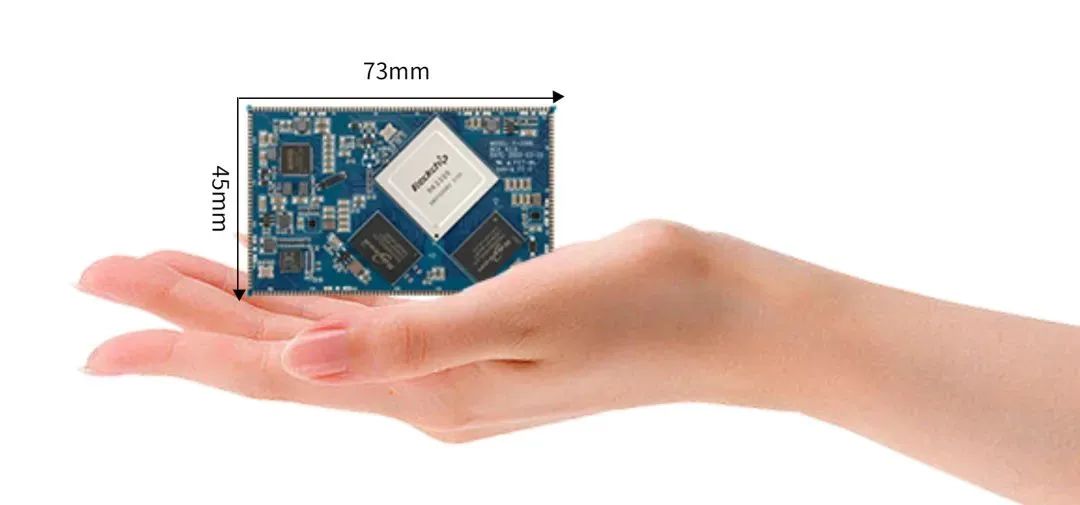

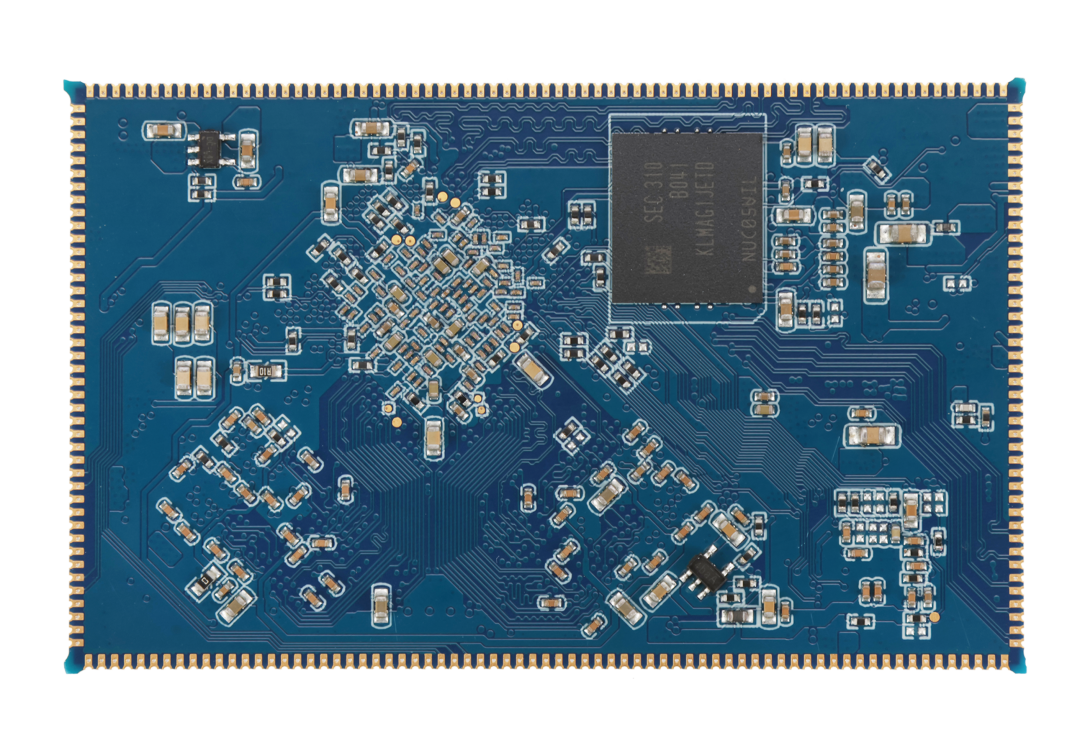

Uses Stamped Hole Interface
Adopts a 226-pin stamped hole interface, which is securely soldered, occupies less space, improves the integration, versatility, and vibration resistance of the core board, while optimizing costs..

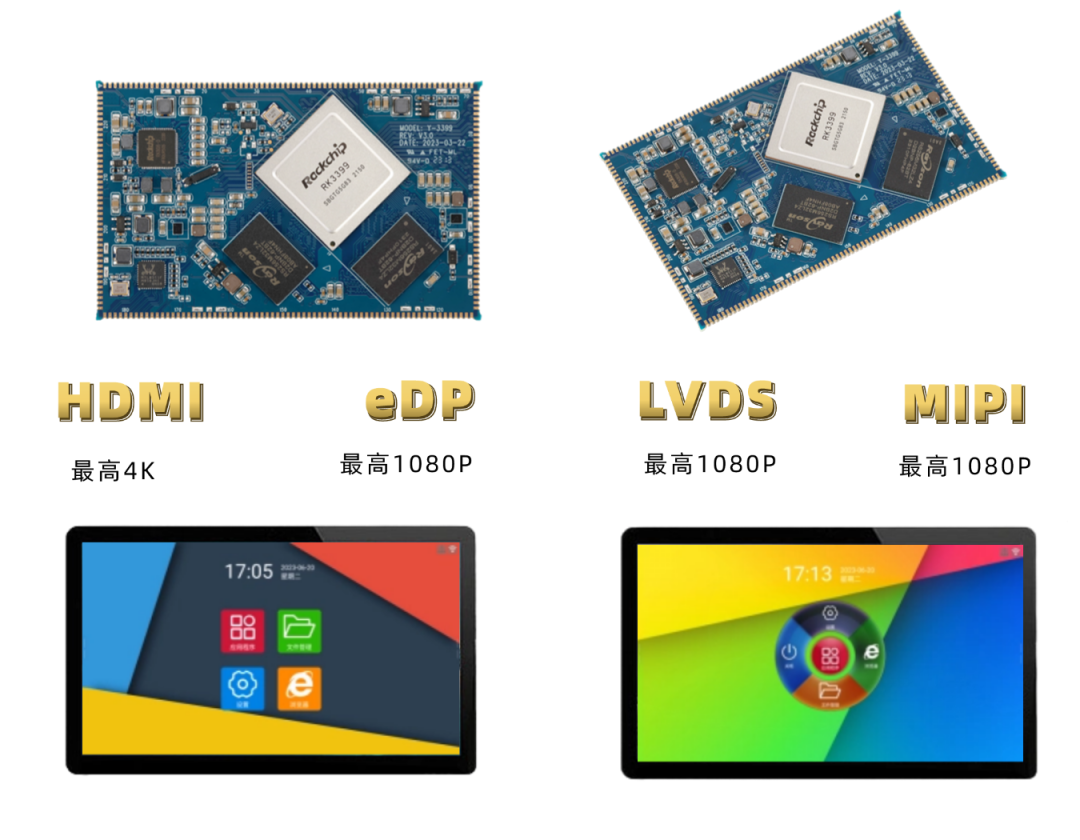

Supports Dual-Screen Display
The core board supports four display interfaces: LVDS, MIPI, eDP, and HDMI. Through chip expansion, the baseboard can be equipped with a 30P LVDS interface, a 31P FPC MIPI interface, a 20P FPC eDP interface, and a standard HDMI output interface, supporting any two display interface combinations for dual-screen display, meeting the needs of multi-screen display terminals.
Rich Interface Configuration
The core board can expand 2 Gigabit Ethernet ports, 10 USB interfaces, 4 serial ports, and 5 GPIOs through the baseboard, meeting the application needs of more scenarios and shortening the product development cycle.

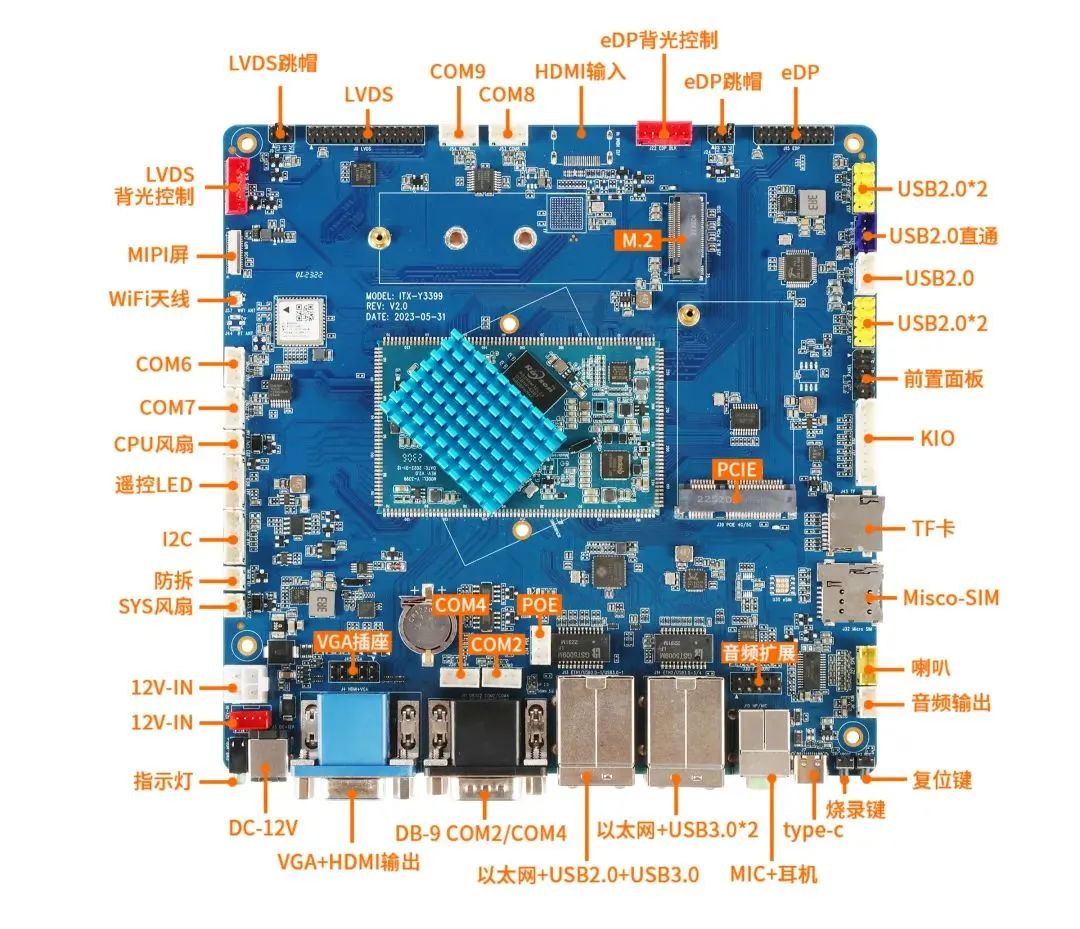

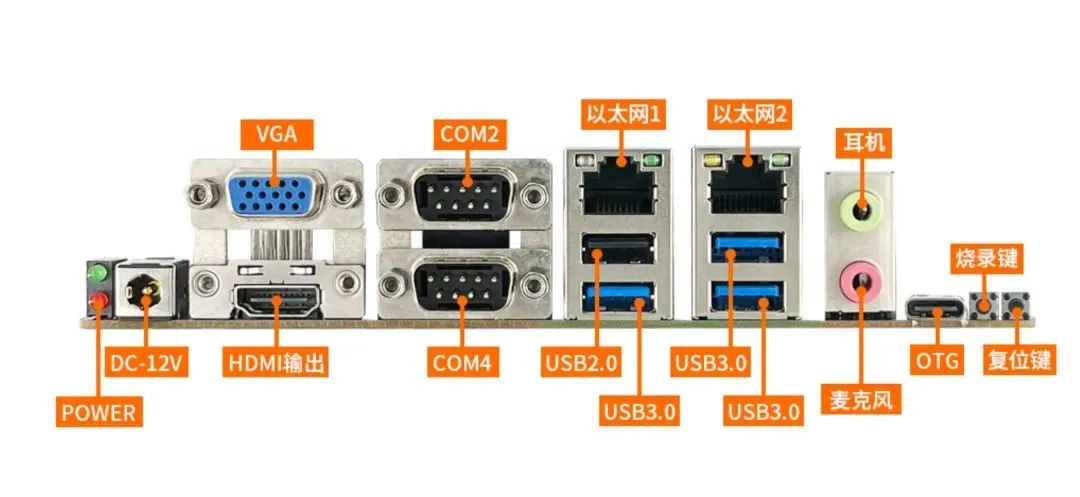

Mainboard Annotation Diagram + Interface Front View
Provides “Core Board + Baseboard” Testing
Provides ITX-Y3399 mainboard testing services, which integrates the Y-3399 core board and ITX-Y3399 baseboard, and exposes functional interfaces such as serial ports, USB, and Ethernet, facilitating users to evaluate the core board CPU performance and interface expansion capabilities, further enhancing development efficiency.

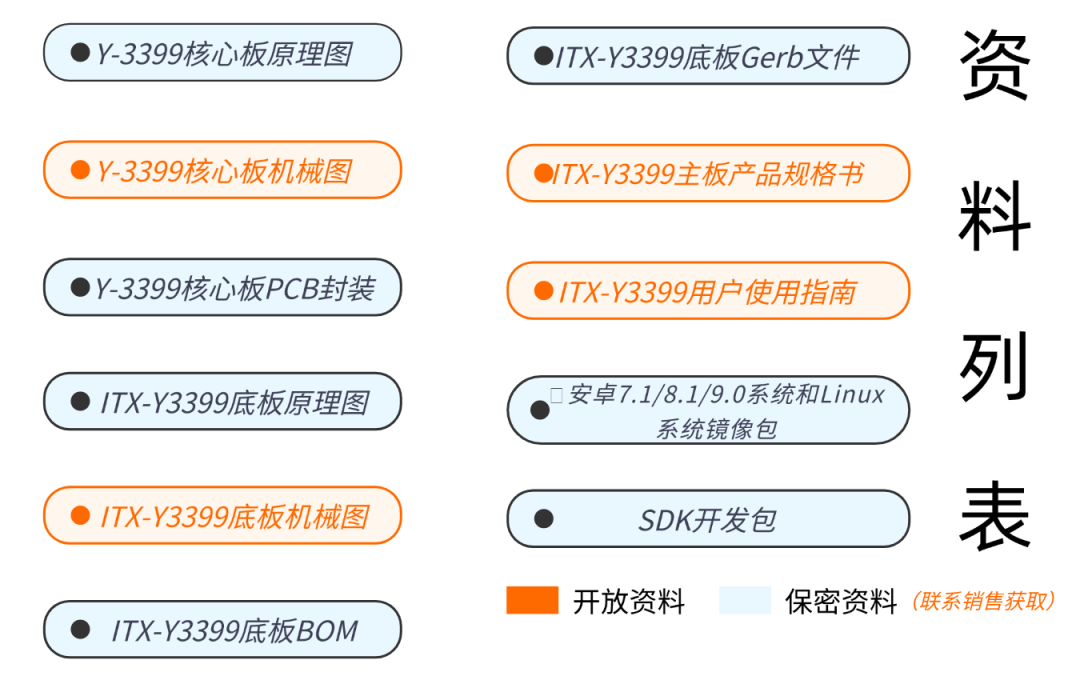

Rich Design Documentation
Provides abundant supporting hardware and software design documentation, including: hardware schematics and packaging, software development SDK, development documents, etc., assisting developers in quickly completing product design, minimizing project evaluation and design pressure, and making product development more efficient and reliable for every user.

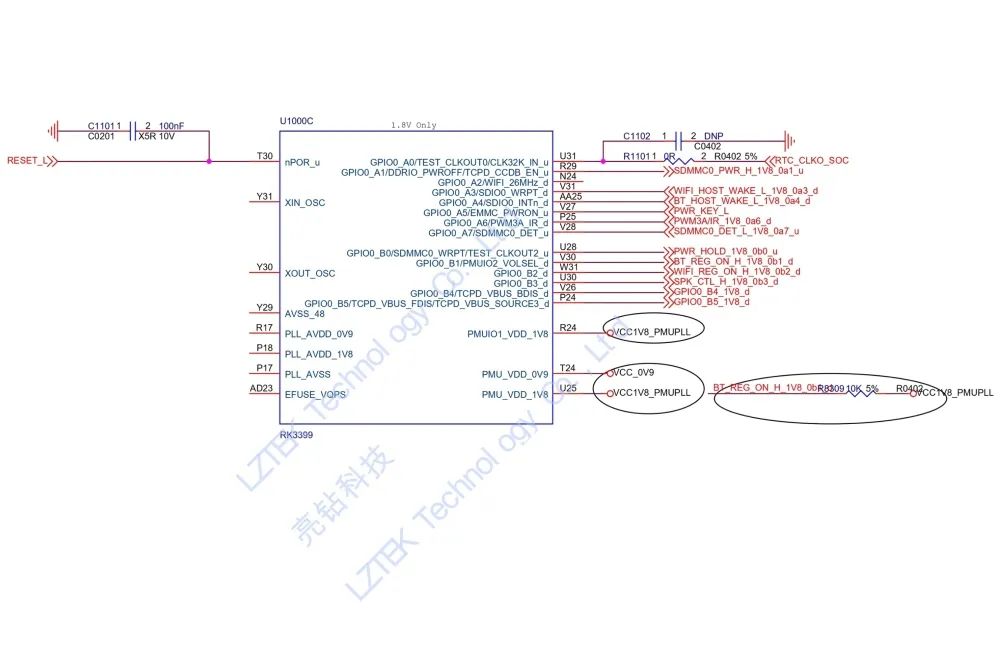

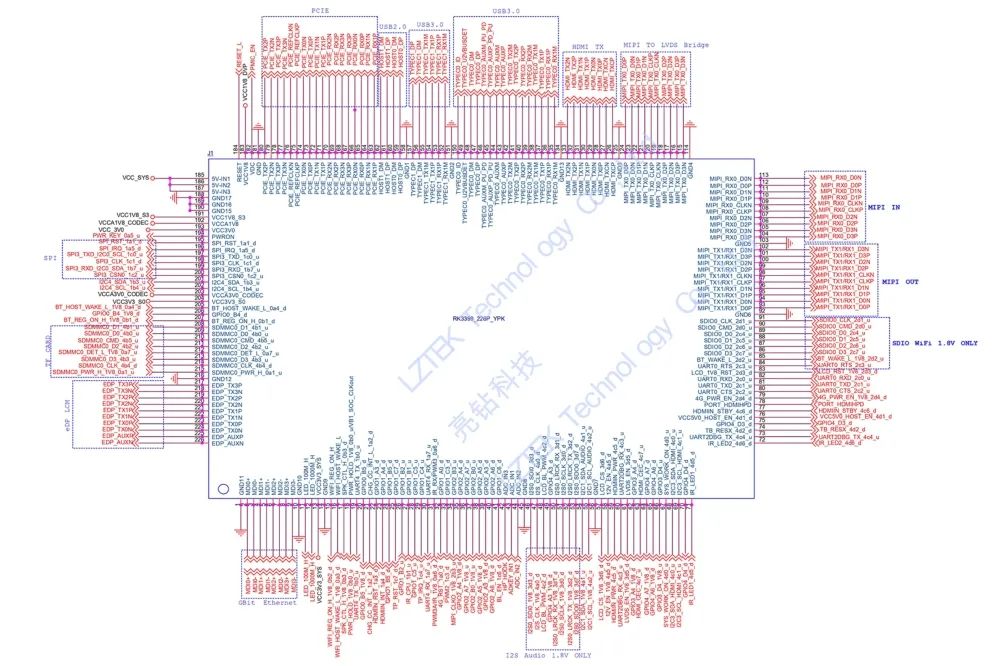

Schematic Screenshot

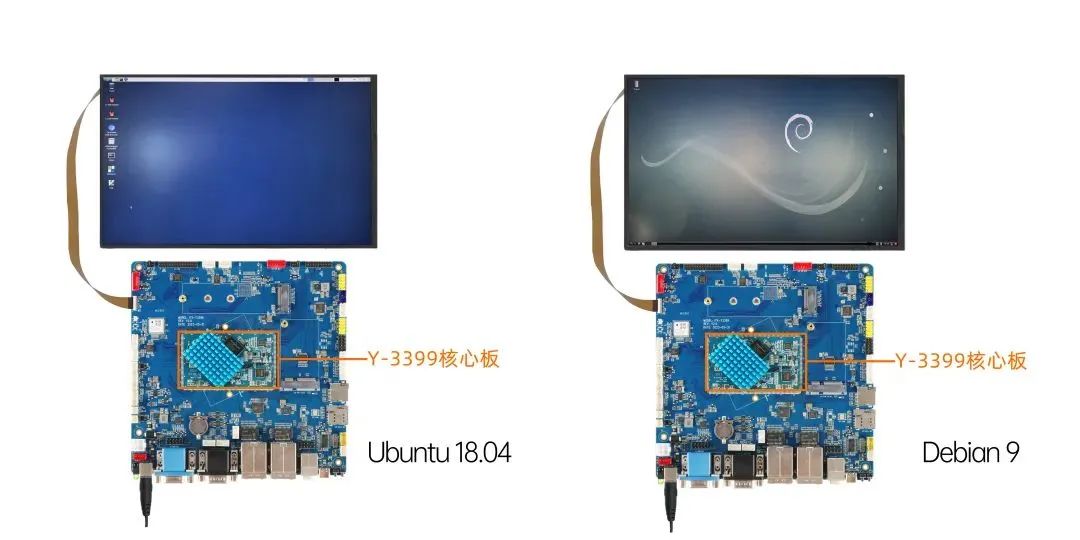

Comprehensive System Support

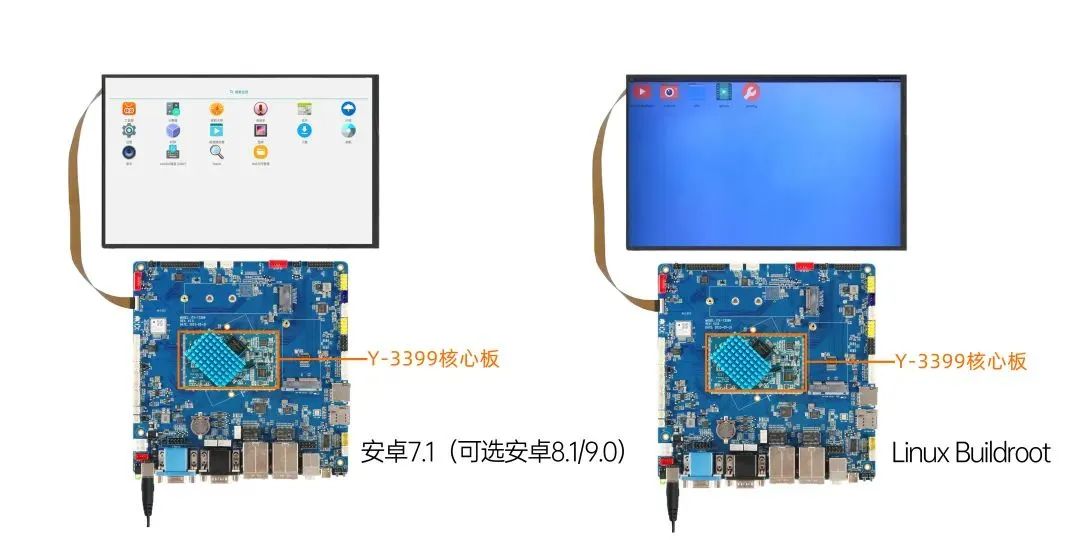

The Y-3399 supports Android 7.1, with built-in various powerful embedded hardware engines, providing faster running speeds while ensuring stability, security, and smoothness, offering high-performance guarantees for more high-end applications. It also supports optional systems such as Android 9.0, Ubuntu 18.04, and Debian 9.
Product Application Scenarios
The Y-3399 is suitable for applications in vending machines, robots, industrial computers, and other scenarios.
