Understanding the Differences Between Android and Embedded Linux Development

Introduction

Due to business needs, I started to involve in embedded Linux development from the familiar Android development over the past year. The programming language also changed from Java/Kotlin to the more challenging C++. There are actually many differences, and I have organized this article to compare the similarities and differences between these two development environments for those interested in embedded Linux development.

Target Audience

Those with some experience in Android development
Students who want to learn about embedded Linux development

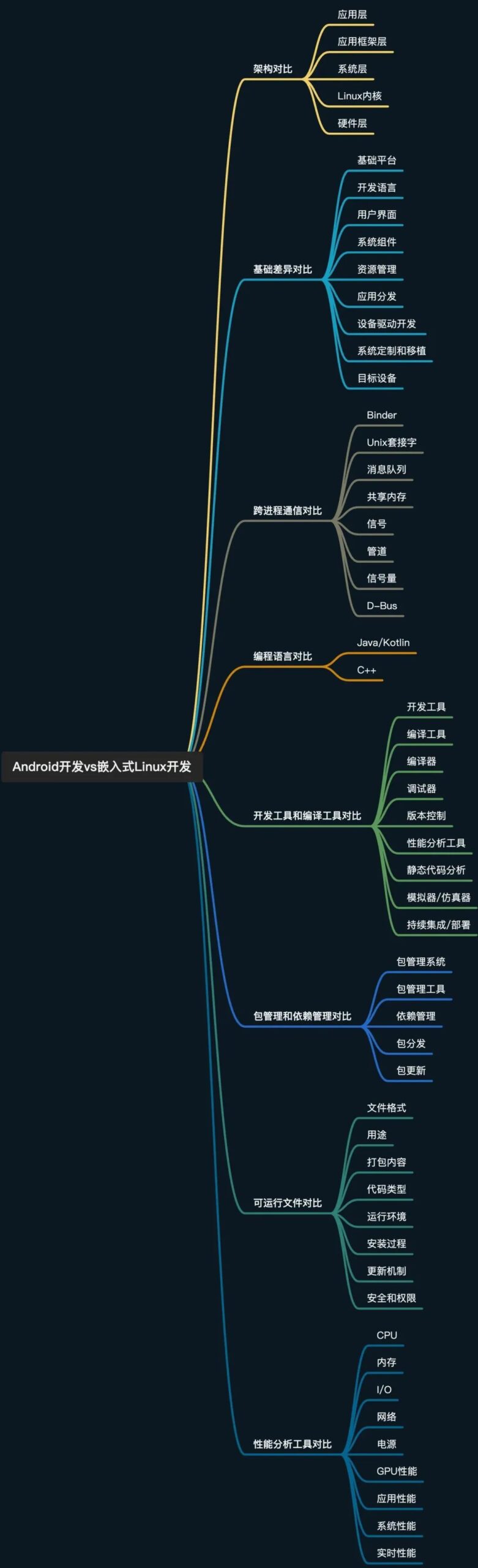

Mind Map

Architecture Comparison

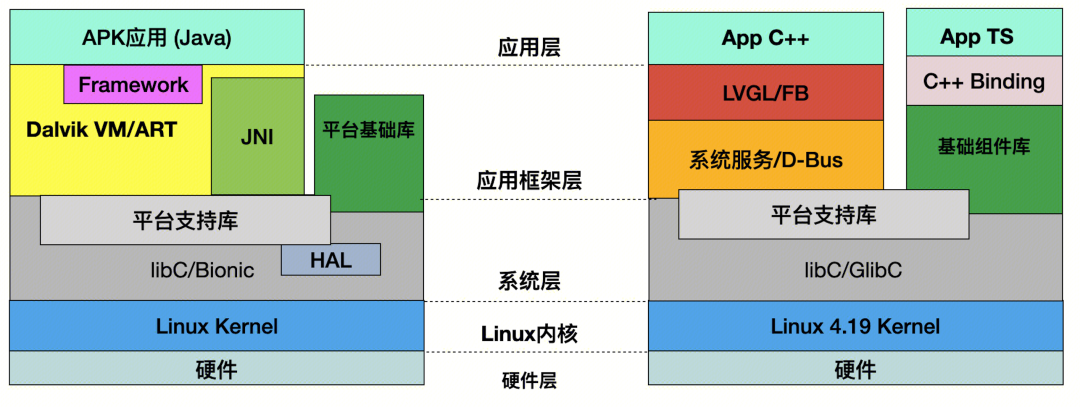

Note: The left side shows the Android platform architecture, while the right side shows our current Linux platform architecture.

From bottom to top:

Hardware Layer: The hardware layer is the bridge between the operating system and hardware devices, allowing the operating system and applications to communicate with various hardware devices for control and management. For Android, this includes devices like smartphones, tablets, and IoT devices, while for Linux, it includes embedded devices and IoT devices.
Linux Kernel: The Linux kernel is the core component of the Linux operating system, responsible for managing the system’s hardware resources, providing the environment needed for program execution, and coordinating interactions between programs. For example, Linux handles process management, memory management, file systems, device drivers, network protocol stacks, system calls, and security and permission management.
System Layer: This layer includes a series of libraries used to implement basic system functions and services. For example, accessing services provided by the operating system through libc or glibc.
Application Framework Layer: This layer is what we commonly refer to as the Framework, which provides APIs and components for developing Android applications, such as Activity, Service, Broadcast Receiver, etc. In Linux, there are also corresponding components and APIs, generally accessed through inter-process communication like DBus for services such as logging and networking.
Application Layer: This is the top layer we can see, including Android Apps on phones and Linux applications on embedded devices. We usually use Java to develop Android applications and C/C++ to develop Linux applications.

Basic Differences Comparison

Item	Android Development	Embedded Linux Development
Base Platform	Based on Linux Kernel	Based on Linux Kernel
Development Language	Java/Kotlin (Application Layer), C/C++ (Lower-level Libraries and JNI Interfaces)	C/C++, Other Languages (such as Python)
Development Environment	Android Studio, Eclipse, etc.	Visual Studio Code, Eclipse, Code::Blocks, or Custom Development Environment
User Interface	Android UI Framework (such as XML Layouts, Activity, etc.)	Must choose or develop graphical interface libraries (such as LVGL, Qt, GTK+, etc.)
System Components	Activity, Service, Broadcast Receiver, etc.	No unified system components; designed and implemented based on project needs
Resource Management	Strict resource management regulations (e.g., memory, power, etc.)	No unified resource management regulations; needs optimization based on requirements
Application Distribution	Google Play or other app markets	Deployed and upgraded by device manufacturers or system integrators
Device Driver Development	Android HAL Layer Device Driver Development	Device Driver Development based on Linux Kernel
System Customization and Porting	Android System Customization and Porting	Embedded Linux System Customization and Porting
Target Devices	Mainly for mobile devices (such as phones, tablets, etc.)	For various embedded devices (such as routers, industrial control devices, etc.)

This table presents the main similarities and differences between Android development and embedded Linux development. Although they are both based on the Linux kernel at the lower level, there are significant differences in application development, user interfaces, system components, etc. The GUI frameworks for embedded Linux are not as complete and convenient as Android’s. For example, to implement an embedded user interface, one might have to write the interface code manually using the LVGL framework developed in C, resulting in redundant UI interaction code.

Example:

#include "../lv_examples.h"
#if LV_BUILD_EXAMPLES && LV_USE_BTN

static void btn_event_cb(lv_event_t * e)
{
    lv_event_code_t code = lv_event_get_code(e);
    lv_obj_t * btn = lv_event_get_target(e);
    if(code == LV_EVENT_CLICKED) {
        static uint8_t cnt = 0;
        cnt++;

        /*Get the first child of the button which is the label and change its text*/
        lv_obj_t * label = lv_obj_get_child(btn, 0);
        lv_label_set_text_fmt(label, "Button: %d", cnt);
    }
}

/**
 * Create a button with a label and react on click event.
 */
void lv_example_get_started_1(void)
{
    lv_obj_t * btn = lv_btn_create(lv_scr_act());     /*Add a button the current screen*/
    lv_obj_set_pos(btn, 10, 10);                            /*Set its position*/
    lv_obj_set_size(btn, 120, 50);                          /*Set its size*/
    lv_obj_add_event_cb(btn, btn_event_cb, LV_EVENT_ALL, NULL);           /*Assign a callback to the button*/

    lv_obj_t * label = lv_label_create(btn);          /*Add a label to the button*/
    lv_label_set_text(label, "Button");                     /*Set the labels text*/
    lv_obj_center(label);
}

#endif

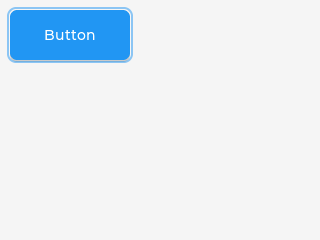

The UI effect is as follows:

Inter-Process Communication Comparison

In both Android and Linux systems, inter-process communication (IPC) is a mechanism for transmitting data and messages between different processes. Below is a comparison of IPC in Android and Linux:

Dimension	Android IPC	Linux IPC
Binder	Provides Binder mechanism for inter-process communication	Does not support Binder mechanism
Unix Socket	Supports Unix domain sockets	Supports Unix domain sockets
Message Queue	Does not directly support SysV message queues, can use JNI	Supports SysV message queues and POSIX message queues
Shared Memory	Supports anonymous shared memory (ashmem) and memory file mapping	Supports SysV shared memory and POSIX shared memory
Signals	Limited signal support, not recommended for IPC	Supports signals for simple inter-process communication
Pipes and Named Pipes	Supports pipes and named pipes (FIFO)	Supports pipes and named pipes (FIFO)
Semaphores	Does not directly support SysV semaphores, can use JNI	Supports SysV semaphores and POSIX semaphores
D-Bus	Does not directly support D-Bus, can use third-party libraries	Supports D-Bus for communication between desktop environments and system services

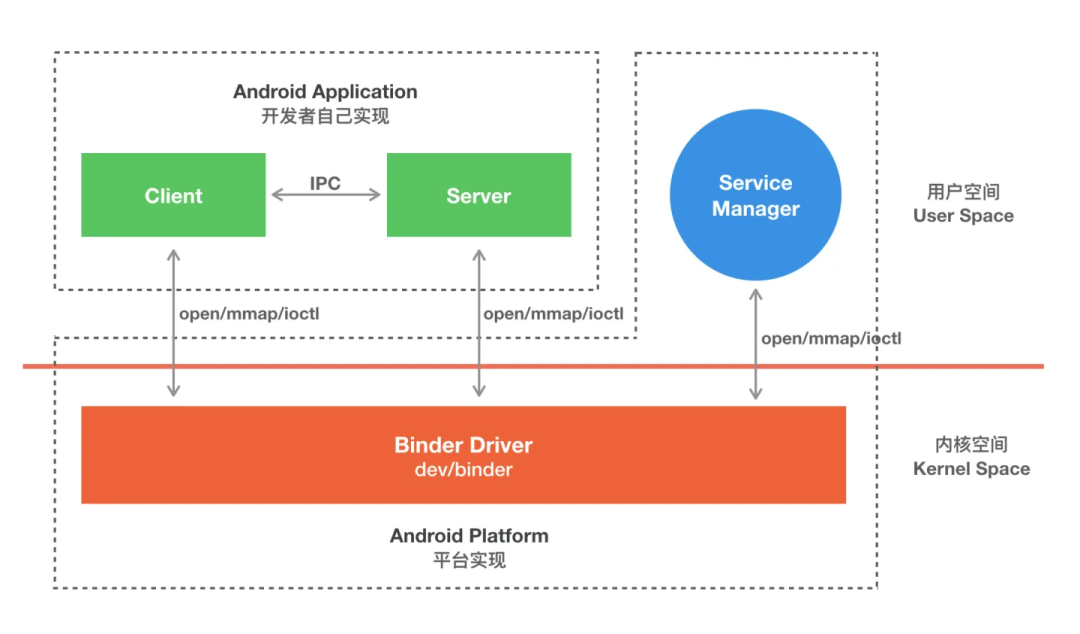

The Binder mechanism is a very important knowledge point in Android development, as shown in the diagram below:

Image source: https://zhuanlan.zhihu.com/p/35519585

The advantage of Binder is that it provides a high-performance, stable, and secure inter-process communication mechanism. Based on the C/S architecture, responsibilities are clear and the architecture is straightforward; during communication, only one memory copy is needed, making its performance second only to shared memory. However, it allocates a UID for each app process, which can be used for identity verification through UID.

D-Bus

D-BUS is an inter-process communication (IPC) mechanism primarily used for local inter-process communication based on AF_UNIX sockets (though it can also be based on TCP/IP) for cross-host communication. The principle diagram is as follows:

Image source: https://hustcat.github.io/getting-started-with-dbus/

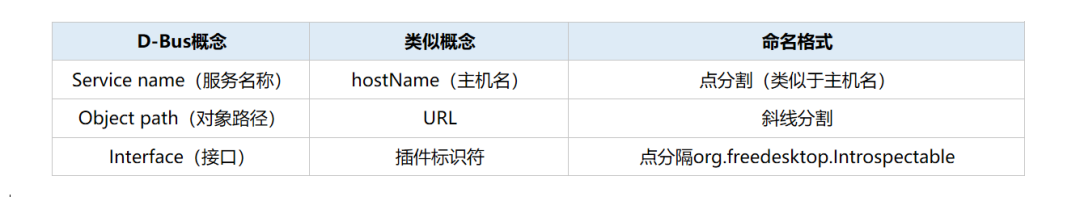

The D-Bus protocol is an end-to-end communication protocol, with core foundational concepts as follows:

Programming Language Comparison

Parameter	Java	Kotlin	C++
History	Developed in 1995 by James Gosling at Sun Microsystems	Developed in 2011 by JetBrains	Developed in 1979 by Bjarne Stroustrup at Bell Labs
Programming Paradigm	Object-oriented	Object-oriented and functional programming	Procedural and object-oriented
Platform Dependency	Platform-independent	Platform-independent	Platform-dependent
Compilation and Interpretation	Compiled and interpreted	Compiled and interpreted	Compiled only
Memory Management	System-controlled	System-controlled	Manual control
Portability	Portable	Portable	Not portable
Pointers	Limited support	No support	Strong support
Parameter Passing	Pass by value	Pass by value	Pass by value and pass by reference
Overloading	Only method overloading	Operator and method overloading	Operator and method overloading
Thread Support	Built-in thread support	Built-in thread support	Depends on third-party thread libraries
Document Comments	Supported	Supported	Not supported
Compatibility	Not compatible with other languages	Compatible with Java	Compatible with C
Goto Statement	Not supported	Not supported	Supported
Multiple Inheritance	Single inheritance	Single inheritance	Single and multiple inheritance
Structures and Unions	Not supported	Supports data classes	Supported
Virtual Keyword	All non-static methods are virtual by default	Does not support virtual keyword	Supports virtual keyword
Hardware	Far from hardware	Far from hardware	Close to hardware
Data and Functions	Must be in classes, can have package scope	Must be in classes, can have package scope	Provides global and namespace scope
Runtime Error Detection	Handled by the system	Handled by the system	Handled by the programmer
Root Hierarchy	Supports single root hierarchy	Supports single root hierarchy	No root hierarchy
Input/Output	System.in and System.out.println	println and readLine()	Cin and Cout

The biggest differences between C++, Java, and Kotlin lie in their programming paradigms, memory management, and platform dependencies.

Programming Paradigm: C++ supports procedural and object-oriented programming, while Java and Kotlin mainly support object-oriented programming. Kotlin also supports functional programming.
Memory Management: C++ requires programmers to manually manage memory allocation and release, while Java and Kotlin use automatic memory management (garbage collection), making Java and Kotlin easier to use but potentially sacrificing performance in some cases.
Platform Dependency: C++ is platform-dependent and needs to be compiled for different platforms. Java and Kotlin are platform-independent, allowing code to be written once and run on any platform that supports the Java Virtual Machine (JVM). Kotlin can also be compiled to JavaScript and native code for broader platform compatibility.

These differences make C++ more suitable for low-level system development, performance-critical applications, and embedded systems, while Java and Kotlin are more suitable for cross-platform applications, web applications, and mobile application development.

Development Tools and Compiler Tools Comparison

Item	Android Development	Embedded Linux Development
Development Tools	Android Studio, Eclipse, etc.	Visual Studio Code, Eclipse, Code::Blocks, or Custom Development Environment
Compiler Tools	Gradle (Application Layer), Android NDK (Lower-level Libraries and JNI Interfaces)	Make, CMake, Autotools, etc.
Compilers	Java Compiler (Application Layer), GCC (Lower-level Libraries and JNI Interfaces)	GCC, Clang, etc.
Debuggers	Android Debug Bridge (ADB), Logcat, DDMS, etc.	GDB, KGDB, etc.
Version Control	Git, SVN, Mercurial, etc.	Git, SVN, Mercurial, etc.
Performance Analysis Tools	Android Profiler, Traceview, Systrace, etc.	Perf, Valgrind, OProfile, etc.
Static Code Analysis	Lint, SonarQube, etc.	Lint, cppcheck, Coverity, etc.
Emulators/Simulators	Android Emulator, Genymotion, etc.	QEMU, VirtualBox, etc.
Continuous Integration/Deployment	Jenkins, CircleCI, GitLab CI, etc.	Jenkins, CircleCI, GitLab CI, etc.

There are some core differences in the development tools and compiler tools used in Android and embedded Linux development. Here are some of the main differences:

Development Tools:

Android Development:

Android Studio: This is the official integrated development environment (IDE) provided by Google for Android developers, which includes a code editor, debugger, emulator, and other tools, supporting Java and Kotlin for Android application development.
ADB (Android Debug Bridge): This is a command-line tool that facilitates communication between the development machine and Android devices, supporting application installation, system log viewing, application debugging, and more.

Embedded Linux Development:

Eclipse, Visual Studio Code, and other general-purpose IDEs: These IDEs support C/C++ and other languages and can be used for embedded Linux application development.
GDB (GNU Debugger): This is a powerful source-level debugger used for debugging embedded Linux applications.

Compiler Tools:

Android Development:

Gradle: This is the official build tool for Android, used for compiling and packaging Android applications.
Android NDK (Native Development Kit): This is a toolkit for compiling and linking the native parts of Android applications written in C/C++.

Embedded Linux Development:

GCC (GNU Compiler Collection): This is an open-source collection of compilers for compiling C/C++ and other languages.
Make: This is a build tool for automating the compilation and linking process.
CMake: This is a cross-platform build system for generating Makefiles or other build scripts.

Package Management and Dependency Management Comparison

Item	Android Development	Embedded Linux Development
Package Management System	APK (Android Package)	dpkg, RPM, ipkg, etc.
Package Management Tools	ADB (Android Debug Bridge)	apt-get, yum, opkg, etc.
Dependency Management	Gradle, Maven, etc.	Conan, Makefile, autoconf, etc.
Application Distribution	Domestic app stores (Xiaomi, Huawei, OPPO, Vivo, etc.), Google Play, APKPure, etc.	Deployed and upgraded by device manufacturers or system integrators
Application Updates	Self-built application upgrades, OTA upgrades, Google Play auto-updates	OTA upgrades, can also be manually updated or automatically updated via scripts

In Android and embedded Linux development, package management and dependency management are related concepts that handle the libraries, components, and resources required by applications or systems. Here are the main differences in package management and dependency management:

Android Package Management and Dependency Management:

APK (Android Package Kit): This is the installation package format for Android applications, containing all application code, resources, certificates, and manifest files.
App Store: Android applications are typically distributed and updated through app stores (such as Google Play, Huawei App Market, etc.). The app store is responsible for auditing, signing, installing, and updating applications.
Gradle: Android Studio uses Gradle as the build system, which handles the dependencies of applications. Developers can declare the required third-party libraries in the project’s build.gradle file, and Gradle will automatically download and integrate these libraries from remote repositories (such as Maven Central, JCenter, etc.).
Android SDK/NDK: The Android SDK provides a set of APIs and components for developing Android applications, while the Android NDK offers tools for handling native C/C++ code dependencies. These components are already included in the Android system, requiring no additional dependency handling.

Embedded Linux Package Management and Dependency Management:

Package Format: The package format for embedded Linux systems depends on the specific distribution, such as Debian/Ubuntu using deb packages, Red Hat/CentOS using RPM packages, and OpenWrt using opkg packages.
Software Repository: Embedded Linux applications are typically distributed and updated through software repositories. A software repository is a server containing pre-compiled software packages, which users can install and update software packages from using package managers (such as apt, yum, opkg, etc.).
Package Managers: Embedded Linux distributions generally provide a package manager (such as apt, yum, opkg, etc.) for automatically handling system and application dependencies. Developers can use the package manager to install the required libraries and components from the software repository.
Build Systems: In embedded Linux development, build tools like Makefile, autoconf, and CMake can be used to handle project dependencies. Developers need to manually declare the required libraries and components in the build scripts.

Executable File Comparison

Android APK (Android Package) and Linux executable files are two different application formats used for Android and Linux systems, respectively. Here is a comparison of Android APK and Linux executable files:

Dimension	Android APK	Linux Executable File
File Format	APK (Android Package)	ELF (Executable and Linkable Format)
Purpose	Installation package for Android applications	Executable program on Linux systems
Contents	Application code, resources, manifest files, etc.	Executable code, data, symbol tables, etc.
Code Type	Java/Kotlin bytecode, C/C++ libraries (optional)	Usually compiled machine code
Runtime Environment	Android Runtime (ART) or Dalvik Virtual Machine	Runs directly on the Linux operating system
Installation Process	Installed on Android devices through app stores or ADB	Installed through package managers, compiled installation, or manually copied to system directories
Update Mechanism	Automatically updated or manually updated through app stores	Updated through package managers or manually replaced executable files
Security and Permissions	Android permission model, application signatures	Linux user/group permissions, file permissions, etc.

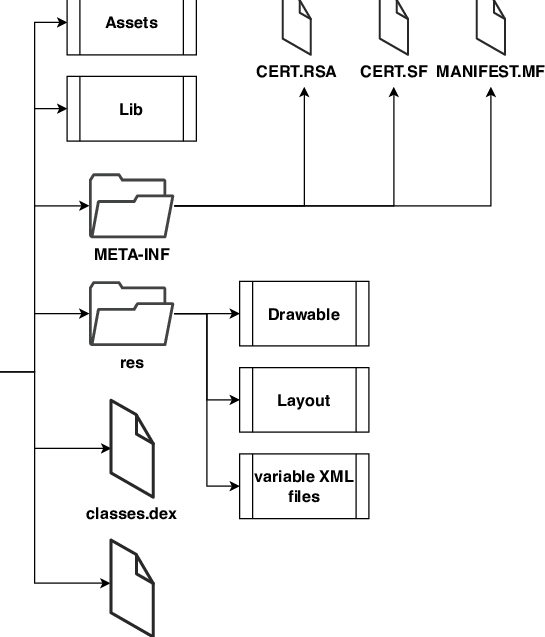

Overview of APK files:

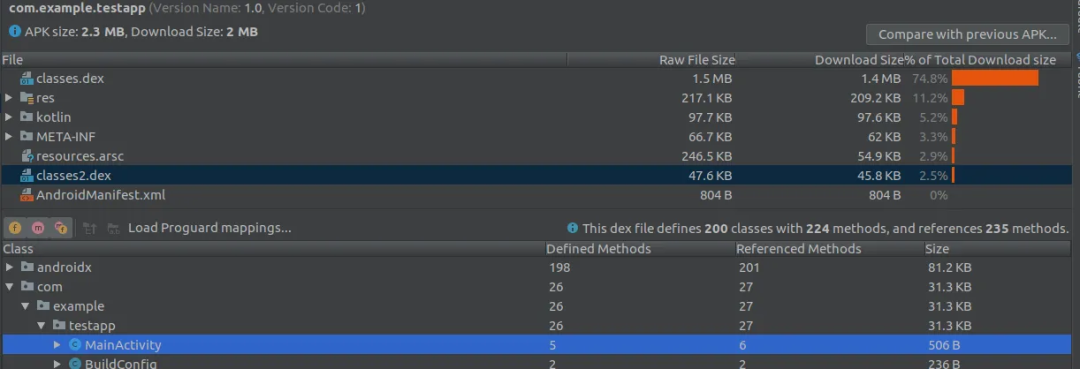

Analysis of APK in Android Studio:

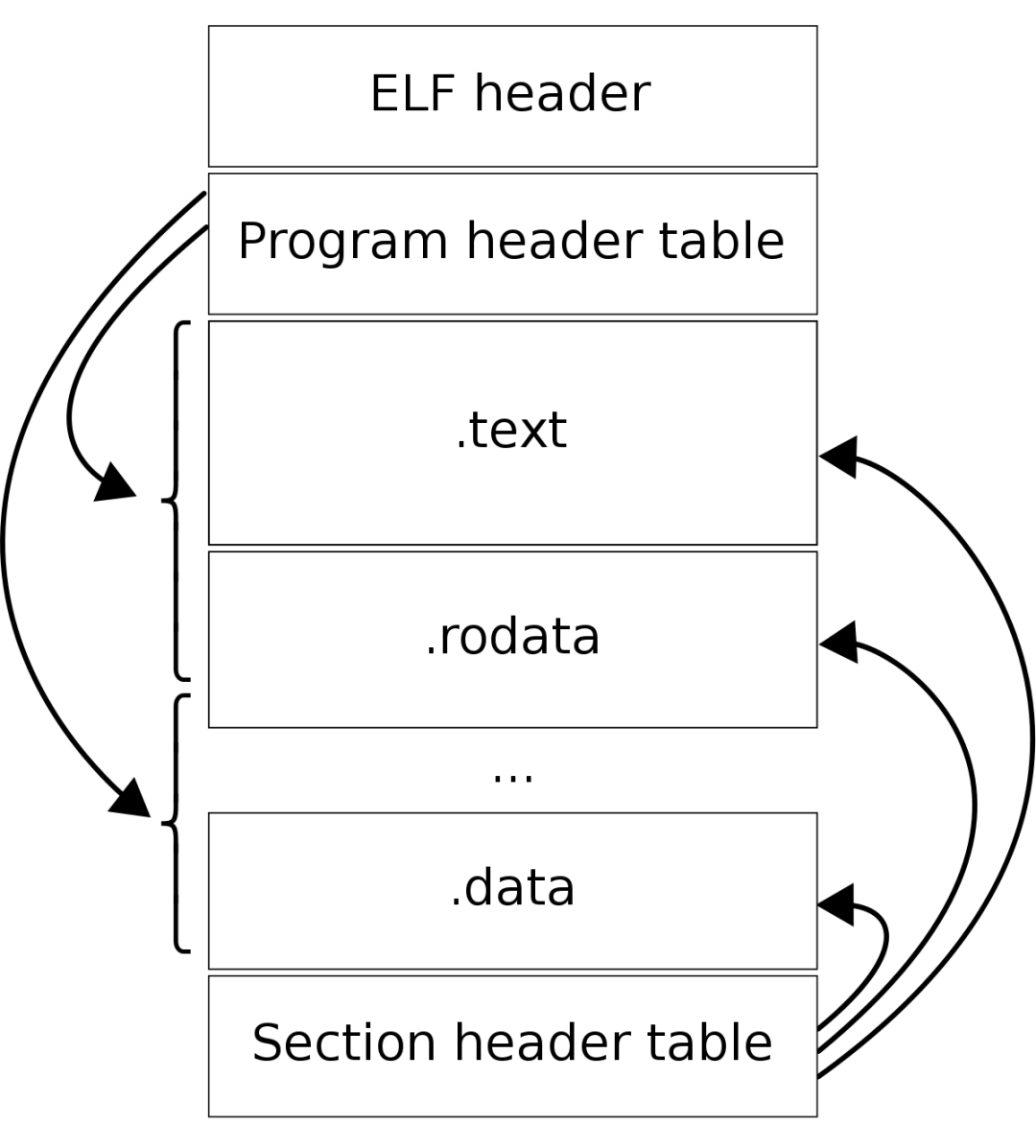

Overview of ELF executable files in Linux:

Performance Analysis Tools Comparison

Item	Android Development	Embedded Linux Development
CPU Performance Analysis	Traceview, Systrace, Simpleperf, etc.	Perf, OProfile, GProf, etc.
Memory Performance Analysis	Android Profiler, LeakCanary, etc.	Valgrind, Massif, etc.
Disk I/O Analysis	Android Profiler, iostat, etc.	iostat, blktrace, etc.
Network Performance Analysis	Android Profiler, tcpdump, etc.	tcpdump, Wireshark, iperf, etc.
Power Performance Analysis	Battery Historian, Systrace, etc.	PowerTOP, Intel Energy Profiler, etc.
GPU Performance Analysis	GPU Debugging, Systrace, etc.	GPU PerfStudio, NVIDIA Nsight, etc.
Application Performance Analysis	Android Profiler, Firebase Performance, etc.	Custom performance analysis tools or third-party libraries
System Performance Analysis	Systrace, Android Profiler, etc.	SystemTap, LTTng, Ftrace, etc.
Real-time Performance Analysis	Systrace, Android Profiler, etc.	PREEMPT_RT patches, RT-Tester, etc.

The performance metrics we focus on in Android are actually quite similar in Linux, but the analysis methods and tools differ under different systems. Analyzing the performance of Android applications is much more convenient compared to Linux, as Android Studio has a powerful performance analysis tool—Android Profiler—that can analyze CPU, Memory, Network, Energy, and Timeline.

Conclusion

This article provides a detailed comparison from architecture, main differences, programming languages, IDE/compiler tools, package management, executable files, and performance analysis tools. For those with Android development experience looking to transition to embedded Linux, there is indeed a lot to learn, but the development thinking is largely similar. The general approach is to organize code through development frameworks and programming languages, use inter-process communication to implement service calls, compile into executable files that can run in the system environment, and pay attention to how to perform application updates and conduct performance analysis on running applications, among other tasks. Of course, actual development work is much more complex, and to achieve a commercially viable product, more capabilities need to be expanded in conjunction with business requirements, such as adding log reporting, crash capture, network components, storage components, asynchronous programming components, etc.
