Open Source Communication Debugging Tool Supporting Modbus and MQTT

Introduction

A communication debugging tool developed based on WPF, featuring a user-friendly interface and easy operation. It supports both Modbus and MQTT protocols, enabling debugging of various communication methods. Whether in industrial automation, smart home, or IoT fields, this tool can meet your needs. Additionally, the code is open source and modular, making it highly effective for both learning and debugging.

Technologies Used

Communication debugging tool developed with C#, WPF, Prism, MaterialDesign, and HandyControl, supporting Modbus RTU debugging and MQTT debugging.

Software Features

1. 1. Supports Modbus RTU, MQTT server, and MQTT client

2. 2. Rich color interface

3. 3. Automatic parsing of Modbus RTU data frames

4. 4. Intelligent prevention of packet sticking, fast parsing (frames that cannot be verified may result in errors)

Function Introduction

Modbus RTU

1. 1. Automatic formatting, parsing, and verification of data frames

2. 2. Custom frames with automatic verification support

3. 3. Device search with multiple combinations for automatic device discovery

4. 4. Data monitoring with configurable byte order, data types, etc., supporting read and write operations

5. 5. Automatic response

MQTT Server

1. 1. Start an MQTT server locally for client connection testing

2. 2. Right-click messages to format and view JSON data

MQTT Client

1. 1. Start an MQTT client to connect to the MQTT server

2. 2. Provides subscription management, allowing subscriptions and unsubscriptions

3. 3. Right-click messages to format and view JSON data

Core Function Overview

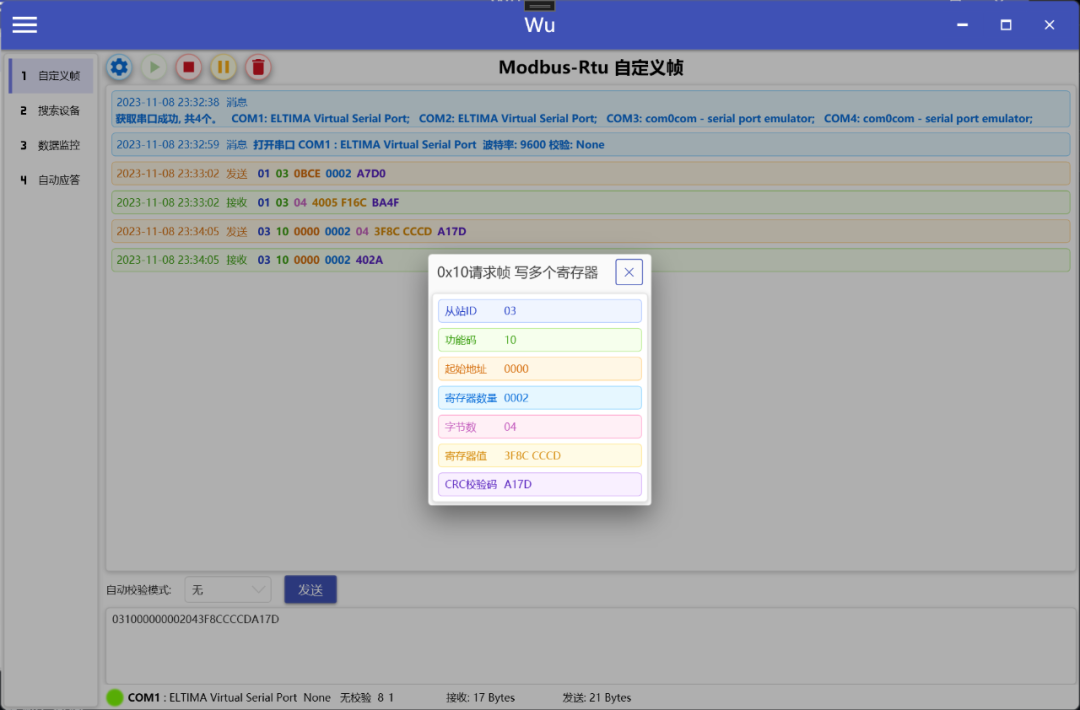

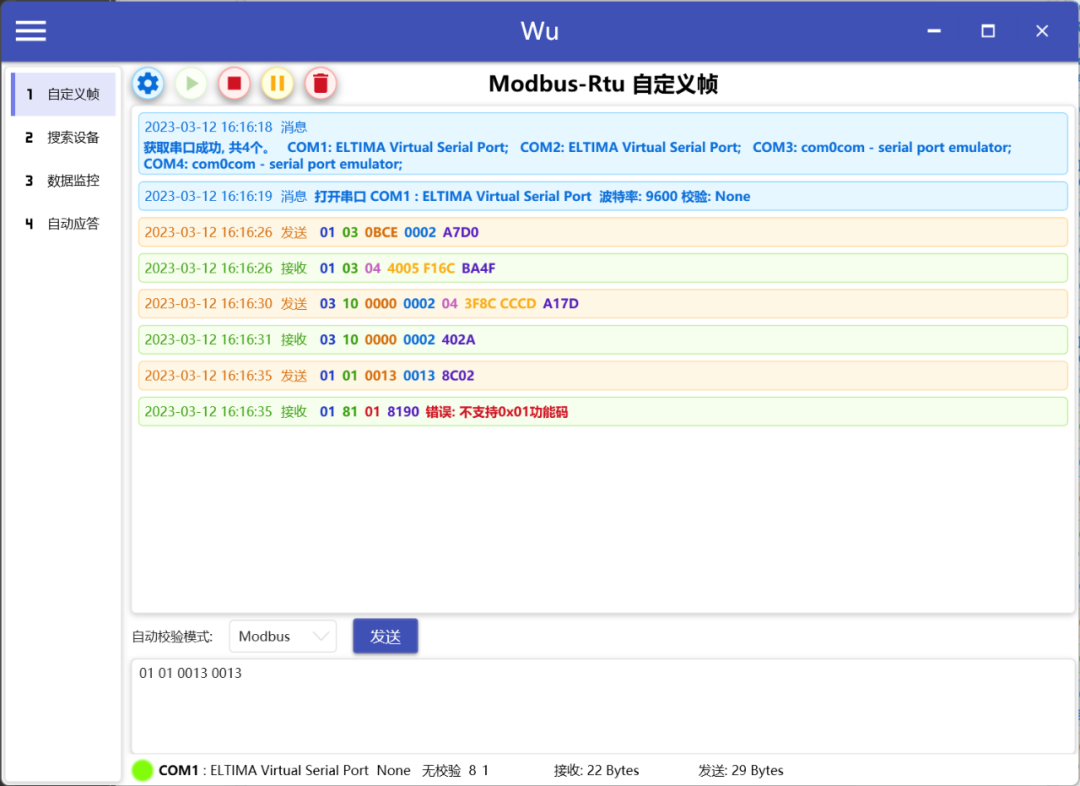

Modbus RTU Custom Frame

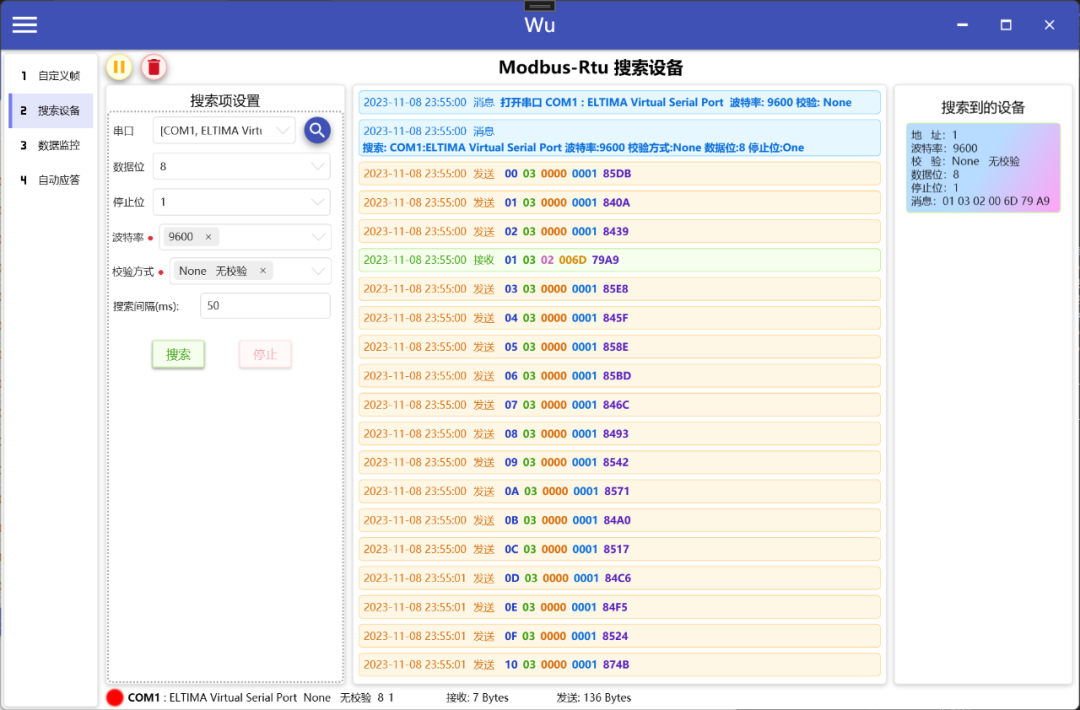

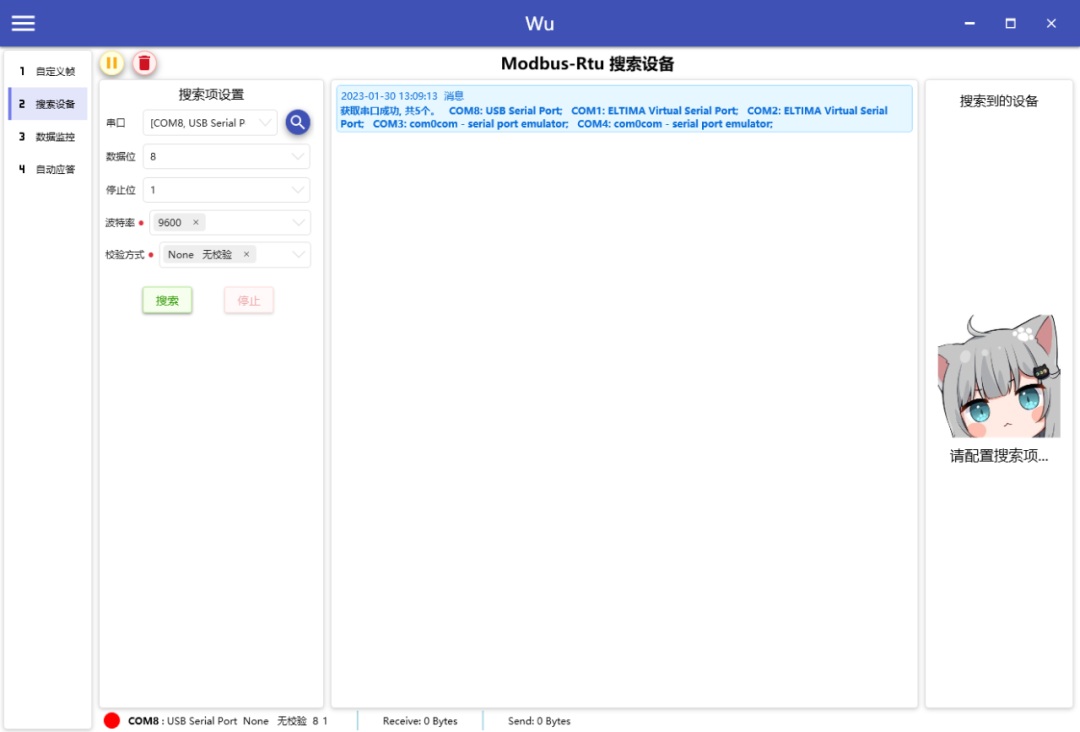

Modbus RTU Device Search

Parameter settings allow selection of multiple baud rates and verification methods

Discovered devices will be displayed on the right

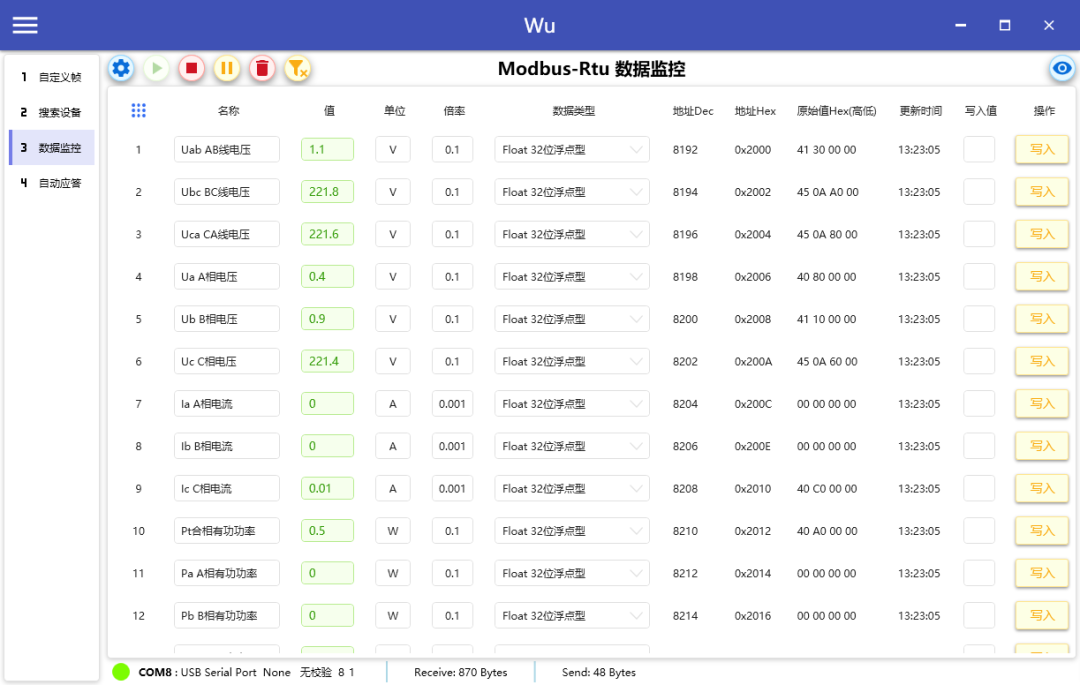

Modbus RTU Data Monitoring

Data monitoring settings allow configuration export for easy import next time

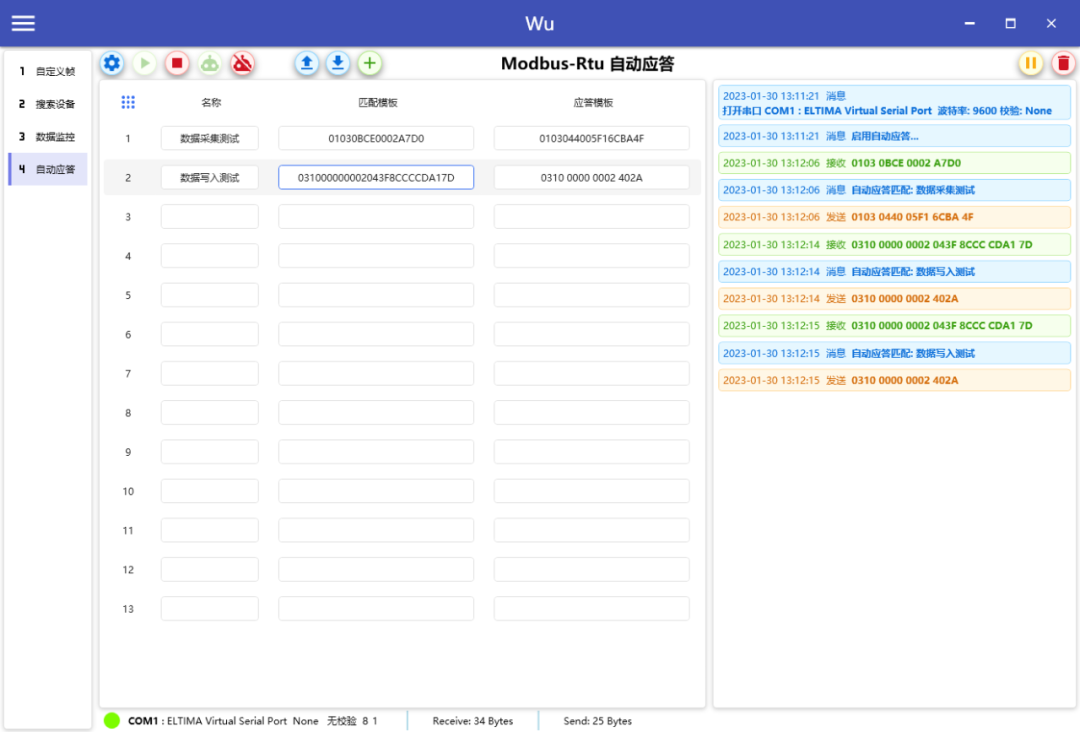

Modbus RTU Automatic Response

Set matching templates and response templates; when received data matches the template, the response template will be sent automatically

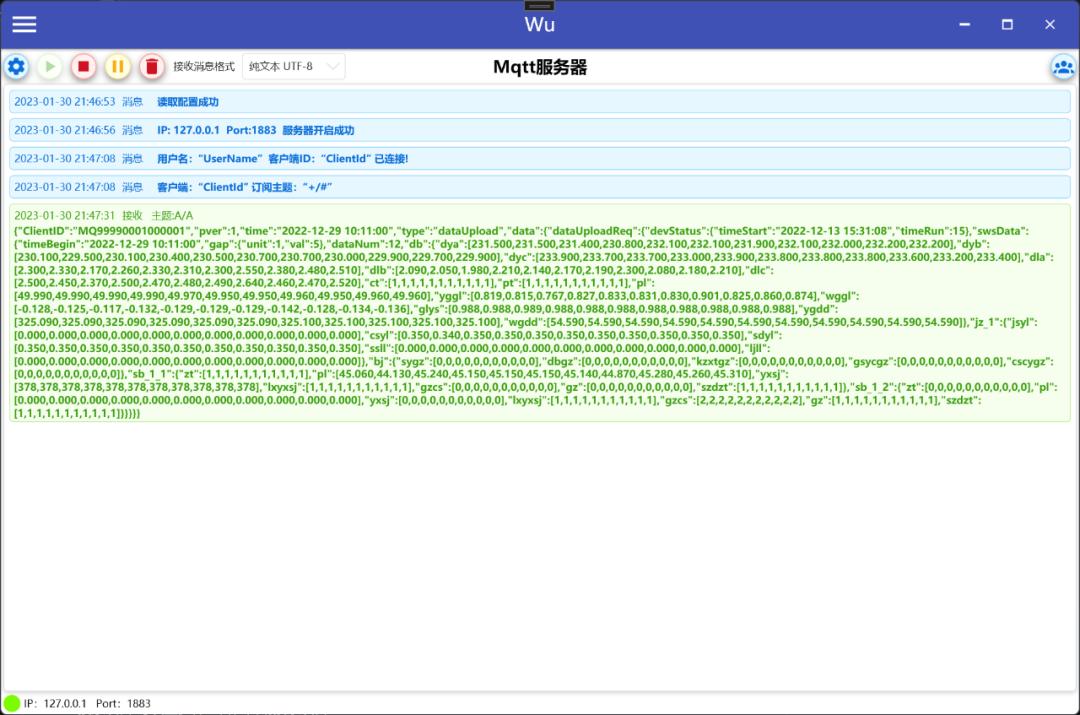

MQTT Server

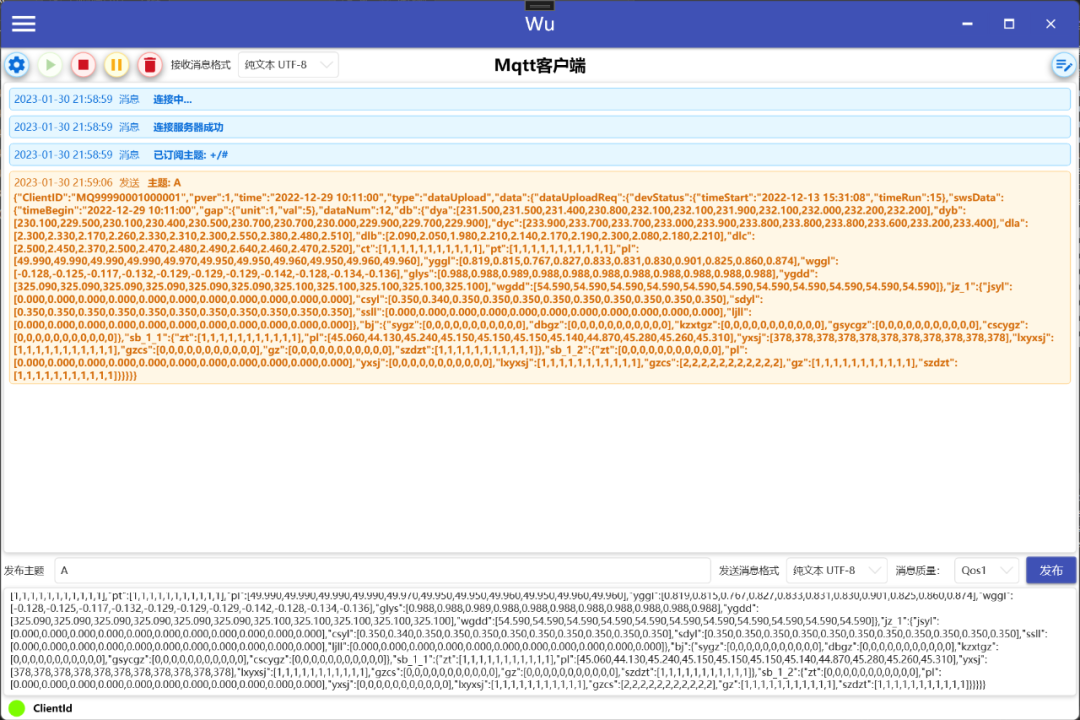

MQTT Client

Source Code Access

Follow this public account and contact the editor via WeChat to obtain the source code
