[Open Source] AI Hardware Marvel! Build Your Own Voice Assistant with ESP32 to Control Everything with a Single Sentence

Project Overview

The XiaoZhi ESP32 is an open-source ESP32 project initiated by Xia Ge, released under the MIT license, allowing anyone to use it for free or for commercial purposes. It is an AI chatbot based on the MCP (Model Control Protocol), designed to help everyone understand AI hardware development and apply the rapidly evolving large language models to actual hardware devices.

Core Features

🤖 Control Everything Based on MCP

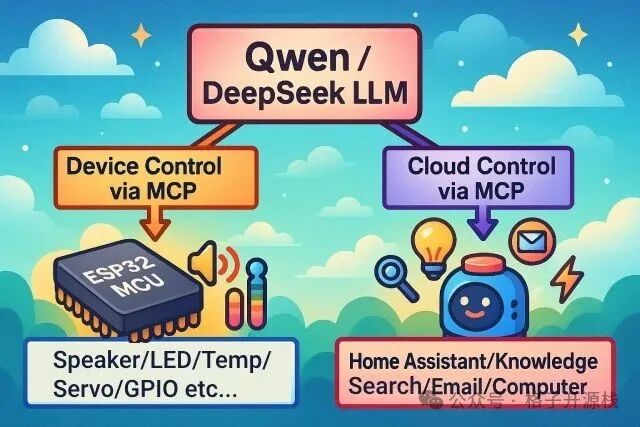

The XiaoZhi AI chatbot serves as a voice interaction gateway, utilizing the AI capabilities of large models like Qwen/DeepSeek to achieve multi-end control through the MCP protocol, truly realizing “control everything with a single sentence”.

🎯 Implemented Functions

📡 Network Connection

• • Wi-Fi Connection: Supports standard WiFi network access
• • 4G Network: Integrated ML307 Cat.1 4G module for mobile network connection

🎤 Voice Interaction

• • Offline Voice Wake-up: Based on ESP-SR technology, can wake up without internet connection
• • Streaming Voice Processing: Voice interaction using ASR + LLM + TTS architecture
• • Voiceprint Recognition: Based on 3D Speaker technology, identifies the current speaker’s identity
• • Multi-language Support: Supports Chinese, English, and Japanese

🔊 Audio Processing

• • OPUS Codec: High-quality audio compression transmission
• • Dual Communication Protocols: Supports WebSocket or MQTT+UDP communication

📱 Display and Interaction

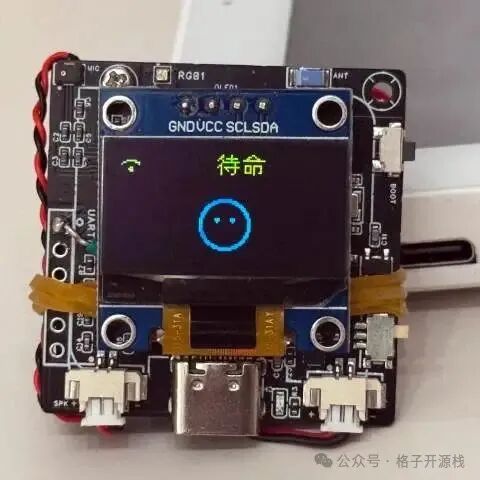

• • Multi-screen Support: Compatible with OLED/LCD displays

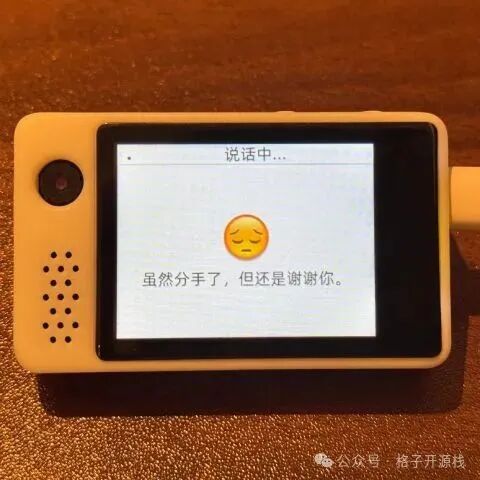

• • Emotion Display: Rich emotional interaction experience
• • Power Management: Real-time power display and smart power management

🔧 Hardware Control

• • Device-side MCP: Directly control volume, lighting, motors, GPIO, etc.
• • Cloud-side MCP Extension: Smart home control, PC desktop operations, knowledge search, email sending and receiving, etc.

Hardware Support

🛠️ Chip Platforms

• • ESP32-C3: Entry-level choice, cost-optimized
• • ESP32-S3: Mainstream choice, balanced performance
• • ESP32-P4: High-performance choice, feature-rich

📋 Supported Development Boards (70+ models)

Official Recommendations

• • LiChuang Practical ESP32-S3 Development Board
• • Espressif ESP32-S3-BOX3

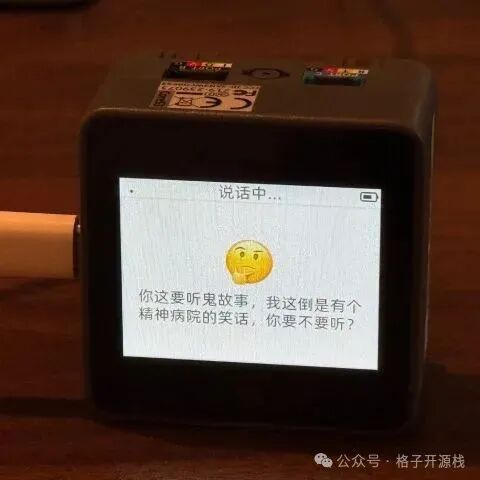

• • M5Stack CoreS3

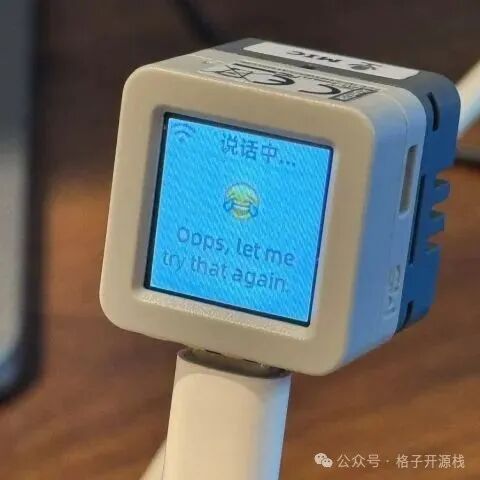

• • M5Stack AtomS3R + Echo Base

Featured Hardware

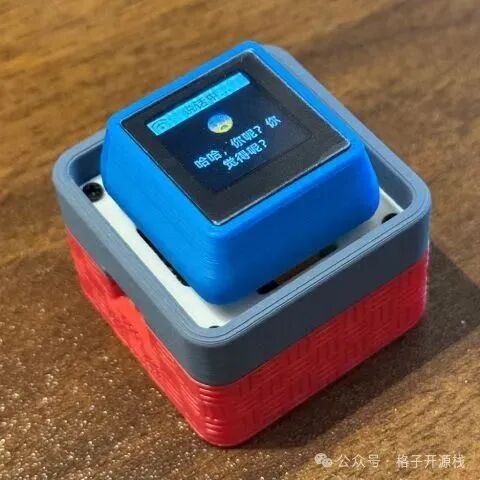

• • Magic Button 2.4: Innovative interaction design
• • MicroSnow Electronics ESP32-S3-Touch-AMOLED-1.8: High-definition touch screen

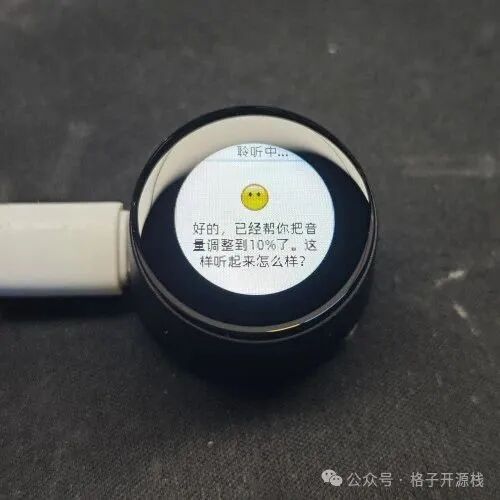

• • LILYGO T-Circle-S3: Circular display design

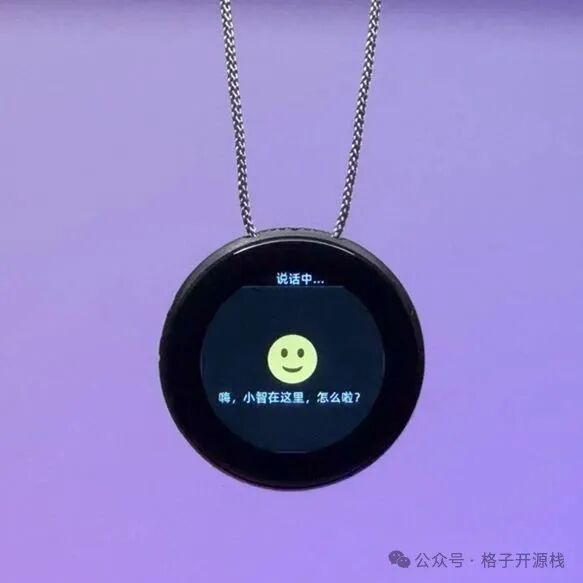

• • Brilliant AI Pendant: Wearable device
• • SenseCAP Watcher: Monitoring application

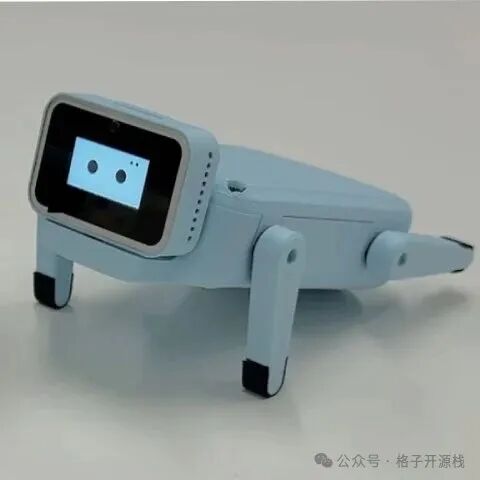

• • ESP-HI Ultra-low-cost Robot Dog: Robotics application

🔨 DIY Production

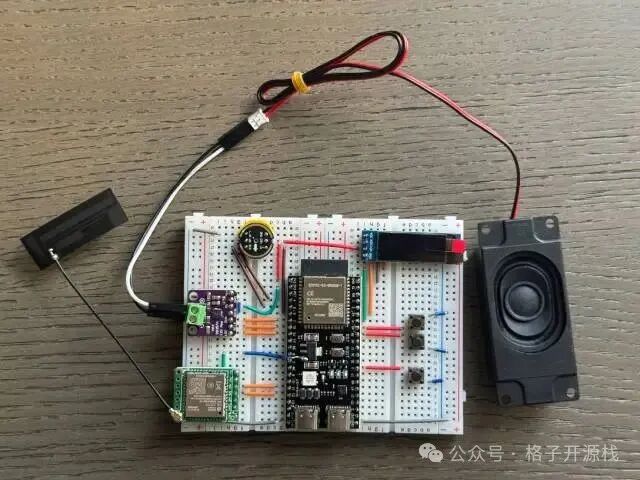

Supports breadboard manual production, detailed tutorials can be found in the “XiaoZhi AI Chatbot Encyclopedia” Feishu document.

Software Architecture

💻 Development Environment

• • IDE Choice: Recommended Cursor or VSCode
• • Plugin Requirements: ESP-IDF plugin, SDK version 5.4 or above
• • System Recommendation: Linux system (fast compilation speed, no driver issues)
• • Code Standards: Follow Google C++ coding style

🚀 Quick Start

Beginner’s Guide

1. 1. Firmware Burning: No development environment needed, directly burn firmware
2. 2. Server Access: Default access to xiaozhi.me official server
3. 3. Free Use: Personal users can register an account to use the Qwen real-time model for free

Advanced Developer

• • Custom Development Board Guide: Learn how to create a custom development board
• • MCP Protocol Documentation: Detailed instructions for IoT control usage
• • WebSocket Communication Protocol: Complete communication protocol documentation

Ecological System

🌐 Official Services

• • Console Management: xiaozhi.me backend configuration interface
• • Large Model Configuration: Supports switching between various AI models
• • Cloud Extension: Rich cloud MCP functionalities

🔗 Third-party Open Source Projects

Server Side

• • xinnan-tech/xiaozhi-esp32-server: Python server implementation
• • joey-zhou/xiaozhi-esp32-server-java: Java server implementation
• • AnimeAIChat/xiaozhi-server-go: Golang server implementation

Client Side

• • huangjunsen0406/py-xiaozhi: Python client
• • TOM88812/xiaozhi-android-client: Android client
• • 100askTeam/xiaozhi-linux: Linux client by Baiwen Technology
• • 78/xiaozhi-sf32: Sice Technology Bluetooth chip firmware
• • QuecPython/solution-xiaozhiAI: Quectel QuecPython firmware

Application Scenarios

🏠 Smart Home

• • Voice Control: Control home appliances through natural language
• • Scene Linkage: Automatic execution of smart scene automation
• • Remote Management: Remote control via mobile app

🎓 Education and Learning

• • Introduction to AI Hardware: Understand the principles of AI hardware development
• • Voice Interaction Learning: Master voice recognition and synthesis technologies
• • IoT Practice: Learn about the MCP protocol and device control

💼 Commercial Applications

• • Customer Service Robot: Intelligent customer service solution
• • Demonstration and Presentation: Product display and technical demonstration
• • Custom Development: Commercial customization based on open-source code

🔬 Technical Research

• • AI Algorithm Validation: Test and validate the effectiveness of AI algorithms
• • Hardware Prototype Development: Rapidly build hardware prototypes
• • Protocol Standard Research: Expansion and optimization of the MCP protocol

Technical Advantages

🎯 Core Highlights

• • Open Source and Free: MIT license, commercially friendly
• • Rich Ecosystem: 70+ hardware support, multi-language clients
• • Advanced Technology: MCP protocol, streaming AI interaction
• • Easy to Expand: Modular design, plugin architecture

📊 Technical Specifications

Item	Specification
Main Control Chip	ESP32-C3/S3/P4
Network Connection	WiFi + 4G
Voice Processing	ESP-SR + Streaming ASR/TTS
Audio Encoding	OPUS
Communication Protocol	WebSocket/MQTT+UDP
Display Support	OLED/LCD
Development Environment	ESP-IDF 5.4+
License	MIT

Community Support

📺 Learning Resources

• • Video Tutorials:
• • Human: Installing a Camera on AI vs AI: Discovering the Owner Hasn’t Washed Their Hair for Three Days
• • Manually Creating Your AI Girlfriend, Beginner’s Tutorial
• • Documentation Resources: “XiaoZhi AI Chatbot Encyclopedia”

🌟 Project Development

• • GitHub Stars: Continuously growing community attention
• • Active Development: Regular updates and feature iterations
• • Commercial Applications: Several commercial cases already exist

Getting Started

🚀 Quick Experience

1. 1. Select Hardware: Choose from 70+ supported development boards
2. 2. Burn Firmware: Quickly get started using pre-compiled firmware
3. 3. Register Account: Register a free account at xiaozhi.me
4. 4. Start Conversation: Enjoy the AI voice interaction experience

🛠️ Deep Customization

1. 1. Set Up Environment: Install the ESP-IDF development environment
2. 2. Clone Code: Get the latest source code
3. 3. Custom Development: Modify and extend according to needs
4. 4. Deploy Online: Build your own AI assistant

Project Resources

• • GitHub Repository: https://github.com/78/xiaozhi-esp32
• • Official Website: xiaozhi.me
• • Technical Documentation: Feishu document tutorials
• • Video Tutorials: Bilibili channel

Conclusion

The XiaoZhi ESP32 project represents a new direction in AI hardware development, achieving true “Internet of Everything” through the MCP protocol. Whether you are an AI enthusiast, hardware developer, or an entrepreneur looking to build smart products, this project provides an excellent starting point.

The project’s open-source nature, rich hardware support, comprehensive ecosystem, and active community provide strong support for developers. Join the world of XiaoZhi ESP32 and explore the infinite possibilities of AI hardware together!

Please open in the WeChat client

This article is based on the open-source project xiaozhi-esp32. For more technical details, please refer to the official project documentation and community resources.
