Allwinner T113 Series | Dual-Core Smart Industrial Chip and Vehicle Machine Development Board

Click the “blue text” above to follow us!

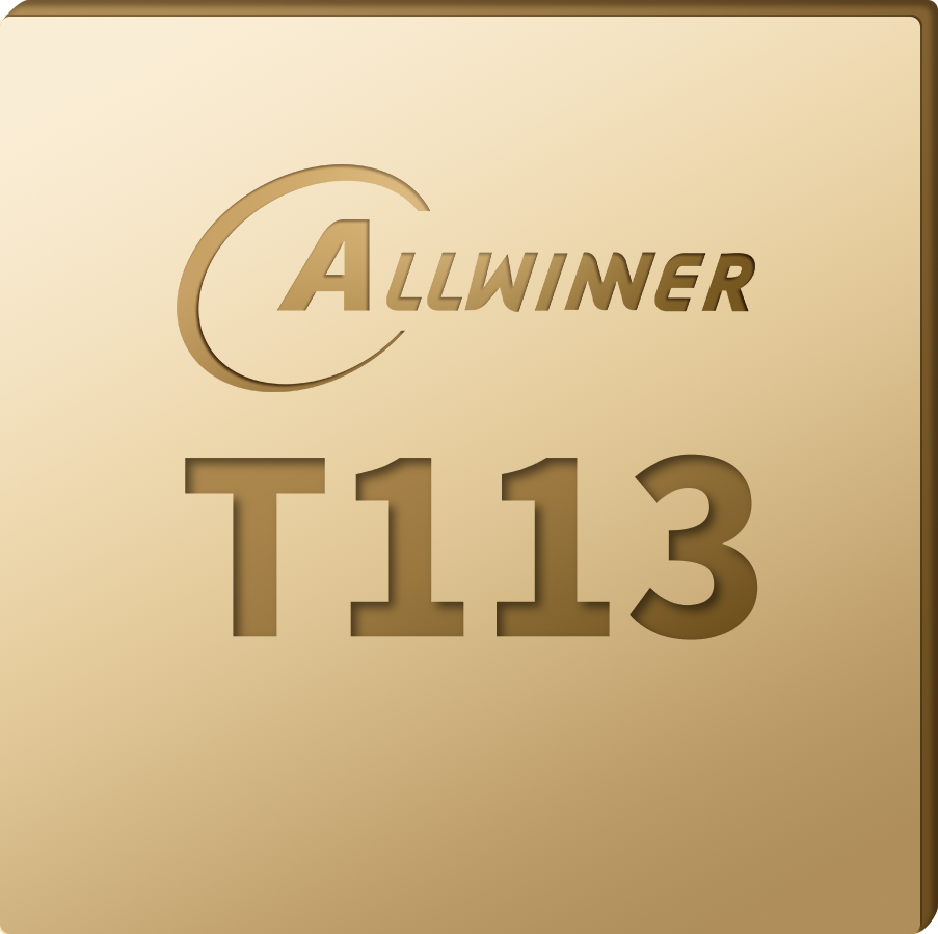

The T113 series is a high-performance application processor. It integrates a dual-core Cortex-A7 CPU, RISC-V, and a single-core HiFi4 DSP to provide efficient computing power. The T113 series supports full-format decoding, such as H.265, H.264, MPEG-1/2/4, JPEG, etc. An independent hardware encoder supports JPEG or MJPEG encoding. It integrates multiple ADC/DAC and I2S/PCM/DMIC/OWA audio interfaces to provide a perfect voice interaction solution. The T113 series has extensive connectivity options, facilitating product expansion, such as CAN, USB, SDIO, EMAC, TWI, UART, SPI, PWM, GPADC, IR TX&RX, etc. It can be applied in smart industry, smart power, automotive electronics, and other fields.

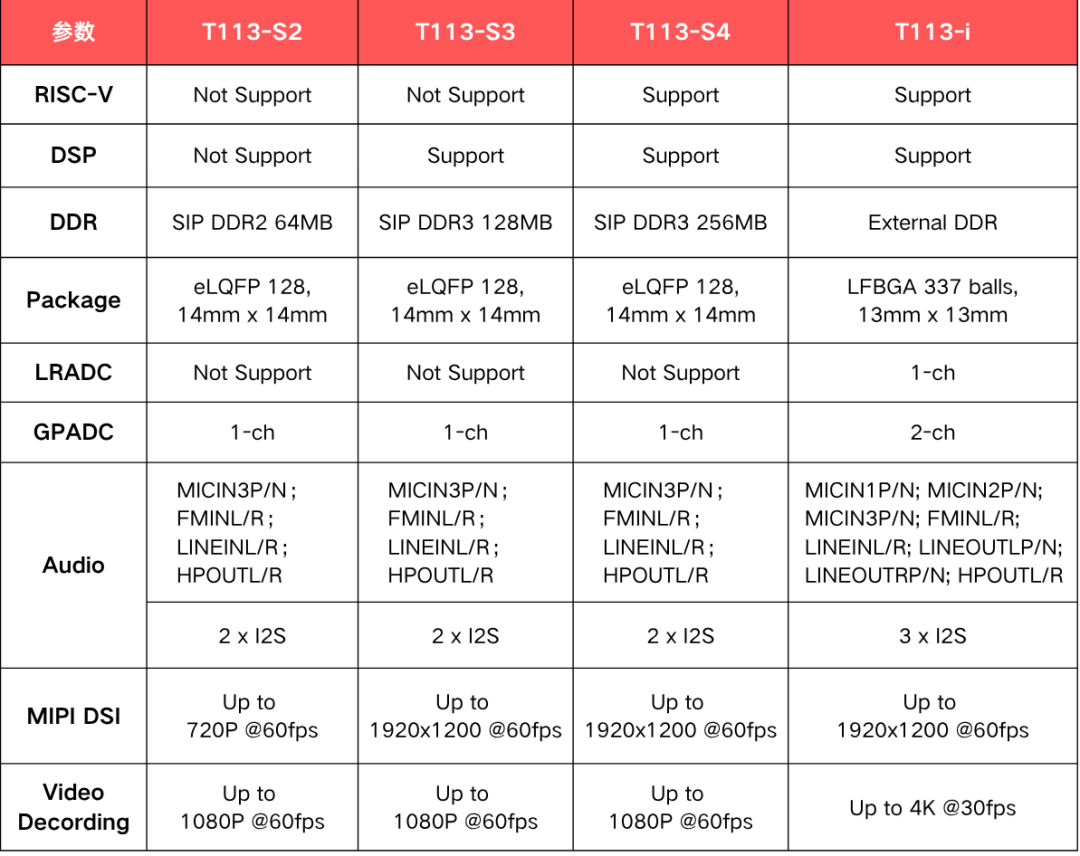

Here are the differentiated features of the T113 series:

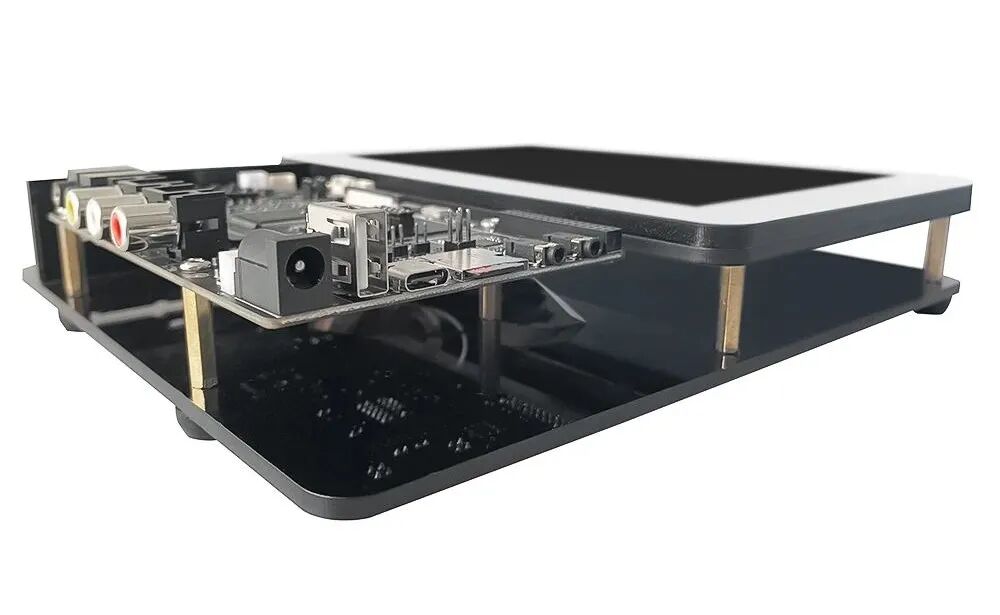

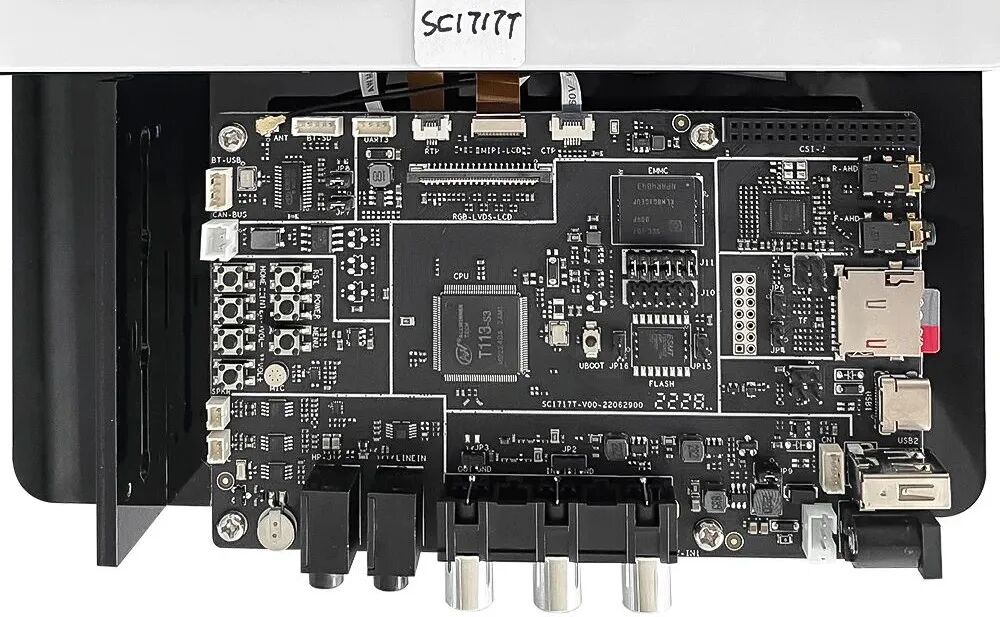

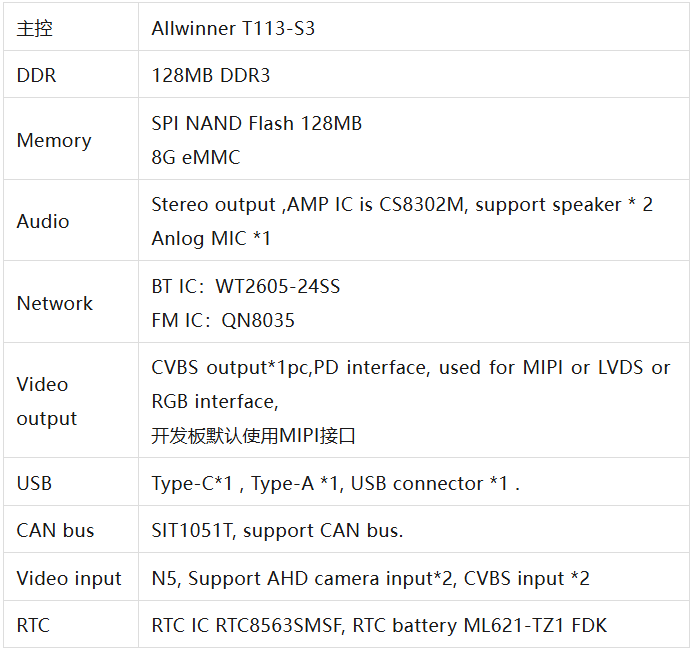

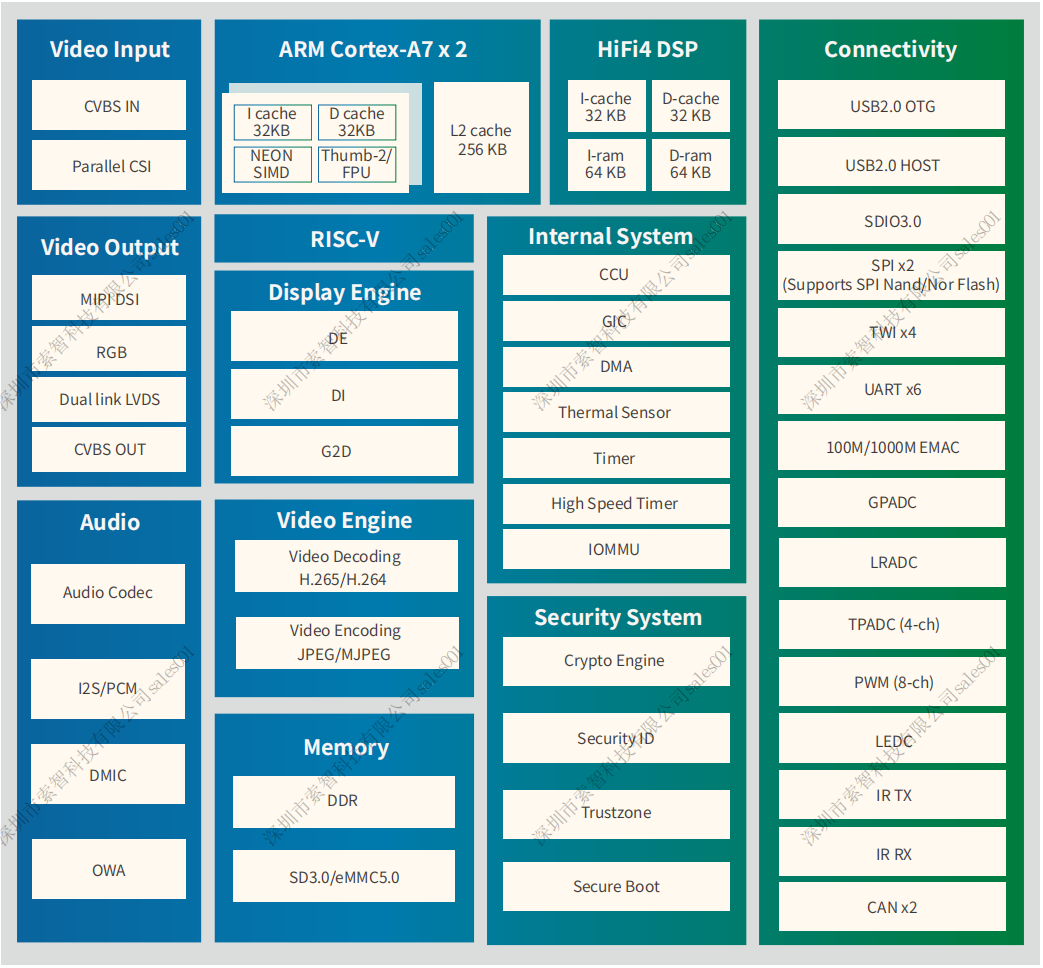

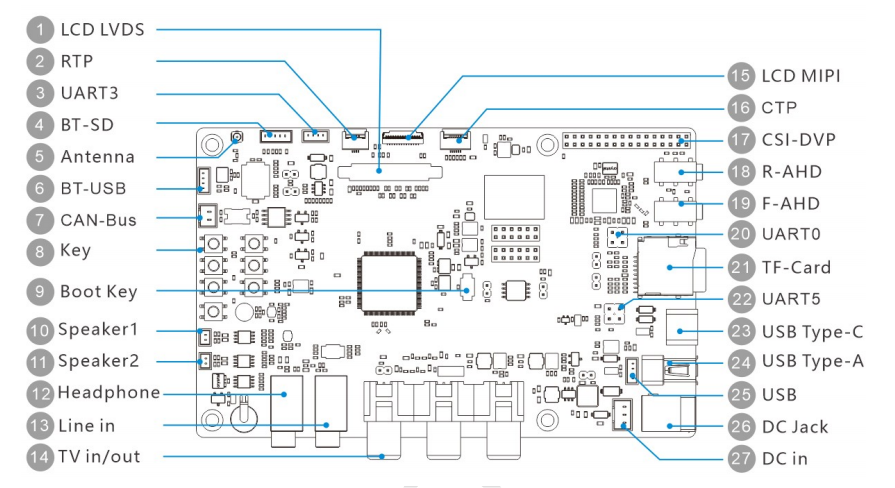

T113 Block Diagram T113-S3 Development Board The Allwinner T113-S3 is an integrated Cortex A7 CPU and single-core HiFi4 DSP, with 128MB DDR3, an industrial-grade chip with a lifespan of up to 10 years, suitable for in-vehicle MP5, vehicle machines, HMI, PLC, and other products. To facilitate product research and project development for developers, Suozhi has launched the T113-S3 development board, specifically for the vehicle machine field. In addition to the built-in 128MB DDR, it is also equipped with 128MB flash and 8G eMMC, integrating modules such as a 7-inch LED screen, WiFi, Bluetooth, audio, USB, TF card, etc. The development board provides supporting hardware and software materials, such as schematics, layout diagrams, design references, SDK, and more, and offers platform-related technical support to help developers quickly get started with development.▋ T113-S3 Development Board Interface Diagram
