New PCB Charge-Type High-Temperature Pressure Sensor – 176A31
UtilizingUHT-12TM piezoelectric crystal, the pressure sensor
is suitable for high-temperature engine testing
PCB Piezotronics has launched a new pressure sensor model 176A31 that can be used for high-temperature engine testing. The main feature of this sensor is the use of UHT-12TM sensing element, with an operating temperature up to 760°C (1400°F), without the need for helium or water cooling. This new sensor will be an ideal choice for customers who require engine combustion testing and gas turbine measurements at high temperatures.

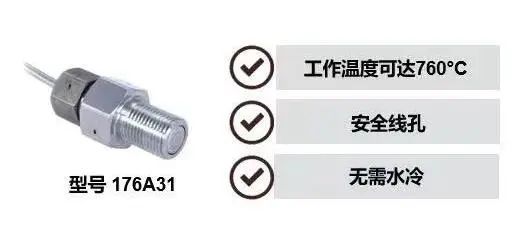

The 176A31 Sensor is a charge output type pressure sensor utilizingUHT-12TM crystal as the sensing element, assembled with an M14 adapter, which has the same installation dimensions as the 123Bxx series water-cooled pressure sensors. Additionally, the 176A31 can continuously operate at 760°C (1400°F) with a range of 3000 psi (206 bar) and a maximum pressure of 5200 psi (358 bar). The sensor connects with a 3-foot long rigid cable, equipped with a 7/16-27 two-pin connector, operating at temperatures up to 482°C (900°F).
Product
Features
-
UtilizesUHT-12TM sensing element
-
Even at 760°C (1400°F), no water cooling is required
-
Safety wire hole for secure connection of sensor, mounting adapter, and test piece
-
3-foot long rigid cable, durable, equipped with a 7/16-27 2-pin mini-MIL electrical connector, operating temperature up to 482°C(900°F), radiation resistant
-
Intrinsically safe certification
Typical
Applications
-
Combustion dynamics
-

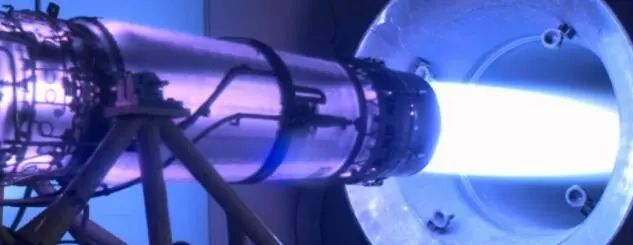

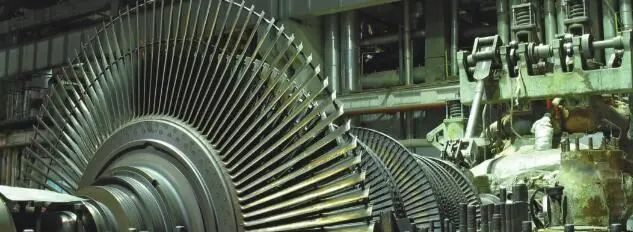

Gas turbines
-
Thermoacoustics
-
Dynamic gas pressure measurement in other high-temperature environments
