In the wave of Industry 4.0 and digital transformation, edge computing is becoming the core hub connecting the physical world and the digital world.The MECC multifunctional edge computing gateway from Hehui Technology, based on Cat.1 4G wireless technology,features powerful protocol compatibility, flexible edge processing capabilities, and low power design, providing efficient and reliable solutions for smart grids, Industrial Internet of Things (IIoT), energy consumption monitoring, and other fields.
Core Technology of MECC: Multi-Protocol Compatibility and Edge Computing Capability
Full-Scene Protocol Support
MECC supports industrial standard protocols such as Modbus, electric meter TDL645-07, and water meter T188, and enables multi-device parallel access through dual RS485 interfaces.
Data Format Standardization
It has a built-in message format conversion function (e.g., JSON) to solve the data interoperability issues of heterogeneous systems and improve system integration efficiency.
Multi-Protocol Transmission, Stable and Reliable
Supports various transmission protocols including TCP, UDP, MQTT, WebSocket, and HTTP, ensuring efficient data transmission in complex network environments.
Edge Computing Empowering Local Decision-Making
MECC has local data storage, analysis, and protocol conversion capabilities, allowing real-time processing of sensor data, reducing cloud dependency, and lowering network load.
Core Advantages: Remote Management and Low Power Design
Remote Operation and Maintenance, Efficient and Convenient
Through remote parameter debugging, configuration management, and OTA upgrade functions, users can complete device maintenance without on-site operations, reducing operational costs.
Secure Communication
Supports TLS/SSL encrypted transmission, ensuring data security in public network environments.
Low Power Consumption, Long Lifespan
With optimized power consumption design, the device can operate stably for a long time in harsh industrial environments, helping enterprises reduce operational costs.

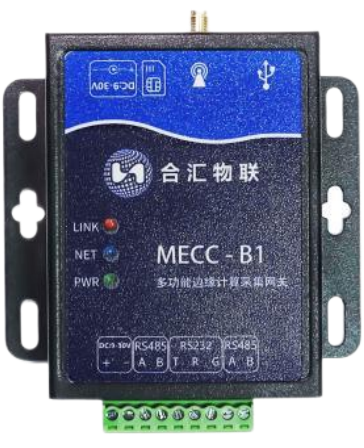

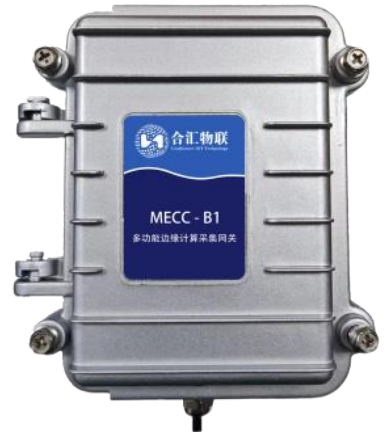

MECC Product Parameters
Product Parameters
| Parameter | Description | |
| Basic Parameters | Network | Mobile/Telecom/Unicom LTE Cat-1 |
| Power Supply | 9-24V DC | |
| Operating Current | Average 20mA~60mA @ 12V | |
| Indicator Lights | PWR: Power StatusNET: Network Status IndicatorLINK: Server Connection Status Indicator | |
| SIM Card | 2FF specification large card / patch card 5*6mm | |
| USB | Type-C / USB2.0 | |
| UART Interface | Serial Port 1: RS485, Baud 1200 – 1152001200 – 115200 | |
| Antenna Interface | SMA external screw inner hole | |
| External Control Relay Specification | 5A@30V-DC / 250V-AC | |
| Dimensions | Size (mm) | 100.0 * 86.0 * 25.5 mm |
| Weight (g) | >200g | |
| Frequency Band | LTE-TDD | Band 34/39/40/41 |
| LTE-FDD | Band 1/3/5/8 | |
| Operating Environment | Operating Temperature | -20℃ to 45℃ |
| Storage Environment Temperature | -20℃ to 85℃ | |
| Operating Humidity | 0% to 90% (non-condensing) | |
| Storage Humidity | 0% to 90% (non-condensing) |
Typical Scenarios

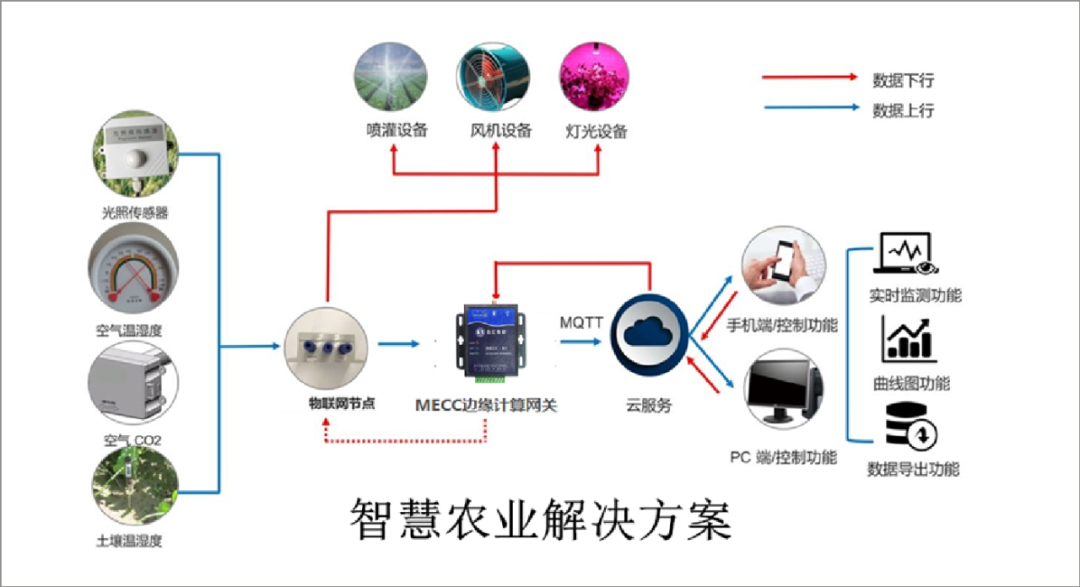

< Smart Agriculture >
< Smart Agriculture >

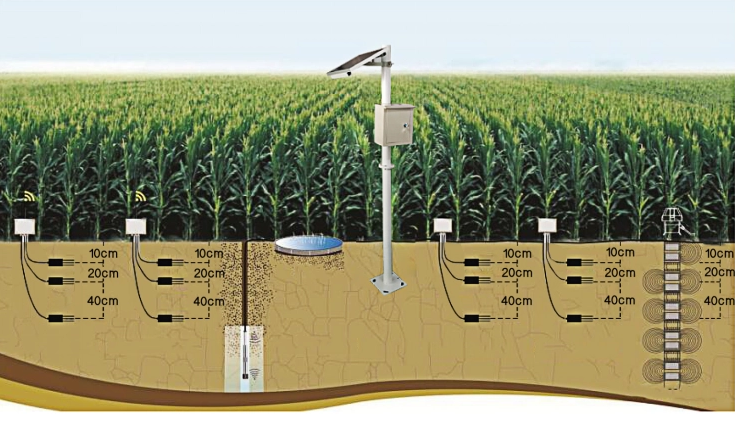

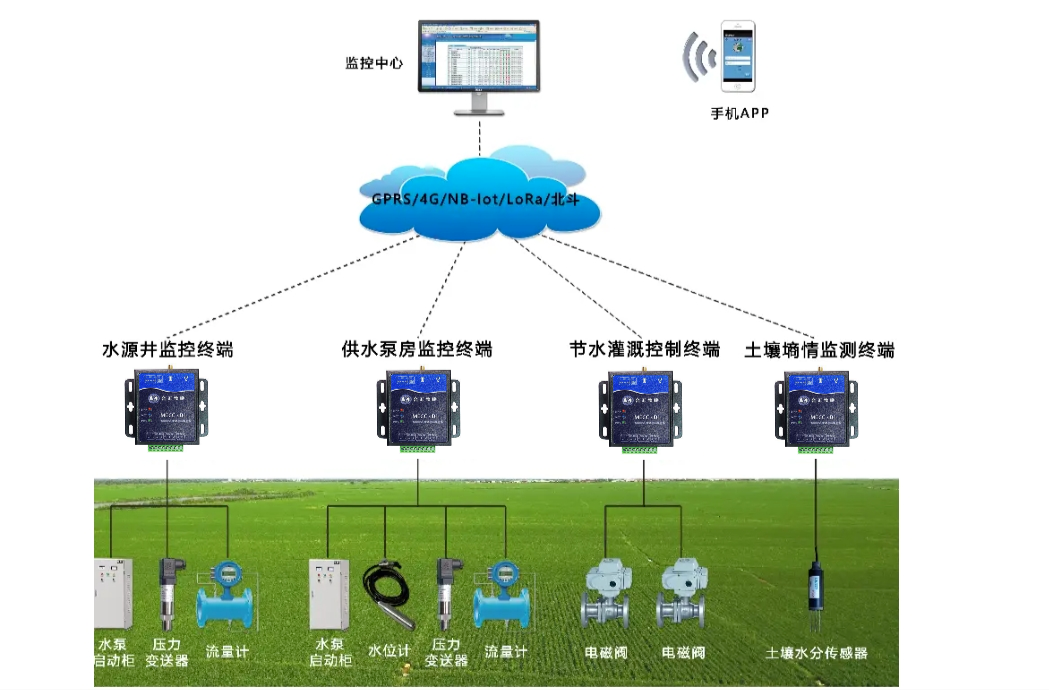

< Irrigation in Farmland >

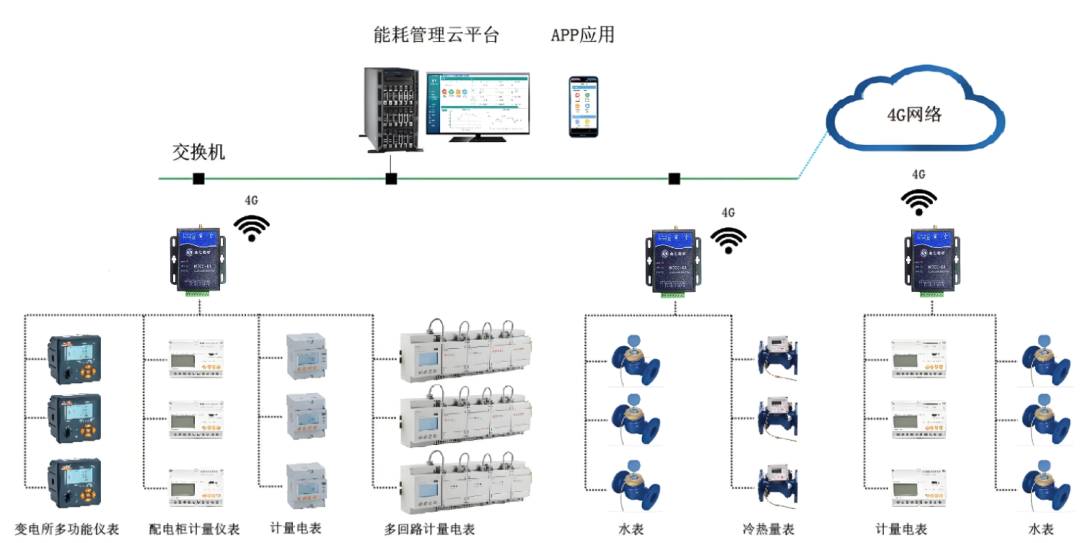

< Smart Grid and Energy Management >
Why Choose MECC?
-
Flexible Expansion: Protocols and interfaces can be customized to meet diverse needs.
-
High Cost Performance: Cat.1 technology balances bandwidth and cost, with wide coverage and low power consumption.
-
Future-Ready: Edge computing capabilities lay the foundation for AI and big data analysis, assisting enterprises in digital transformation.
