The chip programming leader ACROVIEW Technology recently announced the latest upgrade of its programming software and released a list of newly supported chip models. In this upgrade, the lithium battery protection front-end chip SH3676010B launched by SinoWealth has been included in the support range of ACROVIEW’s universal programmer AP8000.

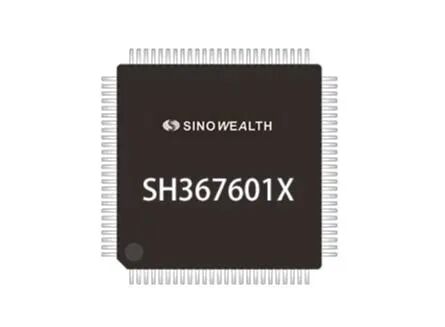

The SH3676010B features a built-in high-precision voltage detection circuit and delay circuit for voltage, current, and temperature protection, ensuring the safety of the battery pack and extending battery life. It integrates balancing switches to ensure consistency in cell voltage; additionally, it has a disconnection detection function and a low voltage prohibition for charging, enhancing system safety performance.
Application Scenarios
(1) Independent hardware protection system: Configurable voltage, current, and temperature protection thresholds and delays through built-in EEPROM, while allowing customization of product ID (register 00H), enabling flexible matching of different cell requirements and traceability for after-sales maintenance;
(2) Battery pack after-sales status extraction: Read cell voltage, current, temperature, and system status information via UART interface, allowing pure hardware protection packs to easily obtain after-sales information;
(3) Intelligent BMS management system: Read cell voltage, current, temperature, and system status information via UART interface, in conjunction with MCU to achieve an intelligent BMS management system.
Suitable for 6-10 series lithium battery packs, with balancing functionality.
Features
• Voltage protection function
– Overcharge protection (accuracy ±15mV)
– Over-discharge protection (accuracy ±15mV)
• Current protection function
– Discharge overcurrent protection 1 (accuracy 2mV@IViSEN50mV)
– Discharge overcurrent protection 2 (accuracy ±10mV@Vocoz<100mV)
– Discharge short-circuit protection (accuracy ±10mV@Vsc<100mV)
– Charge overcurrent protection (accuracy 0.5mV@VisENs10mV)
• Temperature protection function
– Charge high-temperature protection (accuracy ±2℃)
– Charge low-temperature protection (accuracy ±2℃)
– Discharge high-temperature protection (accuracy ±2℃)
– Discharge low-temperature protection (accuracy ±2℃)
– TS3 temperature detection point can be configured to respond only to discharge high-temperature protection (to achieve MOSFET high-temperature protection)
• Low voltage prohibition function
• Disconnection protection function
• Supports random power on/off
• Balancing function
– Achieves voltage balancing method
– Achieves voltage balancing + voltage difference balancing method
• CTLD pin controls discharge MOSFET
• Charge and discharge MOSFET forced on function
• Discharge overcurrent self-recovery function
• Integrated EEPROM
– Programming/erasing cycles: ≤100 times
– Configurable series number, protection parameters, function options
– Customizable product ID
• 13-bit E-AADC for voltage/current/temperature acquisition
– Conversion cycle: 50ms
– 10 voltage acquisition channels
– 1 current acquisition channel
– 3 temperature acquisition channels
• Supports UART communication, with CRC8 check to read voltage, current, temperature, and status information
• LDO voltage output
– 5.0V(5mA@Max .)
• Integrated low-side N-MOS driver
• Operating voltage range: 8V~70V
• Operating temperature range: -40℃-85℃
• Operating current
– Normal mode power consumption: 40uA(Max@25℃)
– Powerdown mode power consumption: 3.5uA(Max.@25℃)
• Package form
– TSSOP28L

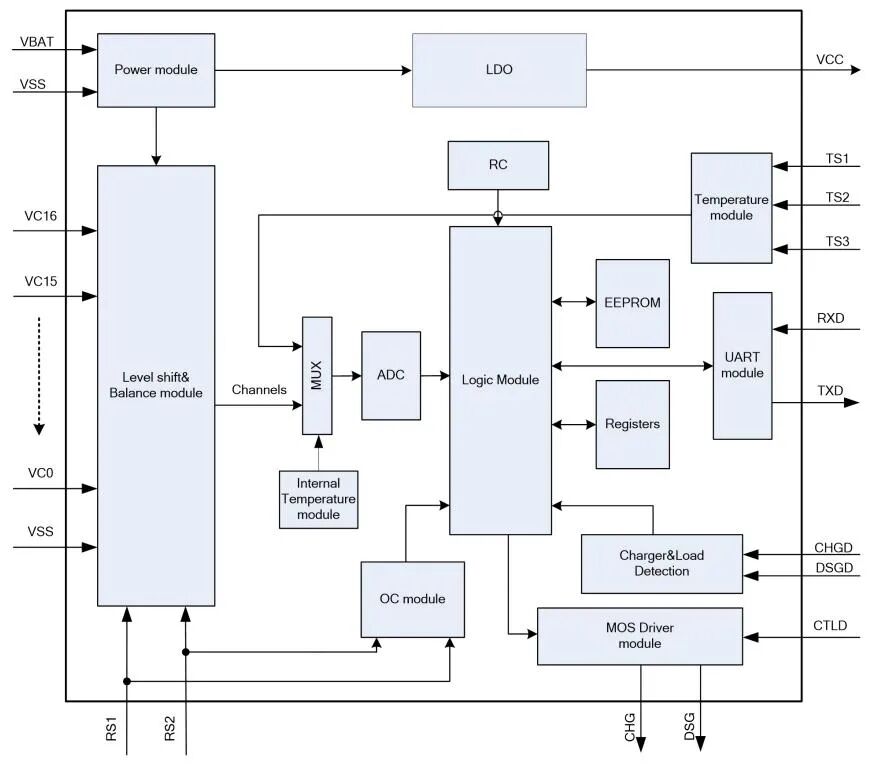

System Block Diagram
ACROVIEW’s self-developed universal programmer AP8000 (one-to-one online/offline programming), (one-to-eight online/offline programming) and eMMC programming, UFS programming support all chip models of SinoWealth for bare chip (offline) programming and on-board programming. The AP8000 universal programmer consists of three main parts: host, baseboard, and adapter. Additionally, as an industry-standard programming platform, the AP8000 not only supports the programming of all programmable chips on the market but also serves as the core bulk programming device for ACROVIEW’s automated safe programming IPS5800S.
The host supports both USB and NET connections, enabling networking of multiple programmers for synchronized control during programming operations. The built-in safety protection circuit can instantly detect abnormal situations such as reversed chip placement or short circuits, and immediately cut off power to ensure the safety of both the chip and the programmer. The host integrates a high-speed FPGA, significantly enhancing data transmission and processing speed. The back of the host features an SD card slot, allowing users to save project files generated by PC software to the root directory of the SD card and insert it into the slot. By using the button on the programmer, users can select, load, and execute programming instructions without relying on a PC, which not only reduces PC hardware configuration costs but also facilitates rapid construction of the working environment.
The AP8000 greatly enhances the host’s expansion capabilities through the combination design of the baseboard and adapter, currently supporting products from all major semiconductor manufacturers, covering brands such as XTX, NVIDIA, ALTERA, LATTICE, AutoChips, etc. The supported device types include NAND, NOR, MCU, CPLD, FPGA, EMMC, etc., and it is compatible with various file formats including Intel Hex, Motorola S, Binary, POF.
Company Introduction
About SinoWealth: SinoWealth was founded in 1994 and has focused on its own brand chip design since 2002. It passed ISO9001 certification in 2004 and completed ISO9001 in 2018. It is a chip design company specializing in MCU and lithium battery management chips, recognized as one of the first integrated circuit design enterprises by the Ministry of Industry and Information Technology of China and the Shanghai Information Office. It is also a Shanghai enterprise technology center, a high-tech enterprise, and a nationally recognized key integrated circuit design enterprise.
About ACROVIEW Technology:ACROVIEW Technology is a global leader in semiconductor chip programming solutions, committed to changing the world through technology and driving the future with intelligence, continuously creating value for customers. ACROVIEW’s AP8000 universal programmer platform and the latest IPS5800S automated programming solution provide one-stop solutions for customers in the semiconductor and electronic manufacturing fields, having served leading global clients including Huawei, BYD, and Foxconn.
