In the era of the Internet of Things and smart devices, MCU selection has long transcended the single dimensions of performance and price. A sustainable and evolving technical architecture must consider the security lifeline, evolutionary vitality, and developmental vitality of the device. How does the N32 MCU from Guomin Technology build long-term advantages for you across these three dimensions? This guide provides an in-depth analysis.
01Security as the FoundationThe “intrinsic immune system” built by the N32 MCU
Future devices must have intrinsic security, rather than relying on external patches. The N32 MCU builds a defense line for devices from the hardware level.
1. Hardware Encryption Engine: Protecting the Core of Data and Code
Commercial encryption algorithm advantages: Integrates commercial encryption algorithms such as SM3/4, providing effective means to resist internationally recognized attacks.
International algorithm support: Compatible with AES, DES/3DES, SHA, MD5, etc., ensuring the universality of algorithms.
True Random Number Generator (TRNG): Provides a high-quality random number source for key generation, random challenges, etc., forming the foundation of the security system.
2. Storage Protection: Creating a “Safe” Level of Security Space
Flash encryption storage: Supports encryption storage of on-chip Flash, preventing firmware from being directly read and copied, protecting core intellectual property.
Secure Boot (Bootloader): Ensures that only signed and trusted firmware can run after the device is powered on, eliminating the risk of malicious code injection from the source, ensuring that the device always operates in a trusted environment after leaving the factory.
3. Lifecycle Management: Full Process Security from Production Line to Disposal
Secure debugging and interface locking: Supports configuration options to disable debugging interfaces (such as JTAG/SWD), preventing reverse analysis after mass production.
Secure key storage and destruction: Provides a secure storage mechanism for keys and supports automatic destruction of keys upon detection of physical attacks.
Selection Tips:When selecting products for IoT, industrial control, consumer finance, etc., be sure to choose series such as **N32H48x, N32A455, N32G4xx, N32L4xx that are equipped with a complete hardware acceleration engine for cryptographic algorithms.
02Upgradability is VitalityThe N32 MCU endows devices with continuous “evolution” capabilities
Firmware upgrades are the lifeline for devices to fix vulnerabilities, iterate functions, and adapt to the future. The N32 MCU paves the way for secure and reliable upgrades.
1. Secure Updates: Installing a “Trusted Gate” for Each Upgrade
By integrating a hardware encryption engine, the N32 MCU supports digital signing and security certification of firmware upgrade packages. This mechanism acts like a “trusted gate” for the upgrade process, ensuring that only authorized official firmware can be installed, fundamentally eliminating the risk of malicious firmware injection and man-in-the-middle attacks, achieving full-process trust from download to update, making every remote upgrade worry-free.
2. Ample Storage Space: The “Spacious Living Room” for Upgrade Packages
Abundant Flash: A wide range of choices from 64KB to 4096KB provides ample storage space for complex OTA upgrade packages and dual backup firmware (A/B partition), ensuring a safe upgrade process with worry-free rollback.
3. Rich Communication Interfaces: The “Highway” for Upgrades
Wireless upgrade (OTA) foundation: The entire series is equipped with multiple UART, SPI, I2C for connecting Wi-Fi, BLE, LoRa, and other wireless modules.
High-speed wired upgrades: Some models integrate USB Device/OTG (such as N32H7xx, N32H4xx, N32G4xx, N32L4xx), Gigabit Ethernet (such as N32H7xx), making large-scale, high-speed upgrades via network cable or USB possible.
4. Flexible Storage Expansion: Addressing the Most Complex Upgrade Scenarios
External memory interfaces: High-performance series (such as N32H78x/H76x) provide xSPI, FEMC, SDMMC interfaces, allowing external connection of Nor/NAND Flash, SDRAM, eMMC, etc., easily storing large firmware packages and resource files.
Selection Tips:For products planned to support OTA functionality, Flash capacity should have sufficient margin (it is recommended to reserve more than 50% for upgrades). For devices that need to store multimedia resources or complex algorithms, consider the N32H7xx and N32H4xx series that support FEMC or xSPI.

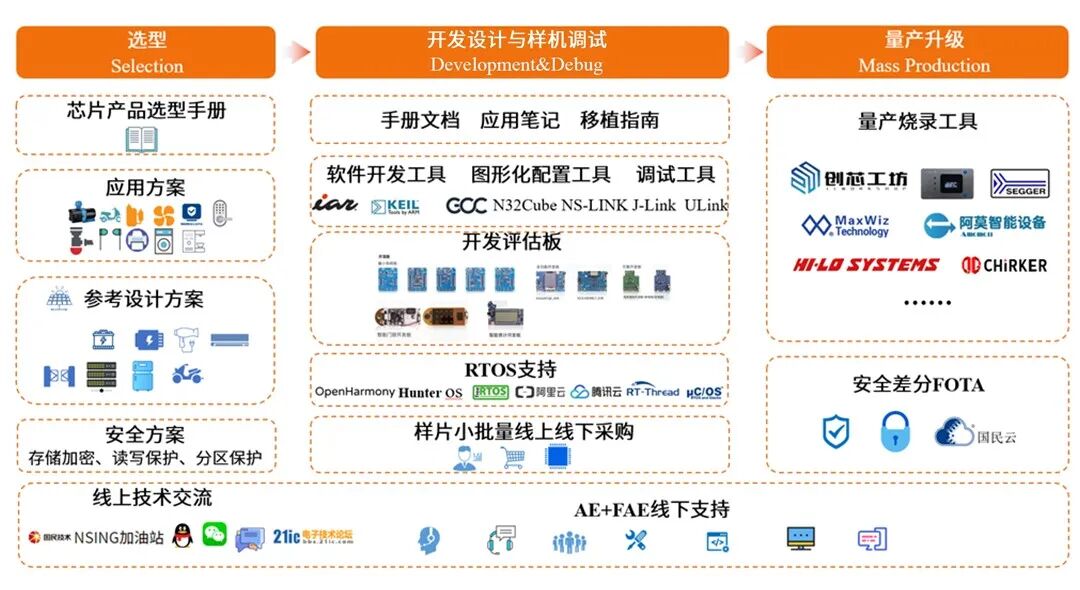

03Ecosystem is the MoatThe “soft” power and long-term value of the N32 MCU
Avoid being “locked in” by chips; a strong development ecosystem is key to reducing long-term costs and accelerating product iteration.
1. Maturity and Usability of the Development Toolchain
Mainstream IDE compatibility: Supports Keil MDK, IAR Embedded Workbench, as well as free development environments based on VS Code, Eclipse (such as GCC+GDB), and provides native support for RT-Thread Studio, allowing engineers to seamlessly migrate and quickly get started.

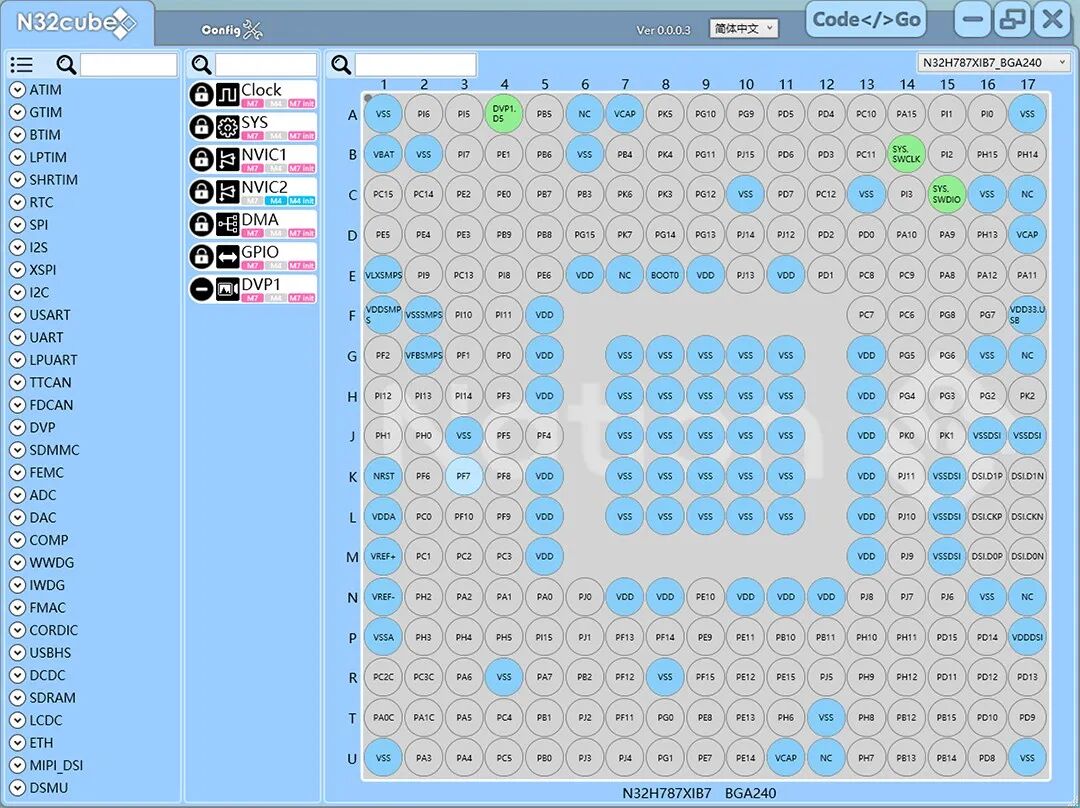

Graphical configuration tools: Provides N32Cube tools (beta version) that support pin configuration, clock tree settings, peripheral initialization, automatic generation of low-level code, significantly shortening project startup cycles.
Efficient debugging support: Fully utilizes the Cortex-M core debugging architecture, compatible with various debugging tools such as NS-Link, DAP-Link, J-Link, ULINK, achieving precise breakpoints, memory viewing, and performance analysis.
2. Support for Software Middleware and Operating Systems
Deep adaptation of domestic OS: Deep optimization and adaptation with domestic real-time operating systems such as OpenHarmony, RT-Thread, Huawei LiteOS, Alibaba OS, providing a large number of software packages that are ready to use out of the box.
Protocol stack support: Provides comprehensive middleware and protocol stacks such as FreeRTOS, USB, TCP/IP, file systems, reducing the workload of low-level development.
3. Sustainable Supply Chain and Product Roadmap
Domestic assurance: Guomin Technology, as a leading domestic MCU manufacturer, provides a stable and reliable supply chain guarantee, laying a solid foundation for the long-term stable production and iteration of products.
Product series: From ultra-low power to high performance, the product line continues to expand, ensuring that your products can be smoothly upgraded in the future without changing the hardware platform.
Selection Tips:Before starting a project, evaluate the quality of the SDK provided on the Guomin Technology official website, the level of detail in the documentation, and the activity of the community. An active ecosystem means you can find solutions faster when you encounter problems.

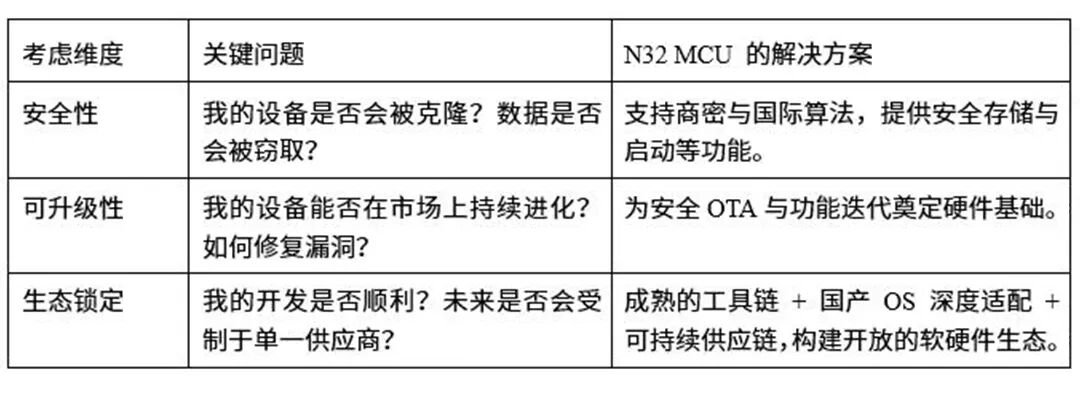

04ConclusionBuilding a Selection Decision Matrix for a Sustainable Evolutionary Technical Architecture
Final recommendation: In your next project, do not merely compare clock speed and price. Please consider security, upgradability, and development ecosystem as core weights to include in the selection scorecard. The comprehensive advantages of the Guomin Technology N32 MCU in these three dimensions are precisely what endow your products with long-term competitive value.
