Background Introduction
As a key technology direction prioritized by the state, China has made rapid advancements in the field of new energy vehicles, with the market scale continuously expanding. New energy vehicles replace traditional engines with electric motors as the core of vehicle power output, while the Motor Control Unit (MCU), as one of the core components of the “three electrics,” plays a crucial role in connecting the motor and the vehicle. The main function of the MCU is to monitor the real-time status of the motor and convert the direct current provided by the power battery into three-phase alternating current according to the demands transmitted by the vehicle controller, thereby precisely controlling the output speed and torque of the motor.
When the reliability of the MCU controller software is poor, it can directly lead to the motor not functioning properly, affecting the realization of vehicle functions, further reducing the vehicle’s power performance, economic performance, and comfort, and may even trigger uncontrollable safety incidents. Therefore, ensuring the high reliability of MCU controller software has become a focus for major OEMs and suppliers. HiL testing, as a key link in the “V”-shaped development process, significantly enhances software reliability when conducted after software development, while also offering advantages such as comprehensiveness, safety, efficiency, and low cost.
Solution
Based on years of engineering experience accumulated in the automotive measurement and control field, Yian Shenzhou provides flexible, open, efficient, and professional HiL testing systems for new energy vehicle controllers to domestic automotive industry clients, allowing for optimal system customization based on testing needs.
Our HiL test bench supports but is not limited to the following functions:
– Capable of simulating various working conditions to perform functional testing of the MCU controller;
– Equipped with fault injection capabilities for fault diagnosis testing of the MCU controller;
– Features CAN communication simulation for communication testing of the MCU controller;
– Utilizes graphical operation software to enable manual testing, automated testing, data post-processing, and analysis;
– The system is based on a modular design, offering good scalability;
– Capable of standalone testing of the MCU as well as joint debugging with other devices (VCU, BMS);
– Supports testing of single motor, dual motor, and other multi-motor models;
– Supports typical standard condition testing such as NEDC and custom condition testing.
Advantages of the Solution
01 Reliable: The system’s hardware and software utilize internationally renowned brands, with the chassis, processor, and core boards all sourced from NI (National Instruments) in the USA;
02 Flexible: Solutions can be customized according to user needs, with modular design of hardware and software components, high integration, good scalability, and ease of maintenance and replacement;
03 Open: Compatible with third-party hardware, supports the import of simulation software models from multiple fields, and has reserved interfaces for hardware and software, providing scalability;
04 Efficient: No programming knowledge is required, allowing users to quickly complete test project setup and subsequent automated and repetitive testing;
05 Professional: Yian Shenzhou has rich engineering experience in the automotive measurement and control field, supported by professional partners from Europe and the USA, providing turnkey projects and localized technical services.
Target Clients
With extensive experience in the development and testing of new energy vehicle control systems and an internationally seasoned team, Yian provides turnkey projects for clients.
Target Clients: OEMs | Component Suppliers | Higher Education Institutions | Vocational Colleges

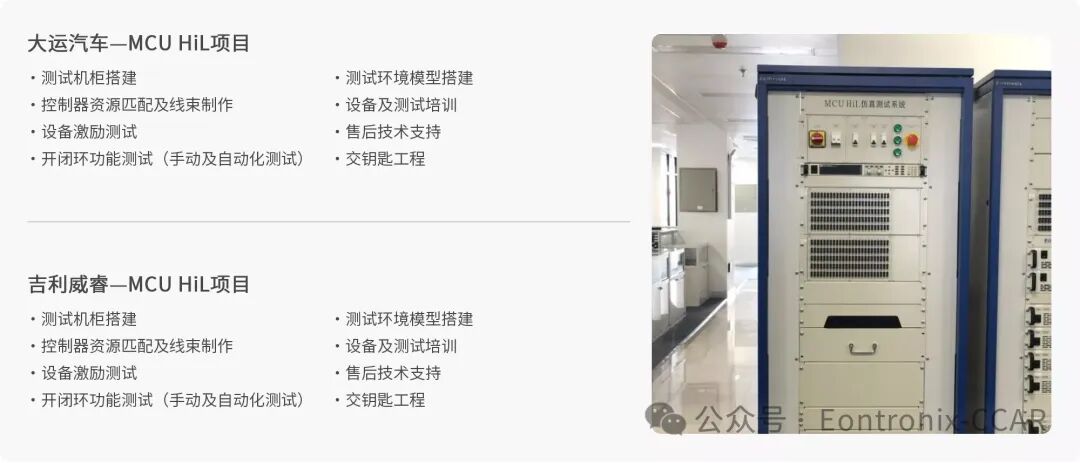

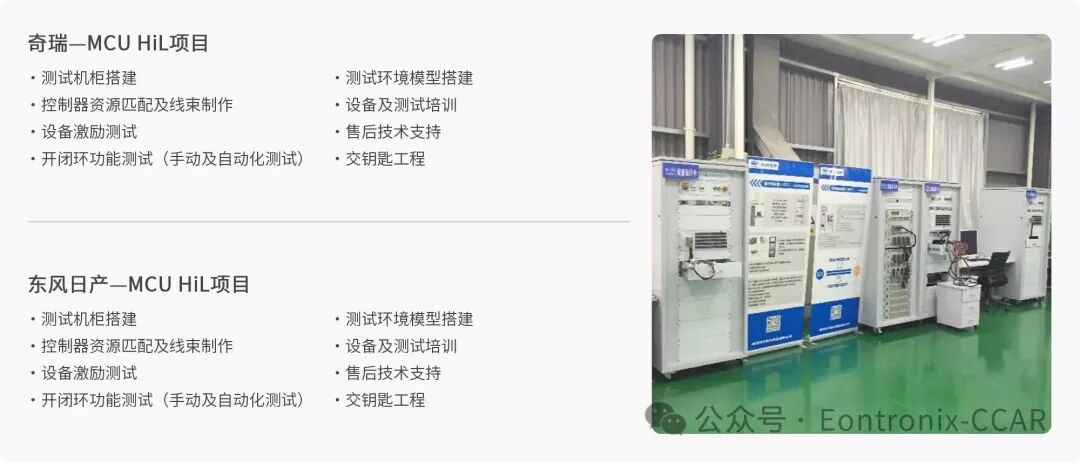

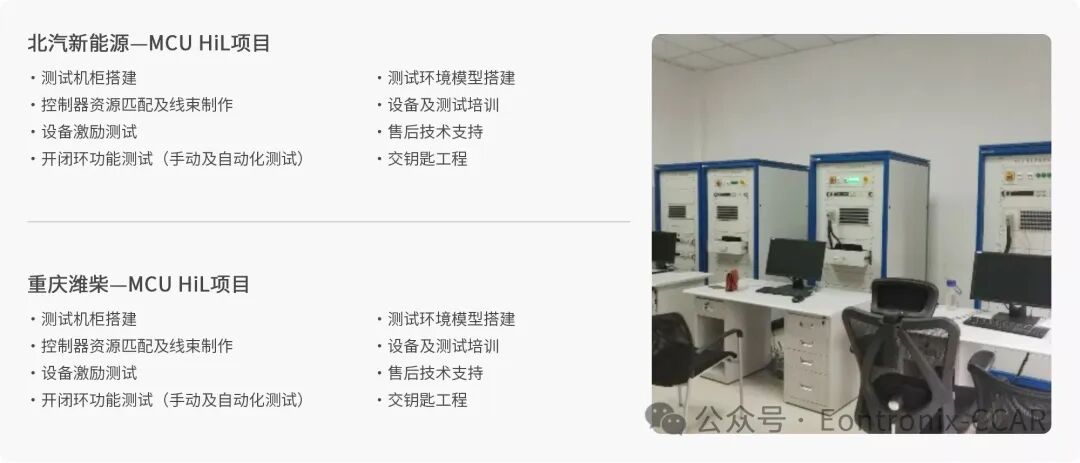

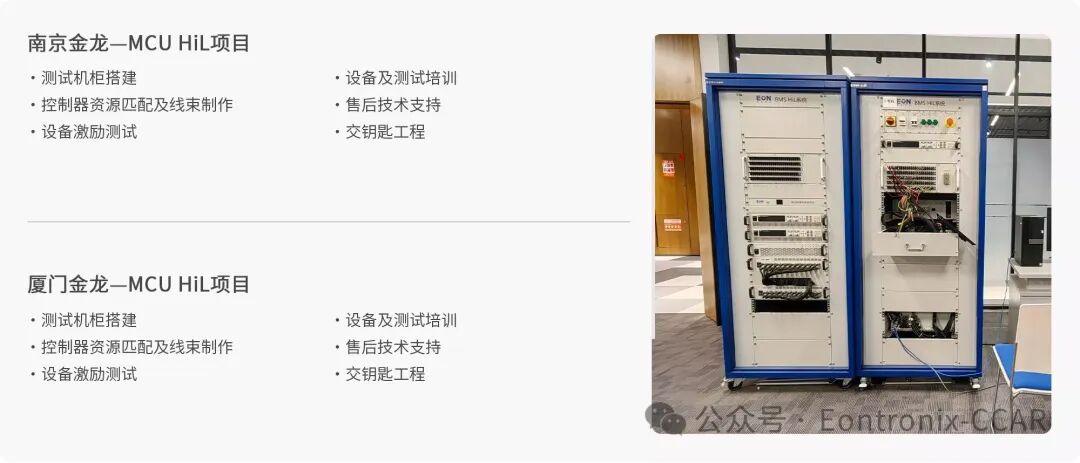

Typical Cases
