When traditional PLCs meet AI vision, a $2000 edge computing solution is disrupting the market for intelligent cameras priced over $10,000. This article will break down the conveyor foreign object sorting system based on OpenCV, revealing the true costs of implementing industrial AI.

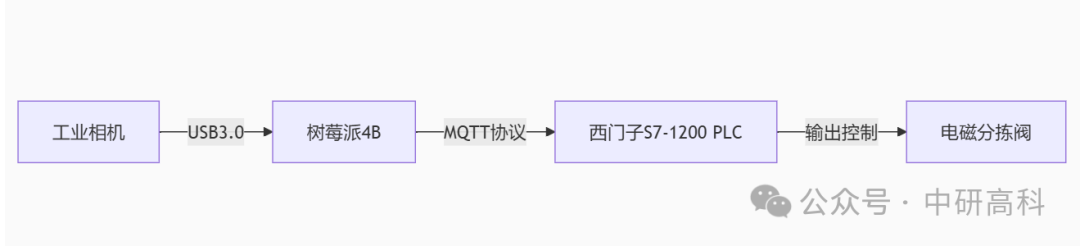

1. System Architecture: Three-Tier Collaborative Model
2. Core Hardware Cost List (Based on 2023 Market Prices)
| Device | Model | Quantity | Unit Price (CNY) | Subtotal (CNY) | Function Description |
|---|---|---|---|---|---|
| Vision Layer | |||||
| Industrial Camera | Hikvision MV-CE020-10GC | 1 | 850 | 850 | 2 million pixels, global shutter |
| Industrial Lens | Computar M1214-MP2 | 1 | 380 | 380 | 12mm focal length, million-pixel level |
| Bar Light Source | Custom LED Light Source | 1 | 150 | 150 | 600mm length, adjustable brightness |
| Edge Layer | |||||
| Edge Computing Unit | Raspberry Pi 4B 8GB | 1 | 680 | 680 | Runs Python + OpenCV algorithms |
| PoE Power Module | IEEE 802.3at | 1 | 65 | 65 | Centralized power supply for camera + Raspberry Pi |
| Control Layer | |||||
| PLC Controller | Siemens S7-1214C DC/DC/DC | 1 | 2500 | 2500 | Digital input/output control |
| Relay Module | OMRON G3MB-202P | 1 | 45 | 45 | Sorting valve drive |
| Electromagnetic Sorting Valve | SMC SY3120-5D1-C8 | 2 | 180 | 360 | Dual-position redundant design |
| Installation Accessories | |||||
| Camera Bracket | Aluminum Alloy Universal Bracket | 1 | 120 | 120 | Three-dimensional adjustment |
| Protective Enclosure | IP65 Waterproof Electrical Control Box | 1 | 300 | 300 | Dustproof and moisture-proof |
| Total | 5450 |
🔍 Cost Highlights: Compared to intelligent camera solutions that easily exceed 20,000 CNY, this system saves 73% in costs.
3. OpenCV Algorithm Hardware Adaptation Techniques

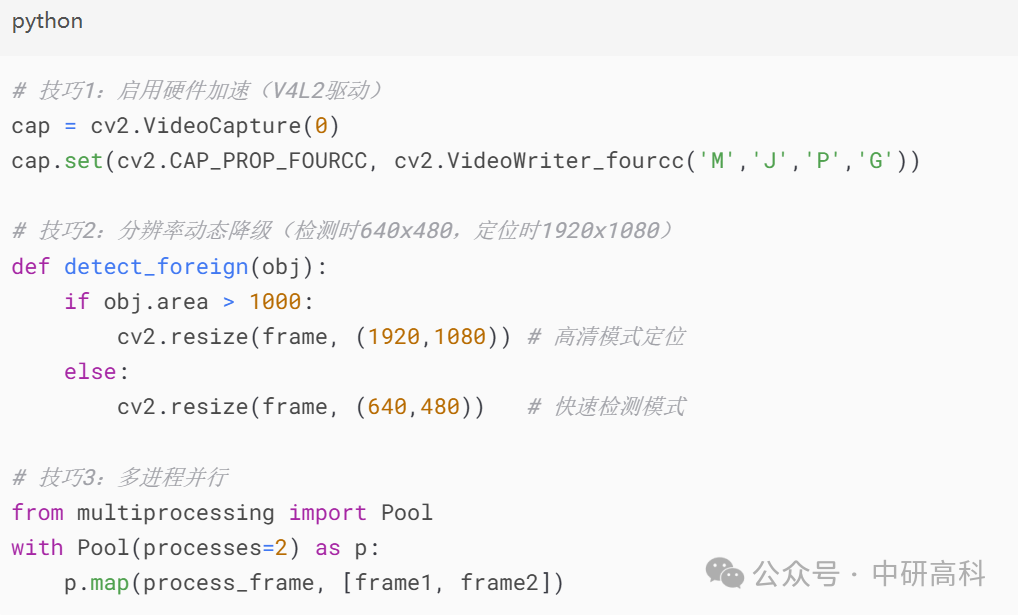

1. Three Tricks to Maximize Raspberry Pi Performance

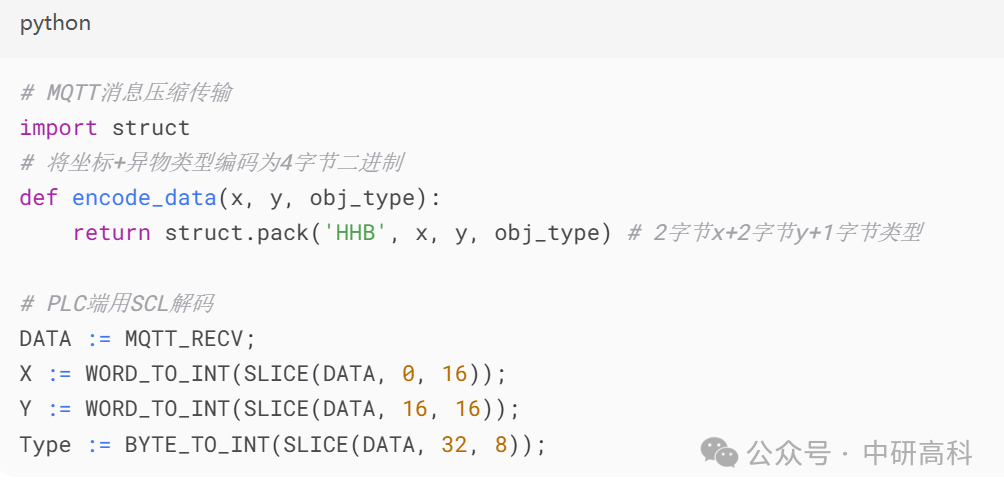

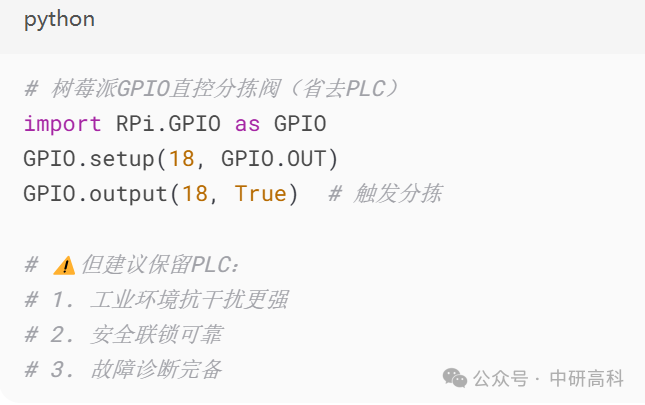

2. PLC Communication Optimization (Reducing IO Latency)
4. Cost vs Performance Empirical Comparison
| Detection Object | Traditional Photoelectric Solution | OpenCV Solution | Cost Reduction |
|---|---|---|---|
| Metal Screws | Not Recognizable | 99.2% | / |
| Rubber Fragments | 30% Miss Rate | 97.5% | / |
| Recognition Speed | 50ms | 120ms | / |
| Total Cost | 12,000 CNY | 5,450 CNY | 54.6% |
đź“Š Speed Bottleneck Analysis: The Raspberry Pi 4B has a delay of about 80ms when processing 1080P images, and the PLC response delay is 40ms.
5. Key Cost-Saving Points Revealed
1. Camera Selection for Cost Reduction

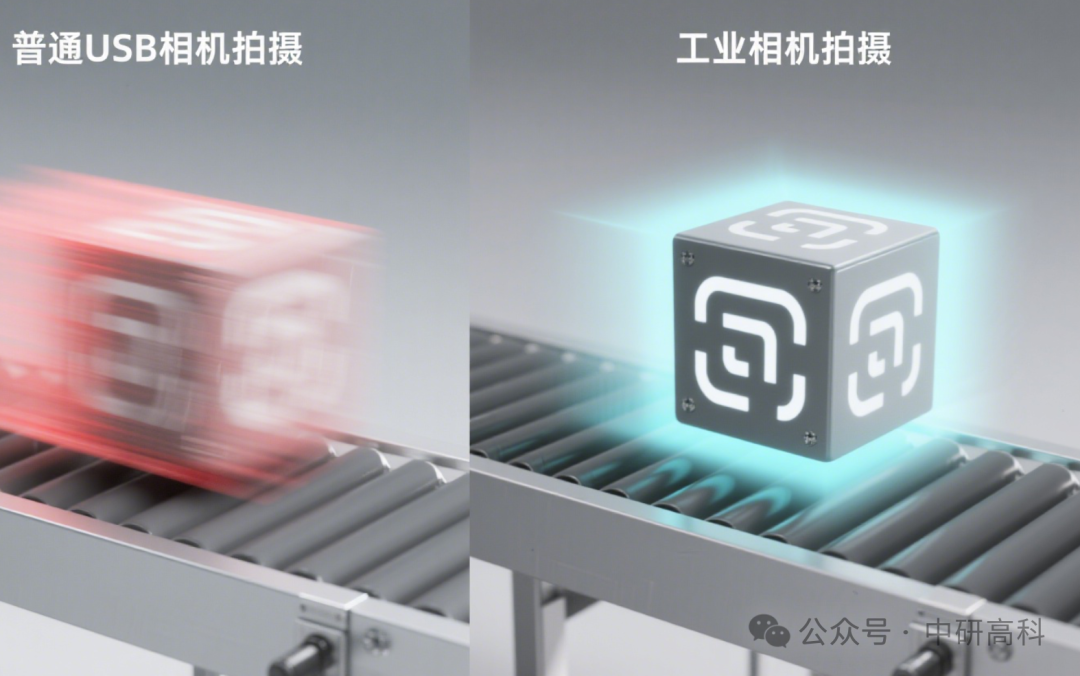

Technical Truth: By usingglobal shutter + LED strobe synchronizationtechnology, a standard USB 3.0 camera can achieve millisecond-level exposure without the need for a 2000 CNY+ GigE camera.

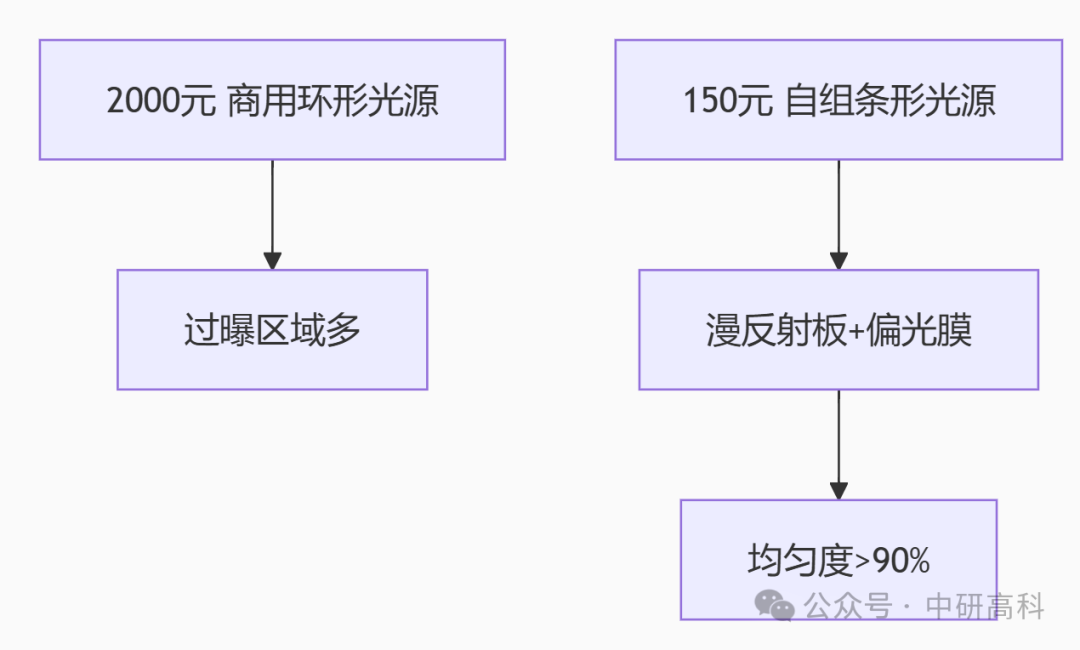

2. Alternative Light Source Solutions
6. Cost Trap Warnings
1. Invisible Cost Killers: Protection Systems
| Item | Saving Solution | Cost Impact |
|---|---|---|
| Optical Dust Protection | Air Curtain + Acrylic Cover | +350 CNY |
| Electromagnetic Compatibility | Add Magnetic Ring + Shielded Cable | +200 CNY |
| Cooling System | Turbine Fan + Heat Dissipation Holes | +80 CNY |

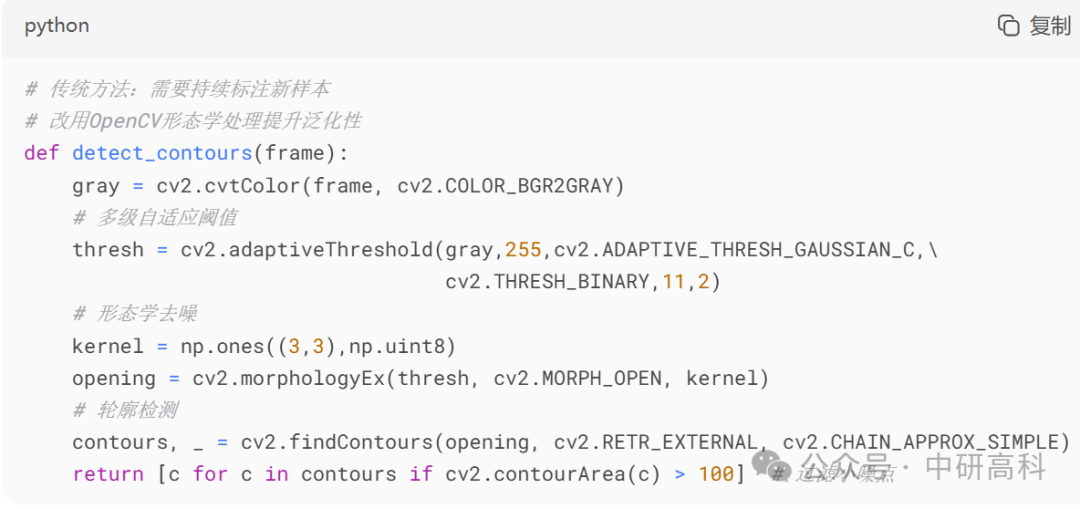

2. Algorithm Maintenance Costs
7. Recommended Configuration Solutions (Different Budget Options)
| Budget | Vision Solution | Edge Device | Sorting Accuracy | Applicable Scenarios |
|---|---|---|---|---|
| <3000 CNY | USB Network Camera | Raspberry Pi 3B+ | 85% | Low-speed paper sorting |
| 5000 CNY | Global Shutter Industrial Camera | Raspberry Pi 4B 4GB | 95% | General parts sorting line |
| >8000 CNY | Multi-Camera Coordination | Jetson Nano | 99%+ | High-speed precision sorting |
Engineer’s Maxim: When PLC meets Python, it is not about one replacing the other, but about giving the steel framework intelligent vision. The cost of this vision should not be a barrier to intelligent manufacturing—because the true industrial revolution begins with the democratization of technology at controllable costs.
