Smart Meter Production Line: PLC Vision-Guided Laser Marking Positioning System

As the meter casing flows through the production line at a speed of 0.8 seconds per unit, the deviation of the QR code engraved on the curved casing must be less than 0.05mm—

This is equivalent to tattooing an ant’s leg while traveling at high speed on a bullet train. The precision work that traditional mechanical positioning cannot achieve is being conquered by the “PLC + machine vision + laser” golden triangle.

1. The “Impossible Triangle” of Meter Marking

The production of smart meters faces three severe challenges:

1. Precision Deadline: A 2×2mm micro QR code must be 100% scannable (depth error ≤ 0.1mm)

2. Curved Surface Interference: The arc-shaped casing causes a laser focal length variation of ±3mm (see Figure 1)

3. Cycle Limit: The production speed requirement of 75 units per minute requires positioning response < 50ms

The failure rate of traditional mechanical fixture positioning is as high as 15%, becoming a bottleneck in production capacity.

2. The Technical Iron Triangle: Vision Positioning + PLC Scheduling + Laser Execution

🔍 Step 1: Machine Vision “Eagle Eye Positioning”

• High Frame Rate Camera (500fps) captures the moving meter

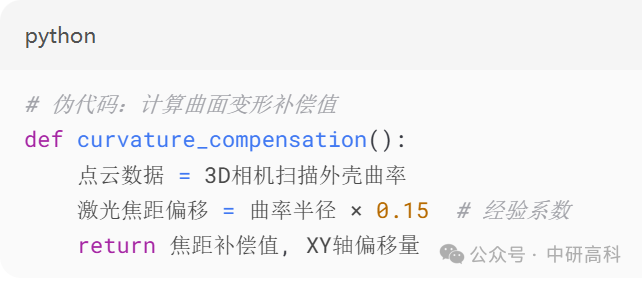

• Curved Surface Compensation Algorithm:

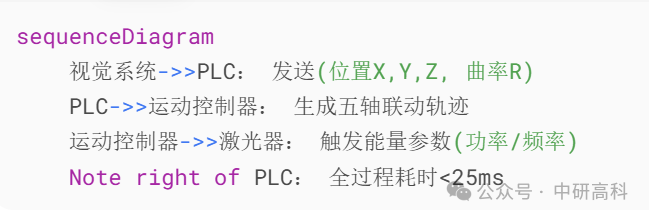

  🧠 Step 2: PLC’s “Super Brain Collaboration”

  PLC serves as the system’s core, completing millisecond-level scheduling:



  Key Technological Innovations:✅ Position Prediction Algorithm: Predicts coordinates 0.2s ahead based on conveyor belt speed✅ Dynamic Energy Adjustment: Automatically increases laser power by 20% for dark casings✅ Collision Protection Mechanism: Monitors equipment spacing in real-time, emergency stop for excessive error

  💥 Step 3: Laser “Micro Sculptor”

  3. Overcoming Three Major Industry Pain Points

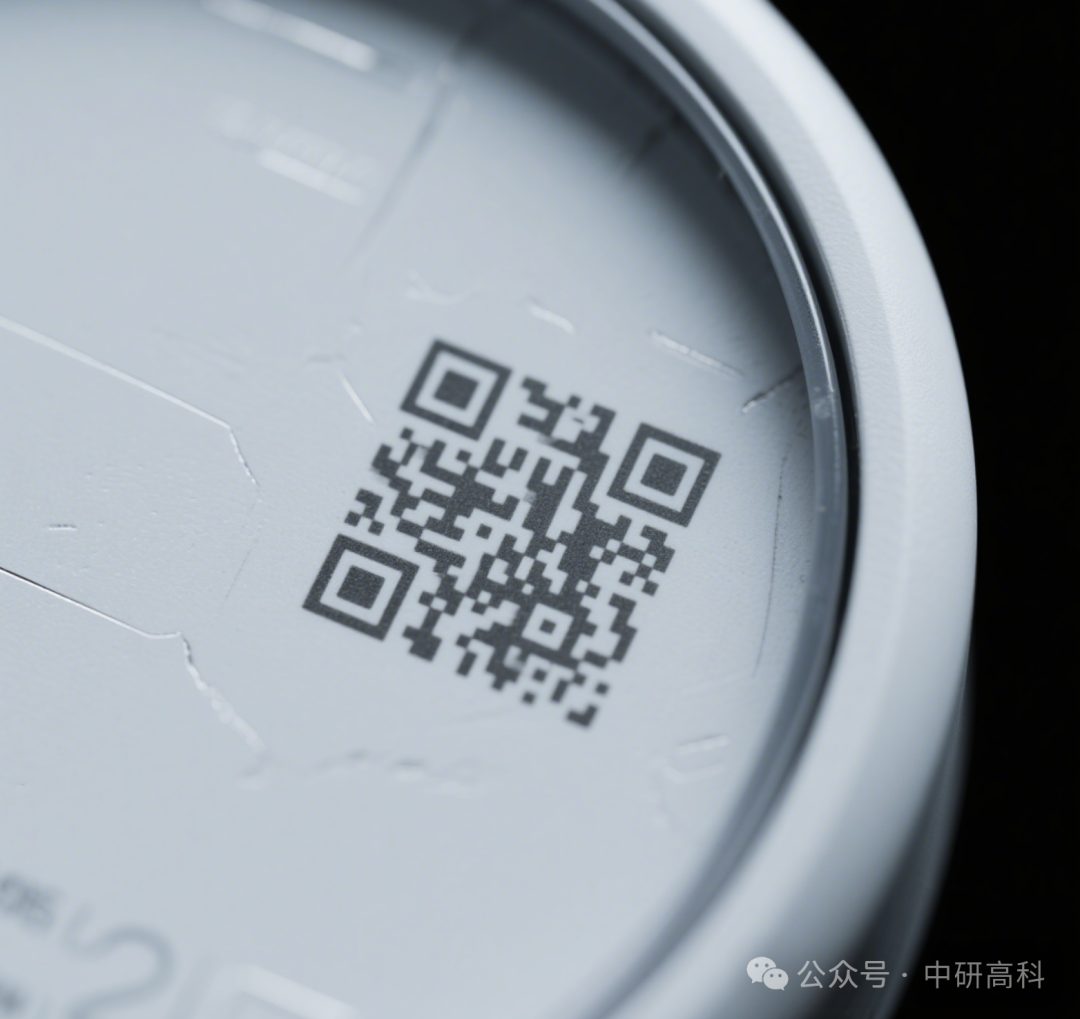

  ⚡ Pain Point 1: Misidentification of Reflective Surfaces

  ⚡ Pain Point 2: Thermal Deformation Drift

  ⚡ Pain Point 3: Mixed Line Production of Materials

  4. Efficiency Revolution: Data Speaks

  After a certain smart meter manufacturer implemented the system:

  Indicator	Before Transformation	After Transformation	Improvement Rate
  Marking Qualification Rate	85.6%	99.98%	↑14.38%
  Single Shift Capacity	21,600 units	32,400 units	↑50%
  Fixture Loss Cost	￥380,000/year	￥0	100%
  Changeover Time	45 minutes	Automatic Switching	No Downtime

  Customer Testimonial:“In the past, we were fined over 500,000 per month by the power grid due to blurry QR codes. After the new system went live, we achieved 18 months without complaints.”—— Production Director of a Meter Company in Ningbo

  5. Future Evolution: Digital Twin and AI Self-Optimization

  Conclusion: The Neural Hub of Precision Manufacturing

  This system is like equipping the production line with a “hand-eye-brain” integrated super organ:Machine vision is the keen “eye”,the laser galvanometer is the steady “hand”,and the PLC is the strategic “brain”. When the three are interconnected through industrial Ethernet,even a 0.05mm error becomes an unacceptable mistake—this is the precision revolution of smart manufacturing, the technological brilliance blooming in the small space of the meter.In the future, when millions of families scan to check their electricity usage,they will not realize that behind this tiny QR code is a continuous 0.8-second precision technological dance.

• Solution:Vision system automatically identifies casing types (A/B/C) → Calls corresponding marking parameter library



• Solution:Automatic baseline calibration every 30 minutes→ Cumulative error < 0.01mm over 8 hours of continuous operation

• Solution:Circular polarized light source + deep learning anti-glare model→ Recognition accuracy improved from 82% to 99.97%

• Galvanometer Laser: Achieves light path deflection through lens movement (non-mechanical movement)

• Layered Engraving Strategy:

  Level	Depth	Function
  L1	0.03mm	QR Code Base
  L2	0.07mm	Information Dot Matrix
  L3	0.01mm	Anti-Counterfeiting Micro Pattern

• Feature Point Recognition: Can locate reference holes even with 30% occlusion



1. Virtual Debugging: Previews parameter adjustment effects on the digital twin platform, reducing production line downtime

2. Intelligent Blade Grinding: Automatic laser power compensation (when energy decay is detected)

3. Blockchain Traceability: Marking data is uploaded to the blockchain in real-time, preventing tampering of anti-counterfeiting codes
