How to Use the ARM Math Library arm_math for Program Acceleration?

Source: Technology Makes Dreams Greater

Author: Li Xiaoyao

Recently, I have been using Nordic’s 52832 development board, which also belongs to the ARM Cortex M4 architecture. I won’t go into details about the chip; the main difference between M4 and M0/M3 is that it has an FPU (Floating Point Unit), which is exactly what I need.

Since the project involves related algorithms, including Kalman filtering, it requires support for floating-point instruction sets, making speed very important. After using the CMSIS DSP software library’s math library arm_math, the performance in mathematical operations can be dozens or even hundreds of times higher than that of M0/M3.

What is the CMSIS DSP Software Library?

The CMSIS DSP software library is a set of common signal processing functions for devices based on Cortex-M and Cortex-A processors. This library covers the following categories of functions:

  • Basic mathematical functions

  • Fast mathematical functions

  • Complex mathematical functions

  • Filtering functions

  • Matrix functions

  • Transform functions

  • Motor control functions

  • Statistical functions

  • Support functions

  • Interpolation functions

  • Support Vector Machine (SVM) functions

  • Bayesian classifier functions

  • Distance functions

This library typically has separate functions for operations on 8-bit integers, 16-bit integers, 32-bit integers, and 32-bit floating-point values.

Introduction to Library Usage

The library installer in the Lib folder contains pre-built versions of the library. Here is a list of the pre-built libraries:

  • arm_cortexM7lfdp_math.lib (Cortex-M7, little-endian, double-precision floating-point unit)

  • arm_cortexM7bfdp_math.lib (Cortex-M7, big-endian, double-precision floating-point unit)

  • arm_cortexM7lfsp_math.lib (Cortex-M7, little-endian, single-precision floating-point unit)

  • arm_cortexM7bfsp_math.lib (Cortex-M7, big-endian, single-precision floating-point unit)

  • arm_cortexM7l_math.lib (Cortex-M7, little-endian)

  • arm_cortexM7b_math.lib (Cortex-M7, big-endian)

  • arm_cortexM4lf_math.lib (Cortex-M4, little-endian, floating-point unit)

  • arm_cortexM4bf_math.lib (Cortex-M4, big-endian, floating-point unit)

  • arm_cortexM4l_math.lib (Cortex-M4, little-endian)

  • arm_cortexM4b_math.lib (Cortex-M4, big-endian)

  • arm_cortexM3l_math.lib (Cortex-M3, little-endian)

  • arm_cortexM3b_math.lib (Cortex-M3, big-endian)

  • arm_cortexM0l_math.lib (Cortex-M0 / Cortex-M0+, little-endian)

  • arm_cortexM0b_math.lib (Cortex-M0 / Cortex-M0+, big-endian)

  • arm_ARMv8MBLl_math.lib (Armv8-M baseline, little-endian)

  • arm_ARMv8MMLl_math.lib (Armv8-M mainline, little-endian)

  • arm_ARMv8MMLlfsp_math.lib (Armv8-M mainline, little-endian, single-precision floating-point unit)

  • arm_ARMv8MMLld_math.lib (Armv8-M mainline, little-endian, DSP instructions)

  • arm_ARMv8MMLldfsp_math.lib (Armv8-M mainline, little-endian, DSP instructions, single-precision floating-point unit)

Library functions are declared in the common file arm_math.h located in the Include folder. Simply include this file and link the appropriate library in your application to start using the library functions.

The library supports Cortex-M cores with both little-endian and big-endian configurations, and the same header file will be used for floating-point unit (FPU) variants.

How to Add Configuration Using Segger Embedded Studio

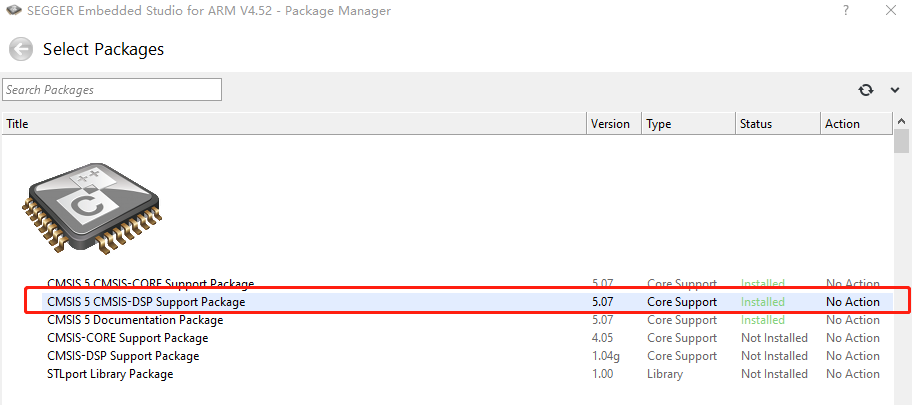

You can install directly in tools-->Package Manager. I have already installed CMSIS 5 CMSIS-DSP Support Package.

How to Use the ARM Math Library arm_math for Program Acceleration?

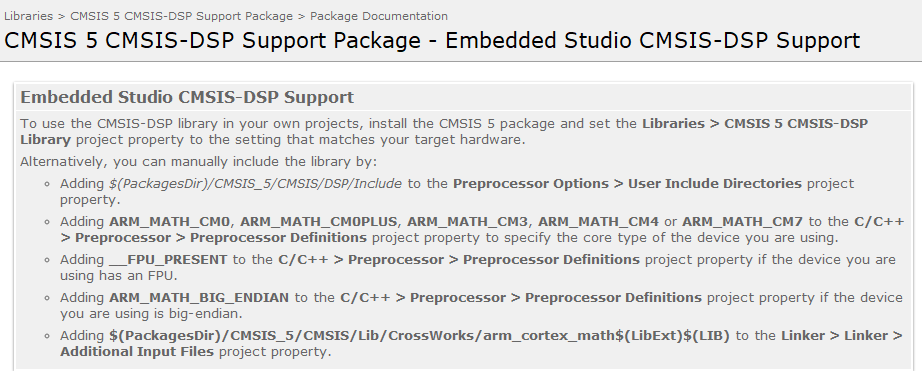

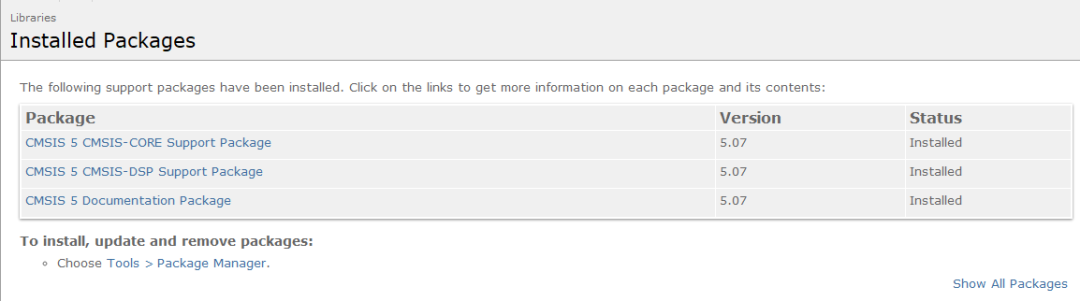

You can also click on the installed library to display the following image.

How to Use the ARM Math Library arm_math for Program Acceleration?

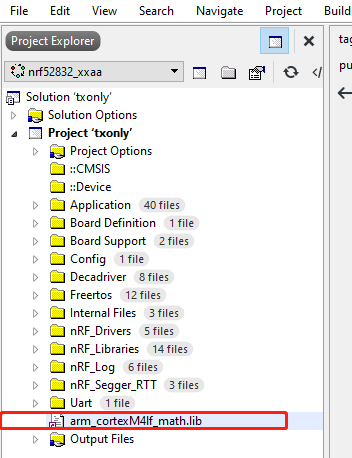

Then add it to the project. I am using arm_cortexM4lf_math.lib, as shown in the following image How to Use the ARM Math Library arm_math for Program Acceleration?

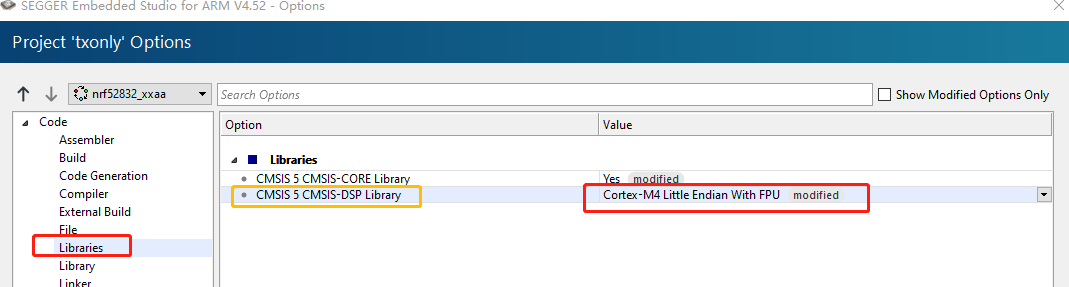

When using Segger Embedded Studio, you also need to set the project as shown in the following images.

How to Use the ARM Math Library arm_math for Program Acceleration?
How to Use the ARM Math Library arm_math for Program Acceleration?

File Structure of the CMSIS DSP Software Library

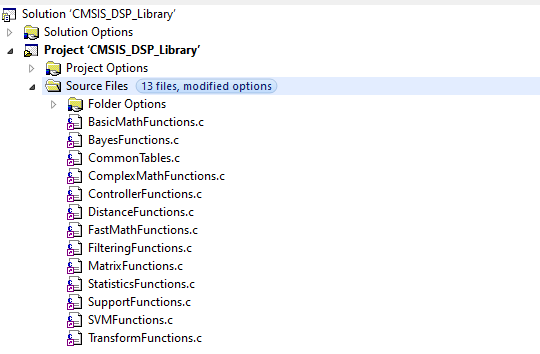

The following image shows the file structure of DSP_Lib.

How to Use the ARM Math Library arm_math for Program Acceleration?
How to Use the ARM Math Library arm_math for Program Acceleration?

Below are instructions for using each source file.

  • BasicMathFunctions

Provides various basic arithmetic functions for floating-point numbers, such as addition, subtraction, multiplication, and division. For M0/M3, only Q operations can be used, i.e., files ending with _q7, _q15, _q31; while M4F can directly perform hardware floating-point calculations, belonging to files ending with _f32.

  • CommonTables

The arm_common_tables.c file provides bit-reversal parameter tables.

  • ComplexMathFunctions

Complex mathematical functions, such as vector processing and modulus operations.

  • ControllerFunctions

Control functions, mainly for PID control functions.

  • FastMathFunctions

Fast mathematical function functions provide a 256-point cosine and sine function table and the ability to calculate cosine and sine values for any angle, as well as Q value square root calculations:

  • Arm_cos_f32/_q15/_q31.c: Provides a 256-point cosine function table and the ability to calculate cosine values for any angle.

  • Arm_sin_f32/_q15/_q31.c: Provides a 256-point sine function table and the ability to calculate sine values for any angle.

  • Arm_sqrt_q15/q31.c: Provides a function to compute square roots using an iterative method. For M4F, square root operations are completed by executing the VSQRT instruction.

  • FilteringFunctions

Filtering function capabilities, mainly for FIR and LMS (Least Mean Squares) filtering functions.

  • MatrixFunctions

Matrix processing functions.

  • StatisticsFunctions

Statistical function functions, such as calculating averages, computing RMS, calculating variance/standard deviation, etc.

  • SupportFunctions

Support function functions, such as data copying, conversion between Q format and floating-point format, and conversion between any Q format.

  • TransformFunctions

Transformation functions, including complex FFT (CFFT)/inverse complex FFT (CIFFT), real FFT (RFFT)/inverse real FFT (RIFFT), and DCT (Discrete Cosine Transform) along with associated initialization functions.

Preprocessor Macros

  • ARM_MATH_BIG_ENDIAN：

Defines the macro ARM_MATH_BIG_ENDIAN to build the library for big-endian targets. By default, the library is built for little-endian targets.

  • ARM_MATH_MATRIX_CHECK：

Defines the macro ARM_MATH_MATRIX_CHECK to check the input and output sizes of matrices.

  • ARM_MATH_ROUNDING：

Defines the macro ARM_MATH_ROUNDING for rounding support functions.

  • ARM_MATH_LOOPUNROLL：

Defines the macro ARM_MATH_LOOPUNROLL to enable manual loop unrolling in DSP functions.

  • ARM_MATH_NEON：

Defines the macro ARM_MATH_NEON to enable the Neon version of DSP functions. By default, it is not enabled since performance depends on the compiler and target architecture.

  • ARM_MATH_NEON_EXPERIMENTAL：

Defines the macro ARM_MATH_NEON_EXPERIMENTAL to enable certain DSP functions.

  • ARM_MATH_HELIUM：

Means flags ARM_MATH_MVEF and ARM_MATH_MVEI and ARM_MATH_FLOAT16.

  • ARM_MATH_MVEF：

Selects f32 algorithms, meaning ARM_MATH_FLOAT16 and ARM_MATH_MVEI.

  • ARM_MATH_MVEI：

Selects the version of algorithms for int and fixed-point.

  • ARM_MATH_FLOAT16：

Float16 implementations for some algorithms (requires MVE extension).

Applications and Testing

In extended Kalman filtering, there are many matrix inversion operations, such as the following function:

_Bool matrixAddF(DOUBLE_TEST* result, DOUBLE_TEST* m, unsigned int row, unsigned int col, DOUBLE_TEST add) {
   DOUBLE_TEST dt[row*col];
  memset(dt, add, sizeof(DOUBLE_TEST)*row*col);

  unsigned int i, j;
  for (i = 0; i < row; i++)
   for (j = 0; j < col; j++)
    result[i * col + j] = m[i * col + j] + add;
  return true;
}

Using the mathematical function acceleration can be changed to:

_Bool matrixAddF(DOUBLE_TEST* result, DOUBLE_TEST* m, unsigned int row, unsigned int col, DOUBLE_TEST add) {
   DOUBLE_TEST dt[row*col];
  memset(dt, add, sizeof(DOUBLE_TEST)*row*col);

  arm_mat_init_f32(&mtrin1, row, col, m);
  arm_mat_init_f32(&mtrin2, row, col, dt);
  arm_mat_init_f32(&mtrout, row, col, result);
  arm_mat_add_f32(&mtrin1, &mtrin2, &mtrout);
}

Another example:

_Bool matrixMult(DOUBLE_TEST* result, DOUBLE_TEST* m1, unsigned int row1, unsigned int col1, DOUBLE_TEST* m2, unsigned int row2, unsigned int col2) {
  if (col1 != row2)
     return false;

  unsigned int i, j, k;
  unsigned int M, N;
  M = row1;
  N = col2;
  DOUBLE_TEST sum = 0;
  for (i = 0; i < M; i++)
  {
   for (j = 0; j < N; j++)
   {
    sum = 0;
    for (k = 0; k < col1; k++)
     sum += m1[i * col1 + k] * (m2[k * col2 + j]);
   result[i * N + j] = sum;
   }
  }
  return true;
}

Can be changed to:

_Bool matrixMult(DOUBLE_TEST* result, DOUBLE_TEST* m1, unsigned int row1, unsigned int col1, DOUBLE_TEST* m2, unsigned int row2, unsigned int col2) {
  if (col1 != row2)
     return false;
  arm_mat_init_f32(&mtrin1, row1, col1, m1);
  arm_mat_init_f32(&mtrin2, row2, col2, m2);
  arm_mat_init_f32(&mtrout, row1, col2, result);
  arm_mat_mult_f32(&mtrin1, &mtrin2, &mtrout);

  return true;
}

The definition of arm_mat_init_f32 is in arm_math.h, as follows:

  /**
   * Floating-point matrix initialization
   * [in,out] S         points to an instance of the floating-point matrix structure.
   * [in]     nRows     number of rows in the matrix.
   * [in]     nColumns  number of columns in the matrix.
   * [in]     pData     points to the matrix data array.
   */
void arm_mat_init_f32(
        arm_matrix_instance_f32 * S,
        uint16_t nRows,
        uint16_t nColumns,
        float32_t * pData);

The arm_mat_add_f32 function is as follows:

  /**
   * Floating-point matrix addition
   * [in]  pSrcA  points to the first input matrix structure
   * [in]  pSrcB  points to the second input matrix structure
   * [out] pDst   points to output matrix structure
   * return     The function returns either
   */
arm_status arm_mat_add_f32(
  const arm_matrix_instance_f32 * pSrcA,
  const arm_matrix_instance_f32 * pSrcB,
        arm_matrix_instance_f32 * pDst);

The arm_mat_sub_f32 function is as follows:

  /**
   * Floating-point matrix subtraction
   * [in]  pSrcA  points to the first input matrix structure
   * [in]  pSrcB  points to the second input matrix structure
   * [out] pDst   points to output matrix structure
   * return     The function returns either
   */
arm_status arm_mat_sub_f32(
  const arm_matrix_instance_f32 * pSrcA,
  const arm_matrix_instance_f32 * pSrcB,
        arm_matrix_instance_f32 * pDst);

The structures arm_status and arm_matrix_instance_f32 defined in the above functions are as follows:

/**
 * Error status returned by certain functions in the library.
 */
typedef enum
{
  ARM_MATH_SUCCESS        =  0,        /**< No error */
  ARM_MATH_ARGUMENT_ERROR = -1,        /**< One or more arguments are incorrect */
  ARM_MATH_LENGTH_ERROR   = -2,        /**< Length of data buffer is incorrect */
  ARM_MATH_SIZE_MISMATCH  = -3,        /**< Size of matrices is not compatible with the operation */
  ARM_MATH_NANINF         = -4,        /**< Not-a-number (NaN) or infinity is generated */
  ARM_MATH_SINGULAR       = -5,        /**< Input matrix is singular and cannot be inverted */
  ARM_MATH_TEST_FAILURE   = -6         /**< Test Failed */
} arm_status;

/**
 * @brief Instance structure for floating-point matrix structure
 */
typedef struct
{
  uint16_t numRows;     /**< number of rows of the matrix.     */
  uint16_t numCols;     /**< number of columns of the matrix.  */
  float32_t *pData;     /**< points to the data of the matrix. */
} arm_matrix_instance_f32;

After testing, using hardware acceleration, my program’s running speed increased by 10 times, and running the extended Kalman filter is no longer slow.

Reference: https://www.keil.com/pack/doc/CMSIS/DSP/html/index.html
