How to Display Circuit Nodes in Multisim 12

Someone just asked me how to display circuit nodes in Multisim 12. After I told him, I suspected many forum friends might not know either, so I’m leaving this post for the convenience of everyone:

How to Display Circuit Nodes in Multisim 12

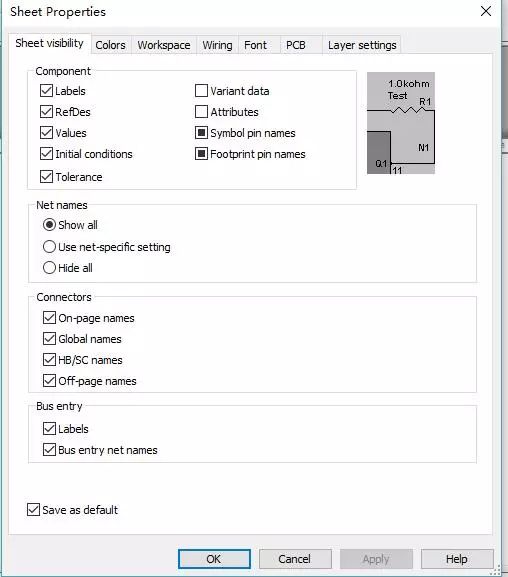

Select netnames show all

How to Display Circuit Nodes in Multisim 12

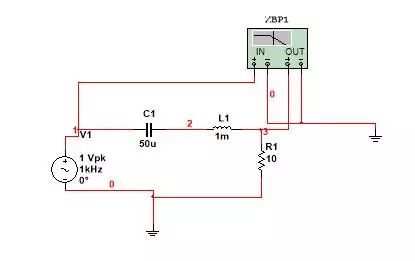

Now, if you check the circuit again, the circuit nodes will be displayed.

How to Display Circuit Nodes in Multisim 12

How to Display Circuit Nodes in Multisim 12How to Display Circuit Nodes in Multisim 12
