UDS DoIP Large File Transfer

This example demonstrates how to use UDS (Unified Diagnostic Services) to transfer large binary files to the ECU via the DoIP protocol, utilizing streaming file reading. This method is optimized for handling extremely large files without needing to load the entire file into memory at once.

Overview

This example implements a large file transfer sequence using the following UDS services:

• • RequestDownload (0x34) – Initiates the download process
• • TransferData (0x36) – Transfers data blocks sequentially
• • RequestTransferExit (0x37) – Completes the transfer process

Core Innovation: Streaming vs Traditional Method

Traditional Method (Previous Example)

// Old method: Load the entire file into memory at once
const hexStr = await fsP.readFile(hexFile, 'utf8')
const map = HexMemoryMap.fromHex(hexStr)
for (const [addr, data] of map) {
  pendingBlocks.push({ addr, data }) // All data loaded into memory
}

Limitations:

• • ❌ High memory consumption for large files
• • ❌ Risk of insufficient memory for multi-GB files
• • ❌ Slow startup time for large files
• • ❌ Cannot handle files larger than available RAM

Streaming Method (This Example)

// New method: Open file handle for streaming read
fHandle = await fsP.open(hexFile, 'r')

// Only read the data needed for the current transfer
const data = Buffer.alloc(maxChunkSize)
const { bytesRead } = await fHandle.read(data)

Advantages:

• • ✅ Memory Efficient: Loads only small chunks of data at a time
• • ✅ Scalable: Can handle files of any size (GB+)
• • ✅ Fast Startup: Begins transfer immediately
• • ✅ Real-time Processing: Reads data on demand
• • ✅ Low Resource Usage: Minimal memory footprint

Architecture and Process

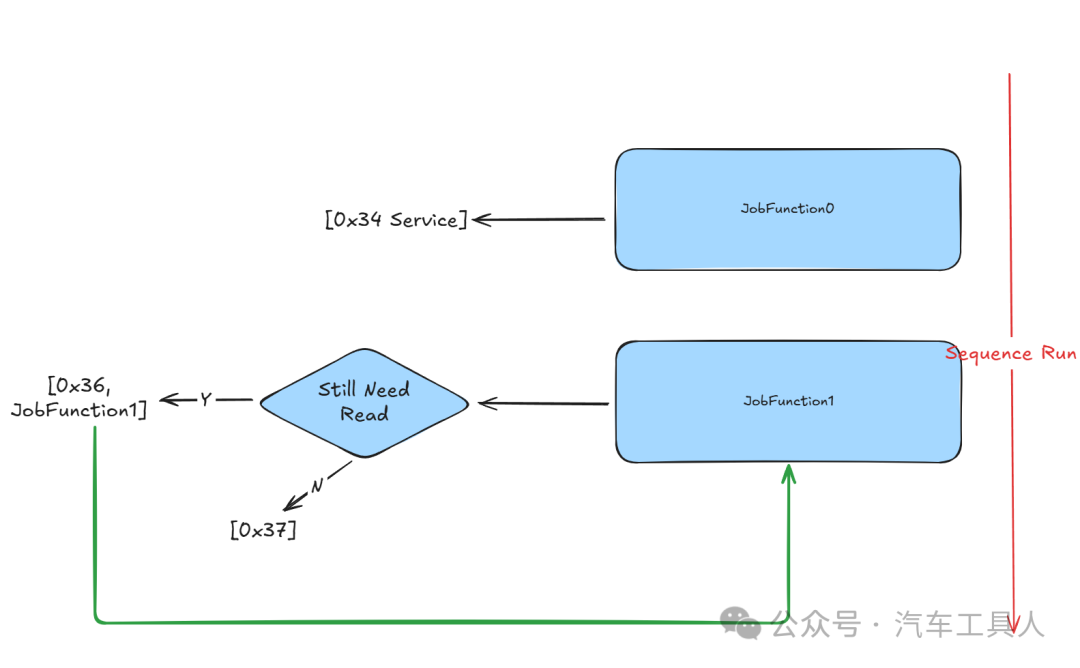

The transfer process follows this sequence:

1. 1. JobFunction0: Initiates download request and receives ECU capability information
2. 2. “Still Need Read” Check: Determines if more data needs to be transferred
3. 3. JobFunction1: Performs chunked data transfer using streaming read
4. 4. Sequential Processing: Continues until the entire file transfer is complete

Implementation Details

File Stream Setup

let fHandle: fsP.FileHandle | undefined

Util.Init(async () => {
  const hexFile = path.join(process.env.PROJECT_ROOT, 'large.bin')
  fHandle = await fsP.open(hexFile, 'r')  // Open for streaming read
})

Util.End(async () => {
  if (fHandle) {
    await fHandle.close()  // Properly clean up resources
  }
})

JobFunction0 – Download Initialization

Prepares for data reception by the ECU and negotiates transfer parameters:

Util.Register('Tester.JobFunction0', async () => {
if (fHandle) {
    const fileState = await fHandle.stat()
    console.log('File size:', fileState.size)

    const r34 = DiagRequest.from('Tester.RequestDownload520')
    const memoryAddress = Buffer.alloc(4)
    memoryAddress.writeUInt32BE(0)
    r34.diagSetParameterRaw('memoryAddress', memoryAddress)
    r34.diagSetParameter('memorySize', fileState.size)

    r34.On('recv', (resp) => {
      // Get maximum block size from ECU response
      maxChunkSize = resp.diagGetParameterRaw('maxNumberOfBlockLength').readUint32BE(0)
      maxChunkSize -= 2// Reserve space for sequence counter

      // Align to 8-byte boundary to optimize transfer
      if (maxChunkSize & 0x07) {
        maxChunkSize -= maxChunkSize & 0x07
      }
    })
    return [r34]
  }
return []
})

JobFunction1 – Streaming Data Transfer

Executes the actual file transfer using streaming read:

Util.Register('Tester.JobFunction1', async () => {
if (fHandle) {
    const list = []
    const data = Buffer.alloc(maxChunkSize)  // Reusable buffer

    // Transfer multiple blocks per batch (combine36 = 6)
    for (let i = 0; i < combine36; i++) {
      const { bytesRead } = await fHandle.read(data)  // Streaming read

      const transferRequest = DiagRequest.from('Tester.TransferData540')
      transferRequest.diagSetParameterSize('transferRequestParameterRecord', bytesRead * 8)
      transferRequest.diagSetParameterRaw(
        'transferRequestParameterRecord',
        data.subarray(0, bytesRead)  // Only send actual data
      )

      // Block sequence counter (1-255 loop)
      const blockSequenceCounter = Buffer.alloc(1)
      blockSequenceCounter.writeUInt8(cnt & 0xff)
      transferRequest.diagSetParameterRaw('blockSequenceCounter', blockSequenceCounter)
      cnt++

      list.push(transferRequest)

      // Check if more data remains
      if (bytesRead == maxChunkSize) {
        if (i == combine36 - 1) {
          // Continue to next batch
          list.push(DiagRequest.from('Tester.JobFunction1'))
        }
      } else {
        // Reached end of file
        console.log(`Read ${bytesRead} bytes, no more data to read.`)

        // Send transfer exit request
        const r37 = DiagRequest.from('Tester.RequestTransferExit550')
        r37.diagSetParameterSize('transferRequestParameterRecord', 0)
        list.push(r37)

        // Clean up resources
        await fHandle.close()
        fHandle = undefined
        break
      }
    }
    return list
  }
return []
})

Memory Usage Comparison

Method	1GB File	4GB File	10GB File
Traditional Method	~1GB RAM	~4GB RAM	~10GB RAM
Streaming Method	~4KB RAM	~4KB RAM	~4KB RAM

Use Cases

This streaming method is suitable for:

• • ECU Firmware Updates: Large binary files
• • Calibration Data Transfer: Automotive applications
• • Software Deployment: Embedded systems
• • Data Logging: Diagnostic information transfer
• • Any scenario requiring memory-efficient large file transfer

This implementation shows significant improvements over traditional methods, enabling reliable transfer of extremely large files in resource-constrained environments.
