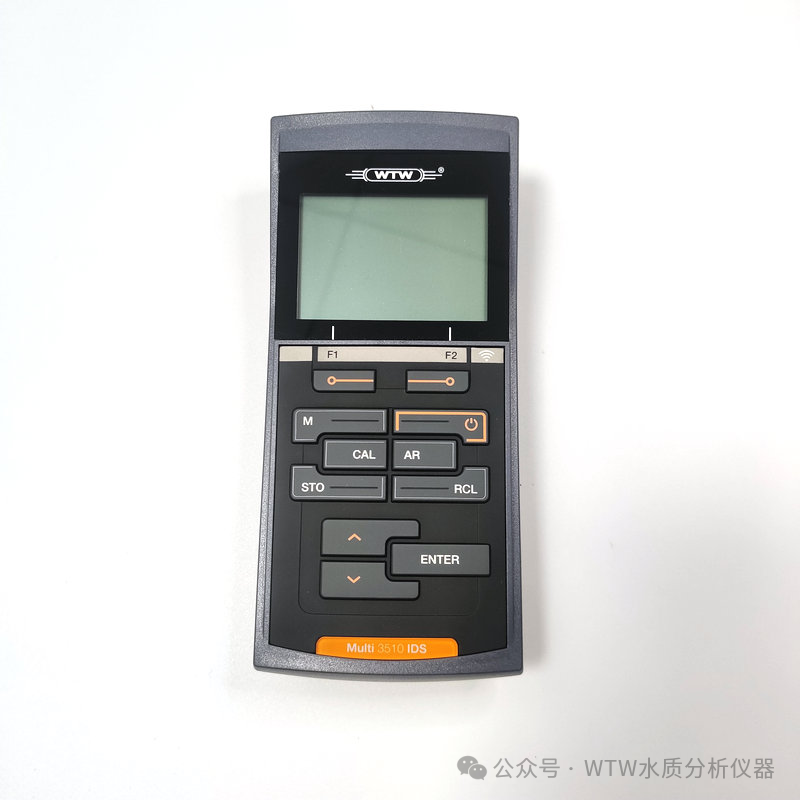

Germany WTW Multi 3510 IDS Portable Multi-Parameter Water Quality Analyzer
The Multi 3510 IDS multi-parameter water quality analyzer is a portable IDS digital technology device that features universal interfaces for connecting IDS sensors. It can wirelessly connect probes without the need for cables; it automatically recognizes digital probes, and the internal probe can automatically store calibration data and settings. The Germany WTW Multi 3510 IDS digital multi-parameter water quality analyzer probe has current isolation functionality, effectively avoiding signal interference.
The portable IDS digital technology multi-parameter water quality analyzer Multi 3510 IDS has universal x interfaces for connecting IDS sensors, capable of measuring pH, ORP, dissolved oxygen, conductivity/TDS/salinity, and turbidity (the Multi 3510 can only connect to one at a time).
Features and Advantages of the Germany WTW Multi 3510 IDS Portable pH/ORP/Conductivity/Dissolved Oxygen/Turbidity Multi-Parameter Water Quality Analyzer
● Supports wireless connection, optional wireless Bluetooth module to connect plug head sensors, allowing for measurements within a 10-meter wireless range.
● Automatically and intelligently recognizes digital sensors, with calibration data stored in the sensor, eliminating the need for recalibration when changing electrodes.
● Electrically isolated sensor connections prevent interference between electrodes during simultaneous measurements.
● To measure a specific parameter, simply purchase the corresponding sensor. It can connect both wired and wirelessly via a Bluetooth module, enabling you to measure samples in hard-to-reach areas (such as incubators, fume hoods, toxic gas zones, etc.).
● Features a color dot matrix screen; the battery can be charged directly on the device, extending battery life.
● Capable of storing nearly 10,000 data records.
● Equipped with a USB interface for data transfer at any time.
Technical Parameters of the Germany WTW Multi 3510 IDS Portable pH/ORP/Conductivity/Dissolved Oxygen/Turbidity Multi-Parameter Water Quality Analyzer
| Model | Multi 3510 IDS |
|---|---|
| Display | LCD graphical display |
| Storage | Manual 500/Automatic 4500 |
| Measurement Channel | 1 |
| Data Logger | Manual/Time-controlled |
| Interface | Micro USB-B |
| Protection Level | IP67 |
| Electrical Safety Class | III |
| Storage Temperature | -25℃ ～ +65℃ |
| Operating Temperature | +5℃ ～ +55℃ (battery) |
| +5℃ ～ +40℃ (when powered externally) | |
| Humidity Environment | Annual average: < 75% |
| 30 days to 1 year: 95% | |
| Other days: 85% | |
| Operating Time | Approximately 150h |
| Power Supply | 4×1.5V AA or 4×1.2V NiMH batteries (rechargeable) or USB powered |
| Safety Level | 1, DIN CDE 0700 part 1 11/90 |
| Dimensions | Approximately 180×80×55mm |
| Weight | Approximately 0.4kg |
| Test Certificates | CE, cETLus |
| Technical Parameters | |
| Pressure Range | 300 ～ 1100mbar |
| Pressure Accuracy | ±43mbar |
| pH Range/Accuracy | Depends on the sensor |
| ORP Range/Accuracy | Depends on the sensor |
| Dissolved Oxygen Range/Accuracy | Depends on the sensor |
| Conductivity Range/Accuracy | Depends on the sensor |
| Temperature Range/Accuracy | Depends on the sensor |
| Turbidity Range/Accuracy | Depends on the sensor |
